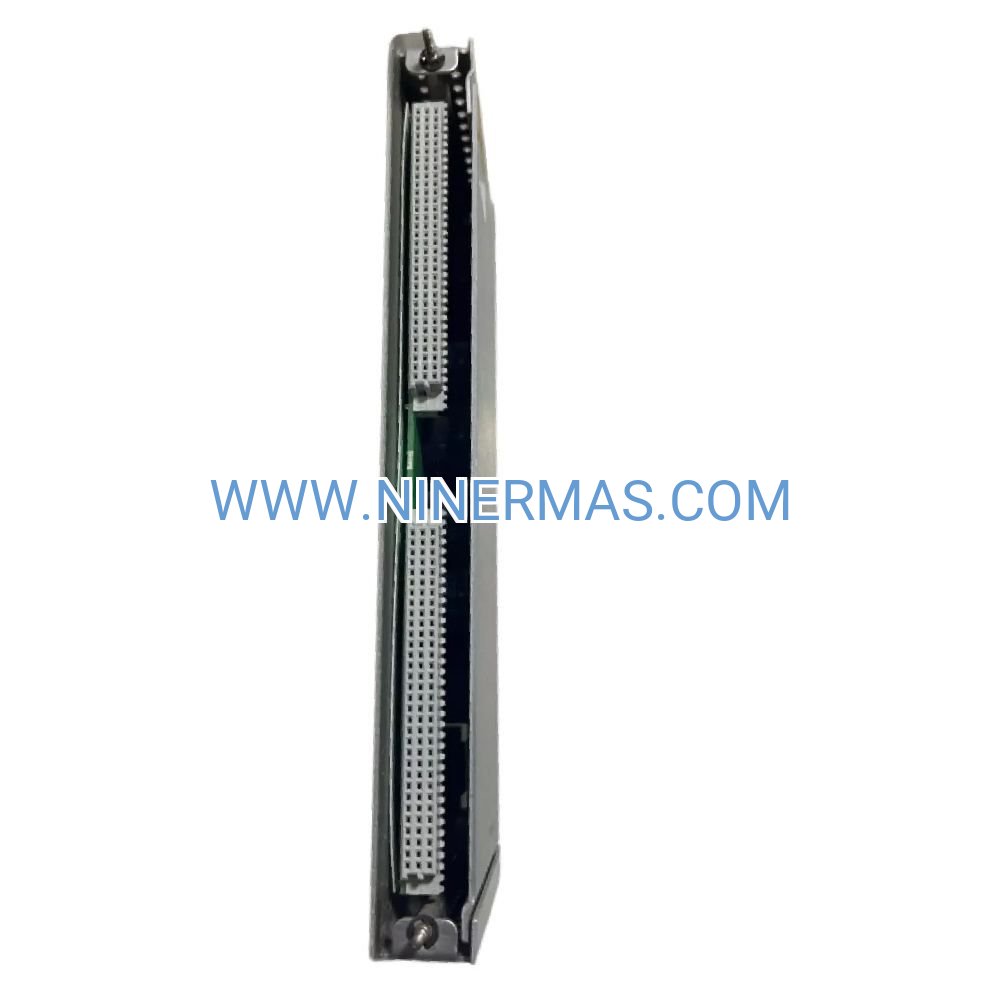

126648-02 Keyphasor I/O Module (Industrial-Grade Dual-Channel Phase Reference)

The Bently Nevada 3500/25 model 126648-02 delivers precision phase reference measurement for mission-critical turbomachinery applications. Engineered with dual isolated input channels, this Keyphasor I/O module processes independent transducer signals from rotating equipment, enabling accurate speed verification, phase angle determination, and synchronization monitoring across steam turbines, gas compressors, generators, and multi-shaft industrial machinery.

Designed for power generation facilities, petrochemical plants, and oil & gas operations, the 126648-02 addresses the challenge of reliable shaft position tracking in electrically harsh environments. Its galvanic isolation architecture eliminates ground loop interference while maintaining signal integrity—critical for protection systems that depend on microsecond-level timing accuracy. Plant engineers and reliability teams rely on this module to safeguard high-value rotating assets against catastrophic failures caused by phase imbalance, shaft misalignment, or synchronization errors.

With API 670 compliance, NIST-traceable calibration, and seamless integration into 3500 Series monitoring racks, the 126648-02 provides the foundation for predictive maintenance strategies that reduce unplanned downtime by up to 40% and extend equipment lifespan through early fault detection.

Core Features & Technical Advantages

→ Dual Isolated Input Architecture
Two fully independent Keyphasor channels with channel-to-channel and channel-to-ground isolation prevent cross-contamination of phase signals, supporting redundant monitoring configurations or simultaneous tracking of multiple shaft positions in complex machinery trains.

→ Enhanced EMI/RFI Immunity
Advanced shielding and filtering technology maintains signal clarity in high-noise industrial environments (up to 10 V/m field strength), ensuring reliable operation near VFDs, switchgear, and high-power transmission equipment.

→ Wide Operating Temperature Range
Certified for -30°C to +65°C operation, the module performs consistently in extreme climates—from Arctic gas processing facilities to Middle Eastern refineries—without thermal drift or calibration degradation.

✓ API 670 & ISO 20816 Compliance
Meets international machinery protection standards for vibration monitoring systems, satisfying regulatory requirements for critical equipment in power generation, upstream oil & gas, and chemical processing industries.

✓ Plug-and-Play 3500 Integration
Proprietary backplane communication protocol enables hot-swappable installation in 3500 racks without system reconfiguration, reducing maintenance windows from hours to minutes during module replacement.

✓ Factory-Calibrated Precision
Each unit ships with NIST-traceable calibration certificates documenting ±0.5% accuracy across the full operating range, eliminating field calibration requirements and accelerating commissioning timelines.

Industrial Application Scenarios

Steam Turbine Generator Sets
In combined-cycle power plants, the 126648-02 monitors turbine shaft phase angles to detect thermal bowing during startup sequences. Early identification of phase shifts prevents blade rubs that cause $500K+ repair costs and 30-day forced outages.

Centrifugal Compressor Trains
Petrochemical facilities use dual-channel monitoring to track driver and driven shaft positions independently, enabling torsional vibration analysis that predicts coupling failures 2-3 weeks before catastrophic separation events.

Multi-Stage Pump Systems
Water treatment and pipeline operators leverage isolated channels to monitor primary and booster pump shafts simultaneously, correlating phase data with flow rates to optimize energy consumption and reduce cavitation damage.

Generator Synchronization Networks
Utility-scale solar and wind farms employ the 126648-02 for grid-tie synchronization verification, ensuring phase alignment within ±2° before paralleling generators to prevent equipment damage from out-of-phase connections.

Offshore Platform Rotating Equipment
Oil & gas production platforms in corrosive marine environments benefit from the module's sealed construction and extended temperature rating, maintaining 99.7% uptime in applications where equipment access requires helicopter mobilization.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 126648-02 when your application requires dual independent Keyphasor inputs with enhanced isolation performance. For single-channel applications or less demanding electromagnetic environments, consider the 126648-01 variant. Applications requiring advanced diagnostics or extended temperature ranges beyond +65°C should evaluate the 149369-01 or 126398-01H models respectively.

Extended Capabilities

Redundant Monitoring Configurations: Deploy dual channels for 1oo2 (one-out-of-two) voting logic in SIL 2/3 safety instrumented systems, where independent phase measurements trigger protective shutdowns only when both channels detect fault conditions—reducing nuisance trips by 60%.

Multi-Shaft Machinery Analysis: Monitor driver and driven shafts simultaneously in gearbox applications, enabling torsional vibration analysis and gear mesh frequency tracking that identifies lubrication failures 4-6 weeks before tooth damage occurs.

Remote Diagnostics Integration: Module status data streams to SCADA/DCS platforms via 3500 rack communication interfaces, supporting predictive maintenance algorithms that schedule interventions during planned outages rather than emergency shutdowns.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via DHL/FedEx Express with full tracking. Typical transit times: North America 3-5 days, Europe 4-6 days, Asia-Pacific 5-7 days.

Custom Configurations: Factory-modified units (special cable lengths, conformal coating, extended testing) require 2-4 weeks lead time with expedited options available for critical outage support.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes advance replacement service—receive a swap unit within 48 hours while your original module undergoes factory repair.

Technical Support: Unlimited application engineering assistance via email/phone during business hours (GMT+8). Support includes configuration guidance, troubleshooting protocols, and integration documentation for 3500 rack systems.

Documentation Package: Each shipment includes installation manual, calibration certificate, dimensional drawings, and wiring diagrams in PDF format. CAD models (STEP/IGES) available upon request for panel design integration.

Frequently Asked Questions

What distinguishes the 126648-02 from the 126648-01 Keyphasor module?
The 126648-02 incorporates enhanced isolation circuitry with improved common-mode rejection (>100 dB vs. 80 dB) and superior EMI immunity, making it the preferred choice for installations near high-power electrical equipment or in facilities with poor grounding infrastructure.

Can this module interface with standard eddy current proximity probes?
No—the 126648-02 is engineered exclusively for Keyphasor transducer signals that provide once-per-revolution timing marks. For continuous gap measurement from standard proximity probes, specify Proximitor I/O modules (3300 XL series) instead.

How does dual-channel isolation improve measurement reliability?
Galvanic isolation prevents ground potential differences between transducer mounting locations from introducing noise into phase measurements. In multi-building facilities where ground potentials may differ by 10+ volts, isolation maintains signal accuracy within specification.

What is the typical power consumption per module?
The 126648-02 draws approximately 3.5 watts from the 3500 rack backplane power supply. A fully populated 14-slot rack can support up to 12 Keyphasor modules without exceeding power budget constraints.

Are firmware updates required for compatibility with newer 3500 rack controllers?
No—the module uses hardware-based signal processing without field-upgradable firmware. Compatibility is maintained across all 3500 rack generations through standardized backplane communication protocols.

Can I use this module in hazardous area classifications (Class I Div 2)?
The standard 126648-02 is suitable for general industrial environments. For hazardous locations, consult factory representatives regarding intrinsically safe barrier requirements or explosion-proof enclosure options.

Start Protecting Your Critical Assets Today

Reduce unplanned downtime and extend equipment lifespan with proven phase reference monitoring technology. Contact our technical team for application-specific configuration guidance, volume pricing for multi-unit projects, or expedited delivery options for emergency outage support.
