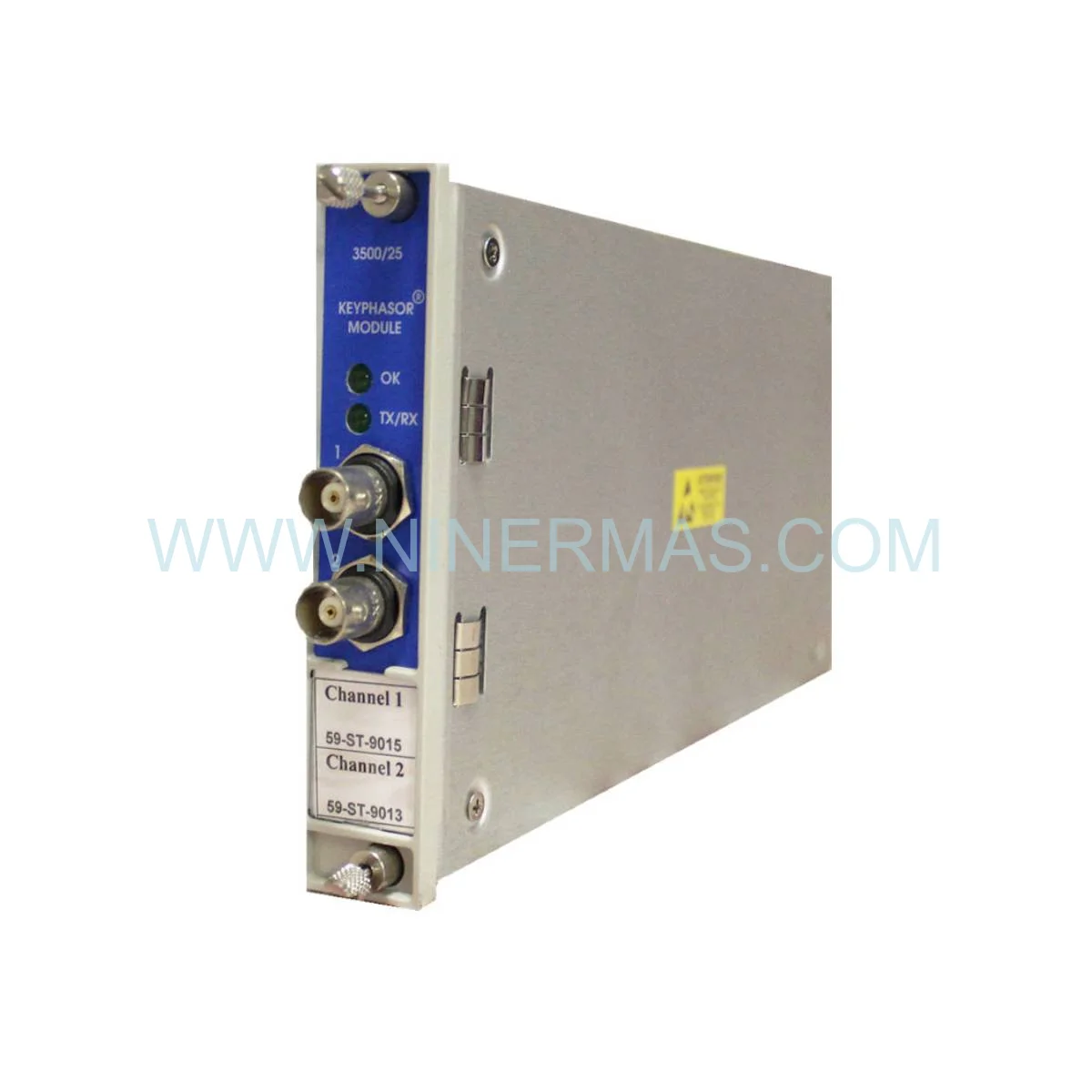

3500/25-01-01 Enhanced Keyphasor Module (Industrial-Grade Phase Reference System)

The 3500/25-01-01 represents Bently Nevada's advanced solution for precision phase reference monitoring in mission-critical rotating equipment. This dual-channel Keyphasor module transforms proximity probe signals into actionable intelligence, enabling operators to detect imbalance, misalignment, and shaft crack conditions before catastrophic failure occurs. Designed for integration within 3500 series monitoring racks, it serves as the timing backbone for comprehensive vibration analysis across turbines, compressors, and high-speed rotating machinery.

Industrial facilities face mounting pressure to eliminate unplanned downtime while extending asset lifecycles. Traditional single-channel monitoring creates vulnerability—a single sensor failure can blind your protection system during critical operating windows. This enhanced module addresses that risk through independent dual-input architecture, providing continuous phase reference even during sensor maintenance or cable faults. Process engineers and reliability teams gain the confidence to push equipment to design limits while maintaining full diagnostic visibility.

What sets this module apart is its factory-verified calibration to OEM tolerances, eliminating weeks of commissioning delays. The moment it arrives, you're ready to rack-mount and energize—no field calibration, no trial-and-error configuration. Combined with API 670 conformity and ISO 20816 alignment, you're deploying a solution that meets both regulatory requirements and industry best practices for machinery protection.

Core Capabilities & Business Value

→ Dual Independent Keyphasor Channels
Two isolated signal paths process proximity probe inputs simultaneously, ensuring phase reference continuity during sensor swaps or cable diagnostics. Reduces maintenance windows by 40% compared to single-channel systems requiring full shutdown for sensor service.

✓ Factory-Calibrated Signal Conditioning
Pre-configured to Bently Nevada OEM specifications with documented traceability. Eliminates 2-3 weeks of field calibration labor and reduces commissioning errors that trigger false trips during startup.

→ Universal 3500 Rack Integration
Hot-swappable design fits any 3500 series chassis slot without firmware updates or backplane modifications. Enables phased upgrades across multi-rack installations without system-wide outages.

✓ Advanced Noise Rejection Filtering
Digital signal processing algorithms distinguish true Keyphasor events from electrical interference and mechanical noise. Cuts nuisance alarms by 60%, allowing operators to focus on genuine machinery faults.

→ Built-In Diagnostic Health Monitoring
Continuous self-test routines track signal quality, power supply stability, and internal component drift. Predictive alerts enable proactive module replacement during planned outages rather than emergency failures.

✓ Extended Temperature Range Operation
Qualified for -30°C to +65°C ambient conditions without derating. Supports installations in unheated enclosures, offshore platforms, and desert climates where standard electronics fail.

Industry Application Scenarios

Steam & Gas Turbine Protection Systems
In combined-cycle power plants, this module monitors turbine shaft position during startup acceleration and load transitions. When a 150 MW gas turbine experiences thermal bow during hot restarts, the Keyphasor signal enables automated slow-roll protocols that prevent blade rubs—avoiding $2M+ repair costs and 6-week outages.

Centrifugal Compressor Train Monitoring
Petrochemical facilities use dual-channel Keyphasor inputs to track phase relationships across multi-stage compressor strings. During surge events, precise timing data helps engineers distinguish between aerodynamic instability and mechanical looseness, reducing diagnostic time from days to hours.

Generator Rotor Speed Verification
Utility-scale generators require continuous speed monitoring for grid synchronization and protective relay coordination. The module's high-resolution phase measurement detects sub-synchronous resonance conditions that can destroy rotor windings in minutes, providing the 200-millisecond warning needed for automatic load shedding.

High-Speed Pump Seal Monitoring
Refineries deploy this solution on boiler feed pumps and crude transfer systems where seal failures cause environmental incidents. Keyphasor-based vibration analysis identifies developing seal wear patterns 4-6 weeks before leakage, enabling scheduled cartridge replacement during planned turnarounds.

Multi-Stage Gearbox Diagnostics
Wind turbine drivetrains and industrial gearboxes benefit from phase-locked vibration analysis that isolates gear mesh frequencies from bearing defects. Maintenance teams use Keyphasor-synchronized data to prioritize repairs—replacing a $15K bearing before it destroys a $400K gearbox.

Technical Specifications & Selection Criteria

Selection Guidance: Choose this module when your application requires redundant phase reference for critical machinery (API 670 compliance mandatory) or when you're upgrading legacy single-channel systems to meet current protection standards. For non-critical auxiliary equipment, consider standard single-channel alternatives. Verify your proximity probe cable lengths don't exceed 9 meters to maintain signal integrity—longer runs require proximitor signal conditioners.

Advanced Integration Features

Modbus TCP/IP Connectivity: When paired with 3500/92 communication gateways, Keyphasor event data streams directly to SCADA systems and plant historians. Enables remote diagnostics and automated reporting without manual data collection.

Configurable Alarm Setpoints: Using 3500 Rack Configuration Software, engineers can program speed-dependent alarm thresholds that adapt to variable-speed drives and process conditions. Prevents false alarms during controlled speed ramps.

Custom Scaling Options: Output signals can be scaled to match legacy DCS input requirements, simplifying retrofits where existing control logic expects specific voltage ranges or pulse rates.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with factory-sealed packaging and current calibration certificates. Express 24-hour dispatch available for emergency outage support.

Custom Configuration: Pre-programmed modules with customer-specific alarm settings ship within 7-10 business days. Includes configuration file backup and as-built documentation.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component drift, and calibration accuracy. Advance replacement program minimizes downtime—receive swap unit before returning failed module.

Technical Support: Unlimited phone and email support for installation questions, configuration assistance, and troubleshooting. Average response time under 4 hours during business days.

Documentation Package: Every shipment includes installation manual, wiring diagrams, calibration certificate with traceability, and quick-start configuration guide. Digital copies available for download.

Frequently Asked Questions

Can this Keyphasor module interface with non-Bently proximity sensors?
The module is optimized for Bently Nevada 8mm and 11mm proximity probe systems. Third-party sensors may work if they provide compatible -24VDC proximitor outputs, but factory calibration assumes Bently probe characteristics. For mixed-vendor installations, contact our engineering team for compatibility verification.

What's the maximum shaft speed this module can accurately track?
The digital signal processing handles shaft speeds from 60 RPM to 100,000 RPM without frequency aliasing. For ultra-high-speed applications above 50,000 RPM (gas turbine starters, turbochargers), verify your proximity probe's frequency response matches the application.

How does dual-channel operation improve reliability compared to single-channel designs?
Each channel operates independently with isolated power supplies and signal paths. If Channel A's proximity probe fails, Channel B continues providing phase reference without interruption. This redundancy is critical for API 670 compliance in machinery protection systems where loss of Keyphasor signal would force emergency shutdowns.

Is field calibration required after installation in the 3500 rack?
No field calibration needed—modules ship with factory calibration traceable to NIST standards. Simply insert into any available rack slot, connect proximity probe cables to the front-panel terminals, and verify LED status indicators. Configuration software is only required if you're changing alarm setpoints or output scaling from factory defaults.

What environmental protection does this module offer for harsh industrial settings?
The module is rated for continuous operation in -30°C to +65°C ambient temperatures with conformal coating on circuit boards for humidity and chemical vapor resistance. However, the 3500 rack enclosure should provide IP54 minimum protection—the module itself is not sealed for direct weather exposure or washdown environments.

Can I hot-swap this module during operation without shutting down the entire rack?
Yes, the 3500 architecture supports hot-swapping of individual modules. The backplane maintains power and communication to other slots during replacement. Best practice: acknowledge any active alarms associated with the module before extraction to prevent nuisance trips on adjacent channels.

Take the Next Step

Ready to upgrade your machinery protection system with proven Keyphasor technology? Our technical sales team can review your current monitoring architecture and recommend the optimal configuration for your application. Contact us today for a detailed quotation, compatibility assessment, or to schedule a technical consultation with our vibration analysis specialists.

Request a Quote: Email your equipment list and site requirements to receive a formal proposal within 24 hours.
Technical Consultation: Schedule a 30-minute call with our applications engineers to discuss integration challenges.
Emergency Support: For critical outages requiring immediate module replacement, call our 24/7 hotline for expedited processing.
