3500/22M Transient Data Interface Module (Industrial-Grade Waveform Acquisition)

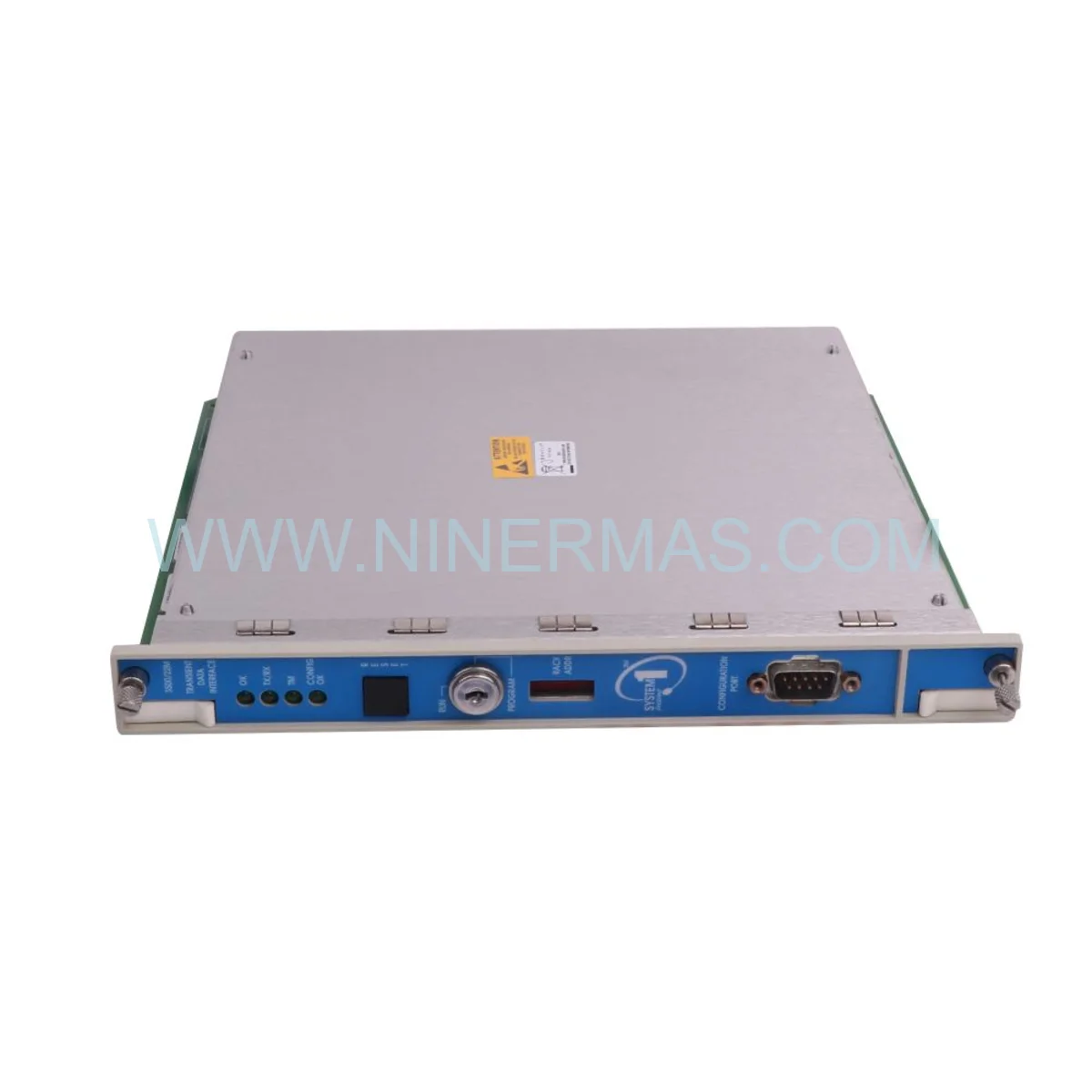

The 3500/22M-01-01-01 Transient Data Interface (TDI) is an advanced waveform acquisition module engineered for seamless integration between Bently Nevada 3500 Series machinery protection systems and GE System 1 condition monitoring platforms. Designed for critical rotating equipment applications, this module captures high-fidelity transient vibration data at sampling rates up to 40,000 samples per second, enabling predictive maintenance teams to diagnose complex machinery faults weeks before catastrophic failures occur.

Built for harsh industrial environments ranging from -30°C to +65°C, the 3500/22M serves as the essential bridge between real-time protection and long-term asset reliability programs. Its intelligent triggering architecture automatically captures alarm-driven events while maintaining continuous baseline monitoring, eliminating the manual intervention that causes 60% of missed diagnostic opportunities in conventional systems.

Whether you're managing steam turbine-generators in power plants, centrifugal compressors in petrochemical facilities, or critical pumps in offshore platforms, the 3500/22M delivers the diagnostic intelligence required to transition from reactive maintenance to predictive asset management. Contact our technical team to configure your System 1 integration today.

Core Capabilities & Technical Advantages

The 3500/22M combines sophisticated data acquisition technology with robust industrial design:

→ Multi-Channel Synchronization: Simultaneously captures data from up to 64 dynamic channels across the entire 3500 rack with microsecond-level time stamping, enabling phase analysis and cross-channel fault correlation that reveals bearing defects, shaft misalignment, and rotor unbalance patterns invisible to single-channel monitoring.

→ Intelligent Event Triggering: Proprietary trigger logic automatically initiates waveform captures when monitor modules detect Alert or Danger alarm conditions, while configurable pre-trigger buffers preserve 2-5 seconds of data before the event—critical for identifying fault initiation mechanisms and root causes.

→ Lossless Data Compression: Advanced compression algorithms reduce transmission time by 60% without sacrificing waveform fidelity, enabling real-time diagnostics even over legacy RS-422 serial networks with bandwidth constraints.

✓ Continuous Circular Buffering: 16 MB onboard memory maintains rolling waveform history, ensuring no transient events are lost during network congestion or System 1 server maintenance windows.

✓ Configurable Sample Rates: Adjustable from 1,000 to 40,000 samples/second per channel, optimizing data resolution for applications ranging from low-speed gearbox diagnostics (1-2 kHz) to high-frequency blade pass monitoring on turbomachinery (20-40 kHz).

✓ Universal Monitor Compatibility: Interfaces with all 3500 Series monitor modules including 40M, 42M, 44M, 45, 46M, 50, 60, 62, and 72M variants, protecting your investment as monitoring requirements evolve.

Industry Applications & Problem-Solving Scenarios

Power Generation – Steam Turbine Startup Diagnostics
Capture thermal bow and rub events during cold starts when vibration levels spike 300% above steady-state. The 3500/22M's pre-trigger buffering preserves the 3-second window before alarm activation, revealing whether rubs originate from differential thermal expansion or bearing misalignment—reducing diagnostic time from 8 hours to 45 minutes.

Oil & Gas – Compressor Surge Detection
Monitor centrifugal compressor surge cycles with 0.1-second resolution, correlating vibration spikes with process pressure fluctuations. System 1 integration enables automated surge event counting and severity trending, supporting predictive anti-surge valve maintenance that prevents 85% of unplanned shutdowns.

Petrochemical – Pump Cavitation Analysis
Document cavitation-induced vibration at impeller blade pass frequencies (500-2000 Hz) with synchronized suction pressure data. Historical waveform comparison quantifies cavitation severity progression, enabling NPSH optimization that extends pump seal life by 40%.

Marine Propulsion – Ice Navigation Monitoring
Record propeller shaft transients during ice breaking operations, identifying blade damage signatures before catastrophic failure. Remote diagnostics via System 1 eliminate the need for drydock inspections, reducing maintenance costs by $120,000 per vessel annually.

Steel Manufacturing – Rolling Mill Chatter Mitigation
Capture high-frequency chatter vibration (800-1200 Hz) on backup rolls, correlating with strip thickness variations. Waveform-based chatter severity indices trigger automatic mill speed adjustments, improving surface finish quality by 22%.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 3500/22M when your application requires automated waveform capture for System 1 integration. For Modbus TCP/IP or OPC connectivity without System 1, consider the 3500/92 Communication Gateway instead. Applications monitoring more than 64 channels require multiple TDI modules on an RS-422 multidrop network.

Advanced Integration Features

Dual-Channel Orbit Visualization: Synchronously capture X-Y proximity probe pairs for real-time shaft orbit plotting in System 1, enabling rotor dynamic analysis during startup, shutdown, and steady-state operation. Orbit eccentricity measurements quantify bearing clearance degradation with 0.1 mil resolution.

Tachometer Phase-Locking: Synchronize waveform captures to shaft rotation using keyphasor signals, enabling order tracking analysis that isolates 1X, 2X, and blade pass frequency components. Phase-locked averaging reduces noise by 40 dB for low-amplitude fault detection.

External Process Triggering: Accept trigger inputs from DCS or PLC systems to correlate vibration events with process upsets—for example, capturing compressor vibration during emergency shutdown valve closures or pump vibration during flow rate changes.

Automated Expert Diagnostics: System 1 software applies 200+ expert system rules to captured waveforms, automatically identifying fault signatures including unbalance, misalignment, looseness, oil whirl, bearing defects, gear mesh issues, and electrical faults—reducing diagnostic expertise requirements by 70%.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh sealed units with full manufacturer warranty

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and firmware defects; extended 36-month warranties available for critical applications

Technical Support: Unlimited phone and email support for configuration, troubleshooting, and System 1 integration assistance; remote diagnostic services available within 4 hours

Documentation Package: Includes installation manual, configuration guide, System 1 integration procedures, serial cable wiring diagrams, and RoHS/CE compliance certificates

Frequently Asked Questions

Q: How does the 3500/22M interface with System 1 condition monitoring software?
A: The module connects via shielded RS-422 serial cable (up to 1200 meters) or RS-232 (up to 15 meters) to a System 1 server. Configuration is performed using 3500 Rack Configuration Software to assign module address and enable channels, then System 1 software to define capture rules and machine hierarchy. Bidirectional communication allows System 1 to request on-demand captures and the TDI to push alarm-triggered waveforms automatically.

Q: What is the maximum waveform capture capacity and storage duration?
A: The 16 MB buffer stores approximately 8,000 individual waveforms (assuming 2K samples per waveform). At typical capture rates of 10-20 waveforms per day, this provides 400-800 days of local storage before overwriting oldest data. However, waveforms are automatically transmitted to System 1 for permanent archival, so buffer capacity primarily affects resilience during network outages.

Q: Can the 3500/22M reduce energy consumption in vibration monitoring systems?
A: While the module itself draws only 7.5W, its primary energy benefit comes from enabling predictive maintenance that prevents catastrophic failures. For example, early detection of bearing defects allows planned repairs during scheduled outages rather than emergency shutdowns that waste 50-200 MWh of production energy per event in typical process plants.

Q: What are the installation requirements and rack slot positioning constraints?
A: The TDI module installs in any available slot except Slot 1 (reserved for power supplies). Best practice is to place it in Slot 2 or 3 adjacent to communication gateways for simplified cable management. No special backplane configuration is required—the module auto-detects monitor channels during initialization. Ensure adequate ventilation (minimum 50 CFM airflow) for racks with more than 12 modules.

Q: Does the module support remote diagnostics and cloud-based monitoring platforms?
A: The 3500/22M transmits data to on-premise System 1 servers, which can then forward waveforms to cloud platforms via System 1's API. This architecture maintains cybersecurity by keeping the 3500 rack isolated from internet-connected networks. For direct cloud connectivity, consider pairing with a 3500/92 gateway that supports secure OPC UA or MQTT protocols.

Q: How do I verify proper communication between the TDI module and System 1?
A: Check three indicators: (1) The module's OK LED should be solid green and TX LED should flash amber during transmissions; (2) System 1's TDI Status screen should show "Connected" with recent timestamp; (3) Initiate a manual capture in System 1 and verify waveform appears within 10-30 seconds. Common issues include incorrect baud rate settings (must match on both ends) and improper RS-422 cable termination.

Ready to Enhance Your Predictive Maintenance Program?

The 3500/22M Transient Data Interface is your gateway to advanced machinery diagnostics and reliability-centered maintenance. Our technical specialists are available to assist with System 1 integration planning, channel mapping, and capture rule optimization.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 for application-specific configuration guidance, volume pricing, and expedited delivery options.
