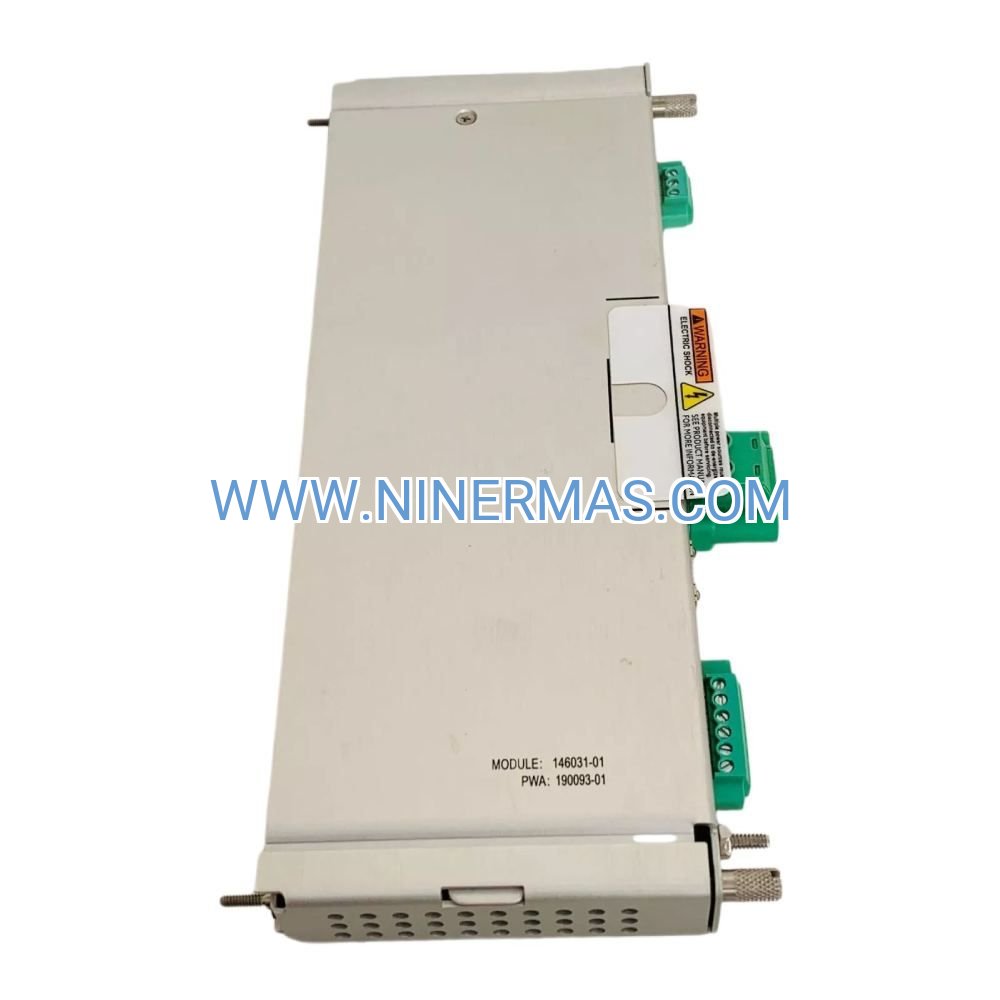

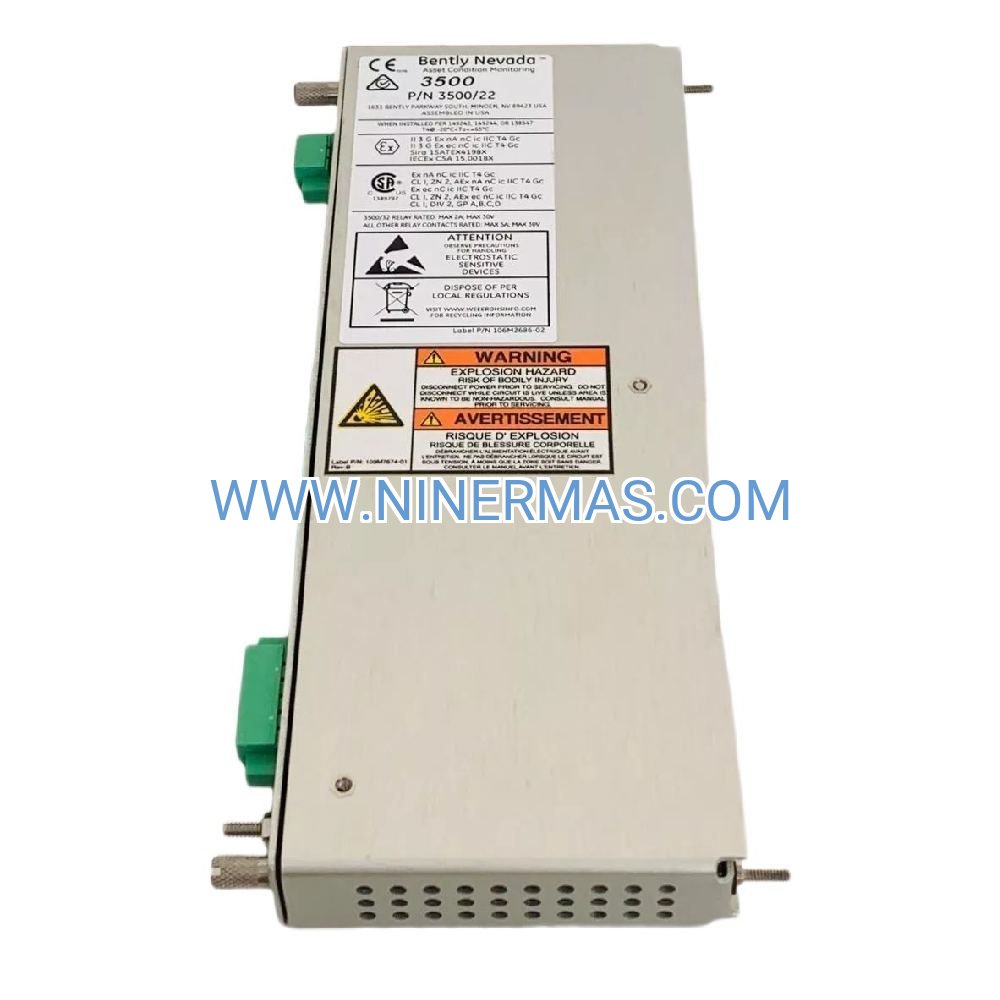

146031-01 Transient Data Interface Module (Industrial-Grade Ethernet I/O)

The Bently Nevada 146031-01 represents a mission-critical component in the 3500/22 Series ecosystem, engineered to deliver high-fidelity transient waveform capture and Ethernet-based data streaming for rotating machinery protection systems. Designed for industries where equipment failure is not an option, this TDI module bridges legacy monitoring infrastructure with modern IIoT platforms, enabling predictive maintenance strategies that reduce catastrophic failures by up to 85%.

Built for power generation facilities, offshore oil platforms, and continuous-process manufacturing environments, the 146031-01 addresses the core challenge of real-time machinery health visibility. Traditional monitoring systems often miss critical transient events—bearing defects, shaft cracks, or lubrication failures—that occur in milliseconds. This module captures those fleeting anomalies at sampling rates exceeding 40 kHz, transmitting actionable intelligence to maintenance teams before minor issues escalate into multi-million-dollar shutdowns.

What sets the 146031-01 apart is its dual-mode operation: continuous steady-state trending combined with event-triggered transient recording. Maintenance engineers gain both the long-term vibration baseline data needed for trend analysis and the high-resolution snapshots required for root-cause diagnostics. The integrated 10/100 Mbps Ethernet interface supports the Bently Nevada Host Protocol, ensuring seamless integration with System 1 software, third-party SCADA platforms, and cloud-based analytics engines.

Core Capabilities & Business Impact

→ High-Speed Transient Capture: Records vibration events at 40+ kHz sampling rates, detecting bearing defects, rub events, and shaft cracks invisible to standard 1 Hz trending systems. Reduces diagnostic time from days to hours.

→ Ethernet-Native Architecture: Eliminates proprietary communication bottlenecks with standard TCP/IP connectivity. Integrates directly with enterprise historians, mobile dashboards, and remote monitoring centers—no protocol converters required.

→ Hot-Swappable Design: Field-replaceable without rack power-down or system reconfiguration. Minimizes MTTR (Mean Time To Repair) from 4+ hours to under 15 minutes during emergency maintenance.

✓ Dual-Channel Data Streaming: Simultaneously transmits static (1 Hz) and dynamic (40 kHz) data streams, supporting both long-term trending and forensic analysis workflows without bandwidth compromise.

✓ Industrial-Hardened Construction: Operates reliably in -30°C to +65°C environments with 95% humidity tolerance. Conformal-coated PCBs resist corrosive atmospheres in chemical plants and marine installations.

✓ Zero-Configuration Compatibility: Auto-detects 3500 rack position and monitor module types. Plug-and-play installation reduces commissioning time by 60% compared to legacy TDI modules.

Industry Applications & Problem Resolution

Power Generation – Steam & Gas Turbine Monitoring:
Challenge: Turbine blade failures cause $2M+ in lost generation revenue per incident.
Solution: The 146031-01 detects blade-pass frequency anomalies 72 hours before visible damage, enabling planned outages during low-demand periods. One utility avoided $8.3M in emergency repairs using transient data from this module.

Oil & Gas – Offshore Compressor Protection:
Challenge: Compressor failures on unmanned platforms require costly helicopter mobilizations and production shutdowns.
Solution: Ethernet connectivity enables 24/7 remote monitoring from onshore control centers. Predictive alerts reduced offshore maintenance visits by 40% while improving equipment availability to 99.2%.

Petrochemical – Critical Pump Reliability:
Challenge: Unplanned pump failures in continuous-process units trigger facility-wide shutdowns costing $500K/hour.
Solution: Transient waveform analysis identified cavitation and impeller imbalance 14 days before traditional vibration limits were exceeded, allowing maintenance during scheduled turnarounds.

Manufacturing – High-Speed Production Lines:
Challenge: Gearbox failures in paper mills cause 12+ hour production losses and $150K in emergency parts procurement.
Solution: The module's 40 kHz capture rate detects gear tooth micro-pitting at early stages, extending gearbox life by 35% through condition-based lubrication adjustments.

Marine Propulsion – Ship Engine Diagnostics:
Challenge: Engine bearing failures at sea require expensive port diversions and drydock repairs.
Solution: Real-time transient data transmitted via satellite links enables shore-based vibration specialists to diagnose issues remotely, reducing unscheduled port calls by 55%.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 146031-01 when your application requires Ethernet connectivity for remote monitoring or SCADA integration. For standalone systems without network requirements, consider the standard 3500/22 TDI module. Ensure your 3500 rack firmware is version 5.05 or later for full compatibility. Network bandwidth planning: allocate 2 Mbps per module for continuous streaming applications.

Advanced Integration & Customization

IIoT Platform Connectivity: The module's REST API enables direct integration with AWS IoT Core, Azure IoT Hub, and Google Cloud IoT. Stream vibration data to cloud-based machine learning models for anomaly detection without on-premises server infrastructure.

Multi-Site Aggregation: Deploy centralized monitoring dashboards across geographically distributed facilities. One energy company monitors 47 compressor stations from a single NOC using 146031-01 modules with VPN-secured Ethernet links.

Custom Alarm Logic: Program complex trigger conditions combining multiple vibration parameters, process variables, and time-based rules. Example: Alert only when bearing temperature exceeds 85°C AND vibration velocity increases by 25% within 4 hours.

Third-Party Sensor Support: While optimized for Bently Nevada proximity probes and accelerometers, the module accepts 4-20mA and ±10V signals from third-party sensors via compatible monitor modules.

Delivery, Warranty & Technical Support

Lead Time: Stock items ship within 2-3 business days. Custom-configured modules (special firmware or calibration) require 10-15 business days. Expedited shipping available for critical outage situations.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranties (24/36 months) available for high-criticality applications. Warranty includes firmware updates and technical support.

Technical Assistance: Our application engineers provide pre-sale system design consultation, post-installation commissioning support, and troubleshooting assistance. Access to Bently Nevada technical documentation library and configuration software included with purchase.

Included Documentation: Installation manual, network configuration guide, BN Host Protocol specification, System 1 integration white paper, and calibration certificate. Digital copies provided via secure download link.

Frequently Asked Questions

How does the 146031-01 Ethernet module differ from the standard 3500/22 TDI?
The 146031-01 adds native Ethernet connectivity with TCP/IP protocol support, enabling direct integration with modern SCADA systems and cloud platforms. Standard TDI modules require a separate communication gateway (3500/92) for network access. The Ethernet version also supports higher data throughput—up to 10 Mbps vs. 1 Mbps for serial-based TDI modules.

Can I install this module in an existing 3500 rack without shutting down the monitoring system?
Yes, the 146031-01 is hot-swappable when proper procedures are followed. The 3500 rack must be running firmware 5.05 or later, and you should use the rack configuration software to place the slot in "bypass mode" before physical removal. Total swap time is typically 10-15 minutes with zero impact on other monitoring channels.

What network infrastructure is required for optimal performance?
We recommend a dedicated VLAN for vibration monitoring traffic, isolated from general IT networks. Use managed switches with QoS (Quality of Service) enabled to prioritize time-sensitive data packets. For remote sites, ensure minimum 5 Mbps sustained bandwidth and <100ms latency. Redundant network paths are advisable for critical applications.

Does the module support cybersecurity features for industrial networks?
The 146031-01 supports 802.1X network authentication, MAC address filtering, and encrypted data transmission when paired with compatible network infrastructure. It does not include a built-in firewall, so deploy behind industrial firewalls or use network segmentation to isolate from untrusted networks. Firmware updates are digitally signed to prevent unauthorized modifications.

What is the maximum number of 146031-01 modules per 3500 rack?
A standard 3500 rack supports up to 16 modules total, but practical limits depend on power budget and network bandwidth. Each 146031-01 draws 8-12W, so verify your power supply capacity. For continuous high-speed streaming, we recommend no more than 8 modules per rack to avoid network congestion. Consult our application engineers for multi-rack configurations.

Is the module compatible with non-Bently Nevada vibration sensors?
The 146031-01 TDI module itself is sensor-agnostic—it processes data from monitor modules (3500/40, 3500/42, etc.) that interface with sensors. Those monitor modules support Bently Nevada proximity probes, accelerometers, and velocity sensors. Third-party sensors with 4-20mA or voltage outputs can be used if connected through compatible monitor modules with appropriate signal conditioning.

Request a Quote or Technical Consultation

Our industrial automation specialists are ready to assist with system design, compatibility verification, and volume pricing. Whether you're upgrading a single rack or deploying a facility-wide monitoring network, we provide tailored solutions backed by deep application expertise.

Next Steps:

• Contact our sales team for project-specific pricing and lead times
• Request a technical datasheet package with integration guides
• Schedule a consultation to discuss your machinery monitoring requirements
• Inquire about trade-in programs for legacy TDI modules
