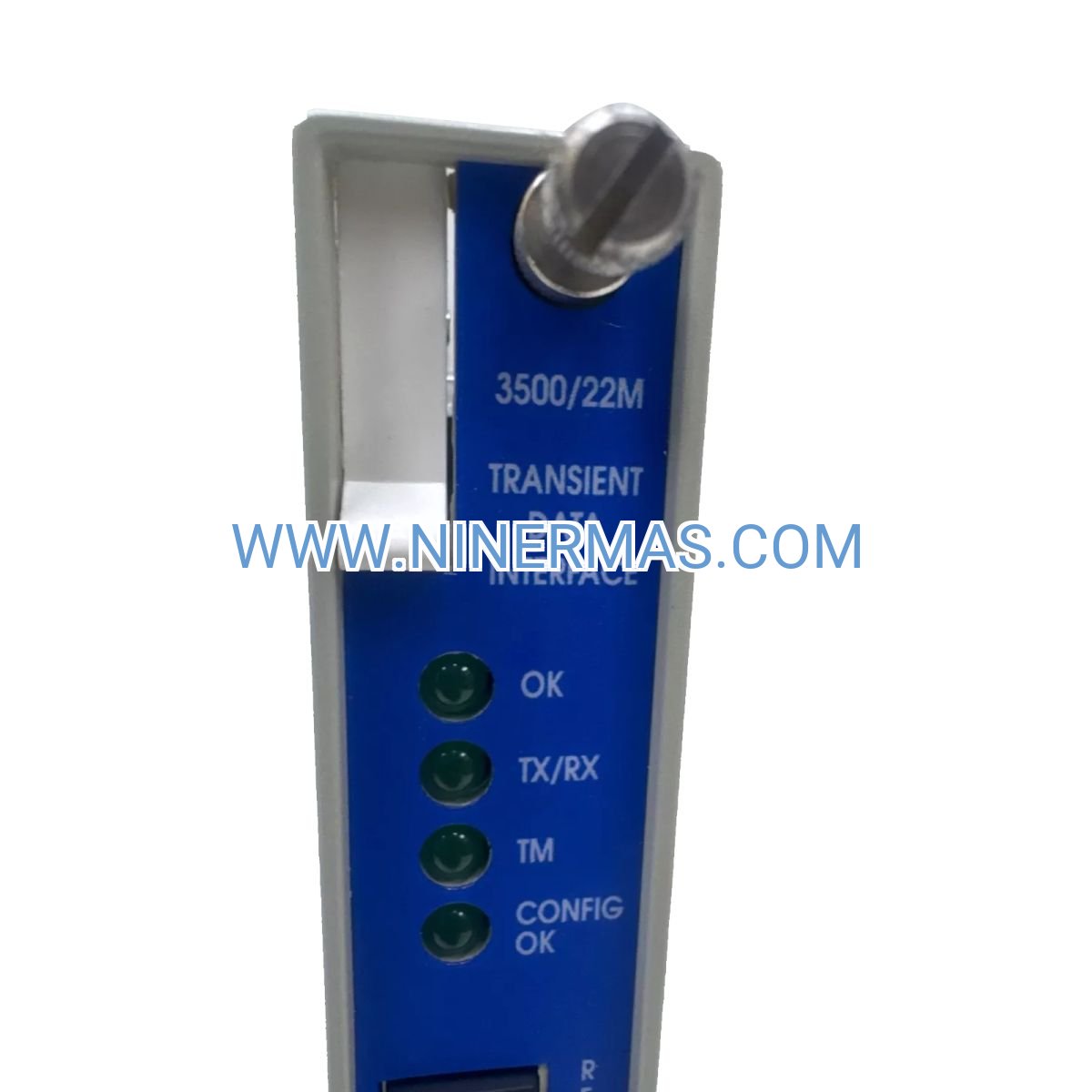

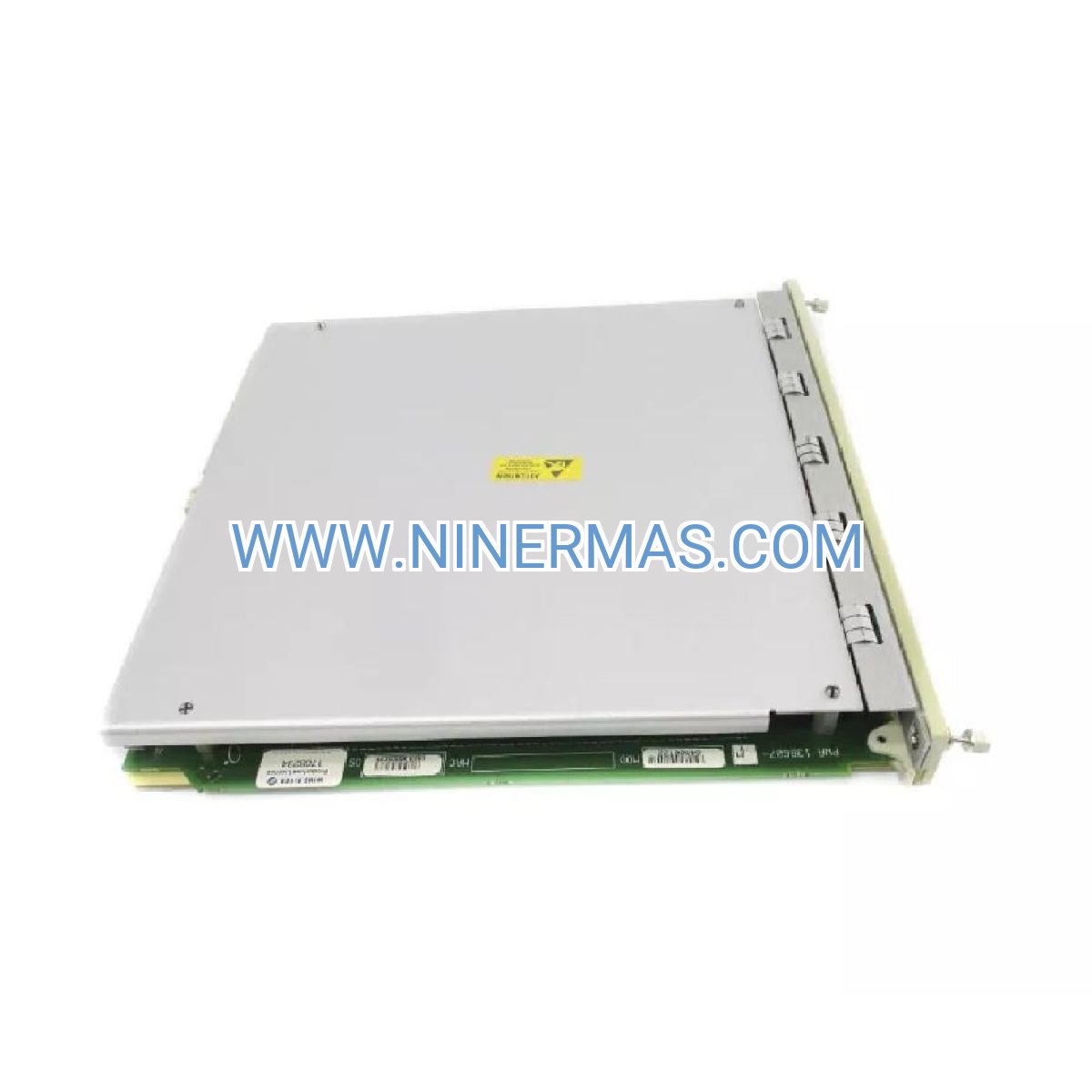

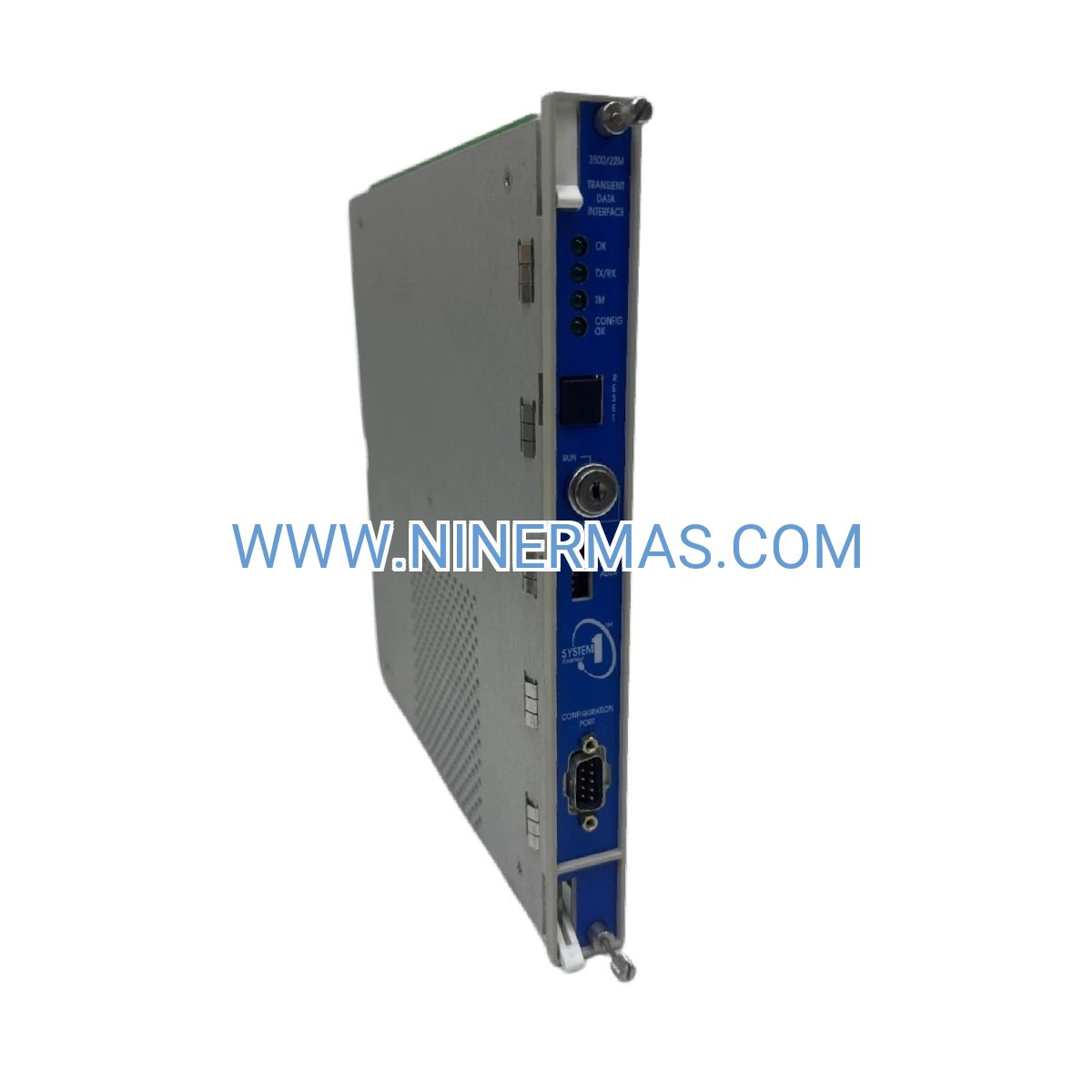

3500/22 Transient Data Interface Module (Industrial-Grade Waveform Recorder)

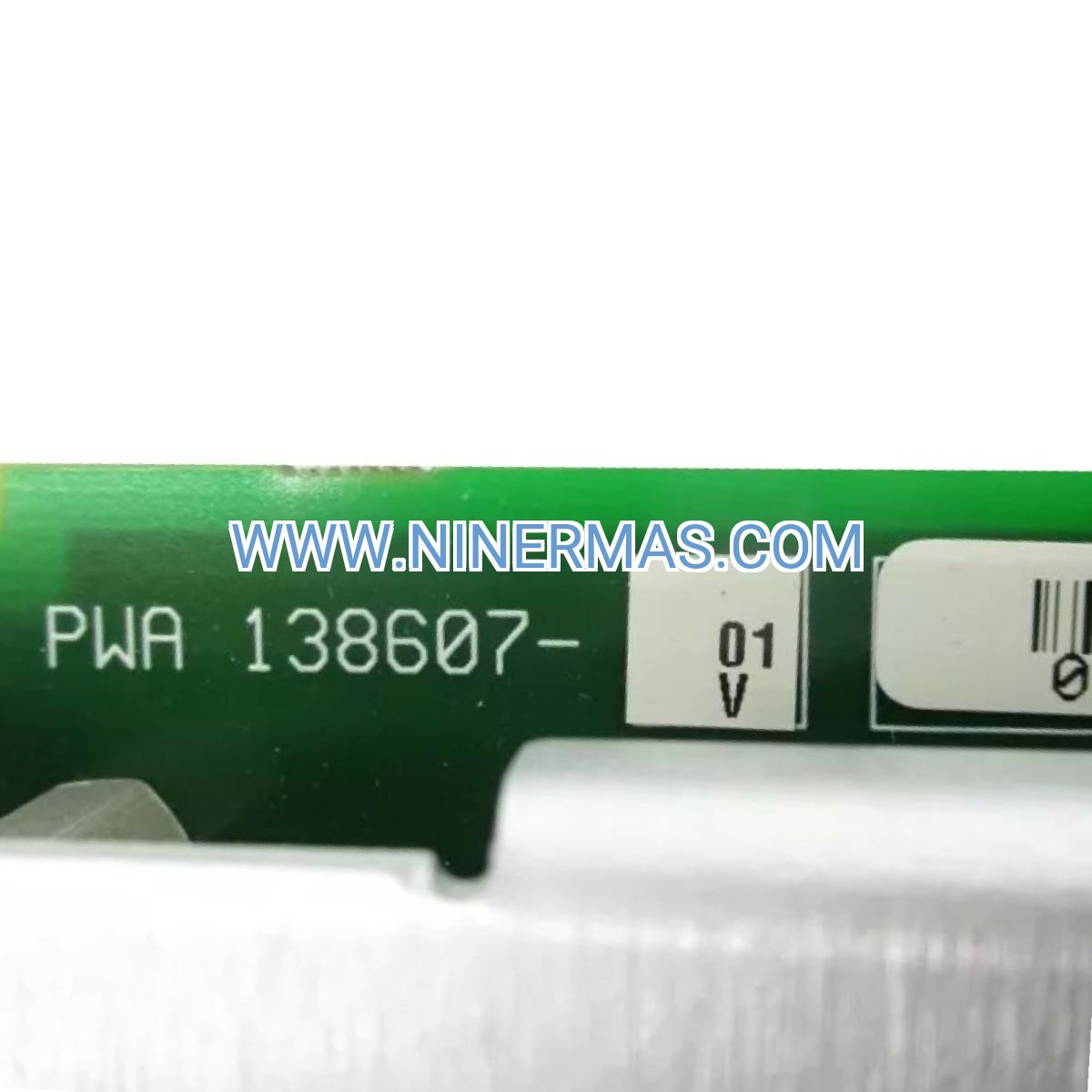

The Bently Nevada 3500/22 138607-01 represents a mission-critical component for facilities demanding continuous machinery health visibility. This transient data interface module captures high-speed waveform signatures during startup sequences, shutdown events, and alarm conditions—delivering the forensic data engineers need to diagnose bearing wear, shaft misalignment, and resonance phenomena before equipment failure occurs.

Designed for integration within 3500 Series rack-based monitoring ecosystems, the TDI module serves as the bridge between proximity probes, accelerometers, and your System 1 analytics platform. Industries relying on steam turbines, centrifugal compressors, and critical pumps depend on this module to meet API 670 machinery protection standards while reducing mean time to repair (MTTR) by up to 40%.

Whether you're managing a petrochemical complex, power generation facility, or offshore platform, the 3500/22 ensures that transient vibration events are never lost—providing the evidence base for root-cause analysis, warranty claims, and continuous improvement initiatives.

Core Capabilities & Business Value

✓ High-Resolution Event Recording
Captures full waveform data at 6,400 samples/second during alarm triggers, preserving critical diagnostic information that static measurements miss. Enables post-event analysis without requiring continuous data streaming.

✓ Seamless System 1 Integration
Proprietary communication protocol ensures zero-latency data transfer to Bently Nevada's analytics suite. Supports centralized monitoring across multi-site operations with automated archiving and trend correlation.

✓ API 670 & ISO 20816 Compliance
Meets international machinery protection standards for turbomachinery installations. Pre-certified for use in safety-instrumented systems (SIS) and critical service applications requiring third-party validation.

✓ Extreme Environment Durability
Operates reliably from -30°C to +65°C with conformal coating protection against humidity, dust, and chemical exposure. Proven in offshore, desert, and arctic deployment scenarios.

✓ Low Power Consumption
7.5W typical draw reduces rack thermal load and enables deployment in power-constrained installations. Compatible with redundant power supply configurations for fault-tolerant architectures.

✓ Modular Rack Architecture
Standard 3500 form factor allows hot-swappable replacement without system shutdown. Supports mixed-module configurations for customized monitoring strategies.

Industrial Application Scenarios

→ Power Generation Turbine Monitoring
Challenge: Steam turbine startups generate transient vibration spikes that can indicate rotor bow, bearing damage, or coupling misalignment.
Solution: The 3500/22 automatically captures full waveform data during each startup sequence, enabling engineers to compare baseline signatures and detect degradation trends before catastrophic failure. One utility reported 60% reduction in unplanned turbine outages after implementing TDI-based diagnostics.

→ Petrochemical Compressor Train Protection
Challenge: Multi-stage centrifugal compressors experience surge events and aerodynamic instabilities that require sub-second response times.
Solution: Integrated with 3500 Series monitors, the TDI module provides forensic evidence for surge analysis and anti-surge valve tuning. Operators gain visibility into pressure pulsations and shaft dynamics that static 4-20mA signals cannot reveal.

→ Offshore Platform Critical Pumps
Challenge: Subsea injection pumps and firewater systems must maintain 99.9% availability in harsh marine environments.
Solution: The module's -30°C to +65°C operating range and conformal coating ensure reliable data capture during North Sea winter conditions. Remote diagnostics via System 1 reduce helicopter mobilization costs by enabling shore-based analysis.

→ Pulp & Paper Mill Refiner Monitoring
Challenge: High-consistency refiners generate complex vibration patterns influenced by fiber consistency, plate gap, and motor load.
Solution: Transient waveform capture during grade changes allows process engineers to correlate vibration signatures with product quality metrics, optimizing energy consumption while preventing bearing failures.

Technical Parameters & Selection Guide

Selection Criteria:

• System Architecture: Verify your rack includes a 3500/92 or 3500/95 communication module for System 1 connectivity
• Channel Count: Each TDI module supports data capture from all monitors in the rack—one module per rack is typically sufficient
• Software Version: Requires System 1 version 6.4 or later for full functionality (version 7.x recommended for advanced analytics)
• Redundancy: For critical applications, consider dual-rack configurations with separate TDI modules for fault tolerance

Advanced Integration Options

SCADA & DCS Connectivity
When paired with a 3500/92 Communication Gateway, the TDI module enables Modbus TCP/IP and OPC DA/UA integration with plant-wide control systems. Alarm states and summary data can trigger automated shutdown sequences or operator notifications.

Cloud-Based Analytics
System 1 Evolution supports secure cloud upload of transient waveforms for machine learning-based anomaly detection. Historical event libraries enable cross-asset benchmarking and fleet-wide performance optimization.

Custom Trigger Logic
Configure event capture based on vibration amplitude, frequency bands, or external digital inputs. Supports pre-trigger and post-trigger buffering to capture the complete event timeline.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units (express shipping available)
Custom Configurations: 10-15 business days for factory-programmed modules with specific firmware versions
Warranty Coverage: 12 months from shipment date, covering material defects and workmanship
Technical Support: Lifetime access to installation guides, configuration tools, and troubleshooting assistance
Documentation Included: Quick-start guide, calibration certificate, compliance declarations (CE, RoHS)

Frequently Asked Questions

How does the 3500/22 TDI module differ from continuous data recorders?
Unlike continuous recorders that stream all data 24/7, the TDI module uses intelligent event-based capture—recording full waveforms only when alarm thresholds are exceeded or manual snapshots are requested. This reduces network bandwidth requirements by 95% while preserving critical diagnostic information.

Can I retrofit this module into an existing 3500 rack without downtime?
Yes, the hot-swappable design allows installation while the rack remains energized. Simply insert the module into an available slot and configure it via System 1 software—no power cycling required.

What is the maximum distance between the rack and System 1 server?
Using a 3500/92 gateway with Ethernet connectivity, distances up to 100 meters (copper) or several kilometers (fiber optic) are supported. For remote sites, VPN tunneling enables global data access.

Does the module require periodic calibration?
No field calibration is needed—the TDI module is a digital interface device that does not process analog signals directly. Calibration requirements apply to the proximity probes and monitor modules that feed data to the TDI.

How much storage capacity does the module provide?
The onboard buffer holds approximately 20 seconds of multi-channel waveform data. Events are automatically transmitted to System 1 for long-term archiving—your server's storage capacity determines retention limits.

Is cybersecurity protection included for networked installations?
When used with System 1 version 7.5 or later, the module supports encrypted communication, role-based access control, and audit logging compliant with IEC 62443 industrial cybersecurity standards.

Take the Next Step

Protect your critical assets with proven transient data capture technology. Our application engineers are available to review your monitoring architecture, recommend optimal module placement, and provide System 1 integration support.

Request a technical consultation: Share your machinery specifications and monitoring objectives for a customized solution proposal.
Order now: In-stock units ship within 24 hours—contact our team to confirm availability and delivery options.
