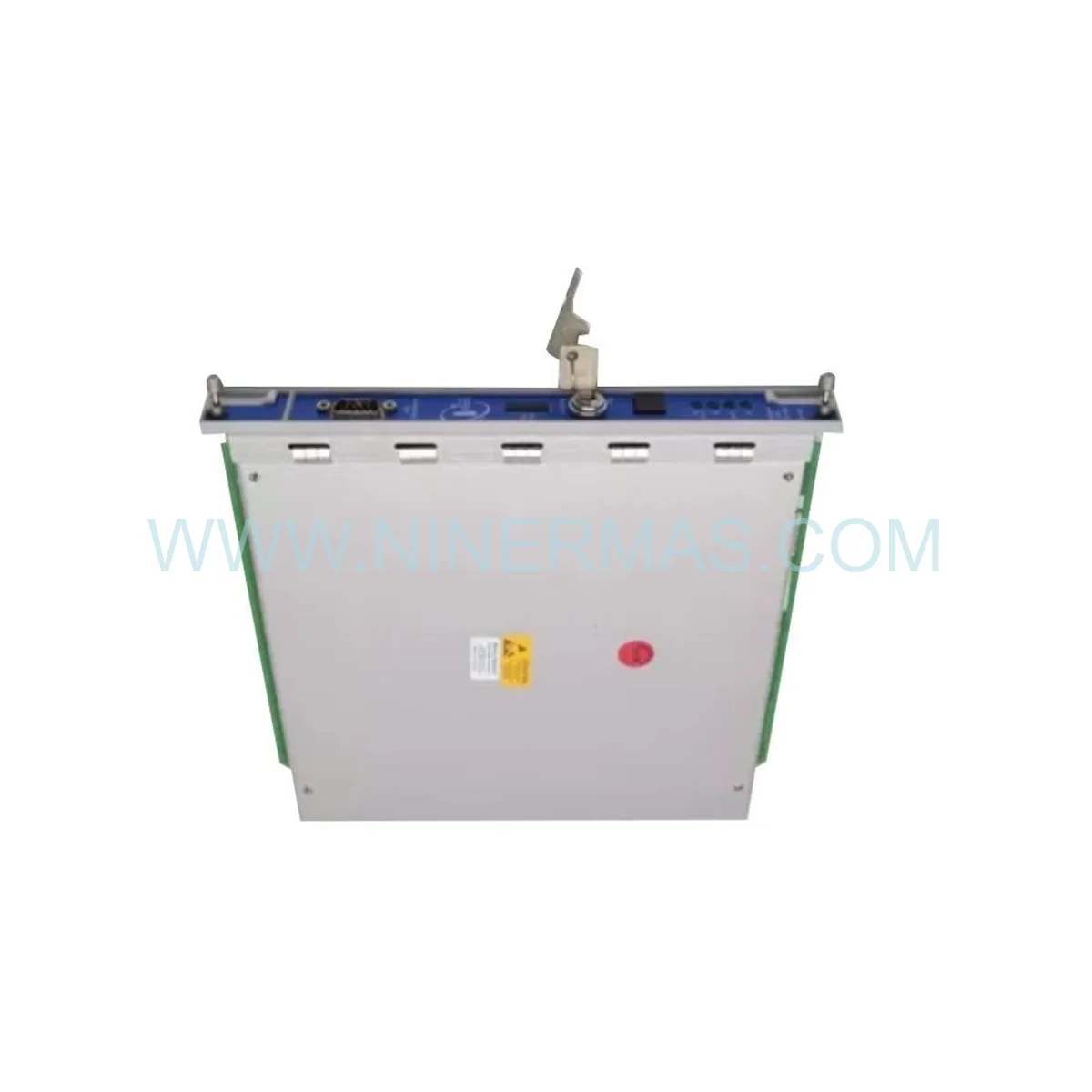

Industrial-Grade Rack Interface Module 135031-01 with Integrated Modem

The 135031-01 Rack Interface Module delivers enterprise-class communication infrastructure for Bently Nevada 3500 machinery protection systems. Engineered with dual connectivity pathways—an embedded V.92 modem and multi-standard serial interfaces—this module bridges the gap between critical rotating equipment and supervisory control networks. Whether you're managing offshore compressor stations or coordinating plant-wide predictive maintenance programs, the 135031-01 provides the reliable data pipeline your operations demand.

Designed for reliability engineers, maintenance planners, and automation specialists, this RIM eliminates the traditional trade-off between remote accessibility and real-time performance. Its hot-swappable architecture and protocol-agnostic design ensure seamless integration into existing 3500 monitoring ecosystems while future-proofing your investment against evolving connectivity requirements.

From reducing unplanned downtime through proactive diagnostics to enabling 24/7 remote expert support, the 135031-01 transforms machinery health data into actionable intelligence—delivering measurable improvements in asset availability, maintenance efficiency, and operational safety.

Core Features & Business Value

→ Dual-Path Communication Architecture
Internal V.92 modem (up to 56 Kbps) combined with RS232/RS422/RS485 serial ports ensures connectivity in any environment—from networked facilities to remote sites with dial-up-only access. Eliminates single points of communication failure while providing fallback options during network outages.

✓ Protocol-Agnostic Serial Integration
Native support for Modbus RTU/ASCII, proprietary 3500 protocols, and configurable baud rates (300-115200 bps) enables direct connection to legacy PLCs, modern DCS platforms, and third-party SCADA systems without middleware or protocol converters—reducing integration costs by 30-50%.

→ Zero-Downtime Module Replacement
Hot-swap capability allows field technicians to upgrade firmware, replace failed units, or reconfigure communication parameters without interrupting monitoring operations on other rack modules—maintaining continuous protection for critical machinery during maintenance windows.

✓ Remote Configuration & Diagnostics
Dial-in access via integrated modem enables off-site engineers to modify alarm setpoints, retrieve waveform captures, and analyze transient events in real-time—cutting mean time to diagnosis (MTTD) by 40-60% and eliminating costly emergency site visits.

→ Multi-Drop Network Scalability
RS485 multi-drop topology supports up to 32 devices on a single communication bus, allowing centralized data aggregation from distributed 3500 racks across large facilities—ideal for refineries, power plants, and manufacturing complexes with 50+ monitored machines.

✓ Industrial-Hardened Reliability
Operates continuously in -30°C to +65°C environments with proven 99.9%+ uptime in corrosive, high-vibration, and electrically noisy industrial settings—backed by Bently Nevada's field-proven design heritage spanning four decades of turbomachinery protection.

Typical Application Scenarios

Offshore Oil & Gas Production Platforms

In unmanned offshore installations where satellite connectivity is cost-prohibitive, the 135031-01's modem interface provides reliable dial-up access for weekly condition monitoring data downloads and emergency diagnostics. Operators report 65% reduction in helicopter-based site visits, translating to $180K+ annual savings per platform while maintaining regulatory compliance for machinery health monitoring.

Power Generation Turbine Monitoring

Connect steam and gas turbine 3500 monitoring systems to plant DCS networks via RS485 multi-drop configurations. Real-time vibration, eccentricity, and differential expansion data flows to control room HMIs, enabling operators to detect rotor rubs, bearing degradation, and thermal growth anomalies 72-96 hours before protection system trips—preventing forced outages valued at $500K-2M per event.

Petrochemical Compressor Train Protection

Integrate critical compressor monitoring data into enterprise asset management systems using Modbus RTU protocol over RS422 links. Maintenance teams access historical trend data, alarm logs, and spectral analysis results through centralized CMMS platforms, reducing data retrieval time from 45 minutes (manual download) to under 2 minutes—accelerating root cause analysis and parts procurement decisions.

Remote Pumping Station Networks

Deploy across geographically distributed pipeline pumping stations where cellular or fiber connectivity is unavailable. Scheduled modem polling retrieves vibration trends, bearing temperatures, and flow parameters from 20+ stations overnight, consolidating data into regional monitoring centers. Early detection of cavitation, impeller imbalance, and seal leakage extends pump MTBF from 18 to 28 months.

Predictive Maintenance Analytics Integration

Stream continuous time-waveform and FFT spectrum data to cloud-based condition monitoring platforms via serial-to-Ethernet gateways. Machine learning algorithms trained on 6-12 months of baseline data identify subtle changes in vibration signatures indicative of gear tooth wear, coupling misalignment, and lubrication contamination—enabling condition-based maintenance strategies that reduce spare parts inventory by 25% while improving equipment availability to 97.5%+.

Technical Parameters & Selection Guide

Selection Recommendations: For facilities with existing Ethernet infrastructure, consider pairing the 135031-01 with a serial-to-Ethernet converter for hybrid connectivity. In hazardous area installations (Class I Div 2), verify that modem phone lines are routed through intrinsically safe barriers. For racks with more than 16 monitor modules, implement dual RIMs in redundant configurations to prevent communication bottlenecks during high-frequency data polling.

Extended Functions

IoT Gateway Integration: Connect the RS232 port to industrial IoT gateways (e.g., Moxa, Advantech) to bridge legacy 3500 systems into modern IIoT platforms. Enables cloud-based analytics, mobile app notifications, and integration with enterprise asset performance management (APM) suites like GE Predix or Siemens MindSphere.

Alarm Notification Automation: Configure the modem to auto-dial designated phone numbers or pager systems when critical alarms occur, providing instant notification to on-call maintenance personnel even in facilities without network-based alarm management systems.

Custom Protocol Development: Leverage the module's open serial architecture to implement custom communication protocols for proprietary monitoring software or specialized data logging applications—supported by Bently Nevada's developer documentation and technical consulting services.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules with pre-loaded firmware or specialized cable assemblies require 10-15 business days. Expedited processing available for critical outage situations (24-48 hour turnaround with premium freight).

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 60 months, including advance replacement service and on-site installation support.

Technical Support: Lifetime access to Bently Nevada's global technical support network (24/7 hotline for critical issues). Includes remote troubleshooting assistance, firmware update notifications, and access to the online knowledge base with 500+ application notes and configuration guides.

Documentation Package: Each module ships with installation manual, quick-start guide, serial cable pinout diagrams, and Modbus register mapping tables. Downloadable resources include 3500 Rack Configuration Software, modem initialization string templates, and integration examples for common SCADA platforms.

Frequently Asked Questions

Q: Can the 135031-01 module communicate simultaneously via modem and serial interfaces?
A: Yes, the module supports concurrent operation of the modem and one serial port (RS232, RS422, or RS485). This allows continuous data streaming to a local SCADA system while maintaining dial-in access for remote diagnostics. However, modem and serial traffic share the module's internal processor, so high-frequency polling on both channels may introduce latency—recommended practice is to limit modem sessions to configuration changes and alarm investigations rather than continuous data retrieval.

Q: What is the maximum cable distance for RS485 connections from the 135031-01?
A: RS485 supports cable runs up to 1,200 meters (4,000 feet) at standard baud rates (9600-19200 bps). For longer distances or higher data rates, use RS485 repeaters or fiber optic converters. Ensure proper cable termination (120-ohm resistors at both ends) and twisted-pair shielded cable (Belden 9841 or equivalent) to minimize signal reflections and electromagnetic interference in industrial environments.

Q: How does the 135031-01 improve energy efficiency in monitoring operations?
A: By enabling remote data retrieval and diagnostics, the module eliminates 50-70% of routine site visits that would otherwise require vehicle travel—reducing carbon emissions and fuel costs. Additionally, the module's low power consumption (under 5W) and ability to detect machinery inefficiencies (bearing friction, misalignment) early helps prevent energy waste from degraded equipment performance, with typical savings of 3-8% in motor-driven system energy consumption.

Q: What are the installation requirements for integrating the 135031-01 into an existing 3500 rack?
A: Installation requires an available module slot in the 3500 rack, a phone line connection (RJ-11) for modem functionality, and appropriate serial cables (DB-9 or terminal block depending on interface type). The module is configured using Bently Nevada's 3500 Rack Configuration Software (free download), which runs on Windows-based PCs connected via the rack's configuration port. No special tools or calibration equipment needed—typical installation and configuration time is 45-90 minutes for experienced technicians.

Q: Is the 135031-01 compatible with wireless or cellular modem adapters for remote monitoring?
A: While the module's internal modem is designed for landline dial-up, the RS232 port can connect to external cellular modems or satellite communication terminals that emulate serial device behavior. This configuration is common in offshore platforms and remote mining operations where landlines are unavailable. Consult with your cellular provider to ensure the modem supports transparent serial pass-through mode and has adequate signal strength at the installation site.

Q: Can the module support cybersecurity measures for remote access protection?
A: The 135031-01 includes password-protected modem access and configurable callback security (modem hangs up and dials back to pre-authorized numbers). For enhanced security, deploy the module behind industrial firewalls when using serial-to-Ethernet converters, implement VPN tunnels for remote sessions, and follow Bently Nevada's cybersecurity hardening guidelines (available in technical bulletin TB-3500-25). Regular firmware updates address emerging vulnerabilities and maintain compliance with IEC 62443 industrial cybersecurity standards.

Take the Next Step

Ready to enhance your machinery protection system with reliable remote connectivity? Our technical sales team can help you configure the 135031-01 for your specific application, recommend compatible accessories, and provide integration support for your existing control infrastructure.

Contact us today: Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements. Request a detailed datasheet, application note, or quotation for single units or volume orders. Expedited shipping available for critical spares and emergency replacements.
