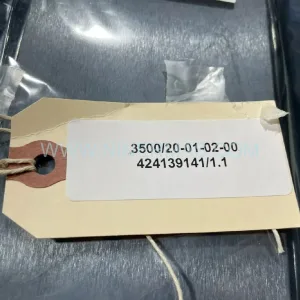

3500/20 Rack Interface Module (Industrial-Grade Communication Gateway)

The 3500/20 Rack Interface Module functions as the central communication hub within Bently Nevada's 3500 machinery protection ecosystem. Engineered for continuous-duty industrial environments, this gateway module bridges vibration monitoring hardware with enterprise-level control systems, enabling predictive maintenance strategies and real-time asset protection across rotating equipment fleets.

Designed for reliability engineers and maintenance teams managing critical turbomachinery, the 3500/20 eliminates data silos by providing standardized protocol support for SCADA, DCS, and condition monitoring platforms. Its robust architecture ensures uninterrupted data flow even in harsh operating conditions ranging from -30°C to +65°C, making it indispensable for power generation, oil & gas, and heavy industrial applications.

With built-in diagnostic capabilities and flexible configuration options, this interface module reduces commissioning time while maximizing system uptime. Whether you're retrofitting legacy monitoring systems or deploying new machinery protection schemes, the 3500/20 delivers the connectivity foundation your operation demands.

Core Features & Benefits

→ Multi-Protocol Communication Architecture
Supports Modbus RTU/TCP and proprietary Bently Nevada protocols, ensuring compatibility with 95% of industrial automation platforms. Eliminates costly protocol converters and simplifies system integration.

→ Real-Time Data Streaming
Sub-100ms response time for critical alarm signals and vibration data queries. Enables immediate protective actions and reduces mean time to respond (MTTR) by up to 40% compared to polled systems.

→ Remote Configuration Capability
Modify alarm thresholds, communication parameters, and channel assignments via 3500 Rack Configuration Software without physical access. Reduces site visits and accelerates troubleshooting for distributed assets.

✓ Self-Diagnostic Intelligence
Continuous health monitoring of communication links, rack power status, and module integrity. Proactive fault detection prevents data loss and maintains regulatory compliance for safety-instrumented systems.

✓ Industrial-Hardened Design
Conformal-coated circuitry and extended temperature rating (-30°C to +65°C) ensure reliable operation in corrosive, high-vibration, and thermally challenging environments typical of process industries.

✓ Scalable System Architecture
Single module supports full 21-slot rack configurations with up to 168 monitoring channels. Grows with your asset base without requiring infrastructure upgrades.

Typical Application Scenarios

Power Generation Turbine Monitoring
Steam and gas turbines in combined-cycle plants require continuous vibration surveillance to prevent catastrophic failures. The 3500/20 integrates bearing temperature, shaft displacement, and casing vibration data into plant DCS systems, enabling operators to correlate mechanical health with load profiles and optimize maintenance windows during planned outages.

Petrochemical Compressor Protection
Critical service compressors handling flammable gases demand API 670-compliant monitoring with fail-safe shutdown logic. This interface module provides the communication backbone for multi-stage compressor trains, transmitting real-time vibration vectors to both local HMI panels and corporate asset management databases for trend analysis.

Offshore Platform Pump Monitoring
Space-constrained offshore installations benefit from the 3500/20's compact footprint and ability to multiplex data from multiple pump skids over a single communication link. Remote diagnostics capability reduces helicopter trips for routine configuration changes, cutting operational costs by 30-50%.

Pulp & Paper Mill Fan Arrays
Large induced-draft fans and process blowers generate significant revenue loss during unplanned downtime. Integrating 3500 rack data into mill-wide SCADA systems via the 3500/20 enables predictive bearing replacement schedules based on vibration trending, extending mean time between failures (MTBF) from 18 to 36+ months.

Mining Conveyor Drive Systems
Heavy-duty gearboxes and motor-driven conveyors in mining operations experience extreme shock loads and contamination. The 3500/20's ruggedized design maintains communication integrity in high-EMI environments, while Modbus connectivity allows integration with existing PLC-based conveyor control systems.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 3500/20 interface module, verify your host system's protocol requirements (Modbus vs. proprietary), available serial port types (RS232/RS485), and environmental conditions. For systems requiring Ethernet connectivity, consider pairing with the 3500/92 Communication Gateway for enhanced network integration. Ensure your 3500 Rack Configuration Software version supports the module firmware revision to avoid compatibility issues during commissioning.

Extended Functions

IoT Integration Pathways: While the 3500/20 provides foundational rack communication, modern IIoT architectures can leverage its data stream through edge gateways supporting OPC-UA or MQTT protocols. This enables cloud-based analytics platforms to consume vibration data for machine learning models predicting remaining useful life (RUL) across global asset portfolios.

Cybersecurity Enhancements: When deployed in network-connected environments, implement firewall rules restricting Modbus TCP access to authorized SCADA servers. For critical infrastructure applications, consider deploying the 3500/20 on isolated OT networks with unidirectional gateways to IT systems, maintaining compliance with IEC 62443 industrial cybersecurity standards.

Customization Options: Standard 3500/20 modules ship with factory-default communication settings. Custom firmware configurations supporting non-standard baud rates, specialized Modbus register mappings, or proprietary protocol variants are available for OEM integrators and large-scale deployments. Contact technical sales for engineering consultation on application-specific requirements.

Delivery & Service Assurance

Lead Times:
• Standard Configuration: 3-5 business days (in-stock items)
• Custom Firmware: 10-15 business days (subject to engineering review)
• Express Shipping: Available for critical outage situations

Warranty Coverage:
12-month comprehensive warranty covering manufacturing defects, component failures, and communication malfunctions. Warranty includes firmware updates and technical support for configuration issues. Extended 24/36-month warranty packages available for mission-critical applications.

Technical Support:
Direct access to instrumentation engineers with 10+ years Bently Nevada system experience. Support includes configuration file review, Modbus register mapping assistance, troubleshooting communication errors, and integration guidance for third-party SCADA platforms. Remote diagnostic sessions available via secure VPN connections.

Documentation Package:
Each module ships with calibration certificates, installation quick-start guide, Modbus register reference, and configuration software compatibility matrix. Full technical manuals, CAD drawings, and sample ladder logic for PLC integration available via download portal.

Frequently Asked Questions

How does the 3500/20 interface with Allen-Bradley ControlLogix PLCs?
The module's Modbus RTU/TCP support enables direct integration with ControlLogix processors using ProSoft or similar Modbus communication cards. Map vibration data to PLC tags for alarm logic and HMI display. Sample RSLogix 5000 code and register mappings are provided in our integration guide.

What is the maximum cable distance for RS485 communication?
RS485 serial links support up to 1,200 meters (4,000 feet) at 9,600 baud using twisted-pair instrumentation cable. For longer distances or electrically noisy environments, deploy fiber optic converters or Ethernet-based communication via the 3500/92 gateway module.

Can multiple SCADA systems query the same 3500/20 module simultaneously?
The module supports a single active serial connection at any time. For multi-master architectures, implement a Modbus gateway with connection pooling, or use the 3500/92 Communication Gateway which supports up to 8 concurrent Ethernet clients accessing the same rack data.

Does the 3500/20 require calibration or periodic maintenance?
The interface module contains no field-serviceable components and requires no routine calibration. Verify communication link integrity annually using loopback tests and monitor self-diagnostic status registers. Firmware updates may be released periodically to address protocol enhancements or security patches.

What happens if the 3500/20 module fails during operation?
Module failure results in loss of external communication while the 3500 rack continues local monitoring and alarm functions. Implement redundant communication paths using dual interface modules (where rack configuration permits) or deploy the 3500/92 as a backup Ethernet gateway for critical applications.

Is the module compatible with legacy 3300 series monitoring systems?
No, the 3500/20 is designed exclusively for 3500 series racks and is not backward-compatible with 3300 systems. Migrating from 3300 to 3500 platforms requires complete rack replacement but offers significant advantages in communication flexibility, diagnostic capabilities, and long-term supportability.

Take the Next Step

Ready to enhance your machinery protection system's connectivity? Our technical team is standing by to assist with system design, protocol selection, and integration planning. Request a detailed quotation including shipping estimates to your facility, or schedule a consultation to discuss your specific monitoring architecture requirements.
