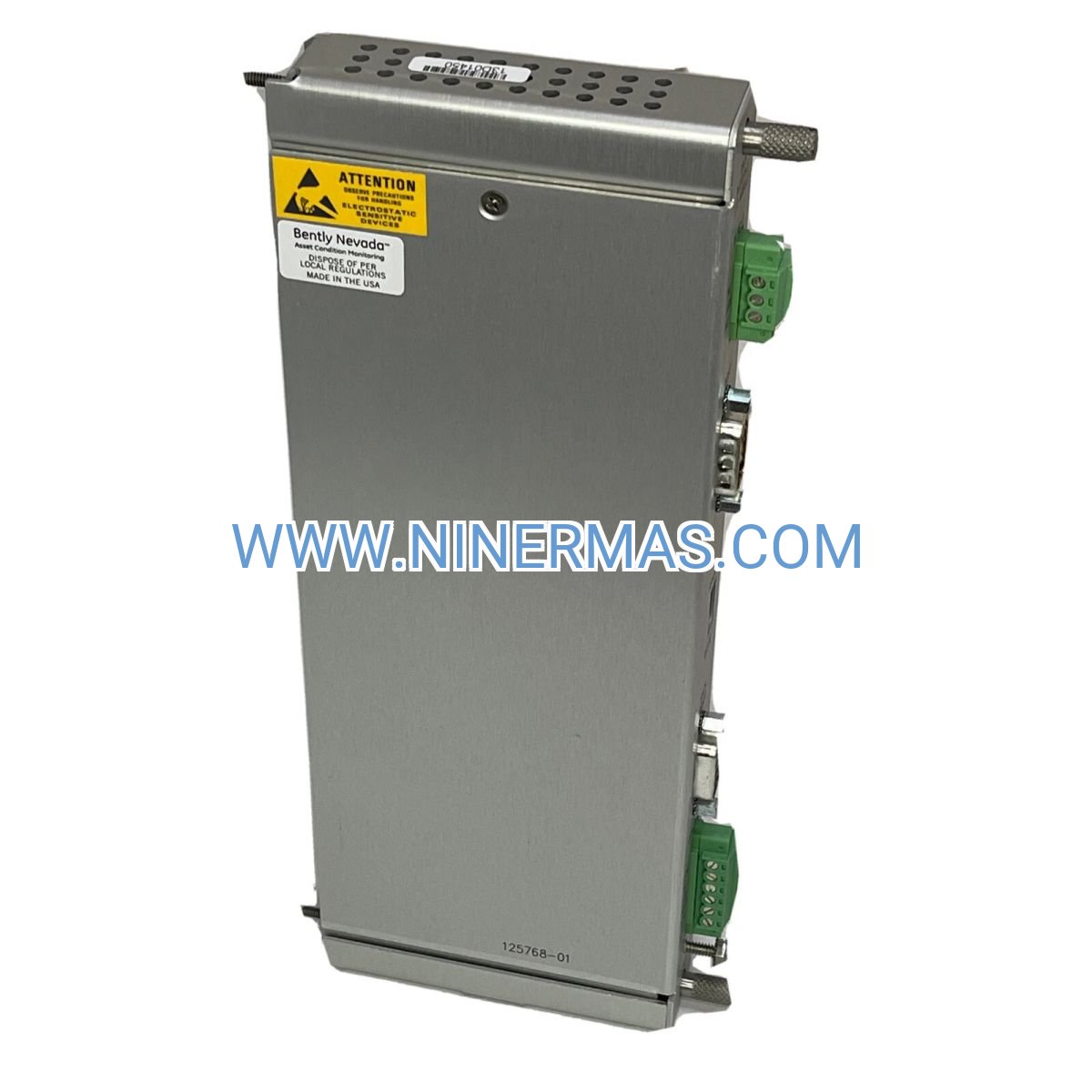

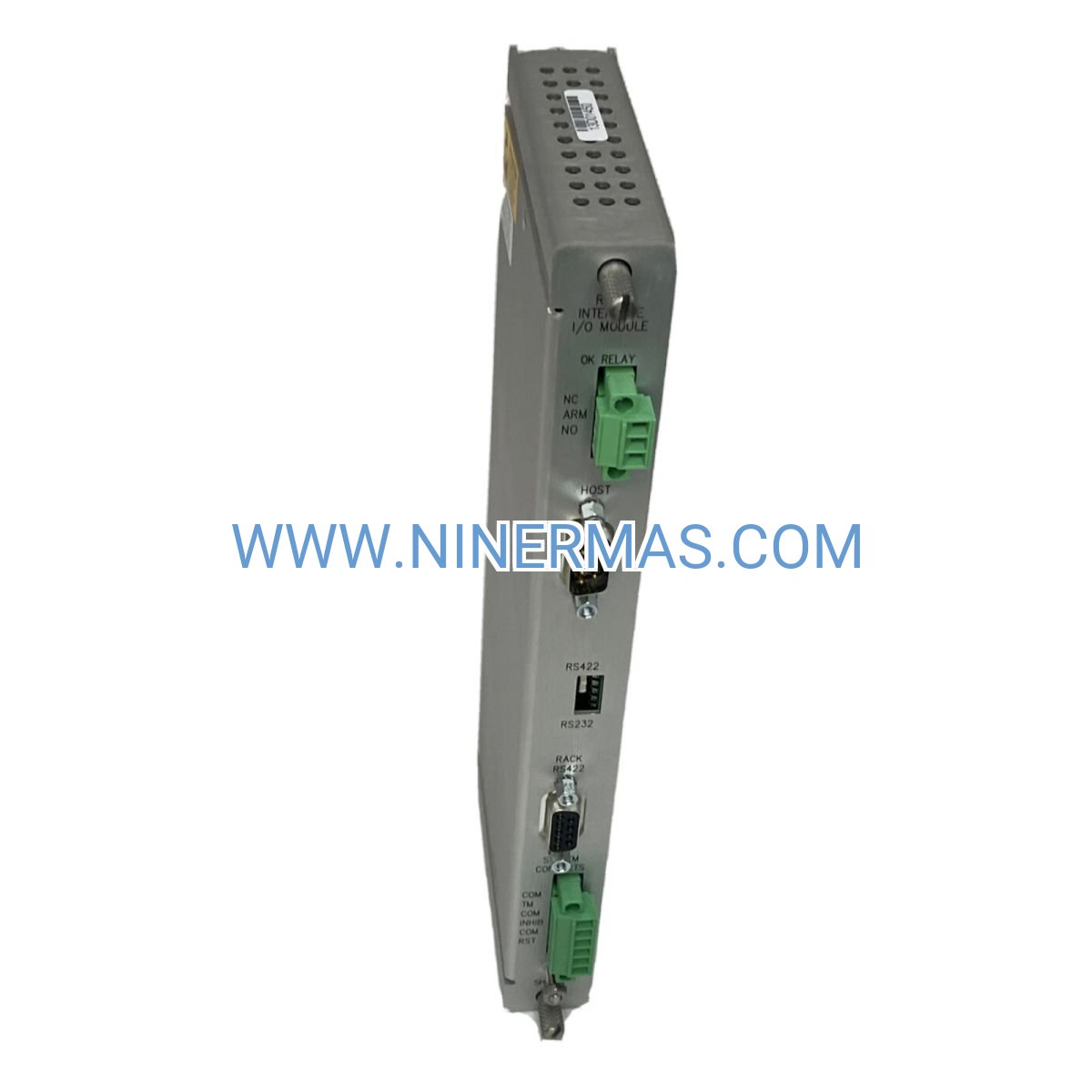

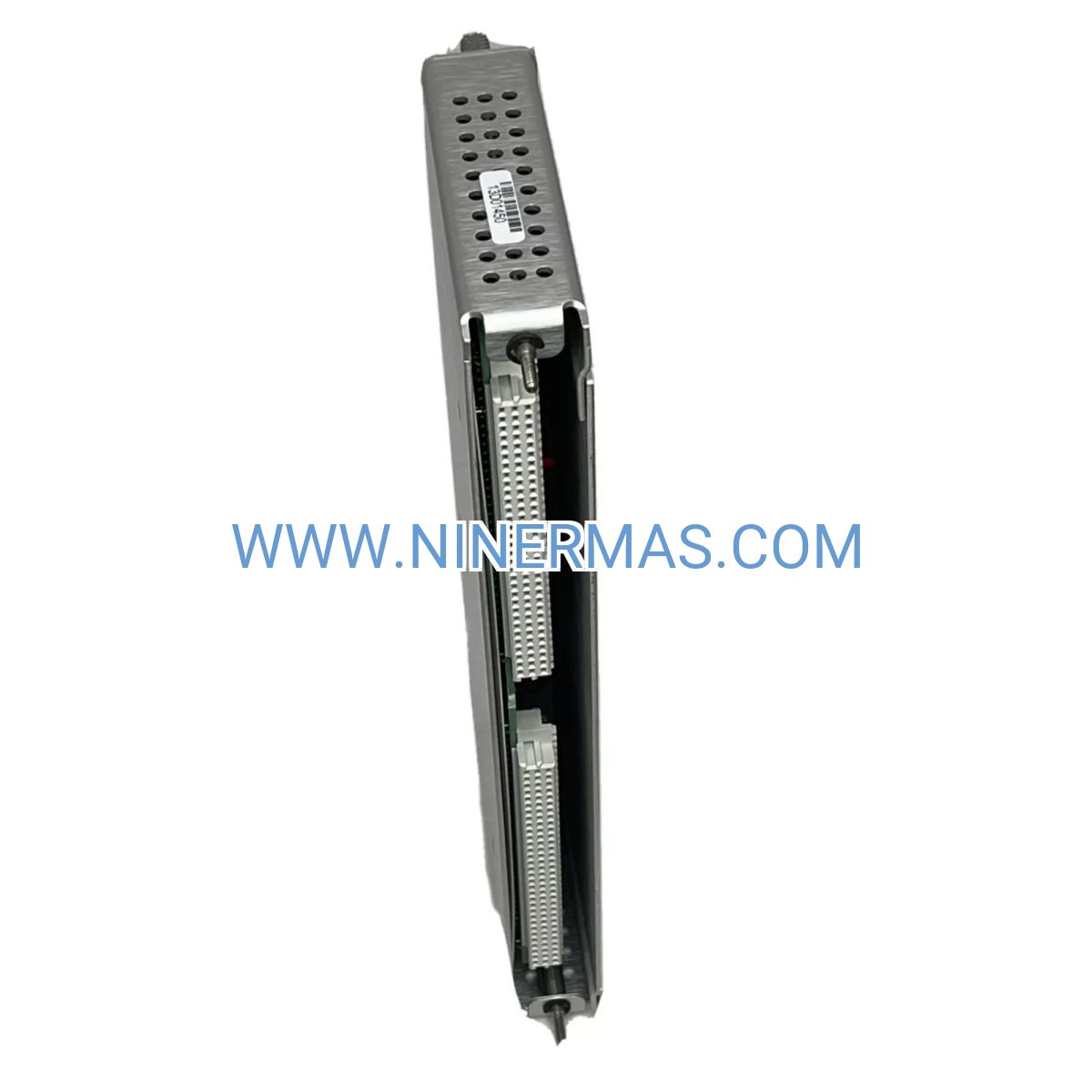

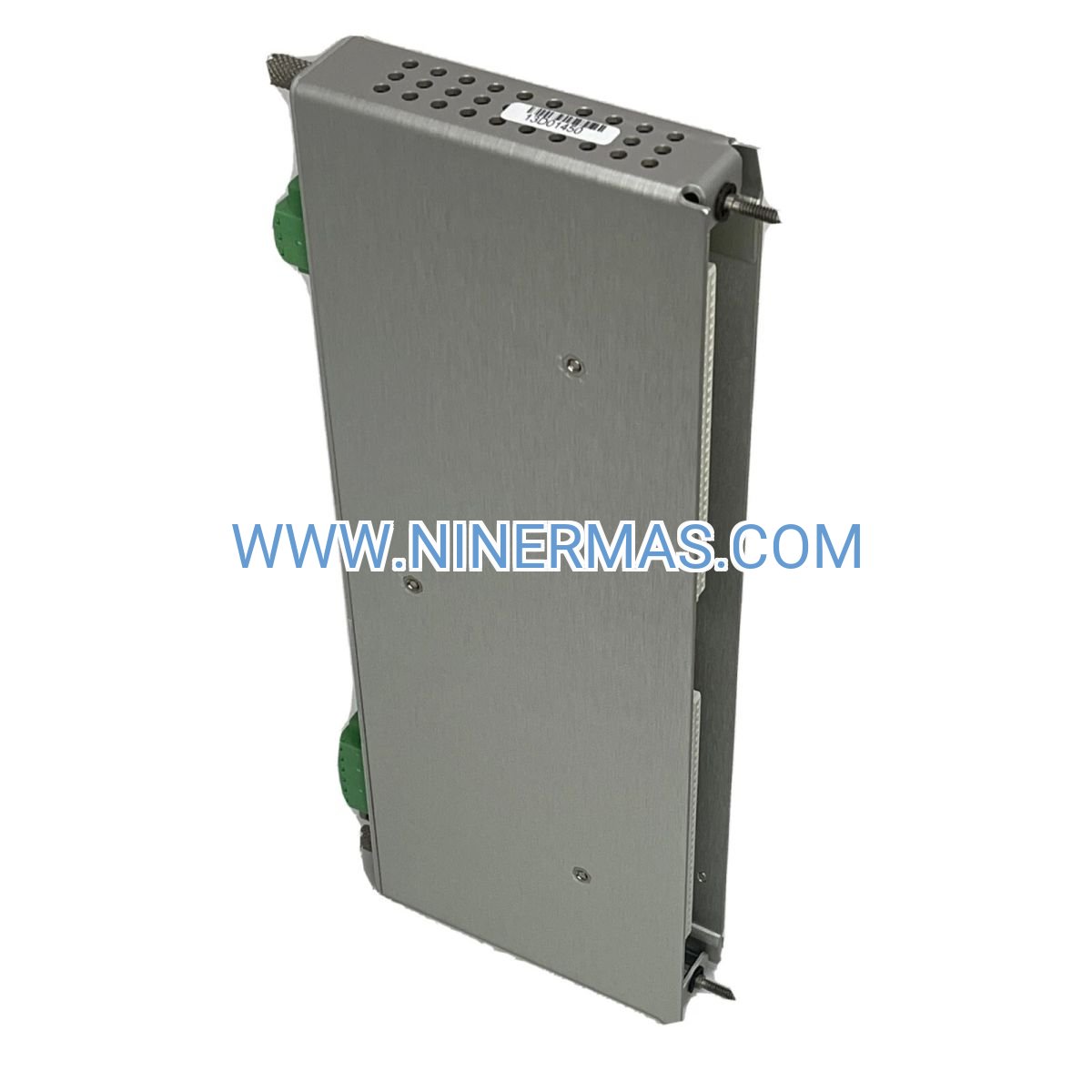

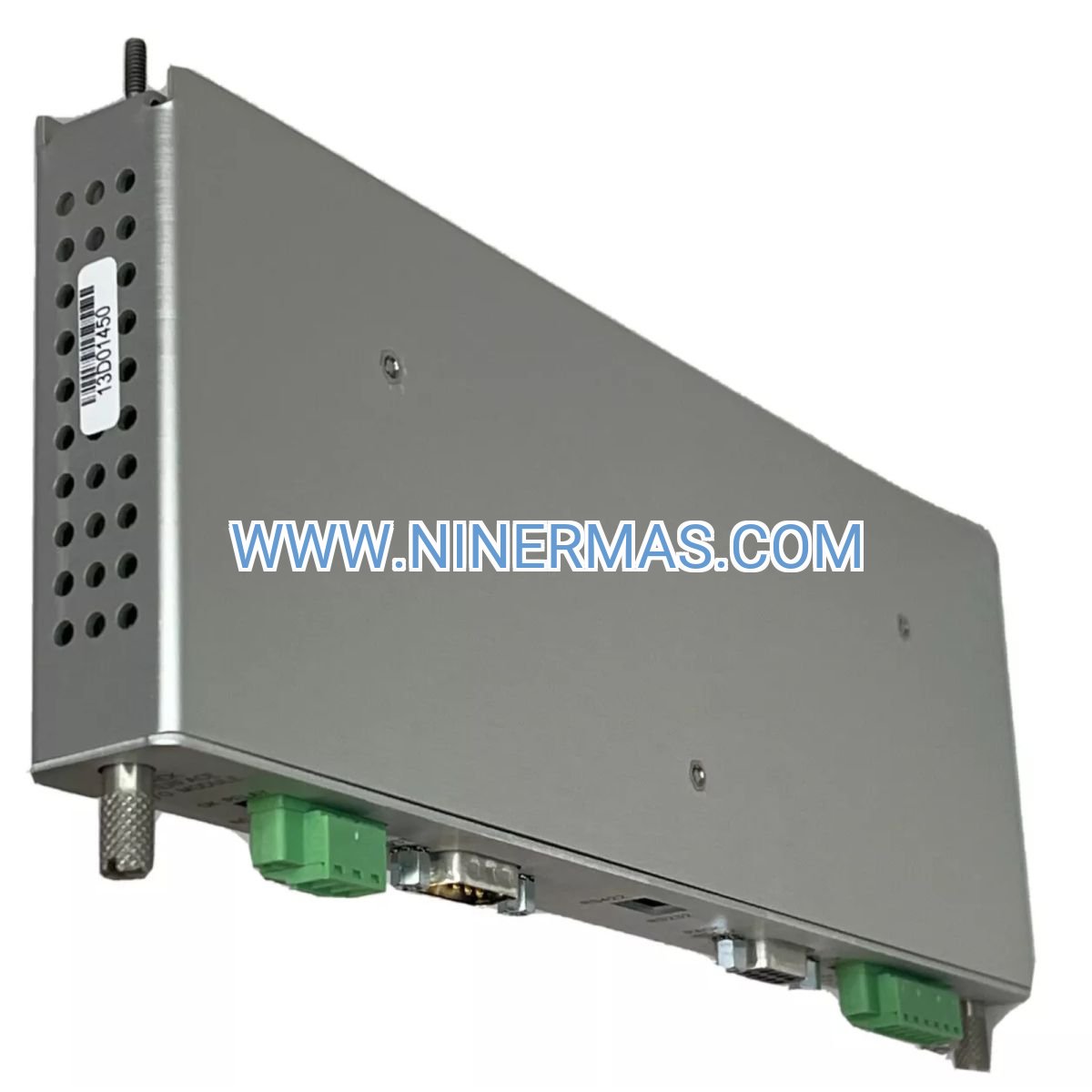

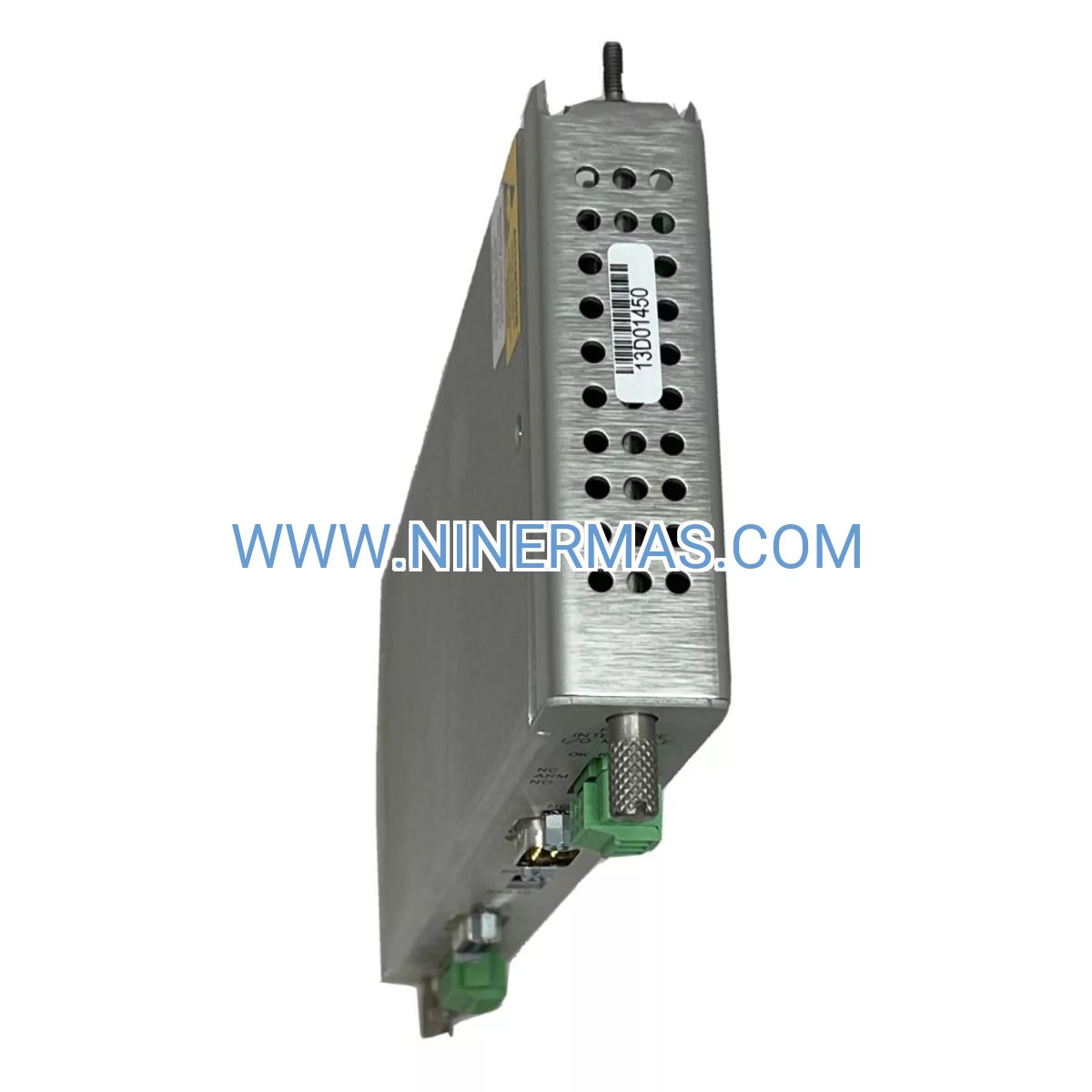

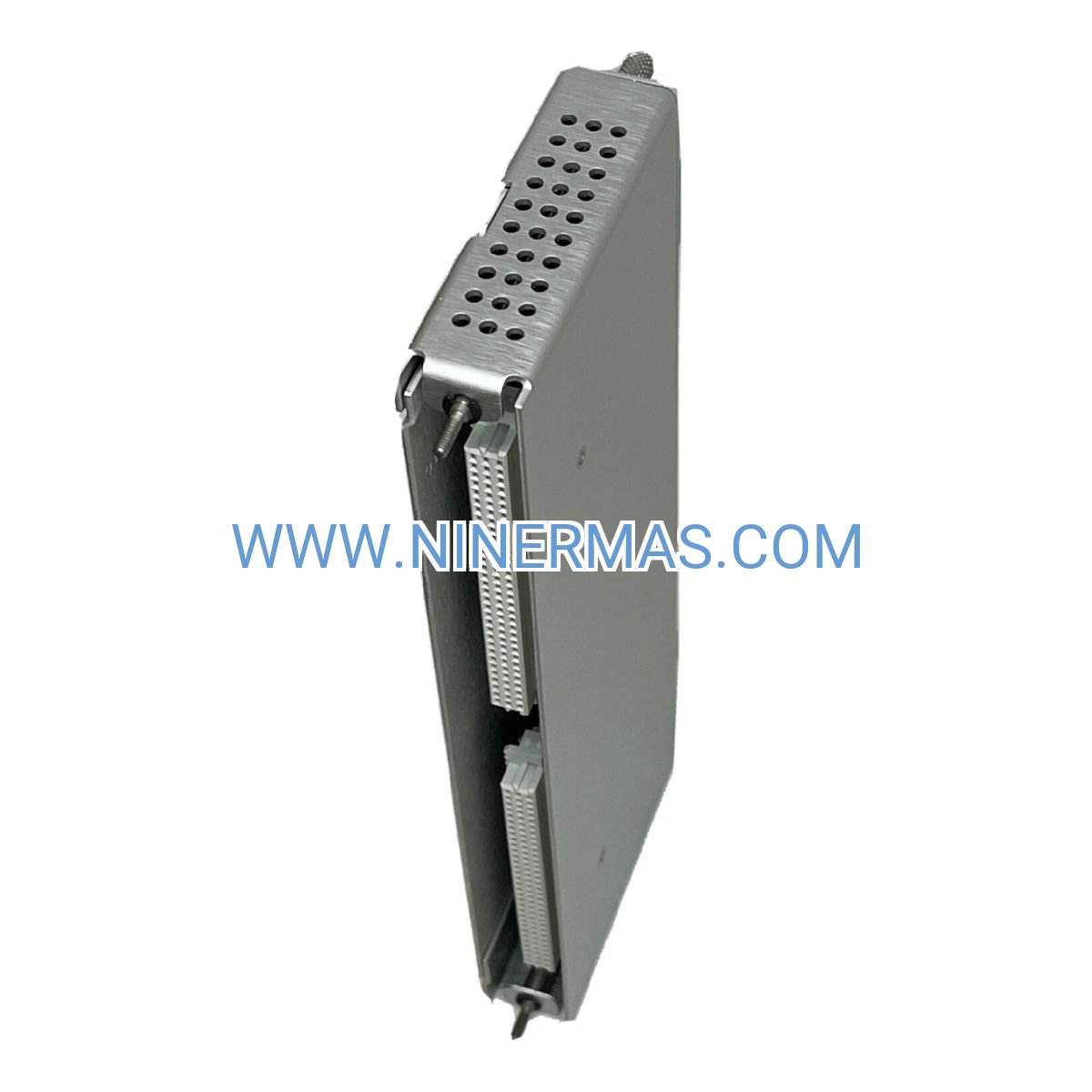

125768-01 Rack Interface Module (Industrial-Grade Communication Hub)

The 125768-01 represents a mission-critical communication gateway within Bently Nevada's 3500 Series machinery protection ecosystem. Designed for continuous-duty industrial environments, this Rack Interface Module with integrated I/O delivers deterministic data exchange between vibration monitoring modules and plant-wide control architectures. Engineered to API 670 standards, it ensures zero-downtime connectivity for rotating equipment protection systems across power generation, oil & gas, and heavy manufacturing sectors.

Industrial operators face mounting pressure to prevent catastrophic machinery failures while maintaining production uptime. The 125768-01 addresses this challenge by providing dual-redundant communication channels, galvanically isolated I/O, and protocol flexibility that integrates seamlessly with legacy DCS platforms and modern SCADA networks. Whether monitoring steam turbines in combined-cycle plants or centrifugal compressors in LNG facilities, this module serves as the nerve center for predictive maintenance strategies.

Key differentiators include factory-verified calibration certificates, hot-swap capability that eliminates planned downtime, and support for up to 16 simultaneous monitoring channels per rack configuration. The module's relay outputs enable direct actuation of shutdown valves and alarm annunciators, while Modbus RS232/RS422/RS485 protocols ensure compatibility with 95% of installed industrial control systems worldwide.

Core Features & Business Value

→ Dual-Redundant Communication Architecture
Simultaneous primary and backup data paths eliminate single points of failure, achieving 99.99% uptime in critical machinery protection applications. Automatic failover occurs within 50 milliseconds without operator intervention.

→ Multi-Protocol Flexibility
Native support for Modbus RTU/ASCII over RS232, RS422, and RS485 interfaces enables integration with Allen-Bradley, Siemens, Schneider Electric, and Yokogawa control systems without protocol converters or gateways.

→ Hot-Swap Serviceability
Field-replaceable design allows module extraction and installation during live operation. Reduces mean time to repair (MTTR) from 4 hours to 15 minutes compared to rack-shutdown procedures.

✓ Configurable Relay Outputs
Eight Form-C relay contacts rated for 5A @ 250VAC provide hardwired alarm and trip signals. Programmable logic supports latching, pulsed, or proportional output modes for diverse safety instrumented system (SIS) requirements.

✓ Extended Temperature Range
Operates continuously from -30°C to +65°C without derating, making it suitable for outdoor installations, desert climates, and Arctic processing facilities where conventional electronics fail.

✓ Galvanic Isolation Protection
2500V RMS isolation between communication ports and rack backplane prevents ground loop interference and protects sensitive monitoring circuits from electrical transients during lightning strikes or motor starting events.

Typical Application Scenarios

Power Generation Turbine Monitoring
In combined-cycle power plants, the 125768-01 interfaces between 3500 vibration monitors on steam/gas turbines and the plant DCS. Real-time bearing temperature, shaft vibration, and eccentricity data triggers automated load reduction before catastrophic bearing failures occur, preventing $2M+ turbine damage and 30-day outage costs.

Petrochemical Compressor Protection
Ethylene crackers and ammonia plants deploy this module to monitor centrifugal compressor trains operating at 15,000+ RPM. The module's sub-10ms response time enables emergency shutdown valve actuation when thrust bearing wear exceeds alarm thresholds, protecting $8M compressor assemblies from surge-induced failures.

Offshore Platform Pump Monitoring
Oil & gas production platforms utilize the 125768-01's salt-fog resistant design and extended temperature rating to monitor subsea injection pumps and topside gas compression equipment. Modbus integration with platform safety systems automates well shutdown sequences when abnormal vibration patterns indicate impending seal failures.

Pulp & Paper Mill Drive Systems
Paper machine drive trains benefit from the module's ability to simultaneously monitor 16 bearing positions across multi-stage dryer sections. Integration with mill-wide historians enables predictive maintenance scheduling that reduces unplanned downtime by 40% compared to reactive maintenance strategies.

Mining Conveyor Gearbox Surveillance
Continuous mining operations deploy 125768-01 modules to monitor crusher gearboxes and conveyor drive systems in high-dust environments. The module's sealed enclosure and vibration immunity ensure reliable data transmission even when mounted on equipment experiencing 2G operational vibration levels.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 125768-01 when your application requires integrated relay outputs for local alarm annunciation or emergency shutdown functions. If your system only needs data communication without hardwired I/O, consider the 125768-51 variant (communication-only model). For redundant rack configurations, order two modules per system to enable automatic failover protection.

Extended Functions

System 1 Software Integration: The module supports full configuration and diagnostics via Bently Nevada's System 1 condition monitoring platform. Remote firmware updates, alarm setpoint adjustments, and historical trend analysis can be performed without field visits, reducing maintenance costs by 35% in multi-site deployments.

OPC UA Connectivity: When paired with 3500 System Software v5.0 or later, the 125768-01 enables OPC UA server functionality for direct integration with Industry 4.0 analytics platforms, cloud-based machine learning algorithms, and enterprise asset management systems.

Custom Alarm Logic: Advanced users can program Boolean logic combining multiple sensor inputs (vibration + temperature + pressure) to create composite alarm conditions. This reduces nuisance alarms by 60% compared to single-parameter threshold monitoring.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center. Express 24-hour delivery available for emergency breakdown situations (additional fees apply).

Custom Configuration: Factory-programmed modules with pre-loaded Modbus addresses and relay logic ship within 7-10 business days. Includes configuration documentation and as-built drawings.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Warranty includes advance replacement service with 48-hour shipment of exchange units.

Technical Support: Lifetime access to application engineering support via email and phone. Services include system integration guidance, troubleshooting assistance, firmware upgrade consultation, and compatibility verification with third-party equipment.

Documentation Package: Each module ships with installation manual, wiring diagrams, Modbus register map, configuration software (System 1 compatible), and factory test certificates traceable to NIST standards.

Frequently Asked Questions

How does the 125768-01 interface with Allen-Bradley ControlLogix PLCs?
The module connects via Modbus RTU protocol using a 1756-MVI or ProSoft MVI56-MCM communication card in your ControlLogix rack. We provide pre-built ladder logic and register mapping files that reduce integration time from 3 days to 4 hours.

What is the maximum cable distance for RS485 communication?
Up to 1200 meters (4000 feet) using twisted-pair shielded cable at 9600 baud. For longer distances, deploy Modbus repeaters every 1000 meters or upgrade to fiber-optic converters for runs exceeding 5 km.

Can this module monitor both radial and axial vibration simultaneously?
Yes, when installed in a rack with 3500/42M Proximitor monitors, the 125768-01 can aggregate data from up to 4 radial probes and 2 axial position sensors per bearing, providing complete 6-axis vibration analysis.

Does the relay output support fail-safe operation?
Absolutely. Relays can be configured as normally-energized (de-energize on alarm) to comply with IEC 61508 SIL 2 safety requirements. This ensures machinery trips to safe state during module failure or power loss events.

Is firmware upgradeable in the field?
Yes, firmware updates are performed via RS232 connection using Bently Nevada's Configuration Utility software. The process takes approximately 8 minutes and does not require rack power-down when performed on redundant modules.

What environmental certifications does this module hold?
CE marked for EMC compliance per EN 61326, UL/cUL listed for hazardous locations (Class I Division 2 Groups A-D), and ATEX certified for Zone 2 installations in European facilities.
