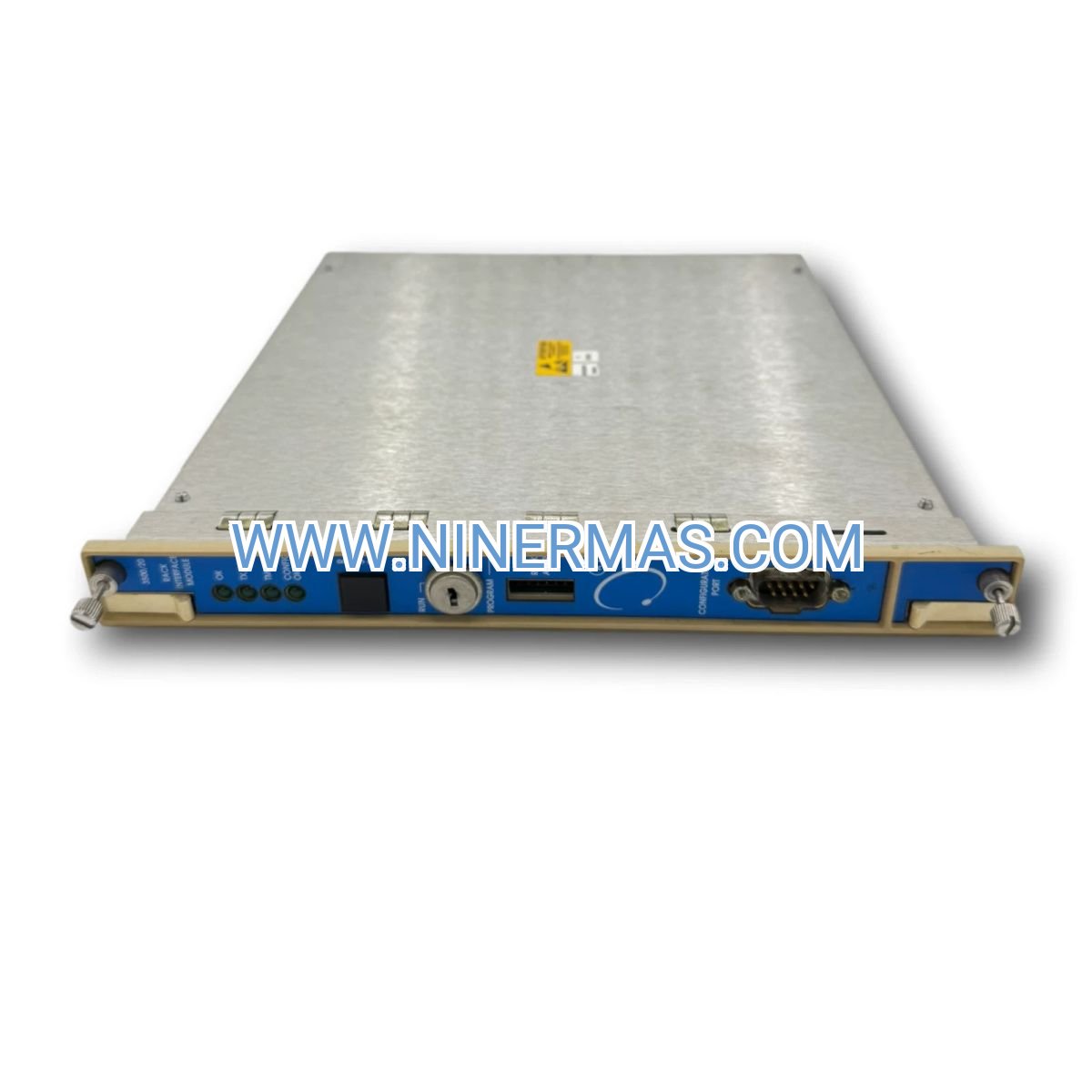

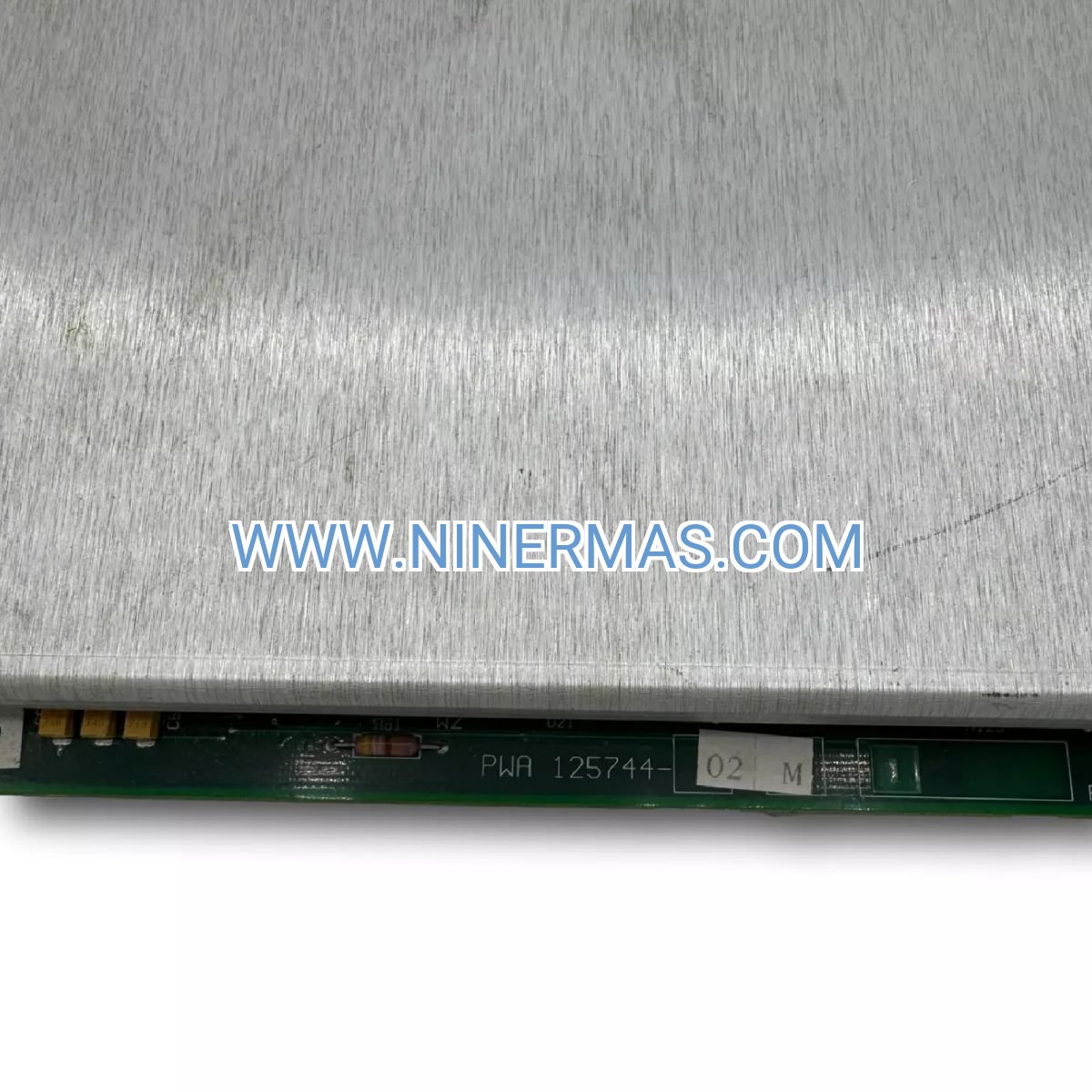

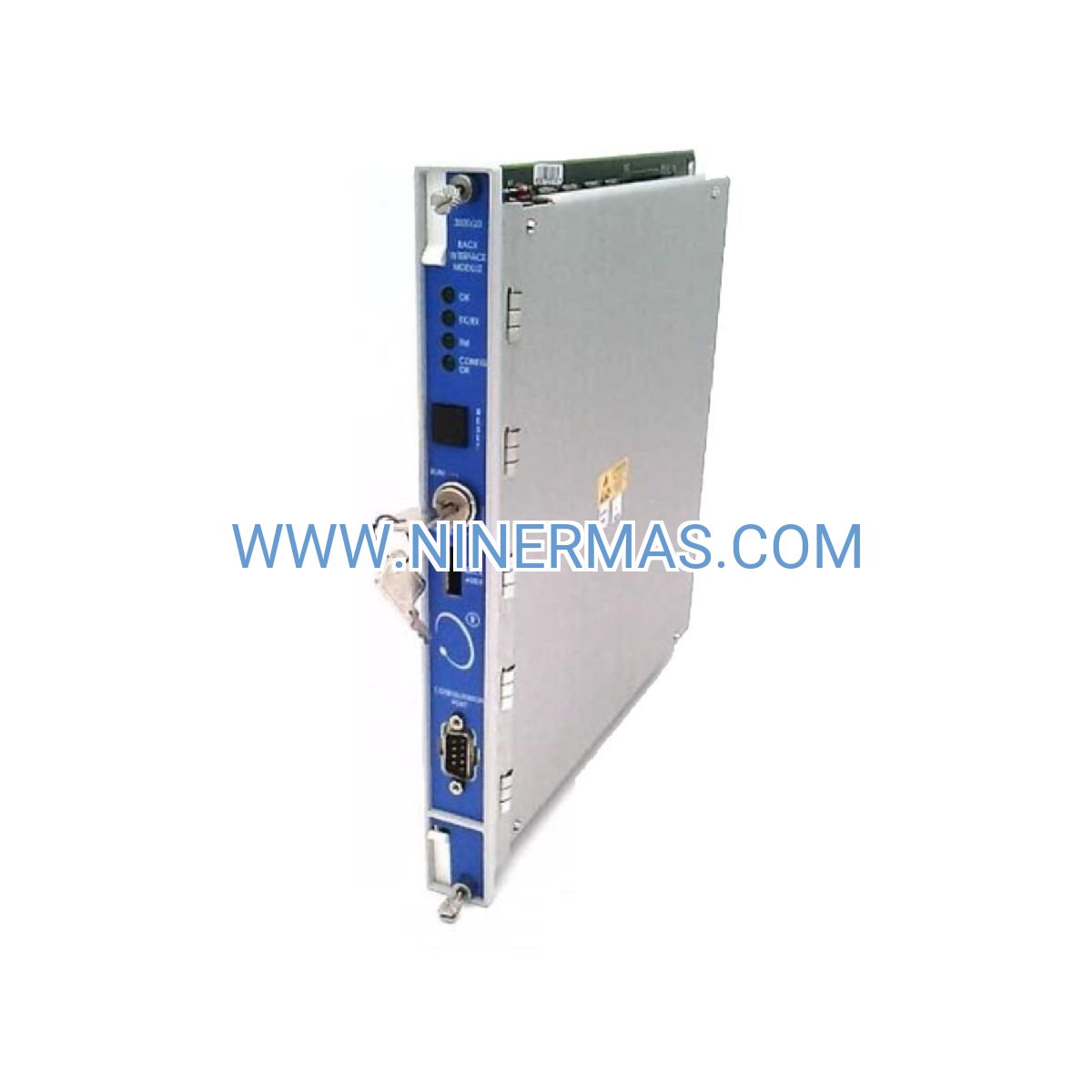

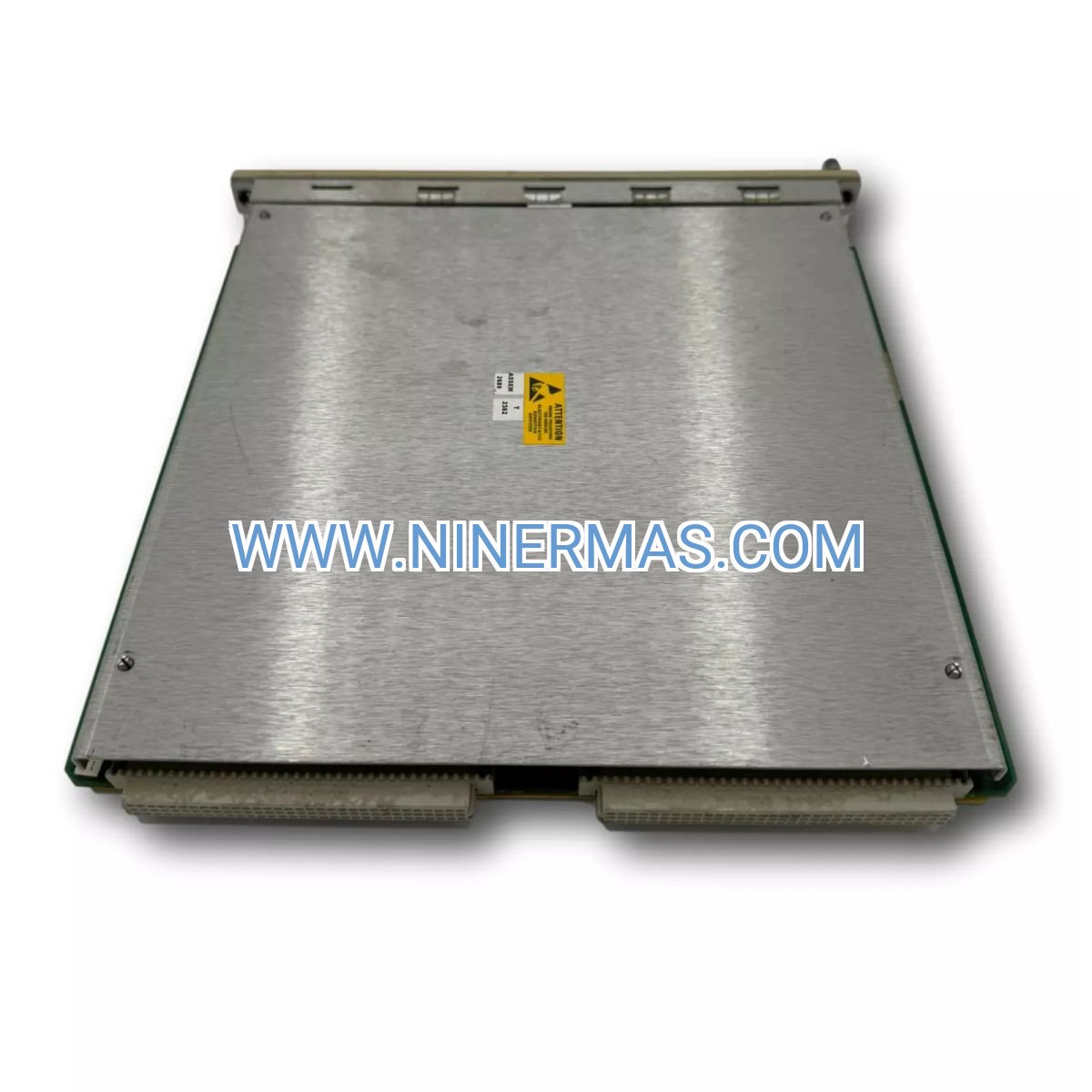

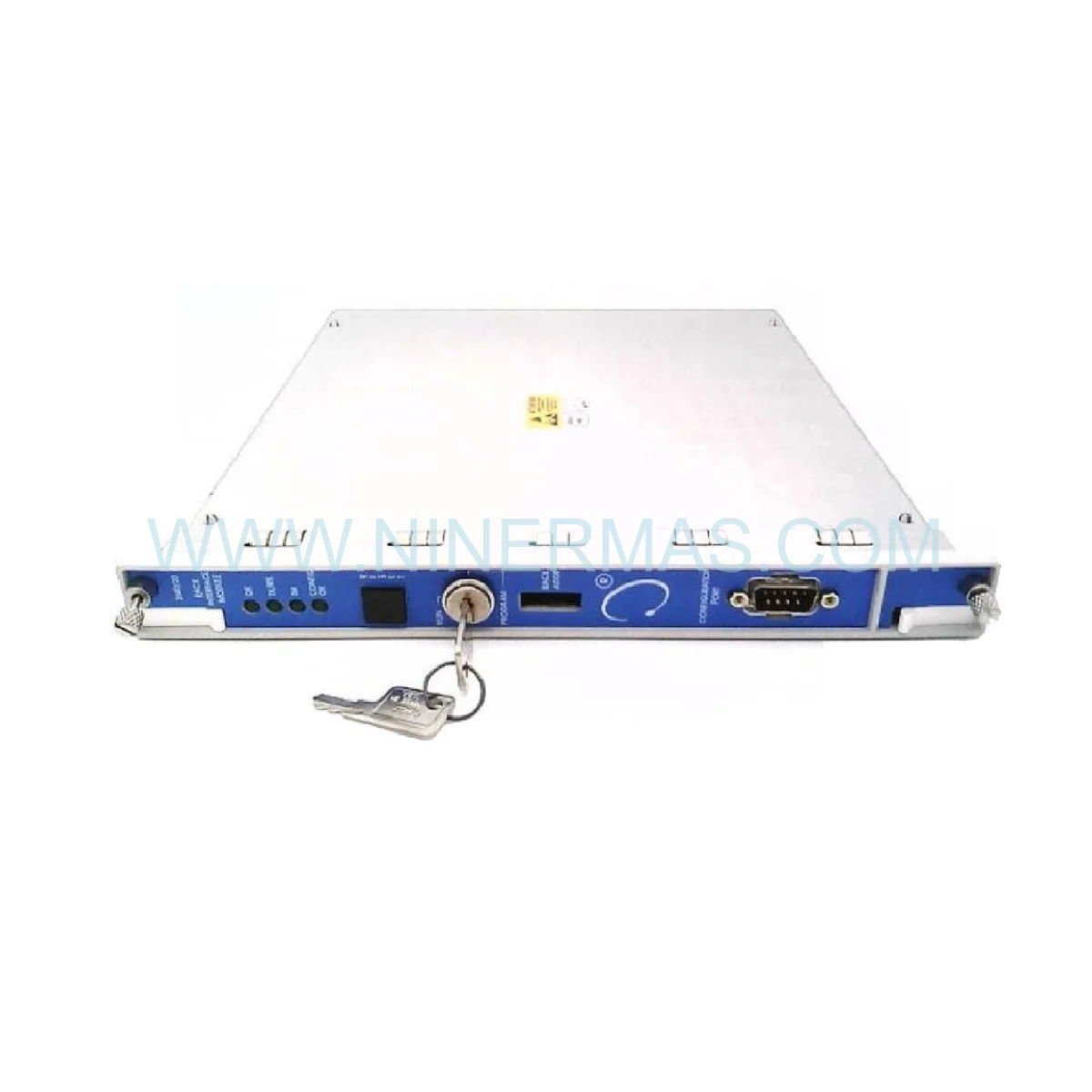

125744-02 Rack Interface Module (Industrial-Grade Communication Gateway)

The 125744-02 Rack Interface Module transforms your Bently Nevada 3500/20 monitoring infrastructure into a fully networked condition monitoring ecosystem. Designed for mission-critical turbomachinery applications, this communication gateway delivers bidirectional data flow between rack-mounted protection modules and enterprise-level diagnostic platforms—ensuring zero-latency configuration updates and continuous asset health visibility across power generation, petrochemical, and heavy industrial facilities.

Built to withstand extreme operating environments from Arctic installations to desert refineries, the 125744-02 eliminates communication bottlenecks that compromise predictive maintenance programs. Whether you're retrofitting legacy 3500 systems or deploying greenfield monitoring networks, this module provides the protocol flexibility and diagnostic depth required for Industry 4.0 integration while maintaining backward compatibility with decades-old rack configurations.

Engineered for 24/7 uptime in hazardous locations, the RIM serves as your central nervous system for vibration analysis, temperature trending, and shaft position monitoring—translating raw sensor data into actionable intelligence that prevents catastrophic failures and optimizes maintenance intervals. Contact our application engineers to configure your ideal monitoring architecture.

Core Capabilities & Business Value

→ Dual-Protocol Serial Communication
RS232/RS422 interfaces support both point-to-point and multi-drop network topologies, enabling flexible integration with SCADA systems, DCS platforms, and portable diagnostic tools. Eliminates proprietary communication barriers that lock you into single-vendor ecosystems.

✓ Universal Rack Compatibility
Seamlessly integrates with 7-slot, 14-slot, and 19-slot 3500 Series chassis across all firmware generations. Protects your infrastructure investment by enabling phased upgrades without wholesale system replacement—reducing capital expenditure by 40-60% compared to complete monitoring overhauls.

→ Real-Time Configuration Management
Dynamic parameter adjustment without rack power-down requirements. Modify alarm setpoints, adjust filter bandwidths, and reconfigure channel assignments during live operation—minimizing process interruptions that cost $50,000-$500,000 per hour in lost production.

✓ Redundant Architecture Support
Dual-RIM configurations provide failover protection for critical rotating equipment monitoring. Automatic switchover maintains continuous data streams during module maintenance or communication path failures—achieving 99.99% uptime for Tier 1 machinery protection.

→ Extended Temperature Performance
-30°C to +65°C operational range with conformal coating protection against humidity, salt spray, and chemical exposure. Field-proven in offshore platforms, cement kilns, and cryogenic processing facilities where standard electronics fail within months.

✓ Low-Latency Data Streaming
Sub-100ms response times for alarm propagation and waveform capture. Enables closed-loop control integration and emergency shutdown coordination that prevents secondary damage cascades in coupled machinery trains.

Industrial Application Scenarios

Power Generation Turbine Monitoring
Steam and gas turbine installations require continuous vibration surveillance across journal bearings, thrust positions, and casing expansion. The 125744-02 enables centralized monitoring of 50+ measurement points per unit, with automatic data logging for regulatory compliance (NERC, FERC) and root cause analysis following trip events. Reduces unplanned outages by 35% through early detection of bearing degradation and rotor imbalance.

Petrochemical Compressor Protection
Centrifugal and reciprocating compressors in ethylene crackers, LNG facilities, and refinery hydrogen units demand API 670-compliant monitoring with redundant shutdown logic. This RIM coordinates multi-channel vibration, temperature, and surge detection inputs—triggering emergency depressurization sequences within 200ms of critical threshold breaches to prevent $2M+ catastrophic failures.

Pulp & Paper Machine Surveillance
High-speed paper machines with 30+ bearing locations benefit from the 125744-02's ability to aggregate data from distributed monitoring racks. Integration with mill-wide DCS systems enables predictive maintenance scheduling that aligns bearing replacements with planned production breaks—eliminating 80% of emergency maintenance calls and associated rush freight costs.

Mining Conveyor & Crusher Systems
Open-pit and underground operations expose monitoring equipment to dust, vibration, and temperature extremes. The module's ruggedized design maintains reliable communication in SAG mills, gyratory crushers, and overland conveyors—where sensor cable runs exceed 500 meters and electromagnetic interference from VFD drives disrupts standard fieldbus protocols.

Marine Propulsion & Auxiliary Systems
Shipboard installations require compact, shock-resistant monitoring solutions with saltwater corrosion resistance. The 125744-02 enables remote diagnostics via satellite links for main engine bearings, shaft line alignment, and generator sets—reducing at-sea maintenance costs and extending drydock intervals from 24 to 36 months.

Technical Specifications & Selection Criteria

Selection Guidance: For systems requiring Modbus TCP/IP or Ethernet connectivity, consider pairing with the 3500/92 Communication Gateway. Installations with more than two RIMs per rack may require custom backplane configurations—consult factory application notes AN-3500-001 for multi-drop network design.

Advanced Integration Capabilities

SCADA/DCS Connectivity
Native support for Modicon Modbus RTU protocol enables direct integration with Schneider Electric, Siemens, and ABB control systems. Pre-configured register maps accelerate commissioning—typical integration time reduced from 3 weeks to 5 days with our provided configuration templates.

Portable Analyzer Compatibility
Seamless connection to Bently Nevada SCOUT software and third-party vibration analyzers (SKF, Emerson AMS). Enables field engineers to perform route-based data collection and advanced diagnostics without disrupting permanent monitoring infrastructure.

Historian Integration
Continuous data streaming to OSIsoft PI, Honeywell PHD, and GE Proficy platforms. Supports both polled and exception-based reporting to optimize network bandwidth—critical for offshore platforms with limited satellite communication capacity.

Custom Protocol Development
Open serial command structure allows development of proprietary interfaces for specialized applications. Our engineering team has implemented custom drivers for nuclear plant safety systems, military vessel monitoring, and aerospace test stands.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via DHL/FedEx Express
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific parameters
Warranty Coverage: 12 months comprehensive warranty covering materials, workmanship, and firmware
Technical Support: Lifetime access to application engineers (email/phone) for installation guidance and troubleshooting
Documentation Package: Installation manual, wiring diagrams, Modbus register map, and calibration certificate included

Extended Services Available:

• On-site commissioning and system integration (quoted per project scope)
• Preventive maintenance contracts with annual health checks
• Spare module programs with 4-hour emergency replacement
• Training workshops on 3500 system optimization and diagnostics

Frequently Asked Questions

How does the 125744-02 interface with legacy 3500 racks from the 1990s?
Full backward compatibility is maintained through firmware auto-detection. The module automatically identifies rack generation and adjusts communication protocols accordingly. We've successfully deployed these units in systems dating back to 1992 without requiring backplane modifications.

What cable specifications are required for RS422 connections over 100 meters?
Use 22 AWG twisted-pair cable with 120-ohm characteristic impedance and foil+braid shielding (Belden 9842 or equivalent). Terminate both ends with 120-ohm resistors to prevent signal reflections. Maximum recommended distance is 1200 meters at 9600 baud—contact us for fiber optic converter recommendations for longer runs.

Can I hot-swap the RIM during operation without affecting other modules?
Yes, the 3500 backplane supports hot-insertion for all modules including the RIM. However, active communication sessions will terminate during swap. For zero-downtime maintenance, implement dual-RIM redundancy with automatic failover—we provide pre-configured redundant pairs with synchronized firmware.

Does this module support cybersecurity features for industrial networks?
The 125744-02 operates at the serial protocol layer without native encryption. For secure remote access, deploy behind industrial firewalls (Tofino, Hirschmann) or use VPN-enabled protocol converters. We offer security assessment services to evaluate your monitoring network architecture against IEC 62443 standards.

What diagnostic capabilities are available for troubleshooting communication failures?
Front-panel LEDs indicate power status, transmit/receive activity, and fault conditions. The 3500 Rack Configuration Software provides detailed diagnostics including signal quality metrics, error counters, and communication timeout logs. Our support team can remotely analyze diagnostic files to identify cable faults, baud rate mismatches, or protocol configuration errors.

Are firmware updates required for compatibility with newer 3500 monitor modules?
The 125744-02 ships with the latest firmware revision and does not require field updates for standard module compatibility. Firmware upgrades are only necessary for new protocol features or cybersecurity patches—distributed via our customer portal with detailed release notes and rollback procedures.

Start Optimizing Your Machinery Protection System

Transform your 3500 monitoring infrastructure into a predictive maintenance powerhouse. Our application engineers are ready to assess your current configuration, recommend optimal RIM deployment strategies, and provide integration support for your specific SCADA/DCS environment.

Request a technical consultation: Share your system architecture and monitoring objectives—we'll deliver a customized integration plan within 24 hours.

Need immediate assistance? Our global support team operates 24/7 to address urgent commissioning challenges and emergency replacement requirements.
