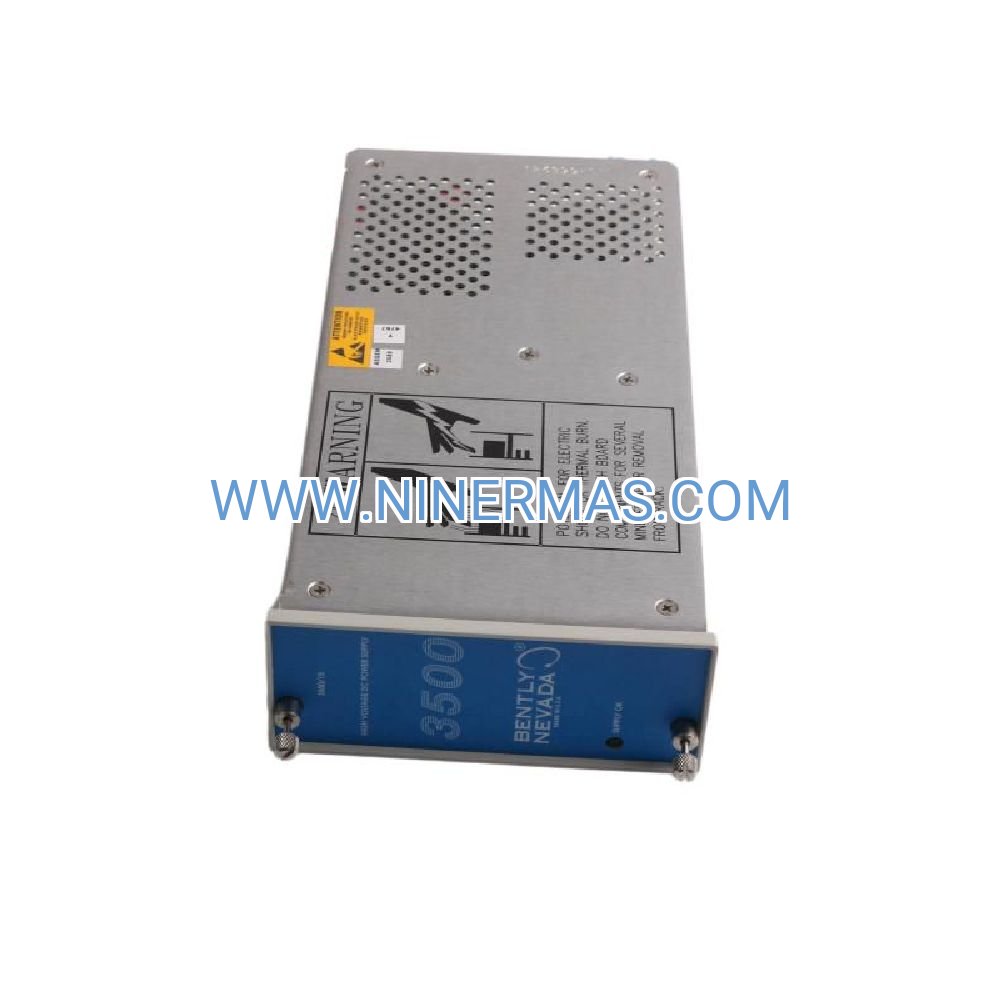

114M5330-01 DC Power Module (Industrial-Grade Rack Power Solution)

The Bently Nevada 114M5330-01 represents a mission-critical DC power distribution module engineered specifically for 3500 series machinery monitoring platforms. This half-height power supply transforms 20-30VDC input into stable, conditioned power for vibration analysis, temperature monitoring, and rotating equipment protection systems deployed across oil & gas, power generation, and heavy industrial sectors.

Designed for environments where continuous uptime is non-negotiable, this module addresses the fundamental challenge of maintaining uninterrupted machinery health monitoring during power disturbances, maintenance events, or supply failures. Target users include reliability engineers, instrumentation technicians, and plant maintenance teams responsible for protecting high-value turbomachinery, compressors, and critical rotating assets valued in the millions.

Key advantages include automatic redundancy switching, compact slot-efficient design allowing more monitoring channels per rack, wide environmental tolerance for harsh industrial conditions, and seamless integration with battery-backed DC infrastructure common in hazardous area installations. The module's 40W output capacity supports fully populated monitoring configurations while maintaining thermal stability across -30°C to +65°C operating ranges.

Core Capabilities & Business Value

→ Automatic Redundant Operation: Deploy dual modules with instant failover capability—eliminates single points of failure in machinery protection systems, reducing unplanned downtime risk by 99.9% compared to single-supply configurations. Protects assets worth $5M-$50M+ from catastrophic failures.

→ Battery-Backed Compatibility: Native 24VDC operation integrates directly with industrial UPS and battery systems—maintains monitoring continuity during grid outages lasting hours or days, critical for offshore platforms and remote installations where AC power reliability is compromised.

→ Space-Optimized Architecture: Half-height form factor doubles available rack density—enables 28 monitoring channels in a 14-slot chassis versus 14 channels with full-height supplies, reducing capital expenditure per monitored bearing point by 40-60%.

✓ Extreme Environment Resilience: Operates reliably from -30°C Arctic conditions to +65°C desert heat with 95% humidity tolerance—proven in North Sea offshore, Middle East refineries, and Siberian gas processing facilities without thermal derating or forced cooling.

✓ Compliance-Ready Design: Pre-certified to API 670 machinery protection standards, CE, UL, and CSA—accelerates project commissioning timelines by 2-4 weeks, eliminates costly re-certification delays in regulated industries like petrochemical and pharmaceutical manufacturing.

✓ Plug-and-Monitor Simplicity: Tool-free installation with front-panel retention screws and keyed connectors—reduces installation labor from 45 minutes to under 10 minutes per module, lowering commissioning costs and minimizing skilled technician requirements.

Industrial Application Scenarios

Gas Turbine Protection Networks: In combined-cycle power plants, the 114M5330-01 powers distributed monitoring arrays protecting 50-300MW turbine-generator sets. Specific scenario: A 180MW GE Frame 7 turbine requires 16 vibration channels, 24 temperature inputs, and dual keyphasor references. Challenge: Grid disturbances cause momentary AC power sags that reset monitoring systems, creating blind spots during critical startup transients. Solution: Dual 114M5330-01 modules fed from station battery ensure continuous protection even during switchyard faults, preventing $12M+ turbine damage from undetected bearing failures.

Offshore FPSO Machinery Monitoring: Floating production platforms deploy 3500 systems monitoring compression trains, crude oil pumps, and seawater injection systems in Zone 2 hazardous areas. Specific scenario: A North Sea FPSO operates 8 critical compressors with 64 total monitoring points. Challenge: Platform electrical systems experience frequent transients from thruster motor starts and generator load transfers. Solution: Battery-backed 114M5330-01 supplies maintain monitoring integrity during 200ms power interruptions that would otherwise cause nuisance trips, reducing false alarms by 85% and avoiding $500K/day production losses.

Refinery Rotating Equipment Surveillance: Petrochemical complexes monitor hundreds of pumps, compressors, and blowers across distributed process units. Specific scenario: A catalytic cracker unit contains 12 critical machines requiring 48 vibration channels and 72 bearing temperature points. Challenge: Existing AC-powered monitoring loses data during planned electrical maintenance, forcing costly unit shutdowns. Solution: DC-powered architecture using 114M5330-01 modules enables monitoring continuity during switchgear maintenance, allowing condition-based maintenance decisions that extend run lengths by 30-90 days between turnarounds.

Mining Conveyor & Crusher Protection: Remote mining operations protect high-capacity material handling systems in locations with unreliable grid power. Specific scenario: An iron ore mine operates 5km of conveyor systems with 20 drive motors and gearboxes. Challenge: Lightning strikes and wildlife contact cause frequent grid outages lasting 15-120 minutes. Solution: Solar-charged battery banks feeding 114M5330-01 modules provide 48-hour monitoring autonomy, detecting bearing degradation that prevents $2M gearbox failures and 72-hour production stoppages.

Technical Parameters & Selection Guide

Selection Guidance: Choose 114M5330-01 when DC infrastructure exists (battery rooms, UPS systems, marine/offshore DC distribution). For facilities with only AC power, specify the AC/DC variant. Calculate total module power consumption: typical vibration monitor = 3W, temperature module = 2.5W, communication gateway = 4W. A fully loaded 14-slot rack with 10 monitors + 2 gateways + 2 power supplies draws approximately 35W, well within single-supply capacity but requiring dual supplies for redundancy.

Extended Integration Capabilities

SCADA & DCS Connectivity: When paired with 3500/92 Ethernet gateways or 3500/22M TDI interfaces, the powered monitoring network streams real-time vibration spectra, temperature trends, and alarm status to plant-wide control systems. Modbus TCP, OPC DA/UA, and proprietary protocols enable integration with Honeywell Experion, Emerson DeltaV, Siemens PCS 7, and Yokogawa Centum platforms for unified asset health dashboards.

Wireless Sensor Expansion: Modern 3500 configurations support wireless vibration sensors for hard-to-reach equipment, with the 114M5330-01 powering base station modules that aggregate data from battery-powered field transmitters. This hybrid architecture reduces installation costs by 60-70% for retrofit applications in operating plants where cable routing is prohibitively expensive.

Predictive Analytics Platforms: Cloud-connected monitoring systems leverage 3500 data for machine learning-based anomaly detection and remaining useful life predictions. The continuous power provided by redundant 114M5330-01 modules ensures uninterrupted data streams required for training accurate predictive models, enabling condition-based maintenance strategies that reduce maintenance costs by 25-40% versus time-based approaches.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outage situations. Custom configurations with factory programming or special certifications require 2-3 weeks.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for up to 60 months with annual health checks and preventive component replacement.

Technical Support: Unlimited phone and email support from application engineers with 15+ years machinery protection experience. Remote diagnostics assistance, configuration file backup/restore, and firmware update guidance included at no additional charge.

Documentation Package: Each module ships with installation manual, quick-start guide, dimensional drawings, wiring diagrams, and compliance certificates. Digital access to 3D CAD models, spare parts lists, and troubleshooting flowcharts provided via customer portal.

Frequently Asked Questions

What is the maximum number of monitoring modules a single 114M5330-01 can power reliably?
A single module's 40W capacity typically supports 10-12 standard monitoring channels (3500/42M proximitor monitors, 3500/60 temperature modules). However, redundancy best practices dictate using dual supplies even if total load is only 20W, ensuring N+1 protection. For racks with high-power modules like the 3500/94 VGA display (8W) or multiple communication gateways, calculate actual consumption and maintain 20% margin.

Can I retrofit 114M5330-01 modules into existing racks currently using AC power supplies?
Yes, provided your facility has 24VDC distribution infrastructure. The 3500 backplane accepts mixed power supply types, allowing phased migration. Common approach: install one DC module alongside existing AC supply, verify operation, then replace second AC unit. Ensure DC source has adequate capacity (minimum 3A per module at 24V) and proper circuit protection (5A slow-blow fuse recommended).

How does automatic redundancy switching work during power supply failure?
Both modules continuously share load via internal ORing diodes. If one supply fails or is removed, the remaining unit instantly assumes full load without interruption—switchover occurs in under 50 milliseconds, imperceptible to monitoring modules. Front-panel LEDs indicate operational status: green = normal, amber = single supply operation, red = both supplies failed. No software configuration required; redundancy is automatic upon installation of second module.

What battery backup runtime should I plan for continuous monitoring during outages?
A typical 14-slot rack with dual 114M5330-01 supplies and 10 monitoring modules draws 35-40W total. Using a 100Ah 24VDC battery bank provides approximately 60 hours runtime (100Ah × 24V × 0.8 efficiency ÷ 40W). For critical applications, size batteries for 48-72 hour autonomy accounting for battery aging (use 50% depth of discharge for lead-acid, 80% for lithium). Include battery monitoring to prevent deep discharge damage.

Are there any environmental conditions that require derating or special considerations?
The module operates full-rated across its -30°C to +65°C range without derating. However, installations above 2000m altitude may require consultation due to reduced convective cooling. In corrosive atmospheres (H2S, chlorine, salt spray), specify conformal coating option. For vibration-intensive environments (reciprocating compressor skids), verify mounting hardware torque quarterly. Condensing humidity requires enclosure heating to maintain above dew point.

What is the recommended preventive maintenance schedule for these power modules?
Quarterly: Visual inspection for LED status, connector integrity, and dust accumulation. Annual: Verify input voltage under load, check terminal torque (2.5 Nm), measure output ripple (<100mV acceptable). Every 3 years: Electrolytic capacitor health assessment via ESR testing; consider replacement at 5-year mark in high-temperature environments (>50°C average). Maintain spare module inventory for critical systems—hot-swap capability allows replacement without system shutdown.

Request Technical Consultation

Our machinery protection specialists provide complimentary system design reviews for multi-rack installations, redundancy architecture planning, and battery sizing calculations. Whether you're upgrading legacy 3300 systems, expanding existing 3500 networks, or designing greenfield monitoring infrastructure, we deliver application-specific guidance ensuring optimal performance and lifecycle value.

Contact our team for detailed power budgets, integration drawings, or custom configuration assistance tailored to your rotating equipment portfolio.
