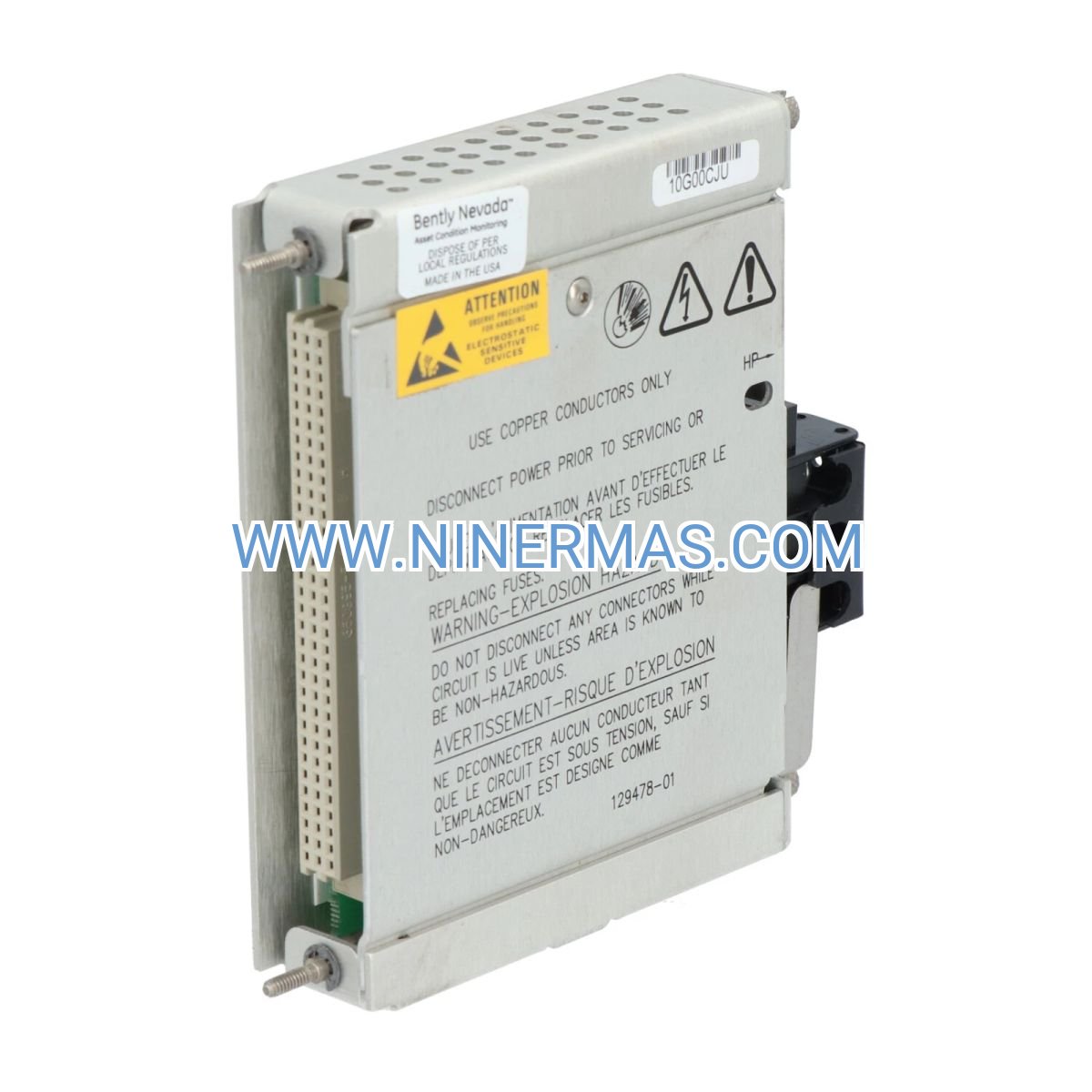

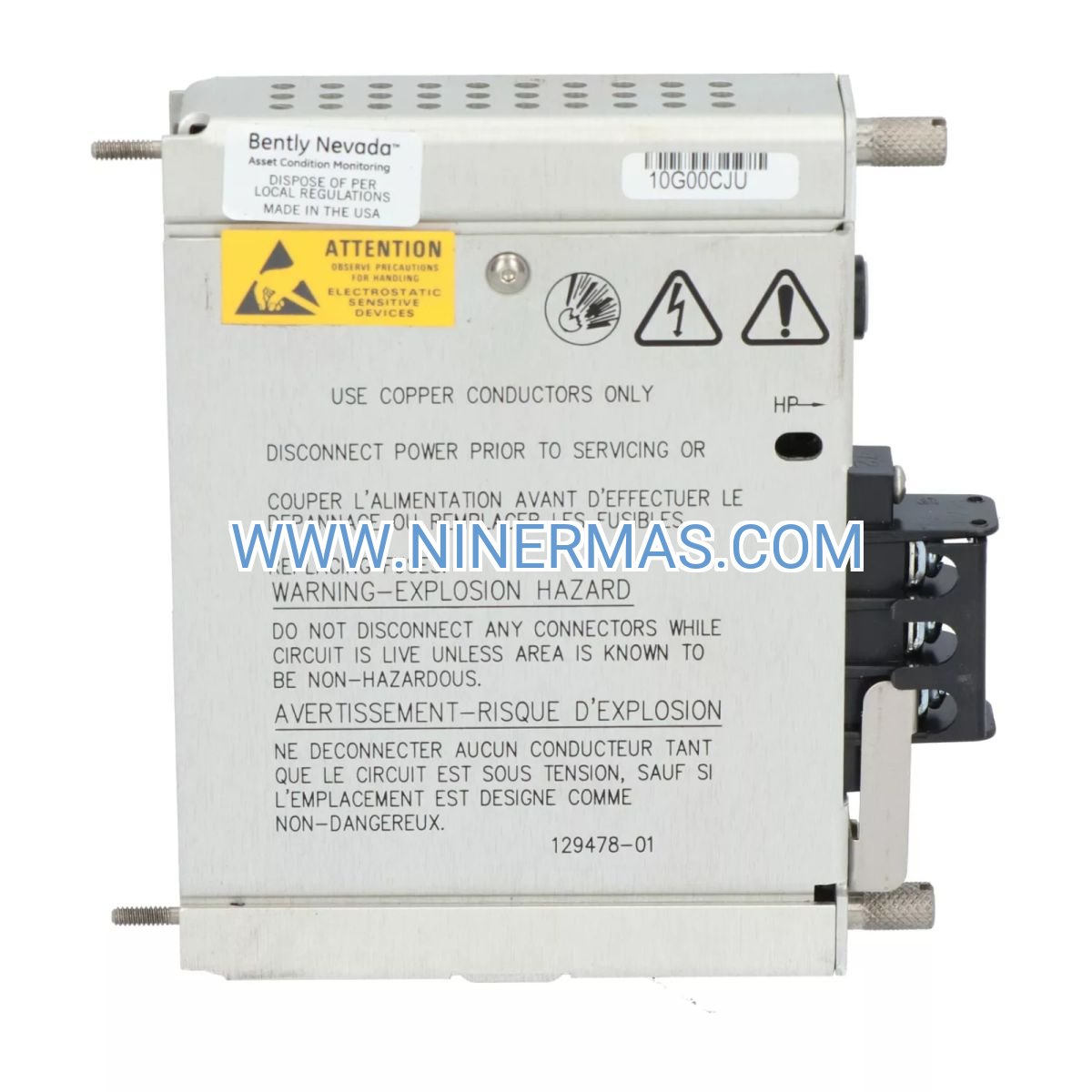

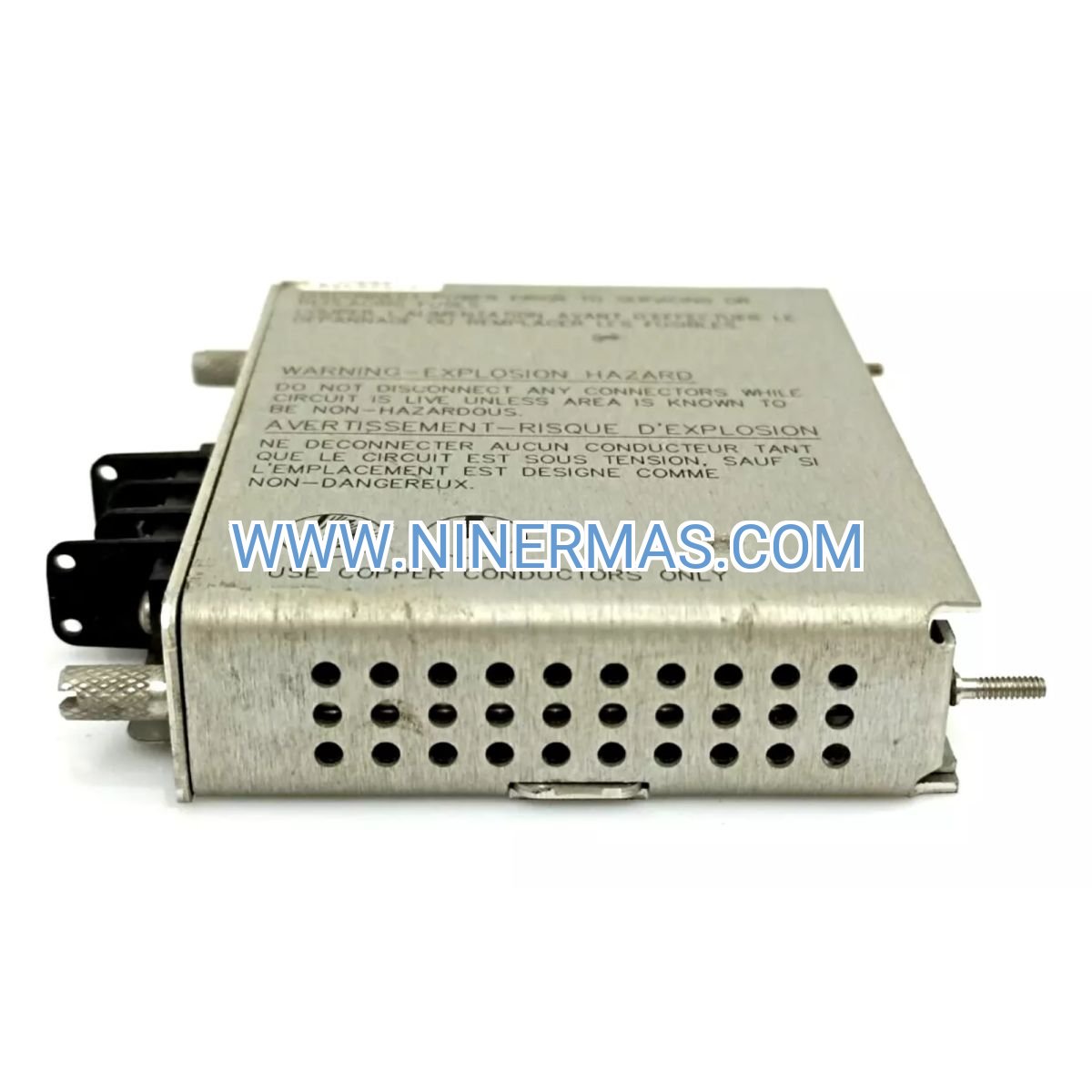

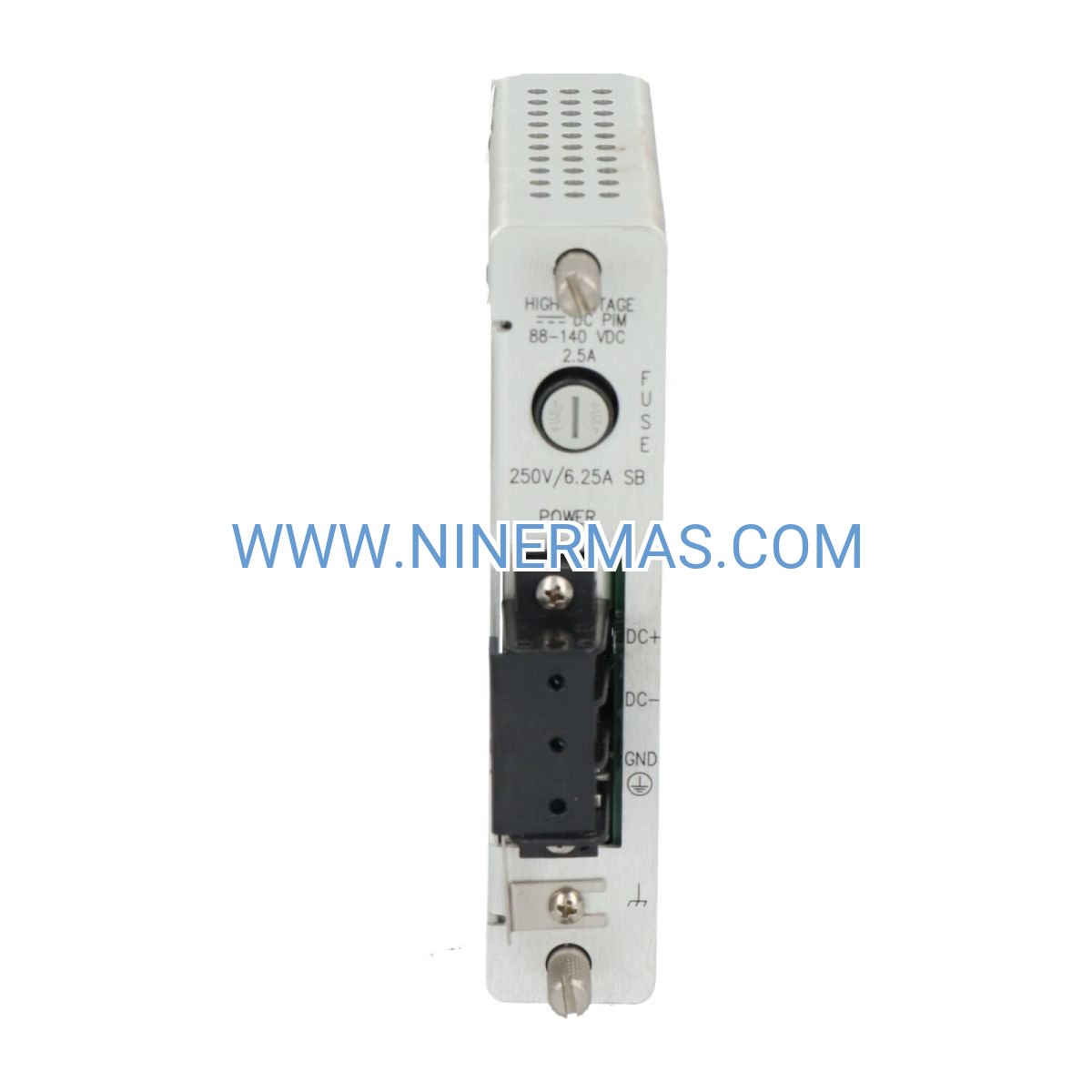

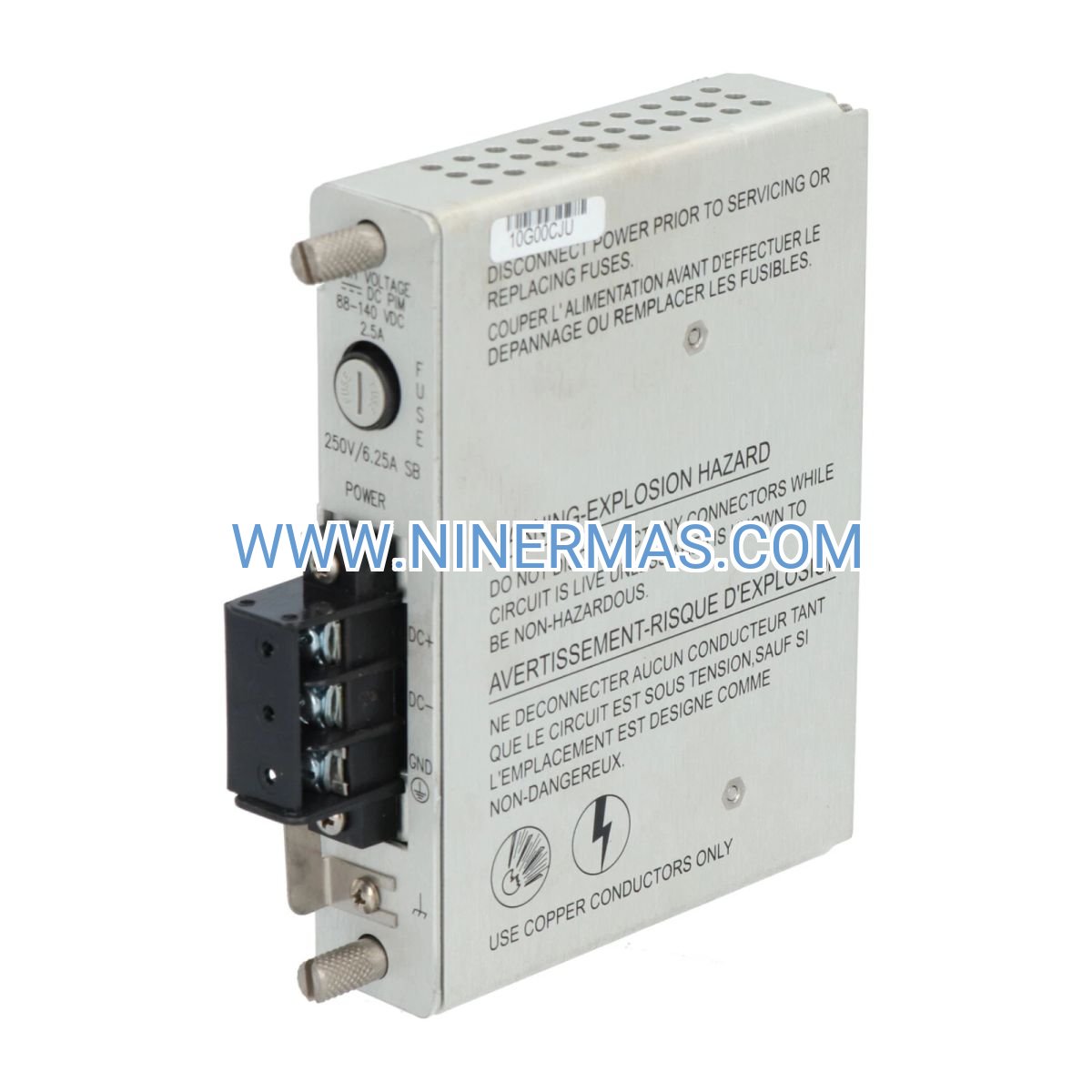

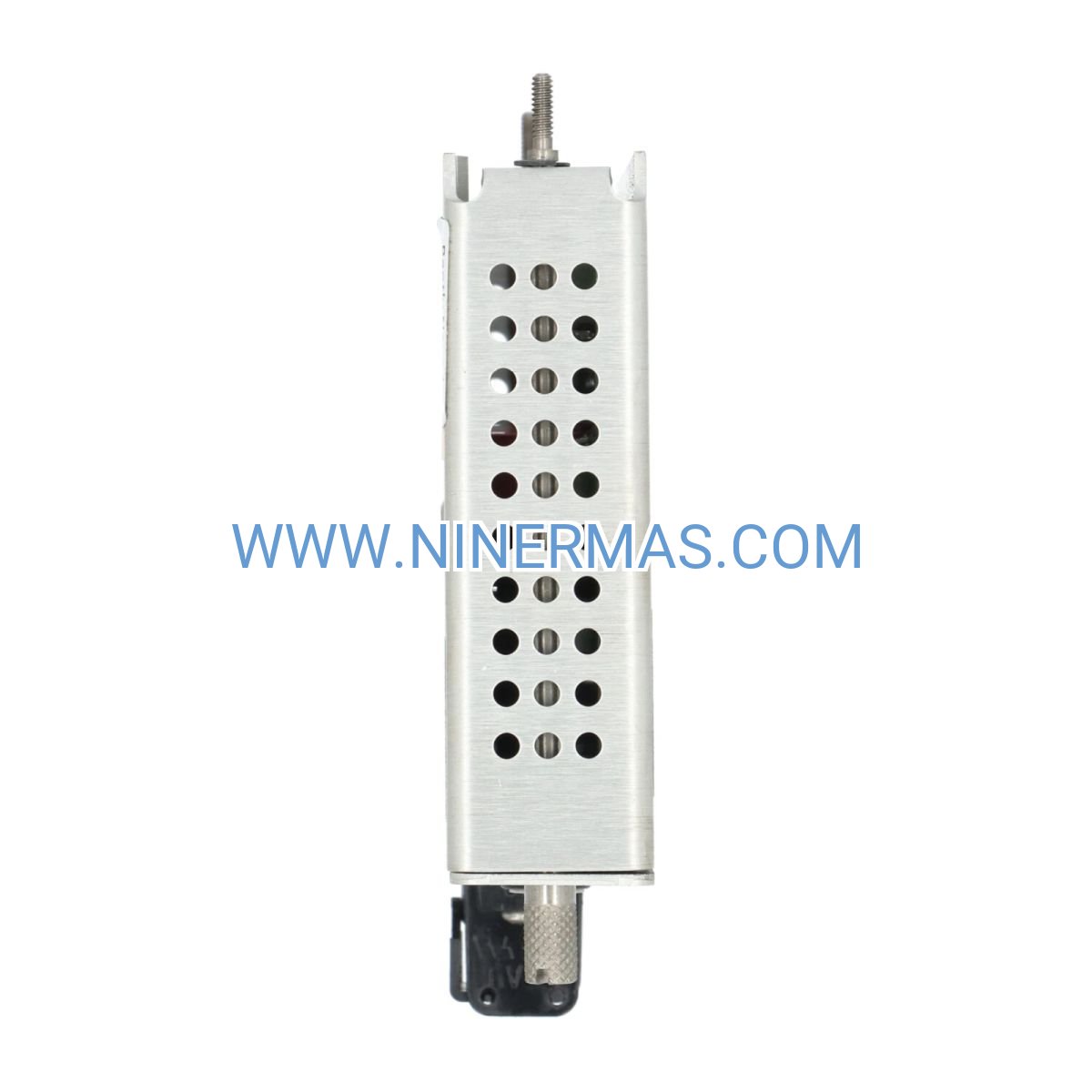

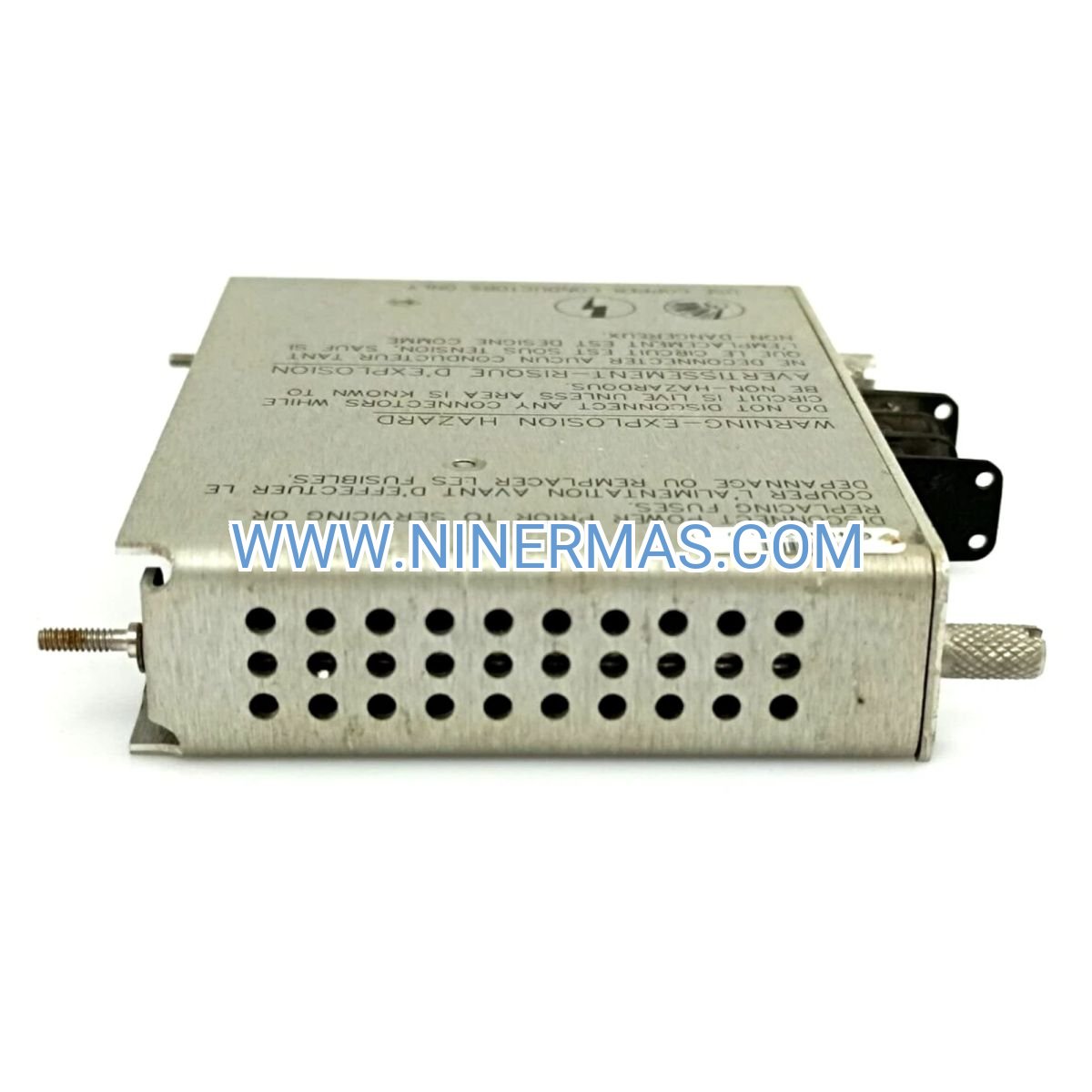

129478-01 High-Voltage DC Power Module (Industrial-Grade Rack Supply)

The 129478-01 represents a critical infrastructure component for continuous machinery health monitoring in high-stakes industrial environments. Engineered as a high-voltage DC power input module for Bently Nevada 3500 series monitoring racks, this unit transforms unstable industrial DC bus power into clean, regulated voltage that sustains vibration analysis, temperature monitoring, and protection relay systems across turbomachinery installations.

Designed for facilities where equipment downtime translates to six-figure hourly losses, the 129478-01 addresses the fundamental challenge of maintaining uninterrupted condition monitoring during grid fluctuations, switchover events, and electrical transients. Its wide 88-140 Vdc input tolerance absorbs voltage swings common in offshore platforms, mining operations, and heavy industrial plants, while integrated protection circuits isolate downstream monitoring modules from reverse polarity, overvoltage spikes, and short-circuit conditions.

This module serves as the electrical foundation for predictive maintenance programs, enabling real-time detection of bearing wear, shaft misalignment, and resonance conditions before catastrophic failures occur. When installed in redundant pairs, it delivers fault-tolerant power architecture that maintains monitoring continuity even during planned maintenance or component failure—a critical capability for 24/7 operations in power generation, petrochemical processing, and marine propulsion systems.

Core Capabilities & Business Value

→ Wide Input Voltage Tolerance (88-140 Vdc)
Accommodates ±30% voltage fluctuations in industrial DC distribution systems without dropout or module reset. Eliminates nuisance alarms caused by power quality issues, reducing false shutdown events and maintenance callouts.

✓ Full 14-Slot Rack Capacity
2.5-ampere current delivery supports fully populated monitoring racks with displacement probes, accelerometers, temperature sensors, and keyphasor modules. Simplifies power budgeting and eliminates the need for external power supplies in standard configurations.

→ Extended Temperature Range (-30°C to +65°C)
Maintains stable operation in uncontrolled enclosures near gas turbines, compressor stations, and outdoor installations. Reduces cooling requirements and enables installation in space-constrained equipment rooms.

✓ Redundancy-Ready Architecture
Supports dual-module installation with automatic failover, ensuring zero monitoring interruption during power source maintenance or component replacement. Meets SIL-2 availability requirements for safety-instrumented systems.

→ Integrated Electrical Protection
Reverse polarity guards, overvoltage clamps, and short-circuit limiters protect expensive monitoring modules from installation errors and electrical faults. Reduces risk of cascade failures in multi-module racks.

✓ Hot-Swap Capability (Redundant Mode)
Enables field replacement without system shutdown when paired with a second module. Supports predictive replacement strategies based on MTBF calculations, minimizing unplanned downtime.

Application Scenarios

Power Generation – Steam & Gas Turbine Monitoring
In combined-cycle plants and cogeneration facilities, the 129478-01 powers vibration monitoring systems that detect blade fouling, bearing degradation, and rotor imbalance in turbines operating at 3,600 RPM. Early fault detection prevents forced outages that cost $500K-$2M per event in lost generation capacity and emergency repairs.

Oil & Gas – Offshore Platform Compression
Offshore installations rely on DC electrical systems for safety and reliability. This module integrates seamlessly with platform DC buses (typically 110 Vdc nominal), powering condition monitoring for gas compressors, crude oil pumps, and seawater injection systems where equipment access requires helicopter transport and weather windows.

Petrochemical – Rotating Equipment Protection
Refineries and chemical plants deploy the 129478-01 in monitoring systems for centrifugal compressors, steam turbines, and large motor-driven pumps handling hazardous fluids. Continuous monitoring enables run-to-failure prevention and condition-based maintenance scheduling, reducing unplanned shutdowns by 40-60%.

Marine Propulsion – Ship Engine Monitoring
Vessel propulsion systems utilize DC electrical architectures where the 129478-01 powers monitoring racks tracking main engine vibration, shaft alignment, and thrust bearing temperature. Onboard monitoring reduces the need for emergency port calls and enables predictive maintenance during scheduled dry-dock periods.

Mining & Metals – Crusher & Mill Monitoring
Mining operations subject equipment to extreme dust, temperature swings, and mechanical shock. The module's rugged design and wide temperature range support monitoring installations in SAG mills, gyratory crushers, and conveyor drive systems where early detection of gear wear and bearing failure prevents production losses exceeding $100K per hour.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 129478-01 for facilities with existing DC power distribution (110 Vdc nominal). For AC-powered installations, consider the 127610-01 variant (100-240 Vac input). In critical applications requiring SIL-2 availability, specify dual-module redundant configuration. Verify DC bus voltage stability under maximum load conditions—sustained voltages below 88 Vdc or above 140 Vdc will cause module shutdown.

Extended Functions

System Integration Capabilities
The 129478-01 integrates with 3500 rack configurations supporting Modbus, Ethernet/IP, and proprietary protocols for SCADA connectivity. When paired with the 3500/20 Rack Interface Module, monitoring data flows to plant-wide asset management systems (AMS Suite, System 1, OSIsoft PI) enabling predictive analytics, alarm rationalization, and maintenance workflow automation.

Advanced Deployment Options
For installations requiring UPS-backed monitoring during grid outages, the module accepts input from industrial DC UPS systems (battery-backed 110 Vdc buses). In redundant power architectures, automatic load sharing between dual modules balances thermal stress and extends service life. Field-configurable alarm contacts (via companion modules) enable integration with plant DCS and emergency shutdown systems.

Customization & OEM Integration
While the 129478-01 ships as a standard catalog item, Bently Nevada offers factory customization for OEM machinery builders requiring modified mounting, conformal coating for corrosive environments, or extended temperature ratings. Consult factory applications engineering for high-vibration installations (>2g RMS) or explosive atmosphere certifications (ATEX, IECEx).

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or large-quantity orders (10+ units) require 4-6 weeks factory lead time. Expedited processing available for emergency replacements in critical applications.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service for redundant-configured systems, minimizing downtime during RMA processing.

Technical Support: Factory-trained application engineers provide installation guidance, power budget calculations, and troubleshooting support via phone and email. On-site commissioning assistance available for complex multi-rack installations or greenfield projects.

Documentation Package: Each module ships with installation manual, wiring diagrams, compliance certificates (CE, UL), and calibration test reports. Digital documentation library includes 3D CAD models (STEP format), spare parts lists, and recommended maintenance procedures.

Frequently Asked Questions

How does the 129478-01 DC module compare to AC-powered alternatives for offshore installations?
Offshore platforms typically standardize on DC electrical systems (110 Vdc) for safety and reliability, making the 129478-01 the preferred choice. DC systems eliminate transformer inrush currents, simplify battery backup integration, and reduce fire risk compared to AC distribution. The module's wide input tolerance also accommodates voltage drops in long cable runs common on large platforms.

What is the maximum cable length between the DC power source and the 129478-01 module?
Cable length depends on wire gauge and acceptable voltage drop. For 12 AWG copper wire, maximum recommended length is 150 feet (45 meters) at full 2.5A load to maintain voltage within the 88-140 Vdc window. Use voltage drop calculators or consult the 3500 System Manual for specific installation conditions. Oversized conductors (10 AWG or larger) extend permissible cable runs.

Can I retrofit the 129478-01 into an existing 3500 rack currently using AC power supplies?
Yes, the module is mechanically and electrically compatible with all 3500 rack variants. Simply remove the existing AC power module, install the 129478-01 in the same slot, and connect to your DC power source. No firmware updates or configuration changes required. Ensure your facility has suitable DC power infrastructure (88-140 Vdc) before ordering.

Does the module support remote monitoring of power supply health and status?
The 129478-01 itself does not provide network-accessible diagnostics. However, when installed in racks equipped with the 3500/20 Rack Interface Module, system-level power status (voltage, current draw, fault conditions) can be monitored via Modbus or Ethernet protocols. Third-party power monitoring modules can also be added to the rack for granular power quality analysis.

What maintenance procedures are recommended for the 129478-01 module?
The module requires no routine maintenance or calibration. Recommended practices include annual visual inspection for dust accumulation (clean with compressed air if needed), verification of terminal block torque (check for loose connections), and functional testing of redundant failover (if dual-module configuration). Replace modules proactively at 10-year intervals in critical applications or when MTBF calculations indicate elevated failure risk.

How quickly does the redundant module take over if the primary unit fails?
Failover occurs within 20 milliseconds—fast enough to prevent monitoring system reset or data loss. The 3500 rack's internal capacitance bridges the transition, maintaining continuous operation of all monitoring modules. Failover events are logged in the rack interface module for post-event analysis and predictive replacement planning.
