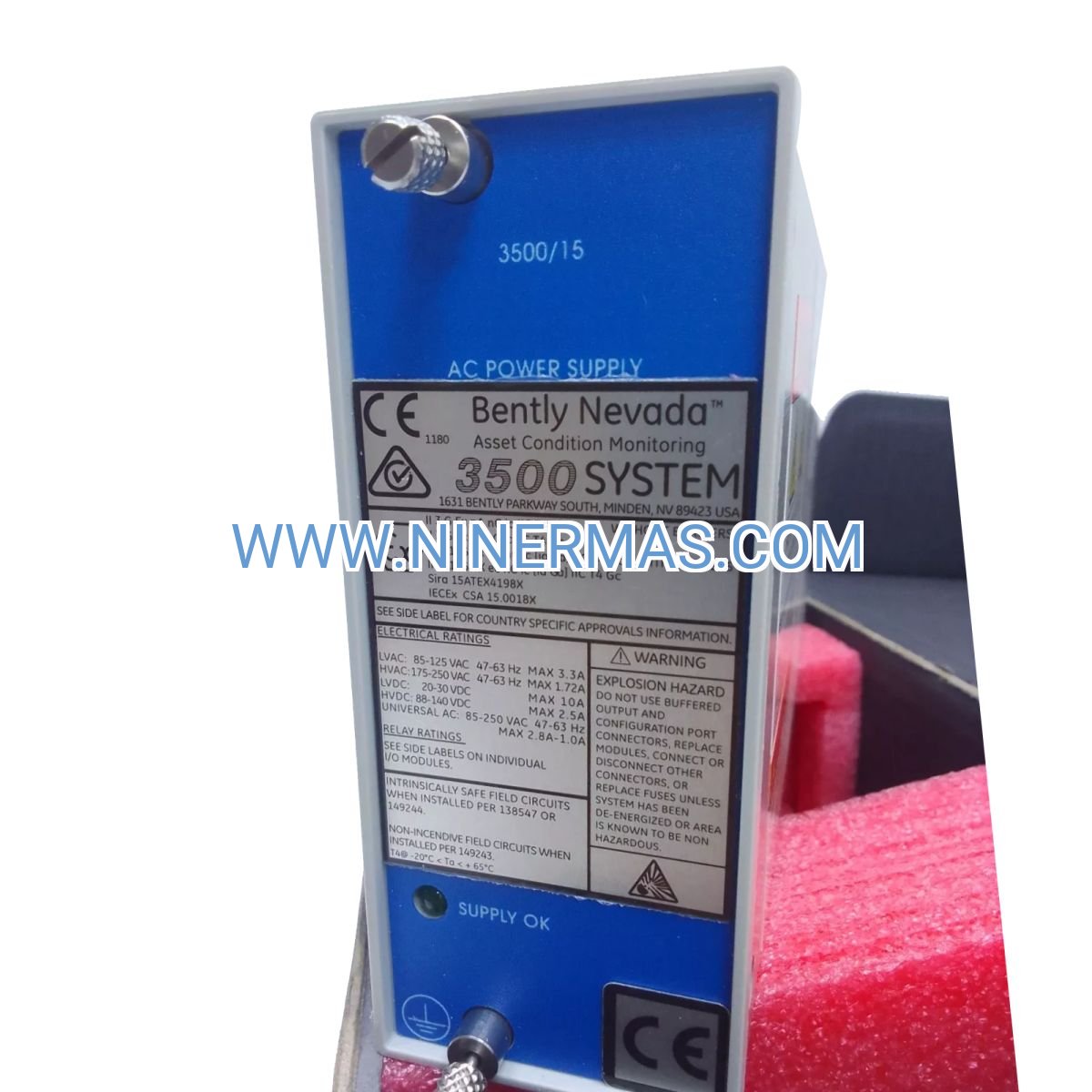

106M1079-01 Universal AC Power Module (Industrial-Grade Reliability)

The 106M1079-01 represents Bently Nevada's commitment to uninterrupted machinery protection through intelligent power distribution. This universal AC supply module transforms standard facility power into stable, redundant energy for critical vibration monitoring infrastructure across oil & gas, power generation, and heavy industrial sectors.

Designed for 24/7 operation in harsh environments ranging from Arctic installations to desert refineries, this half-height module eliminates single points of failure while maximizing rack space efficiency. Whether you're protecting multi-million dollar turbomachinery or ensuring continuous process uptime, the 3500/15 delivers the power foundation your monitoring system depends on.

With global voltage compatibility and hot-swap capability, maintenance teams can service power systems without compromising protection coverage—a critical advantage when every minute of downtime carries operational and safety consequences.

Core Capabilities & Business Value

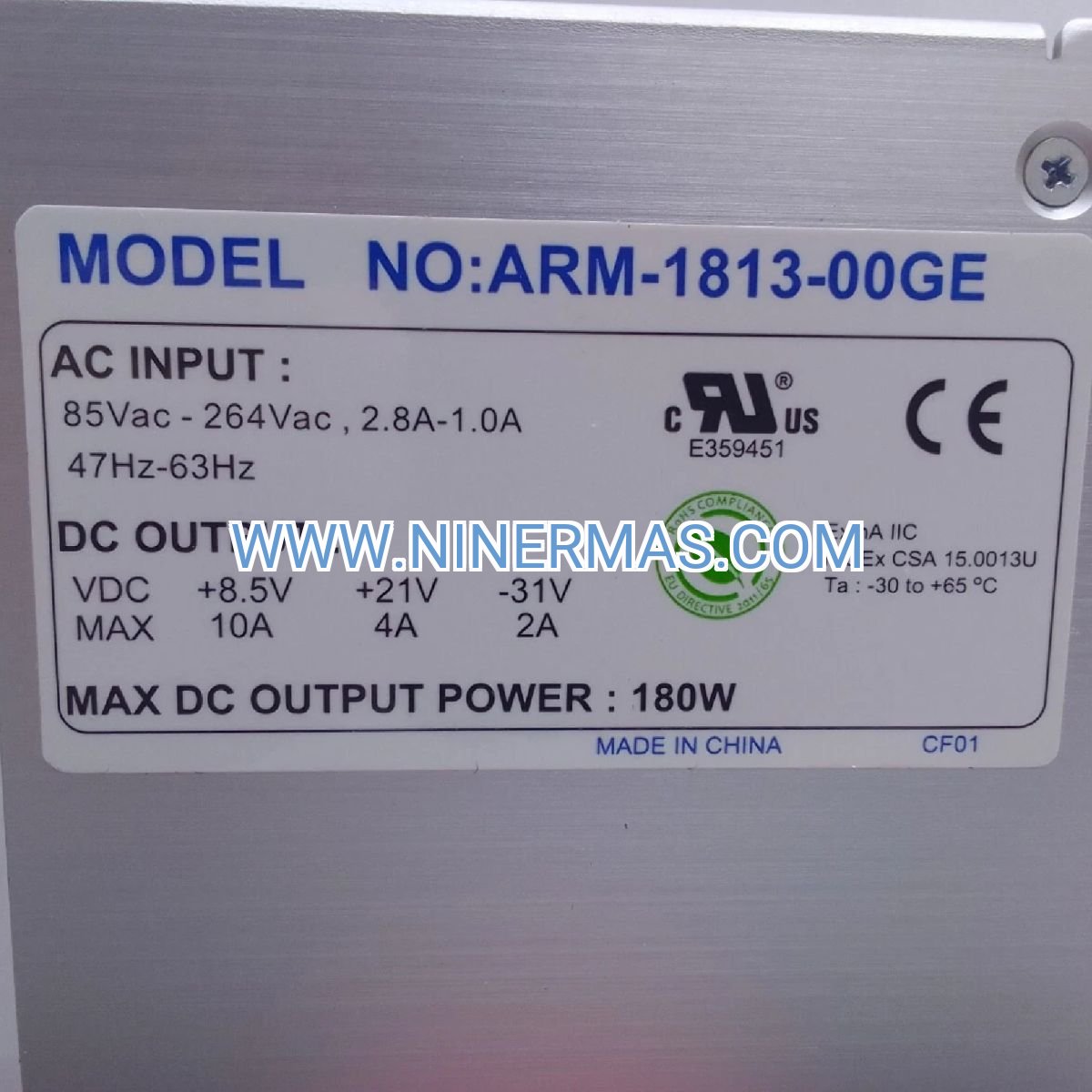

→ Universal Voltage Acceptance (85-264 Vac rms)
Deploy identical hardware across international facilities without voltage conversion equipment. Reduces spare parts inventory complexity and simplifies multi-site standardization initiatives.

✓ Redundant Power Architecture
Automatic failover between dual supplies ensures monitoring continuity during utility disturbances or scheduled maintenance. Protects against the $500K+ average cost of unplanned turbine shutdowns.

✓ Compact Half-Height Profile
Occupies just two slots in 3500 racks, leaving maximum space for monitoring channels. Enables higher channel density per rack foot—critical in space-constrained control rooms and offshore platforms.

✓ Hot-Swappable Operation
Replace failed or aging modules without system shutdown. Maintenance windows no longer require protection system outages, maintaining continuous asset surveillance.

✓ Hybrid Configuration Flexibility
Combine with DC power modules for ultimate resilience. Supports AC primary/DC backup strategies that align with facility UPS infrastructure and risk tolerance.

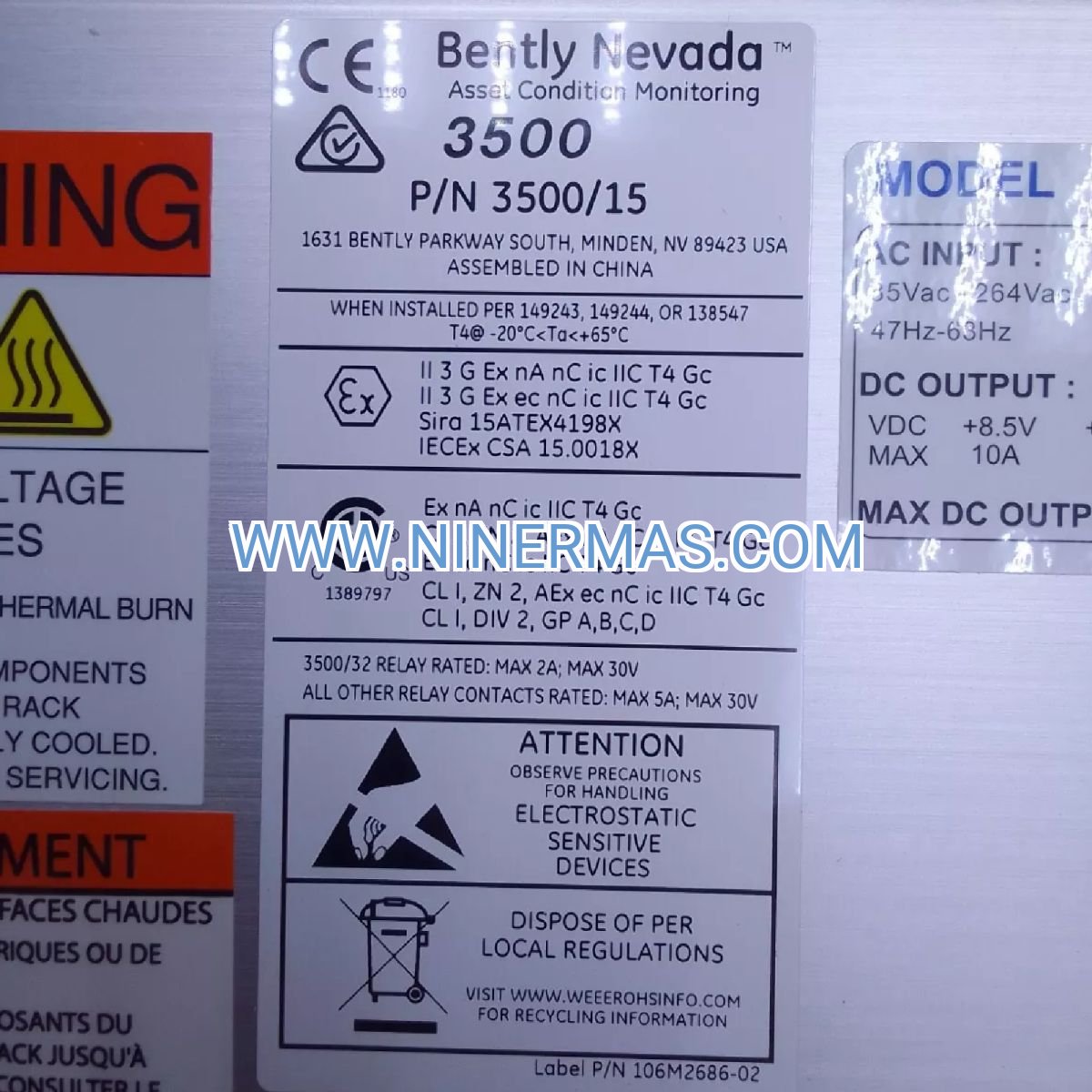

✓ Hazardous Area Certifications
CSA Class I Division 2 and ATEX/IECEx Zone 2 approvals enable installation in classified locations without costly explosion-proof enclosures.

Industrial Application Scenarios

Turbomachinery Protection Systems
Gas turbines, steam turbines, and centrifugal compressors demand continuous vibration monitoring to detect bearing failures, rotor imbalance, and shaft misalignment before catastrophic damage occurs. The 106M1079-01 ensures monitoring systems remain powered through grid fluctuations common in remote production facilities, preventing the $2M+ repair costs and months-long lead times associated with major turbine failures.

Offshore Platform Installations
Marine environments subject equipment to salt fog, temperature extremes, and unstable power quality. This module's wide operating range (-30°C to +65°C) and universal input accommodate generator-sourced power while redundant operation compensates for the limited maintenance access inherent to offshore operations.

Refinery & Petrochemical Plants
Process units running 8,000+ hours annually between turnarounds require monitoring systems that match equipment reliability. Hot-swap capability allows power module replacement during brief process interruptions rather than waiting for full unit shutdowns, maintaining protection coverage across extended run cycles.

Power Generation Facilities
Balance-of-plant equipment—boiler feed pumps, induced draft fans, pulverizers—represents significant auxiliary load. Monitoring system power failures can mask developing mechanical issues, leading to forced outages. Dual 3500/15 modules provide the redundancy that matches the criticality of generation assets.

Predictive Maintenance Networks
Enterprise-wide condition monitoring programs depend on consistent data collection. Power supply failures create data gaps that compromise trending analysis and machine learning algorithms. Redundant architecture ensures continuous data streams that maximize the ROI of predictive maintenance investments.

Technical Parameters & Selection Guide

Selection Criteria:

Choose single AC configuration for facilities with stable utility power and low criticality equipment. Specify dual AC supplies (N+1 redundancy) for critical machinery where monitoring downtime is unacceptable. Consider AC/DC hybrid setups when facility UPS systems provide reliable DC backup or when maximizing resilience against diverse failure modes.

Part Number Decoding: 3500/15-AA-BB-CC
• AA (Top Slot): 05 = Universal AC | 06 = 24 Vdc
• BB (Bottom Slot): 00 = Empty | 05 = Universal AC | 06 = 24 Vdc
• CC (Approvals): 01 = CSA/NRTL | 02 = ATEX/IECEx

Extended Integration Capabilities

System-Level Monitoring
Power supply status integrates with 3500 rack diagnostics, providing alarm visibility through the 3500/92 Communication Gateway to DCS, SCADA, and plant information systems. Proactive alerts enable maintenance scheduling before failures impact monitoring coverage.

Modular Expansion
As monitoring requirements grow, add channels without power system redesign. Each 3500 rack supports up to 14 slots of monitoring modules powered by a single dual-supply configuration, accommodating system expansion as asset portfolios evolve.

Legacy System Upgrades
Direct replacement for aging 3300 series power supplies during rack modernization projects. Maintains physical compatibility while delivering improved efficiency and diagnostics that reduce long-term operating costs.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-2 business days via expedited carriers. Custom configurations (specific approval codes or dual-supply assemblies) typically ship within 5-7 business days.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical spares programs.

Technical Support: Access to application engineers with 3500 system expertise for configuration validation, rack layout optimization, and troubleshooting assistance. Pre-sales consultation ensures correct module selection for your specific power infrastructure.

Documentation Package: Each module ships with installation instructions, wiring diagrams, and certification documents. Full technical manuals and CAD drawings available via download portal.

Frequently Asked Questions

Can I mix AC and DC power modules in the same rack for hybrid redundancy?
Yes, the 3500 rack architecture supports AC/DC hybrid configurations. Install one 3500/15 AC module and one 3500/15 DC module to create a redundant system that protects against both AC utility failures and DC UPS issues. This configuration is common in facilities with robust DC backup infrastructure.

What's the maximum number of monitoring channels a single dual-supply configuration can power?
A redundant pair of 3500/15 modules provides sufficient capacity for a fully populated 14-slot rack with high-power modules like the 3500/42M Proximitor Seismoprobe Monitor. Actual capacity depends on specific module mix; consult power budget calculations in the 3500 System Manual for complex configurations.

How does the automatic failover work when one power supply fails?
The 3500 rack backplane includes OR-ing diodes that seamlessly transfer load to the remaining supply without interruption. Monitoring modules experience no reset or data loss. The rack's diagnostic LED indicates single-supply operation, and the 3500/92 gateway can generate alarms to notify maintenance personnel.

Is hot-swapping truly safe, or should I still plan for system downtime during replacement?
Hot-swap is fully supported when operating in redundant mode (two supplies installed). Simply remove the failed module and insert the replacement—no tools required beyond the module ejector. Single-supply systems must be powered down before module replacement to prevent monitoring system reset.

Will this module work with my existing 3300 series monitoring modules during a phased upgrade?
No, the 3500/15 is designed exclusively for 3500 series racks and modules. The 3300 and 3500 systems use different backplane architectures and are not cross-compatible. Plan for complete rack-level upgrades rather than mixing generations.

What's the typical service life before replacement is recommended?

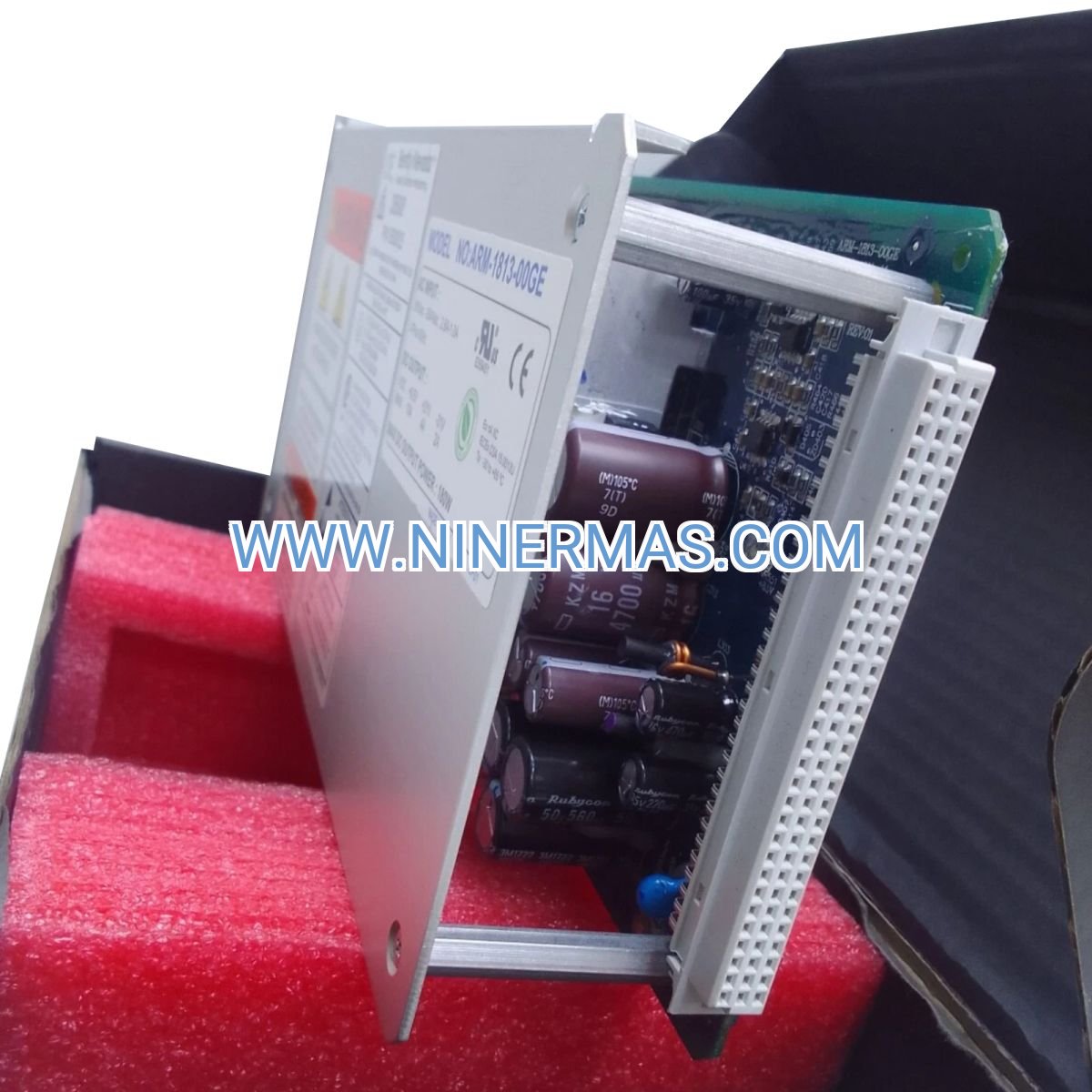

Bently Nevada designs these modules for 15-20 year service lives in typical industrial environments. Electrolytic capacitors represent the primary wear component; consider replacement during major turnarounds after 10-12 years of continuous operation to maintain optimal reliability.

Secure Your Monitoring Infrastructure Today

Don't let power supply failures compromise your machinery protection investment. The 106M1079-01 delivers the redundancy and reliability that critical assets demand.

Ready to order? Contact our instrumentation specialists for configuration assistance, volume pricing, or technical consultation. We maintain deep inventory of genuine Bently Nevada components for immediate deployment to your facility.
