Bently Nevada 3500/15 Universal AC Power Supply (Industrial-Grade Reliability)

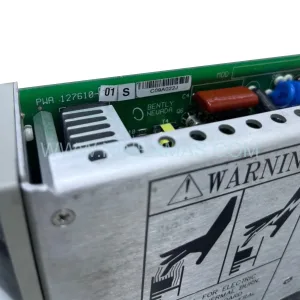

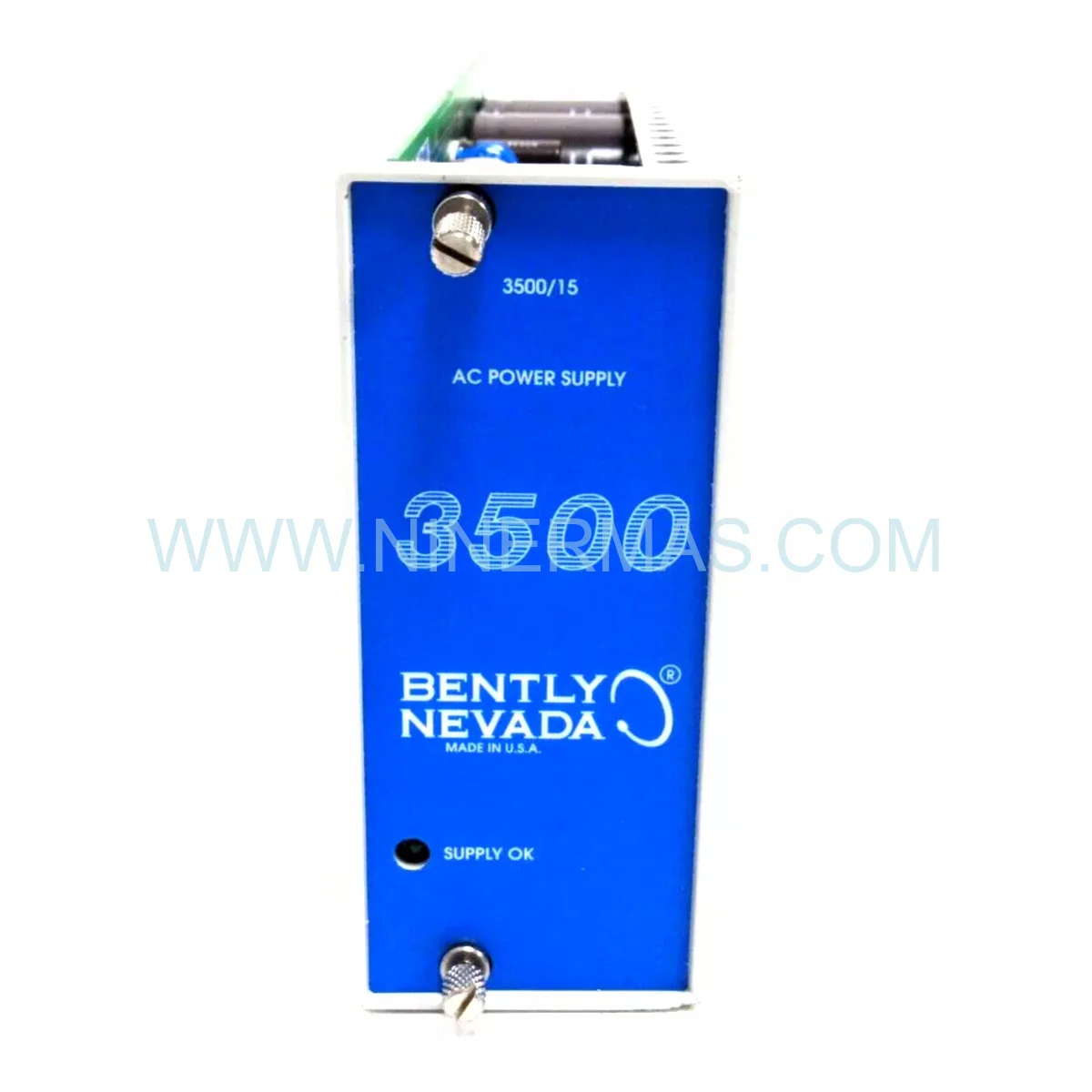

The Bently Nevada 3500/15-02-00-00 (Part No. 127610-01) is a universal voltage AC power supply engineered for continuous operation in machinery protection and condition monitoring systems. This half-height module delivers stable power to 3500 series monitoring racks across diverse industrial environments, from oil & gas platforms to power generation facilities.

Designed for mission-critical applications where downtime is not an option, the 3500/15 accepts a wide input voltage range (85-264 Vac) and supports redundant configurations. Whether you're upgrading legacy systems or building new monitoring infrastructure, this power supply ensures your vibration monitoring network remains operational 24/7/365.

With proven field reliability and compatibility across the entire 3500 ecosystem, the 127610-01 module reduces installation complexity while providing the power density and thermal performance required for harsh industrial conditions. Backed by comprehensive technical documentation and global support, it's the foundation for dependable machinery health monitoring.

Core Features & Benefits

✓ Universal Voltage Compatibility (85-264 Vac)
Eliminates the need for voltage-specific models. Deploy the same part number globally, reducing inventory complexity and simplifying procurement across multi-site operations.

✓ Redundant Power Architecture
Supports dual power supply configurations in a single rack. If one supply fails, the second maintains full system operation—critical for unattended remote installations and continuous process industries.

✓ Half-Height Compact Design
Maximizes rack space efficiency. Install in designated left-side slots without sacrificing monitoring channel capacity, allowing more sensors per rack footprint.

✓ Wide Operating Temperature Range (-30°C to +65°C)
Performs reliably in extreme environments—from Arctic installations to desert climates—without derating or forced cooling requirements.

✓ Hazardous Area Certifications
Available with CSA/NRTL, ATEX, and IECEx approvals for Class I Division 2 and Zone 2 locations. Meets global safety standards for oil & gas, chemical processing, and mining applications.

✓ Hot-Swappable Operation
Replace or add power supplies without shutting down the monitoring system. Minimize maintenance windows and eliminate planned downtime for power upgrades.

Typical Application Scenarios

→ Rotating Equipment Monitoring in Refineries
Challenge: Compressors, turbines, and pumps require continuous vibration monitoring to prevent catastrophic failures.
Solution: The 3500/15 powers multi-channel monitoring racks with redundant supplies, ensuring zero data loss during power transients or supply failures.
Value: Prevents unplanned shutdowns worth $500K+ per incident while maintaining compliance with API 670 standards.

→ Power Generation Turbine Protection
Challenge: Steam and gas turbines demand real-time protection with <1ms response times in high-temperature environments.
Solution: Wide operating temperature tolerance (-30°C to +65°C) and stable output voltage maintain monitoring accuracy in turbine enclosures.
Value: Protects $50M+ assets with reliable trip functions and extends turbine service intervals through early fault detection.

→ Offshore Platform Condition Monitoring
Challenge: Remote installations face harsh conditions, limited maintenance access, and variable power quality from platform generators.
Solution: Universal voltage input (85-264 Vac) handles generator frequency variations and voltage sags without dropout or alarm nuisance.
Value: Reduces offshore maintenance visits by 40% and ensures continuous monitoring during platform power switching operations.

→ Mining Conveyor & Crusher Systems
Challenge: Dusty, high-vibration environments with 24/7 operation require ruggedized monitoring infrastructure.
Solution: Sealed construction and 95% humidity tolerance withstand coal dust, moisture, and mechanical shock from nearby equipment.
Value: Increases conveyor uptime from 87% to 96%, adding 788 production hours annually per system.

→ Chemical Process Critical Machinery
Challenge: Hazardous area installations require certified equipment with proven intrinsic safety.
Solution: Available with ATEX/IECEx Zone 2 and CSA Division 2 certifications for compliant installations in classified areas.
Value: Enables monitoring in previously unprotected hazardous zones, reducing insurance premiums and regulatory risk.

Technical Parameters & Selection Guide

Selection Criteria:

• Single vs. Redundant: Use single supply for non-critical monitoring; specify dual supplies for machinery protection applications requiring 99.9%+ uptime.
• Hazardous Area Requirements: Order with -01 suffix for CSA/NRTL (Division 2) or -02 suffix for ATEX/IECEx (Zone 2) certifications.
• Voltage Compatibility: The universal AC model (3500/15-05) covers all global voltages; legacy DC models (3500/15-03, -04, -06, -07) available for DC bus systems.
• Rack Loading: Each 3500/15 AC supply supports full 21-slot rack at maximum channel density; verify total power budget for racks with >15 active monitoring modules.

Extended Functions & Integration

System Health Monitoring: Built-in diagnostics report power supply status to 3500 rack controller. Integrate with DCS/SCADA systems via Modbus or proprietary protocols for centralized power monitoring and predictive maintenance alerts.

IoT & Remote Monitoring: When paired with 3500/92 Communication Gateway, power supply status feeds into cloud-based condition monitoring platforms. Receive email/SMS alerts for supply failures or voltage anomalies before they impact monitoring accuracy.

Customization Options: Available in dual-supply configurations (3500/15-AA-BB-CC format) with mixed AC/DC combinations. Specify top and bottom slot supply types during ordering to match site power infrastructure.

Legacy System Upgrades: Direct replacement for older 3300 series power supplies when migrating to 3500 platform. Maintains backward compatibility with existing rack mounting hardware and wiring harnesses.

Delivery & Service Assurance

Lead Time:
→ Standard Configuration (3500/15-05-00-00): 3-5 business days (in-stock items)
→ Certified Models (-01/-02 suffix): 7-10 business days
→ Custom Dual-Supply Configurations: 10-14 business days

Warranty Coverage:
→ 12-month manufacturer warranty covering defects in materials and workmanship
→ Extended warranty options available for critical applications
→ Advance replacement program for redundant supply failures

Technical Support:
→ Pre-sales application engineering assistance for system design
→ Installation guidance and commissioning support
→ 24/7 emergency technical hotline for production-down situations
→ Access to Bently Nevada field service engineers for on-site troubleshooting

Documentation Included:
→ Installation and Safety Instructions (multilingual)
→ Electrical connection diagrams and terminal layouts
→ Certification documents (CE, ATEX, IECEx, CSA as applicable)
→ Dimensional drawings for rack planning
→ Recommended spare parts list

Frequently Asked Questions

Q1: Can I mix AC and DC power supplies in the same 3500 rack?
Yes, the 3500 rack supports any combination of AC (3500/15-05) and DC (3500/15-06/-07) supplies. This flexibility allows you to match site power infrastructure—for example, using AC mains for primary supply and DC UPS for backup.

Q2: What is the maximum power capacity per 3500/15 AC supply?
Each 3500/15 AC module can power a fully populated 21-slot rack with all monitoring channels active. For racks with high-density modules (like 3500/44M or 3500/46M), verify total power draw does not exceed 150W per supply.

Q3: How does the redundant power configuration improve system reliability?
With dual supplies installed, each operates at ~50% capacity. If one fails, the remaining supply automatically assumes 100% load without interruption. This N+1 redundancy achieves >99.95% power availability—critical for machinery protection systems where monitoring downtime equals production risk.

Q4: Are there any special installation requirements for hazardous area applications?
Yes, when using certified models (-01 or -02 suffix) in Class I Division 2 or Zone 2 locations, follow NEC Article 501/505 or IEC 60079 wiring practices. Ensure conduit seals, grounding, and cable gland selections meet local authority requirements. Refer to the Installation & Safety Instructions (document 141535-01) for detailed compliance guidance.

Q5: Can the 3500/15 AC supply operate during voltage sags or brownout conditions?
The universal input design tolerates voltage variations from 85 to 264 Vac without dropout. During brief sags below 85 Vac, internal holdup capacitors maintain output for 20-50ms—sufficient to ride through most utility switching transients. For sites with chronic power quality issues, consider adding an external UPS or using DC supplies fed from a regulated DC bus.

Q6: What is the typical lifespan and recommended replacement interval?
Mean Time Between Failures (MTBF) exceeds 100,000 hours under normal operating conditions. For continuous-duty applications, we recommend inspection every 5 years and replacement every 10-15 years as part of a proactive asset management program. Electrolytic capacitor aging is the primary wear mechanism; early replacement prevents unexpected failures.

Ready to Secure Your Machinery Protection System?

Get a Quote: Contact our application engineers to configure the optimal power supply solution for your 3500 rack. We'll verify compatibility, recommend redundancy options, and provide delivered pricing with lead times.

Request Technical Data: Download complete datasheets, CAD models, and certification documents to support your engineering design and procurement approval process.

Schedule a Consultation: Speak with a Bently Nevada specialist to discuss system architecture, hazardous area requirements, or migration strategies from legacy monitoring platforms.
