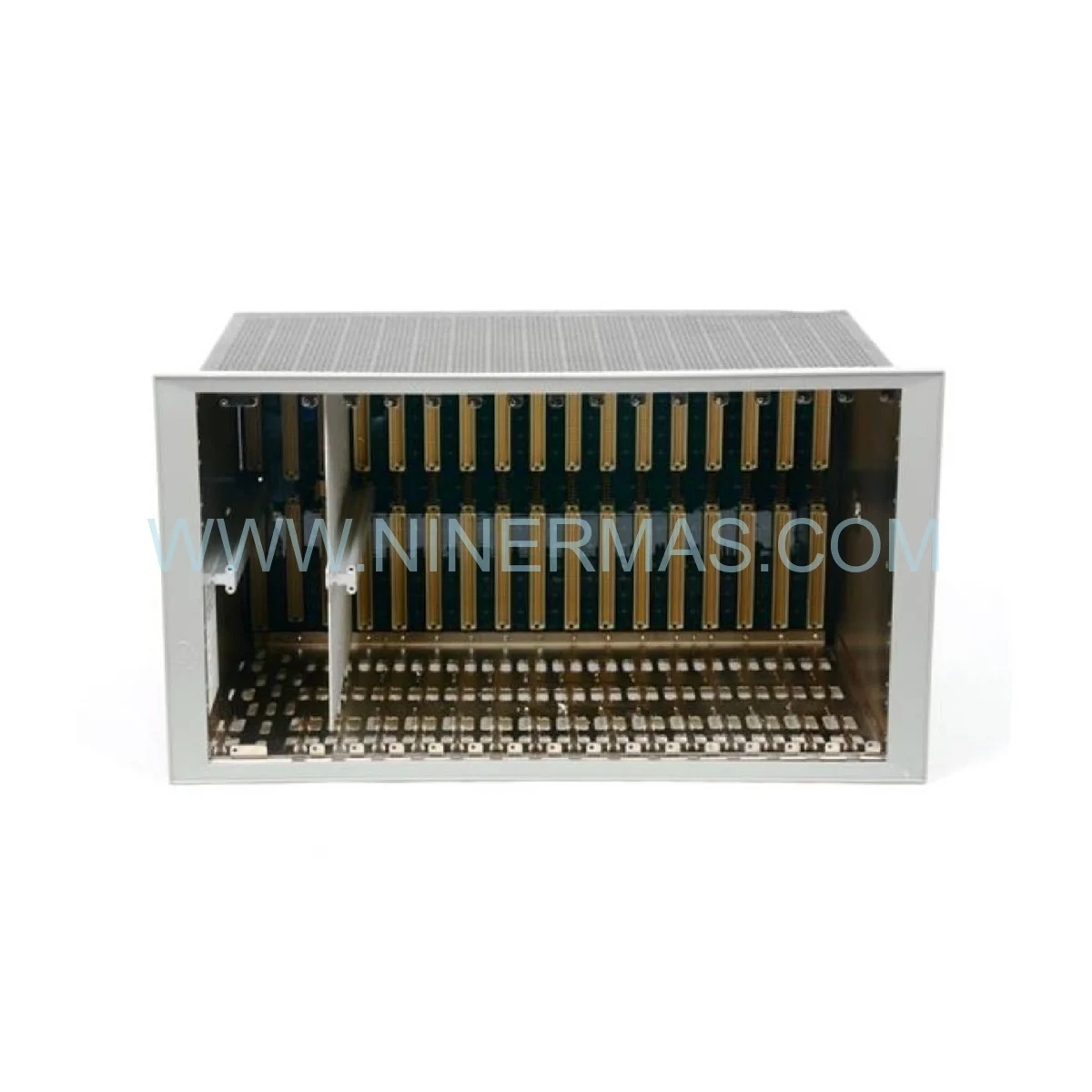

3500/05 Monitoring System Rack (Industrial-Grade Infrastructure)

The Bently Nevada 3500/05-01-01-01-00-01 delivers a proven foundation for scalable machinery health monitoring across turbomachinery, rotating equipment, and process-critical assets. This 19-inch EIA-standard rack accommodates up to 14 monitoring modules and power supplies, enabling centralized vibration analysis, temperature tracking, and predictive maintenance workflows in power generation, oil & gas, and heavy manufacturing environments.

Built for reliability in demanding industrial settings, the 3500/05 rack integrates seamlessly with proximity probes, accelerometers, and temperature sensors to form comprehensive protection systems. Whether safeguarding steam turbines, centrifugal compressors, or reciprocating machinery, this rack provides the structural backbone for continuous condition monitoring and automated shutdown logic.

Certified to CSA/NRTL/C Class 1 Division 2 standards and CE-marked for European compliance, the 3500/05 meets stringent safety requirements for hazardous area installations. Panel-mount design facilitates direct integration into control room consoles, DCS cabinets, or custom enclosures, reducing installation complexity while maintaining professional aesthetics.

Core Features & Business Value

→ 14-Module Capacity for Scalable Deployment
Start with essential vibration and temperature monitors, then expand as your predictive maintenance program matures. Modular architecture eliminates costly system replacements when monitoring requirements grow.

→ Precision Backplane Communication
Integrated power distribution and high-speed data pathways enable real-time alarm coordination, module-to-module data sharing, and seamless integration with SCADA/DCS systems via Modbus or proprietary protocols.

→ CSA Class 1 Division 2 Certification
Deploy confidently in hazardous locations including refineries, chemical plants, and offshore platforms. Certification reduces compliance burden and accelerates project approvals.

→ Panel-Mount Flexibility
Direct mounting into control panels or operator consoles eliminates external rack cabinets, saving floor space and reducing cable runs. Standardized 19-inch width ensures compatibility with existing infrastructure.

✓ Corrosion-Resistant Steel Construction
Industrial-grade materials withstand harsh environments including high humidity, temperature extremes, and chemical exposure common in process industries.

✓ Future-Proof Investment Protection
Backward compatibility with legacy 3500 modules and forward compatibility with next-generation monitors protects capital investments over 15+ year operational lifecycles.

Application Scenarios Across Industries

Power Generation – Steam & Gas Turbine Protection
Monitor bearing vibration, shaft position, and casing expansion on critical turbine-generator sets. Automated trip logic prevents catastrophic failures, while trending data optimizes maintenance intervals and reduces forced outages. Typical deployment: 8-12 modules per turbine train.

Oil & Gas – Compressor Train Monitoring
Protect high-value centrifugal and reciprocating compressors with multi-channel vibration monitoring, thrust position tracking, and temperature surveillance. Early fault detection reduces unplanned shutdowns by 40-60%, directly improving production uptime and revenue.

Petrochemical – Critical Pump & Motor Systems
Implement condition-based maintenance on process pumps, agitators, and large motors. Vibration signature analysis identifies bearing wear, misalignment, and imbalance weeks before failure, enabling planned maintenance during scheduled turnarounds.

Manufacturing – Production Line Reliability
Monitor conveyors, gearboxes, fans, and material handling equipment. Centralized monitoring reduces maintenance labor costs while improving equipment availability. Integration with plant MES systems enables automated work order generation.

Marine & Offshore – Propulsion & Auxiliary Equipment
Protect main engines, thrusters, and generator sets in harsh marine environments. Compact panel-mount design suits space-constrained engine rooms, while CE certification meets international maritime standards.

Technical Parameters & Selection Guide

Configuration Decoder – Part Number Format: 3500/05-AA-BB-CC-DD-EE

• Position AA (Rack Size): 01 = Full 14-slot | 02 = Mini 7-slot
• Position BB (Mounting): 01 = Panel mount | 02 = Rack mount | 03 = Bulkhead
• Position CC (Hazardous Area): 00 = Standard | 01 = Class 1 Div 2 | 02 = Zone 2
• Position DD: Reserved (00 standard)
• Position EE (Regional): 01 = CE marked for EU compliance

Selection Criteria: Choose full-size (14-slot) for systems requiring 6+ monitoring points or future expansion. Panel-mount suits control room installations; rack-mount fits standard 19" cabinets. CSA certification mandatory for North American hazardous locations; ATEX/IECEx required for European Zone 2 areas.

Extended Integration Capabilities

Communication Protocols: Backplane supports Modbus RTU/TCP, proprietary 3500 rack configuration software, and Ethernet connectivity via optional communication gateway modules. Integrate with Honeywell, Emerson, Siemens, or ABB DCS platforms.

Power Supply Options: Accepts dual-redundant 3500/15 or 3500/22M power supplies (24 VDC or 120/240 VAC input). Automatic failover ensures continuous monitoring during power supply maintenance or failure.

Advanced Monitoring Modules: Compatible with 3500/42M vibration monitors, 3500/46M hydro monitors, 3500/50 tachometers, 3500/60 temperature monitors, and 3500/92 communication gateways. Mix module types to create custom monitoring solutions.

Cloud & IIoT Readiness: Pair with 3500/92 gateway and Bently Nevada System 1 software for cloud-based analytics, mobile dashboards, and machine learning-driven anomaly detection. Export data to Azure, AWS, or on-premise historians.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units | 4-6 weeks for factory-direct orders with custom configurations

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship. Extended warranties available for critical applications.

Technical Support: Lifetime access to application engineers for system design, module selection, and troubleshooting. Phone, email, and remote desktop support included.

Documentation Package: Includes installation manual, dimensional drawings, certification records, backplane pinout diagrams, and configuration software license.

Frequently Asked Questions

Q: How many vibration monitoring channels can this rack support?
A: With 14 slots and typical 4-channel vibration monitors (e.g., 3500/42M), you can monitor up to 48-56 channels depending on module mix. Reserve 1-2 slots for power supplies and communication gateways.

Q: Can I mix different 3500 series modules in one rack?
A: Yes. The backplane supports any combination of 3500 monitors, relay modules, power supplies, and gateways. Common configurations include vibration + temperature + speed monitoring in a single rack.

Q: What's the difference between panel-mount and rack-mount versions?
A: Panel-mount (Option 01) includes front-mounting flanges for direct installation into control panels. Rack-mount (Option 02) uses standard 19" EIA mounting ears for equipment racks. Both offer identical electrical performance.

Q: Is this rack suitable for outdoor or high-humidity environments?
A: The rack itself is rated for industrial environments, but modules have specific IP ratings. For outdoor installations, house the rack in a NEMA 4X or IP65-rated enclosure with climate control. Consult our engineers for harsh-environment configurations.

Q: Can I retrofit this rack into an existing 3300 XL monitoring system?
A: No direct compatibility. The 3500 series uses different backplane architecture and modules. However, you can run 3300 and 3500 systems in parallel during phased migration. We offer migration planning services.

Q: What remote monitoring options are available?
A: Install a 3500/92 communication gateway module to enable Modbus TCP, OPC, or proprietary protocols. Pair with System 1 software for web-based dashboards, email alerts, and mobile access. Cloud connectivity requires gateway + internet connection.

Start Building Your Machinery Protection System

Ready to deploy world-class condition monitoring? Contact our application engineers for system design assistance, module recommendations, and project-specific pricing. We'll help you configure the optimal monitoring solution for your critical assets—from initial rack selection through commissioning and long-term support.

Next Steps: Email your machinery list and monitoring requirements to our team, or schedule a technical consultation to discuss sensor integration, alarm logic, and SCADA connectivity for your facility.
