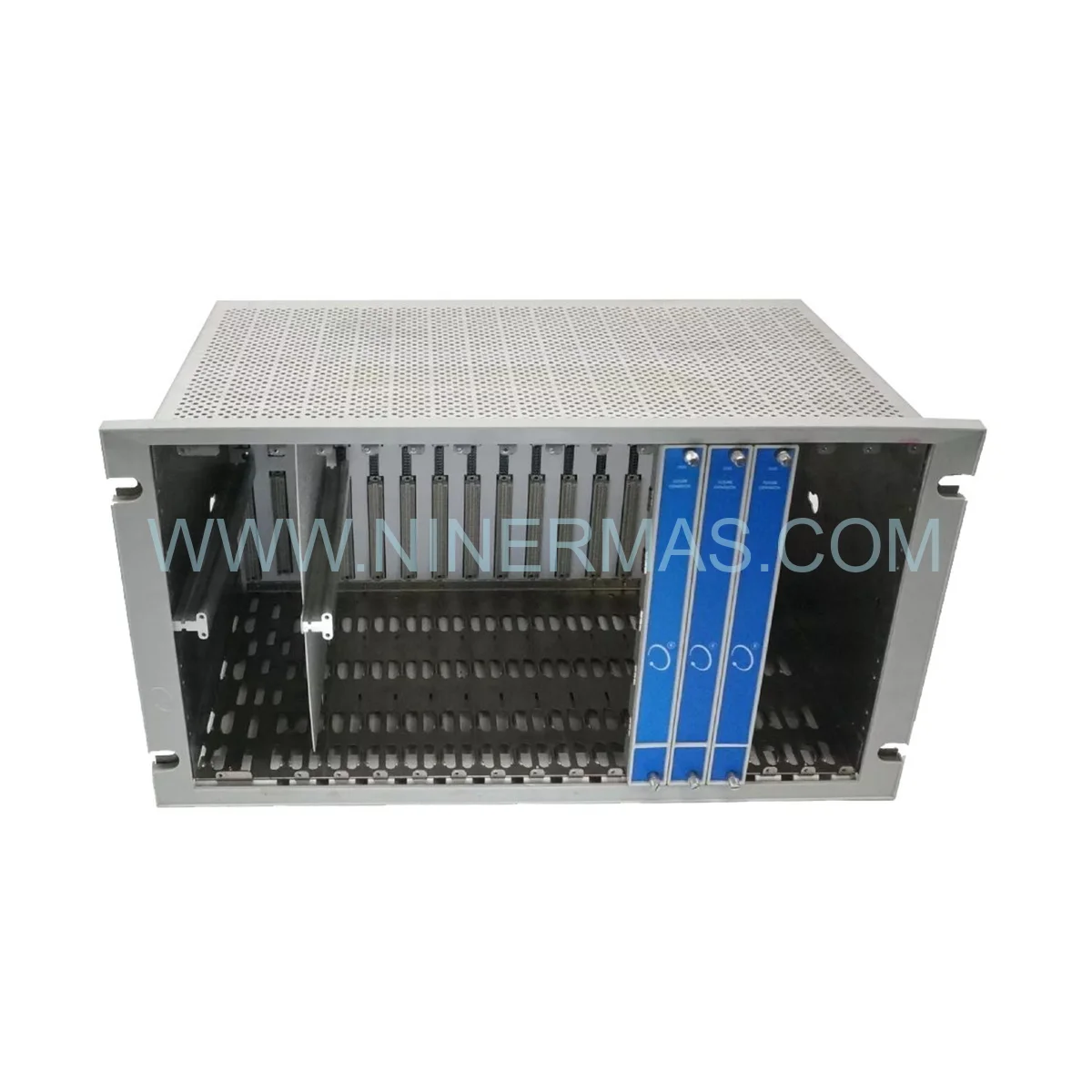

3500/05-01-02-00-00-00 Compact Monitoring Rack (Industrial-Grade 7-Slot Housing)

The Bently Nevada 3500/05 Mini Rack represents a purpose-engineered solution for machinery health monitoring in space-constrained industrial environments. This 12-inch panel mount chassis accommodates seven monitoring modules, delivering comprehensive vibration analysis capabilities without the footprint demands of conventional 19-inch rack systems. Designed for critical rotating equipment protection, the system integrates seamlessly with the complete Bently Nevada 3500 monitoring ecosystem.

Engineered for petrochemical facilities, offshore platforms, and power generation installations, this compact rack addresses the fundamental challenge of deploying enterprise-grade condition monitoring where panel real estate is limited. The Zone 2/Division 2 hazardous area certification enables safe operation in explosive atmospheres, while API 670 compliance ensures adherence to machinery protection system standards recognized across global industries.

Whether you're retrofitting legacy monitoring infrastructure or designing new turbomachinery installations, the 3500/05 mini rack delivers proven reliability in a form factor optimized for modern control room architectures. Compatible with the full spectrum of 3500 series modules—from proximitor monitors to communication gateways—this chassis provides the foundation for scalable machinery protection strategies.

Core Features & Technical Advantages

→ Space-Optimized Architecture: 12-inch width reduces panel footprint by 37% compared to standard racks while maintaining full module compatibility. Ideal for offshore platforms, marine engine rooms, and retrofit projects where mounting space is at a premium.

✓ Hazardous Area Certification: Zone 2/Division 2 approval enables deployment in petrochemical processing areas, refineries, and gas compression facilities. Meets ATEX, IECEx, and North American electrical codes for explosive atmosphere installations.

→ High-Speed Backplane Communication: Proprietary data bus ensures deterministic module-to-module communication with <10ms latency. Supports real-time alarm propagation and synchronized multi-channel waveform capture across all installed monitors.

✓ Extended Environmental Range: -30°C to +65°C operating temperature specification accommodates Arctic installations and high-ambient industrial environments. Conformal-coated circuitry resists moisture, salt spray, and chemical exposure.

→ API 670 Compliance: Meets machinery protection system requirements for critical service applications. Certified for use in turbomachinery installations requiring SIL-capable monitoring per IEC 61508 functional safety standards.

✓ Tool-Free Module Installation: Card-edge connectors with retention clips enable hot-swappable module replacement without rack disassembly. Reduces mean time to repair (MTTR) during maintenance windows and emergency component failures.

Industrial Application Scenarios

Steam Turbine Generator Protection: Deploy in power generation facilities monitoring steam turbine-generator sets where control room panel density is critical. Combine with 3500/42M proximitor monitors for radial vibration measurement and 3500/50M tachometer modules for overspeed protection. The compact design fits existing panel cutouts during turbine control system upgrades, eliminating costly panel replacements.

Offshore Gas Compression Monitoring: Ideal for FPSO and platform installations where weight and space directly impact installation costs. The panel mount configuration integrates into explosion-proof enclosures alongside process control equipment. Pair with 3500/65 temperature monitors for bearing RTD surveillance and 3500/45 position monitors for thrust bearing axial position tracking.

Petrochemical Pump Monitoring: Address the challenge of monitoring multiple critical pumps in refineries and chemical plants where centralized monitoring rooms have limited expansion capacity. The 7-slot configuration supports monitoring of 2-3 pumps per rack when using quad-channel modules, with 3500/25 Keyphasor modules providing phase reference for rotor dynamic analysis.

Marine Propulsion System Surveillance: Meets the stringent vibration monitoring requirements of marine classification societies (ABS, DNV, Lloyd's) for main propulsion diesel engines and reduction gearboxes. The compact footprint accommodates installation in ship engine control rooms where 19-inch rack space is unavailable. Integrate with 330425 accelerometers for casing vibration measurement on medium-speed engines.

Legacy System Modernization: Replace obsolete 3300 series racks without modifying existing panel cutouts or sensor wiring. The 3500 monitoring modules accept legacy -24V proximity transducer systems, enabling phased migration strategies that preserve capital investment in proximity sensor infrastructure while upgrading to modern digital monitoring capabilities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 7-slot mini rack when panel space is limited to 12-inch width or when monitoring requirements do not exceed 24-28 channels. For larger installations requiring 8+ monitoring modules, consider the 14-slot 3500/05 rack. Ensure adequate ventilation clearance and verify panel cutout dimensions before ordering.

Extended Integration Capabilities

Communication Infrastructure: Integrate with plant control systems using the 3500/92 communication gateway, which provides Modbus TCP/IP, Modbus RTU, and proprietary protocol support. This enables real-time alarm and measurement data transfer to DCS, SCADA, and asset management platforms without requiring dedicated monitoring workstations.

Diagnostic Data Acquisition: Add the 3500/22M transient data interface to capture high-resolution waveform data during machinery startup, shutdown, and alarm events. This diagnostic capability supports root cause analysis and predictive maintenance strategies by preserving time-domain and frequency-domain vibration signatures.

Local Operator Interface: Deploy the 3500/94 VGA display monitor for field-level alarm acknowledgment and real-time trend visualization. The graphical interface eliminates the need for operators to access centralized monitoring software during routine machinery inspections.

IoT and Cloud Connectivity: Modern installations can leverage third-party edge gateways to extract Modbus data from the 3500/92 module and forward to cloud-based condition monitoring platforms. This hybrid architecture preserves local alarm functionality while enabling remote diagnostics and fleet-wide analytics.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-configured systems with pre-installed modules. Expedited shipping available for critical outage scenarios.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes firmware updates, technical support access, and advance replacement for confirmed failures.

Technical Support: Access to application engineers with turbomachinery expertise for system configuration assistance, module selection guidance, and integration troubleshooting. Support available via email, phone, and remote desktop sessions.

Documentation Package: Each rack ships with installation manual, module compatibility matrix, panel cutout template, and wiring diagrams. Digital resources include CAD models (STEP format) and configuration software downloads.

Frequently Asked Questions

What is the maximum monitoring capacity of this 7-slot rack configuration?
The effective monitoring capacity is 6 modules after allocating one slot for the mandatory 3500/15 power supply. Using quad-channel monitors like the 3500/42M, you can achieve up to 24 vibration channels, plus additional slots for communication gateways, Keyphasor modules, or temperature monitors depending on application requirements.

Can I integrate this rack with existing 3300 series proximity sensors?
Yes, the 3500 monitoring modules maintain full backward compatibility with legacy -24V proximity transducer systems. This includes 3300 series proximity probes, extension cables, and proximitor housings. The migration path preserves your sensor investment while upgrading to modern digital monitoring with enhanced diagnostic capabilities.

How does panel mount installation differ from rack mount systems?
Panel mount design requires a cutout in the control panel face (292 × 208 mm recommended), with the rack secured using mounting brackets included in the shipment. This contrasts with 19-inch rack mount systems that slide into standard equipment racks. Panel mounting reduces depth requirements and enables integration into custom control consoles common in marine and offshore applications.

What communication protocols are supported for DCS integration?
When equipped with the 3500/92 gateway module, the system supports Modbus TCP/IP (Ethernet), Modbus RTU (serial RS-232/RS-485), and Bently Nevada proprietary protocols. This enables connectivity to Honeywell, Emerson DeltaV, Siemens PCS7, Yokogawa, and ABB control systems. OPC DA/UA servers can also extract data via Modbus for SCADA integration.

Are there specific ventilation requirements for enclosed panel installations?
Yes, maintain minimum 50mm (2 inches) clearance on both sides and rear of the rack for adequate natural convection cooling. In enclosed panels with ambient temperatures exceeding 50°C, consider forced ventilation using panel-mount fans. The rack's thermal design accommodates fully populated configurations without active cooling in standard industrial environments.

What is the typical configuration for a steam turbine monitoring application?
A typical steam turbine setup includes: (1) 3500/15 power supply, (2) 3500/42M proximitor monitor for radial vibration (4 channels), (3) 3500/50M tachometer for speed monitoring, (4) 3500/45 position monitor for thrust bearing, (5) 3500/25 Keyphasor module, (6) 3500/92 communication gateway, and (7) spare slot for future expansion. This configuration monitors all critical turbine parameters within the 7-slot chassis.

Why Specify the 3500/05 Mini Rack for Your Application

Unlike generic instrument enclosures or improvised monitoring solutions, the 3500/05 mini rack delivers purpose-built machinery protection with decades of field-proven reliability. The compact architecture addresses the real-world constraint of limited panel space without compromising monitoring capability or system integrity. API 670 compliance ensures your installation meets industry standards for critical machinery protection, while hazardous area certification enables deployment in the most demanding industrial environments.

The investment in a Bently Nevada monitoring platform extends beyond hardware—you gain access to a global service network, continuous firmware development, and compatibility with emerging diagnostic technologies. Whether protecting a single critical compressor or deploying fleet-wide condition monitoring, the 3500/05 mini rack provides the scalable foundation for long-term asset reliability strategies.

Backed by comprehensive warranty coverage and supported by application engineers with turbomachinery expertise, this mini rack represents the industry benchmark for compact vibration monitoring installations. The extensive 3500 series module ecosystem ensures you can adapt the system as monitoring requirements evolve, from basic vibration surveillance to advanced rotor dynamic analysis.

Ready to deploy enterprise-grade machinery protection in your space-constrained installation? Contact our application team to discuss module selection, panel integration requirements, and system configuration tailored to your specific rotating equipment monitoring needs.
