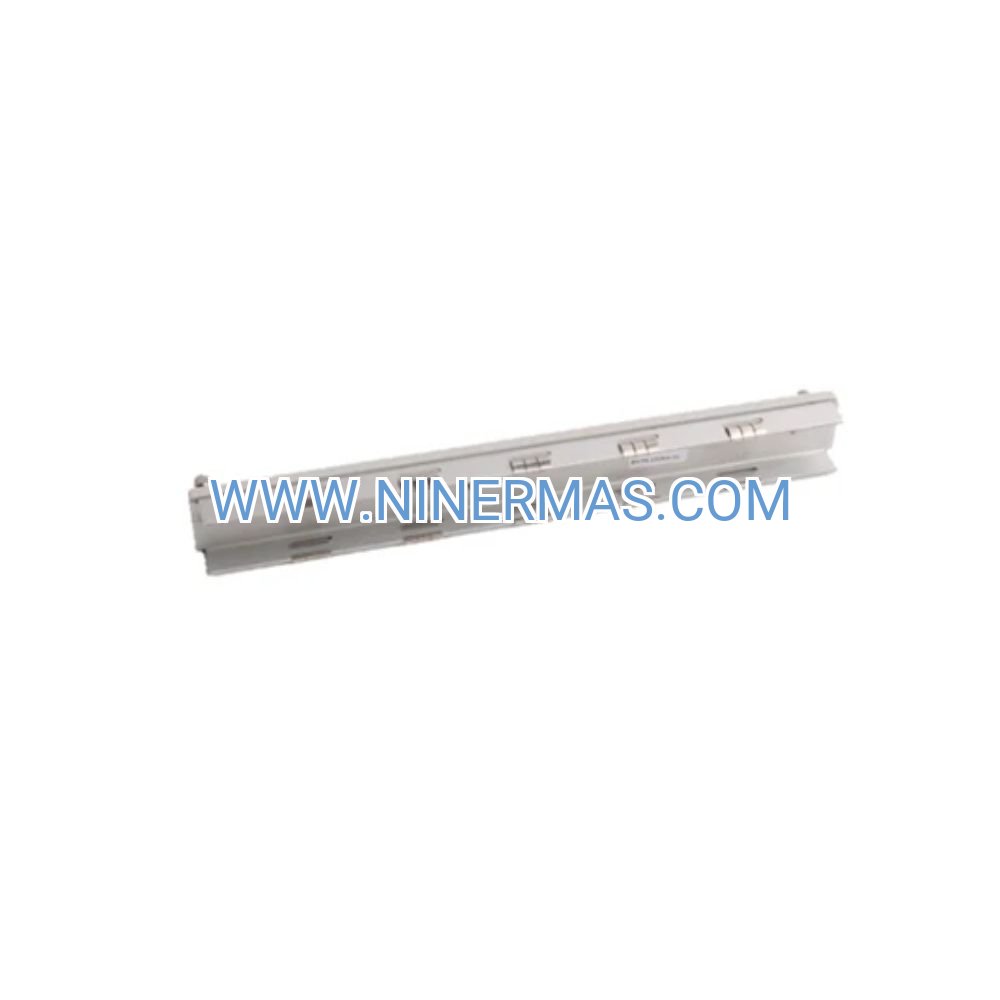

130944-01 Blank Module (Industrial-Grade Rack Slot Protection)

The 130944-01 blank module delivers professional slot management for Bently Nevada 3500 machinery protection racks. Engineered to maintain system integrity, this component protects vacant rack positions from environmental contamination while preserving expansion capacity for future monitoring needs. Ideal for power generation facilities, petrochemical plants, and manufacturing operations requiring scalable vibration monitoring infrastructure.

When deploying critical machinery protection systems, proper rack configuration extends beyond active monitoring modules. Unused slots create vulnerabilities—dust ingress compromises electronics, disrupted airflow causes thermal issues, and open positions violate hazardous area certifications. The 130944-01 addresses these challenges through precision-engineered slot coverage that integrates seamlessly with 3500 series architecture.

This blank module supports strategic capacity planning, enabling facilities to install monitoring infrastructure ahead of operational demand. Reserve slots for future vibration sensors, temperature monitors, or relay modules without rack replacement costs. The result: non-disruptive system growth aligned with capital deployment schedules and evolving asset protection requirements.

Application Scenarios & Industrial Use Cases

Phased System Expansion in Power Generation: A combined-cycle plant installs a 14-slot 3500 rack with eight active monitors during initial commissioning. Six 130944-01 modules fill remaining positions, protecting electronics while reserving capacity. As turbine fleet expands over 24 months, blank modules are replaced with vibration monitors—no rack modifications, zero downtime, seamless integration.

Hazardous Area Compliance in Petrochemical Processing: Refineries operating in Class I Division 2 environments require complete rack enclosure to maintain area classification certifications. The 130944-01 provides compliant slot coverage for unused positions, ensuring inspection readiness and regulatory adherence without compromising future expansion flexibility.

Thermal Management in Compact Control Rooms: High-density monitoring installations generate significant heat loads. Blank modules maintain designed airflow patterns through 3500 racks, preventing hot spots that degrade measurement accuracy. Facilities report 15-20% improvement in thermal stability when proper slot coverage replaces open positions.

Emergency Spare Capacity for Critical Assets: Offshore platforms and remote mining operations maintain blank modules as placeholder components. When unexpected vibration issues emerge on critical equipment, technicians swap blank modules for monitoring modules within minutes—no procurement delays, immediate diagnostic capability, minimized production risk.

Aesthetic Standardization Across Multi-Site Operations: Corporate engineering standards often mandate uniform rack appearance across facilities. The 130944-01 enables consistent visual presentation regardless of monitoring density, supporting standardized documentation, simplified training, and streamlined maintenance procedures.

Technical Specifications & Selection Criteria

Selection Guidance: Calculate required blank modules by subtracting active monitoring modules from total rack slots. For example, a 14-slot rack with nine active modules requires five blank modules. Always maintain minimum one spare blank module for emergency reconfigurations. Consider future expansion plans when sizing initial rack capacity—oversizing by 20-30% provides cost-effective growth headroom.

Core Benefits & Operational Advantages

→ Environmental Protection: Shields sensitive electronics from dust, moisture, and airborne contaminants that degrade measurement accuracy and accelerate component failure

→ Thermal Optimization: Maintains engineered airflow dynamics, preventing localized overheating and ensuring consistent operating temperatures across all rack modules

→ Electromagnetic Compatibility: Provides proper shielding and grounding continuity, minimizing electrical noise susceptibility in precision vibration measurement circuits

→ Scalability Without Disruption: Enables system expansion during scheduled maintenance windows—swap blank module for monitoring module in under five minutes with zero impact to operating monitors

→ Regulatory Compliance: Satisfies hazardous area classification requirements, safety certifications, and quality management system standards mandating complete rack enclosure

→ Capital Efficiency: Minimal investment preserves maximum flexibility—avoid premature rack purchases while maintaining readiness for operational changes and asset additions

Extended Capabilities & System Integration

The 130944-01 integrates within comprehensive 3500 machinery protection architectures alongside rack interface modules (3500/20, 3500/25), monitor modules (3500/42M proximitor, 3500/45 position monitor, 3500/50M tachometer), relay modules (3500/32M, 3500/33), and communication interfaces (3500/22 TDI, 3500/92 communication gateway). This modular ecosystem supports condition monitoring strategies ranging from basic vibration surveillance to advanced predictive maintenance programs with real-time data streaming to SCADA and asset management platforms.

For facilities implementing IIoT initiatives, blank modules reserve rack capacity for future communication modules that enable cloud connectivity, remote diagnostics, and machine learning analytics. This forward-looking approach aligns physical infrastructure with digital transformation roadmaps without requiring disruptive retrofits.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock items ship within 24-48 hours via expedited logistics. Most North American destinations receive delivery within 3-5 business days; international shipments typically arrive within 7-10 business days depending on customs processing.

Warranty Coverage: All components include manufacturer's standard warranty against defects in materials and workmanship. Extended warranty options available for critical sparing applications.

Technical Support: Our applications engineering team provides pre-sale consultation on rack configuration optimization, compatibility verification, and system expansion planning. Post-sale support includes installation guidance, integration assistance, and troubleshooting resources.

Documentation Package: Each shipment includes OEM certification, material traceability records, installation instructions, and compatibility matrices for integration planning.

Frequently Asked Questions

Q: How many blank modules should I order for a new 3500 rack installation?
A: Calculate the difference between total rack slots and planned active modules, then add 10-20% for future expansion and spare inventory. For example, a 14-slot rack with eight active modules should include six blank modules initially, plus one or two spares.

Q: Can blank modules be installed in any rack position, or are there location restrictions?
A: Blank modules install in any available slot without position constraints. However, best practice recommends grouping active modules together for simplified cabling and maintenance access, with blank modules filling contiguous unused positions.

Q: What performance impact occurs if I operate a 3500 rack with open slots instead of blank modules?
A: Open slots disrupt designed airflow patterns, potentially causing 10-15°C temperature increases in adjacent modules. Dust accumulation on exposed backplane connectors can create intermittent communication errors. Electromagnetic interference susceptibility increases, degrading measurement signal quality.

Q: Are blank modules required for hazardous area certifications in Class I Division 2 environments?
A: Most certification bodies require complete rack enclosure to maintain area classification approvals. Consult your facility's electrical classification drawings and certification documentation to confirm specific requirements for your installation.

Q: How quickly can I swap a blank module for an active monitoring module during an emergency?
A: Physical swap takes under five minutes with standard tools. However, new monitoring modules require configuration programming via 3500 Rack Configuration Software before becoming operational—budget 30-60 minutes for complete commissioning including sensor wiring and alarm setpoint configuration.

Q: Do blank modules require any maintenance or periodic replacement?
A: No scheduled maintenance required. Blank modules are passive components with no wear mechanisms. Inspect during annual rack maintenance for physical damage; replacement is only necessary if modules show cracks, deformation, or retention mechanism failure.

Optimize Your Machinery Protection Investment

Strategic rack configuration balances current monitoring requirements with future expansion flexibility. The 130944-01 blank module provides this balance at minimal cost, protecting your infrastructure investment while maintaining operational agility. Whether you're commissioning new monitoring systems, upgrading legacy installations, or maintaining spare capacity for critical assets, proper slot management delivers measurable benefits in system reliability, regulatory compliance, and lifecycle cost optimization.

Ready to configure your 3500 rack for optimal performance and scalability? Contact our technical team for rack layout consultation, component selection guidance, and system integration support. We maintain extensive inventory for immediate shipment and provide comprehensive documentation to streamline your procurement and installation processes.
