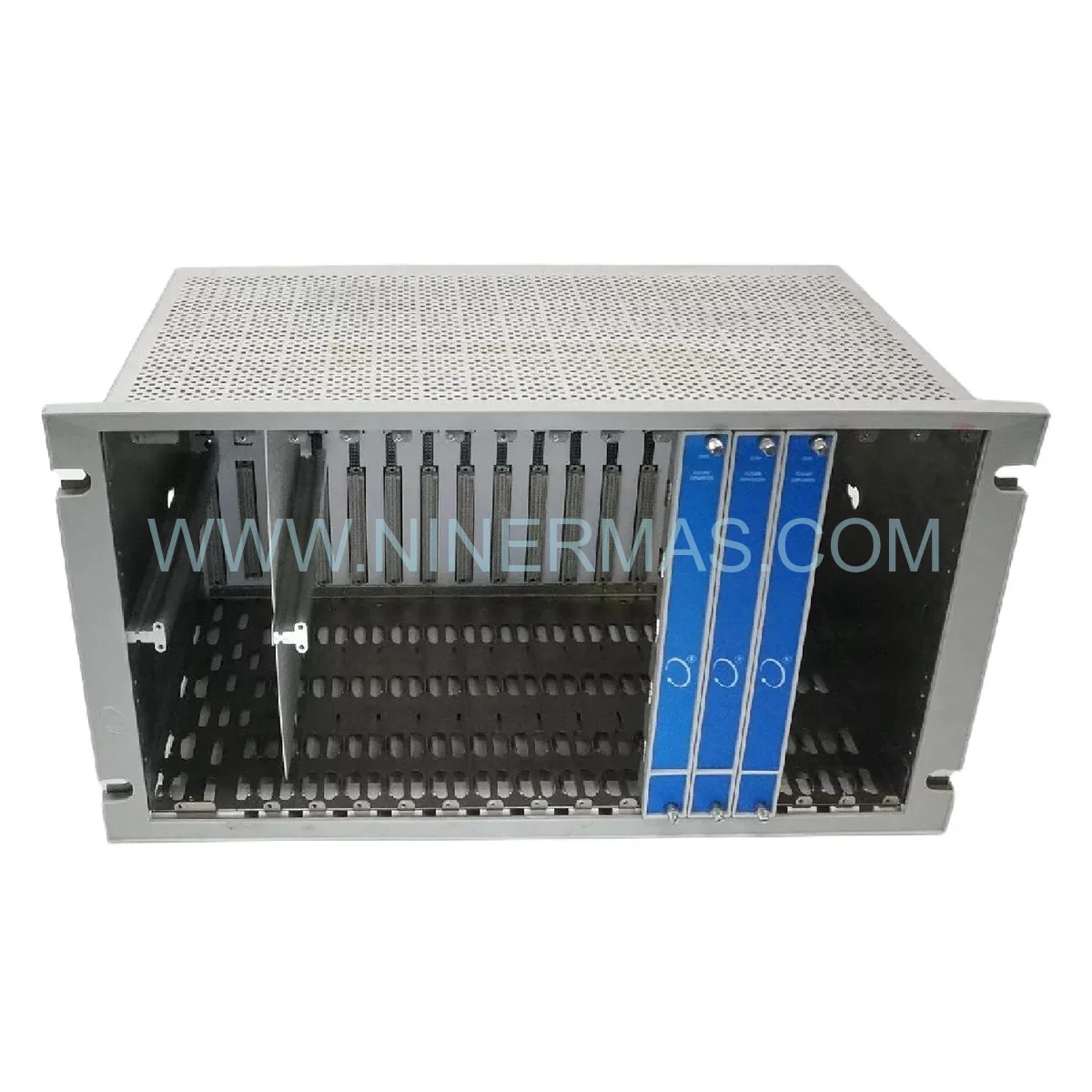

3500/05 Modular Monitoring Rack (Industrial-Grade Infrastructure)

The 3500/05 represents a mission-critical foundation for continuous machinery health surveillance in high-stakes industrial operations. This rack-mount platform delivers secure housing and high-speed backplane communication for vibration monitors, temperature sensors, and diagnostic modules—enabling plant engineers to detect bearing failures, shaft misalignment, and resonance conditions before catastrophic equipment damage occurs.

Designed for power generation facilities, offshore platforms, and refinery environments where unplanned downtime costs exceed $100,000 per hour, the 3500/05 combines hot-swappable modularity with electromagnetic shielding to maintain signal integrity in electrically noisy industrial settings. Its 14-slot architecture supports mixed-module configurations, allowing operators to scale monitoring capacity as asset portfolios expand without replacing core infrastructure.

Whether protecting steam turbines generating 500 MW of baseload power or monitoring compressor trains processing 2 billion cubic feet of natural gas daily, this rack serves as the central nervous system for predictive maintenance programs that reduce unscheduled outages by 40-60% compared to reactive maintenance strategies.

Core Features & Benefits

→ 14-Slot Modular Architecture
Accommodates heterogeneous monitor types (vibration, temperature, speed, position) in a single chassis, eliminating the need for multiple standalone systems and reducing panel space requirements by 35%.

→ Hot-Swap Capability
Replace or upgrade individual modules during live operation without powering down the entire monitoring system—critical for continuous process industries where shutdown windows occur only during planned turnarounds.

→ Proprietary Backplane Communication
High-speed data bus ensures <5ms latency between sensor input and alarm output, meeting API 670 response time requirements for emergency shutdown systems in turbomachinery applications.

→ EMI/RFI Hardened Enclosure
Military-grade shielding protects sensitive analog signals from VFD noise, welding interference, and radio frequency emissions common in heavy industrial plants—maintaining ±0.5% measurement accuracy in harsh electrical environments.

→ Extended Temperature Range
Operates reliably from -30°C to +65°C without forced cooling, suitable for outdoor installations in Arctic gas fields and Middle Eastern desert refineries where ambient conditions exceed standard electronics ratings.

→ Dual Power Supply Support
Redundant power input architecture (when paired with dual 3500/15 supplies) ensures 99.99% uptime for safety-critical monitoring loops protecting assets valued at $50M+.

Typical Application Scenarios

✓ Combined-Cycle Power Plants
Monitor gas turbine generators, steam turbines, and auxiliary equipment (feed pumps, condensate pumps, cooling tower fans) from a centralized rack system. Operators detect combustion dynamics issues, blade rubs, and bearing degradation 2-4 weeks before failure thresholds, scheduling maintenance during low-demand periods to avoid peak pricing penalties.

✓ Offshore Oil & Gas Platforms
Protect compressor trains, crude oil pumps, and seawater injection systems in corrosive marine environments. The rack's conformal coating and sealed connectors withstand salt spray and humidity while providing real-time vibration data to onshore control centers via satellite links—reducing helicopter-based technician visits by 50%.

✓ Petrochemical Refineries
Safeguard catalytic crackers, hydrocracker compressors, and distillation column pumps handling volatile hydrocarbons. Integration with DCS systems enables automatic process adjustments when vibration trends indicate impending mechanical issues, preventing product contamination and environmental releases.

✓ Pulp & Paper Mills
Track health of digesters, refiners, and paper machine dryer sections where bearing failures cause web breaks costing $15,000-$30,000 per hour in lost production. Predictive alerts allow bearing replacements during scheduled grade changes rather than emergency shutdowns.

✓ Mining Operations
Monitor SAG mills, ball mills, conveyor drives, and crusher systems in 24/7 mineral processing plants. Vibration signatures identify liner wear, unbalanced loads, and gearbox tooth damage—optimizing maintenance intervals and extending component life by 20-30%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3500/05 when monitoring 4-14 measurement points per machine train. For smaller systems (1-3 channels), consider standalone monitors. For enterprise deployments exceeding 100 channels, evaluate the 3500/60 rack with enhanced networking capabilities. Ensure compatibility with existing 3500 Series modules—this rack does NOT support legacy 3300 XL or 7200 Series hardware.

Extended Functions

SCADA/DCS Integration: When equipped with a 3500/92 Communication Gateway module, the rack streams real-time vibration data, alarm status, and diagnostic parameters to plant historians (OSIsoft PI, Honeywell PHD, Emerson DeltaV) via Modbus TCP, Ethernet/IP, or OPC protocols—enabling correlation of mechanical health with process variables.

Cybersecurity Hardening: Optional 3500/94M gateway provides firewall protection, encrypted communications, and role-based access control compliant with IEC 62443 industrial cybersecurity standards—critical for utilities and critical infrastructure operators facing regulatory mandates.

Wireless Sensor Expansion: Pair with Bently Nevada Ranger Pro wireless vibration transmitters to monitor hard-to-reach equipment (overhead cranes, mobile crushers) without costly cable runs, transmitting data to the rack via industrial mesh networks.

Cloud Analytics: Upload trend data to Bently Nevada Orbit 60 cloud platform for AI-driven anomaly detection, fleet-wide benchmarking, and remote expert diagnostics—augmenting on-site teams with OEM engineering support.

Delivery & Service Assurance

Lead Time: Stock units ship within 3-5 business days. Custom configurations (special backplane options, extended temperature ratings) require 4-6 weeks factory lead time.

Warranty: 12-month comprehensive coverage against manufacturing defects, including backplane electronics and mechanical components. Extended 3-year and 5-year service agreements available with priority RMA processing.

Technical Support: Lifetime access to application engineers for system design consultation, module compatibility verification, and troubleshooting assistance. Phone/email support available 24/7 for critical installations.

Documentation Package: Each rack includes installation manual, backplane wiring diagrams, module slot assignment worksheets, and grounding best practices guide. CAD drawings (STEP, DXF) provided for panel layout planning.

Frequently Asked Questions

Q: Can I retrofit this rack into an existing 3300 XL monitoring system?
A: No—the 3500 Series uses a different backplane architecture and module form factor. Migration requires replacing monitors, power supplies, and cabling. We offer trade-in programs to offset upgrade costs.

Q: What is the maximum cable distance between the rack and monitored machinery?
A: Proximitor sensors support up to 300 meters (1000 ft) with proper shielded cabling. Accelerometers and RTDs vary by model—consult module datasheets for specific limits.

Q: Does the rack require forced-air cooling or ventilation?
A: No active cooling needed for ambient temperatures ≤50°C. Above 50°C, ensure 50 CFM airflow across the rack or install in a climate-controlled enclosure to prevent thermal shutdown.

Q: How do I calculate total power consumption for system sizing?
A: Each module draws 3-8W depending on type. A fully populated 14-slot rack typically consumes 60-90W. Use dual 3500/15 power supplies (125W each) for redundancy in critical applications.

Q: Are third-party modules compatible with this rack?
A: Only genuine Bently Nevada 3500 Series modules are supported. Third-party modules void warranty and may cause backplane communication errors or measurement inaccuracies.

Q: Can I monitor both radial vibration and axial position with one rack?
A: Yes—install 3500/42M monitors for radial vibration and 3500/40M monitors for thrust position. The backplane supports mixed module types in any slot configuration.

Ready to Protect Your Critical Assets?

Contact our machinery protection specialists to design a monitoring solution tailored to your equipment portfolio. We provide system architecture reviews, ROI calculations based on your downtime costs, and turnkey installation support.

Request a quote today or schedule a technical consultation to discuss your vibration monitoring requirements.
