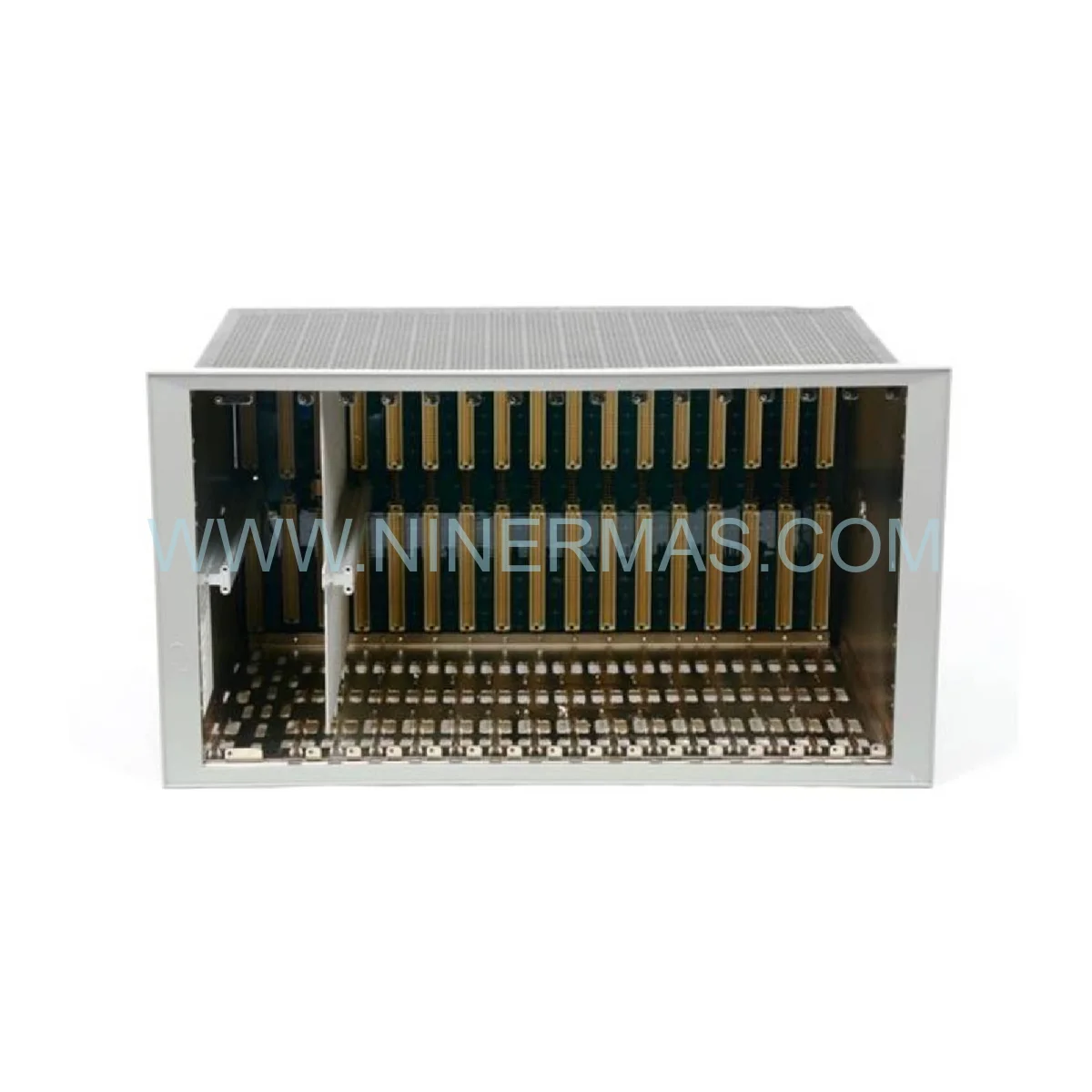

3500/05 Industrial Monitoring Rack (High-Capacity Machinery Protection Platform)

The 3500/05-01-01-01-00-00 represents a mission-critical infrastructure component engineered for continuous machinery health surveillance in high-stakes industrial operations. This 14-slot modular chassis delivers enterprise-grade scalability for vibration analysis, proximity sensing, and real-time equipment diagnostics across rotating machinery fleets. Designed to API 670 standards, it transforms raw sensor data into actionable protection intelligence for turbines, compressors, and critical process equipment.

Industrial operators face mounting pressure to eliminate unplanned downtime while maximizing asset utilization. Traditional monitoring approaches lack the channel density and integration flexibility required for modern distributed control architectures. The 3500/05 solves this challenge by providing a unified platform that consolidates up to 12 monitoring modules with redundant power infrastructure, enabling comprehensive machinery surveillance from a single rack-mounted solution.

Key differentiators include hot-swappable module architecture for zero-downtime maintenance, factory-integrated backplane eliminating field wiring complexity, and native compatibility with the complete 3500 series ecosystem. Whether retrofitting legacy systems or deploying greenfield installations, this rack delivers the reliability and expandability demanded by power generation, petrochemical, and heavy industry applications.

Core Capabilities & Business Value

→ Scalable Multi-Channel Architecture
Accommodates 14 total slots with flexible configuration options. Deploy 12 monitoring modules alongside dual redundant power supplies, enabling simultaneous tracking of dozens of measurement points across multiple machines. Eliminates the need for distributed cabinets and reduces installation footprint by 40% compared to standalone monitor deployments.

→ Zero-Downtime Serviceability
Hot-swap capability allows module replacement during live operation without system shutdown. Field-proven locking mechanisms ensure secure module retention under vibration and thermal cycling. Reduces mean time to repair (MTTR) from hours to minutes, directly improving overall equipment effectiveness (OEE).

→ Integrated Communication Backbone
Factory-tested backplane provides deterministic data pathways between modules and communication gateways. Supports Modbus, proprietary protocols, and SCADA integration without external wiring harnesses. Achieves 99.9% signal integrity across all channels, eliminating false trip events caused by electrical noise.

✓ Standards-Compliant Construction
19-inch EIA rack format ensures universal compatibility with existing control room infrastructure. Meets API 670 machinery protection system requirements and ISO 20816 vibration severity standards. Pre-certified design accelerates project commissioning and regulatory approval timelines.

✓ Redundant Power Architecture
Dual power supply slots enable N+1 redundancy configurations for mission-critical applications. Automatic failover circuitry maintains continuous operation during primary supply faults. Protects against revenue loss in continuous process industries where downtime costs exceed $50,000 per hour.

✓ Future-Proof Expandability
Modular design accommodates evolving monitoring requirements without infrastructure replacement. Add temperature, pressure, or advanced diagnostic modules as operational needs change. Protects capital investment over 15+ year asset lifecycles typical in heavy industry.

Industrial Application Scenarios

Power Generation Turbine Monitoring
Steam and gas turbines in combined-cycle plants require simultaneous monitoring of journal bearings, thrust positions, and casing vibration. The 3500/05 consolidates 8-12 proximitor channels with seismic sensors and keyphasor inputs, providing comprehensive protection for assets valued at $20M+. Operators gain early fault detection capabilities that prevent catastrophic failures and extend major overhaul intervals by 18-24 months.

Petrochemical Compressor Surveillance
Centrifugal and reciprocating compressors handling volatile hydrocarbons demand fail-safe protection systems. Deploy the rack with dual power supplies and redundant monitor configurations to achieve SIL 2 safety integrity levels. Real-time vibration trending identifies bearing degradation, seal failures, and aerodynamic instabilities before process upsets occur, maintaining production continuity in 24/7 operations.

Pulp & Paper Critical Equipment Protection
High-speed paper machine dryers, refiners, and vacuum pumps operate at extreme speeds with minimal tolerance for imbalance. Configure the chassis with 10+ monitoring channels to track radial vibration, axial position, and bearing temperatures across the machine train. Predictive analytics derived from continuous data streams reduce emergency maintenance events by 60% and lower spare parts inventory costs.

Oil & Gas Pipeline Compressor Stations
Remote installations require autonomous monitoring systems with minimal maintenance requirements. The rack's rugged construction withstands temperature extremes (-40°C to +70°C ambient) and electromagnetic interference from VFD drives. Integrated communication modules transmit alarm conditions to central control rooms via fiber optic or cellular networks, enabling remote diagnostics and reducing site visit frequency.

Marine Propulsion & Auxiliary Systems
Shipboard diesel generators, propulsion turbines, and pumps face harsh vibration and corrosive environments. Rack-mounted configuration simplifies installation in confined engine room spaces while meeting maritime classification society requirements (ABS, DNV, Lloyd's). Continuous monitoring ensures compliance with emission regulations by detecting combustion anomalies and turbocharger faults early.

Technical Parameters & Selection Guide

Selection Criteria: Determine total monitoring channel requirements by counting all vibration, position, and temperature measurement points across your machinery train. Reserve 2 slots for power supplies (3 for triple-redundant configurations). Verify control room cabinet depth accommodates 12-inch rack depth plus cable bend radius. For marine or offshore applications, specify conformal coating option to resist salt spray corrosion.

Extended Integration Capabilities

SCADA & DCS Connectivity: Pair with 3500/20 Rack Interface Module or 3500/92 Communication Gateway to stream real-time data to plant-wide control systems. Supports Modbus TCP/RTU, OPC DA/UA, and proprietary protocols for seamless integration with Honeywell, Emerson, or Siemens platforms.

Condition-Based Maintenance Programs: Export vibration trends and alarm history to predictive analytics software (SKF @ptitude, GE Bently Nevada System 1). Machine learning algorithms identify degradation patterns weeks before traditional threshold-based alarms trigger, enabling optimized maintenance scheduling.

Cybersecurity Hardening: Deploy with isolated monitoring networks and firewall-protected communication gateways to meet IEC 62443 industrial cybersecurity standards. Role-based access controls prevent unauthorized configuration changes while maintaining operational visibility.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units. Express shipping available for critical outage situations with 24-48 hour delivery to major industrial hubs.

Custom Configurations: Pre-populated racks with specified monitor combinations ship within 7-10 business days. Factory testing and configuration documentation included.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Extended warranty programs available for multi-year service agreements.

Technical Support: Unlimited access to application engineers for configuration assistance, troubleshooting, and system optimization. Remote diagnostic services available via secure VPN connections.

Documentation Package: Complete installation manual, dimensional drawings, backplane pinout diagrams, and compliance certificates ship with every unit. CAD files available for panel layout design.

Common Technical Questions

What is the maximum number of vibration channels I can monitor with one 3500/05 rack?
Using quad-channel monitors like the 3500/42M, you can achieve up to 48 vibration channels in a single rack (12 slots × 4 channels). Practical configurations typically range from 16-32 channels depending on the mix of proximitor, seismic, and temperature monitors required for your application.

Can this rack operate in hazardous area classifications?
The standard 3500/05 is designed for safe area installation. For Class I Division 2 or ATEX Zone 2 environments, the rack must be installed in a purged enclosure or use intrinsically safe barriers on field wiring. Consult factory application engineers for hazardous location deployments.

How do I achieve redundant monitoring for critical machinery?
Deploy two independent 3500/05 racks with separate sensor sets and voting logic in your control system. Alternatively, use dual-channel monitors (3500/40M) with independent alarm outputs within a single rack. Redundancy strategy depends on required safety integrity level (SIL) and machinery criticality.

What communication protocols are supported for remote monitoring?
The rack itself provides backplane communication. Add a 3500/92 gateway module for Modbus TCP/RTU, 3500/94 for proprietary protocols, or 3500/95 for Ethernet/IP connectivity. Multiple gateways can coexist in one rack for simultaneous SCADA and historian connections.

Is field calibration required after installation?
No. The rack backplane is factory-calibrated and requires no field adjustment. Individual monitoring modules arrive pre-configured and calibrated. Simply install modules in desired slots, connect field wiring to terminal blocks, and apply power. Configuration via System 1 software or front-panel keypad.

What maintenance intervals are recommended?
The rack chassis requires no scheduled maintenance. Inspect module locking mechanisms annually and verify backplane connector integrity during planned outages. Power supply modules should be tested every 24 months per API 670 recommendations. Typical service life exceeds 20 years in controlled environments.

Start Protecting Your Critical Assets

Transform your machinery protection strategy with proven monitoring infrastructure trusted by Fortune 500 operators worldwide. Our technical team is ready to assist with system sizing, module selection, and integration planning. Contact us today for application-specific recommendations and volume pricing for multi-rack installations.
