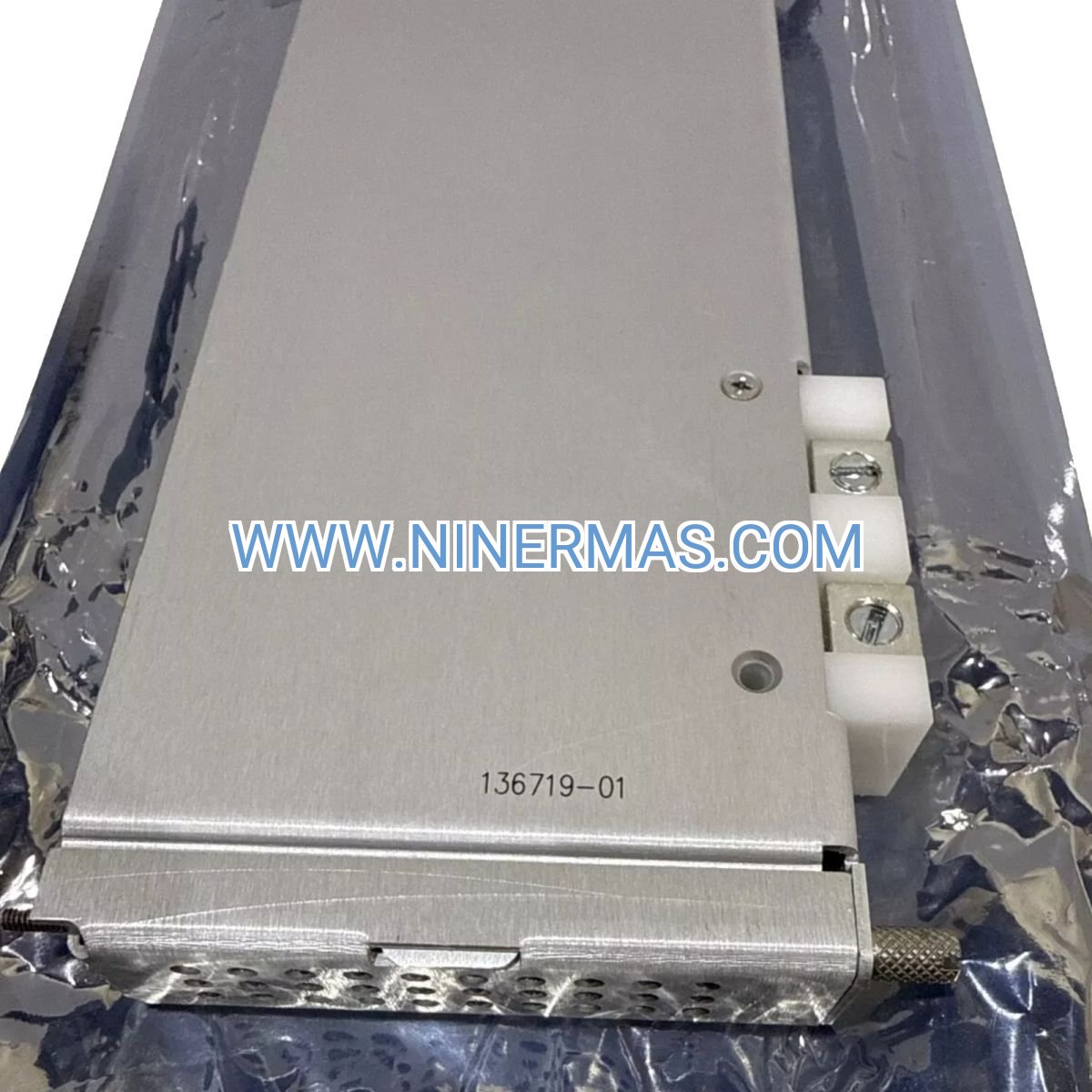

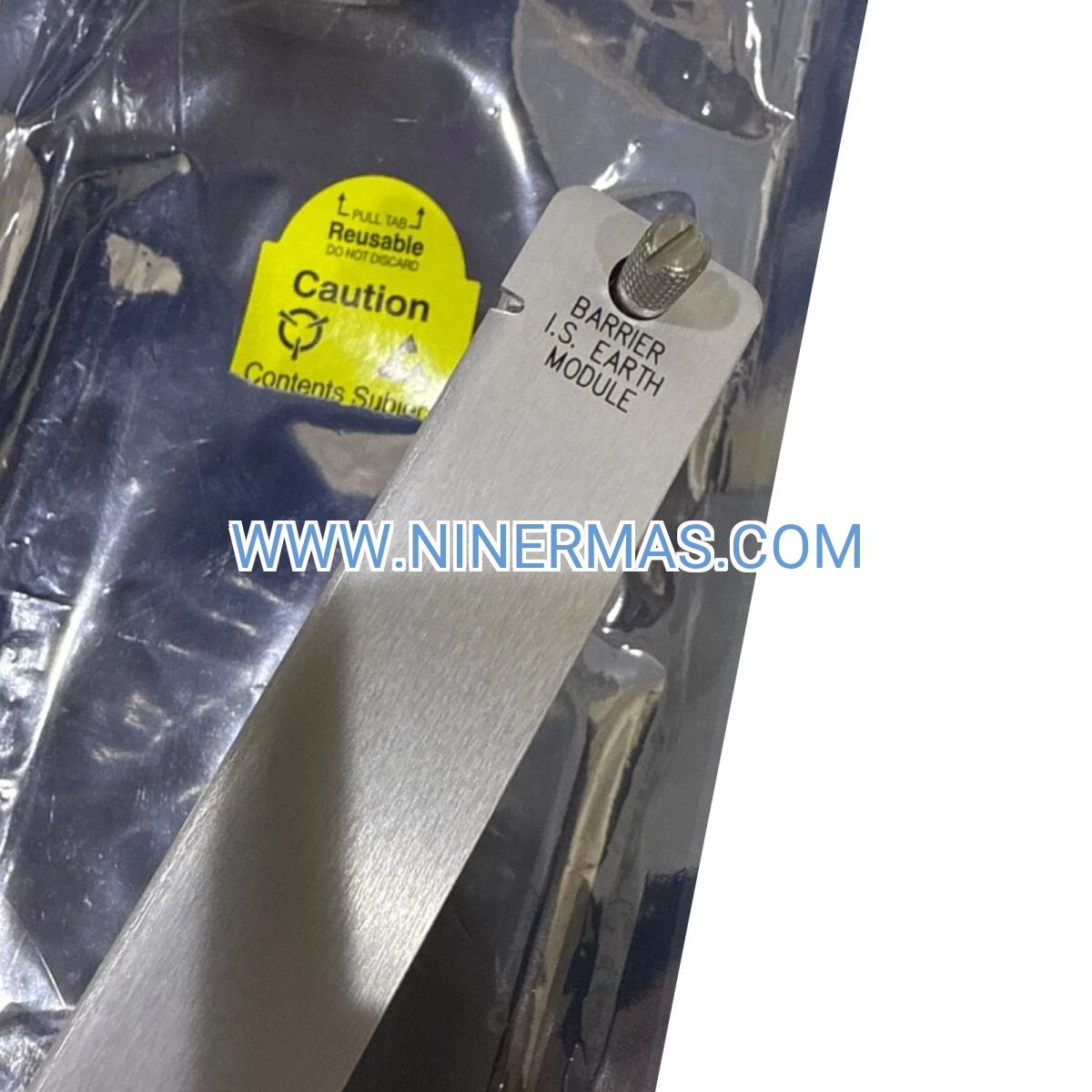

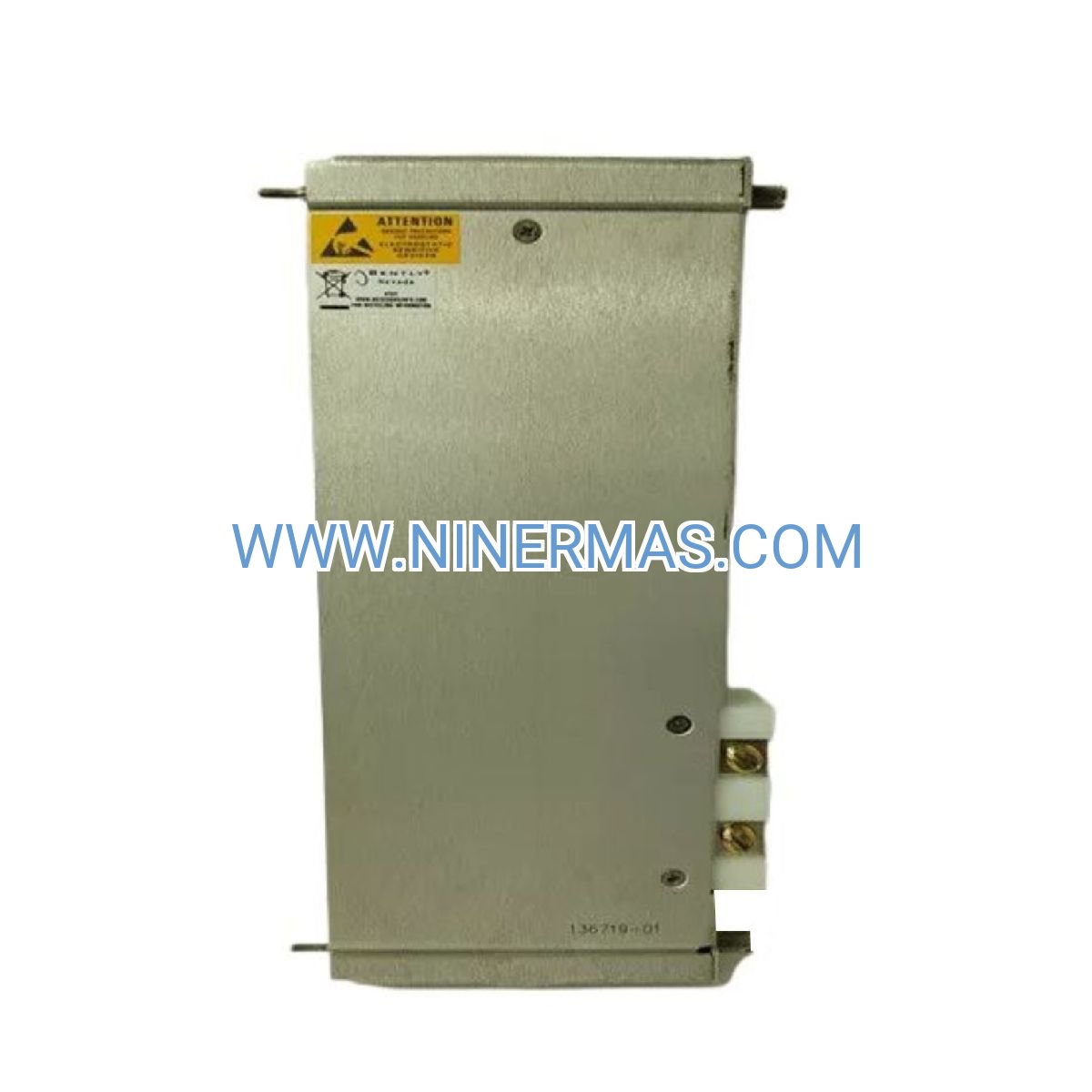

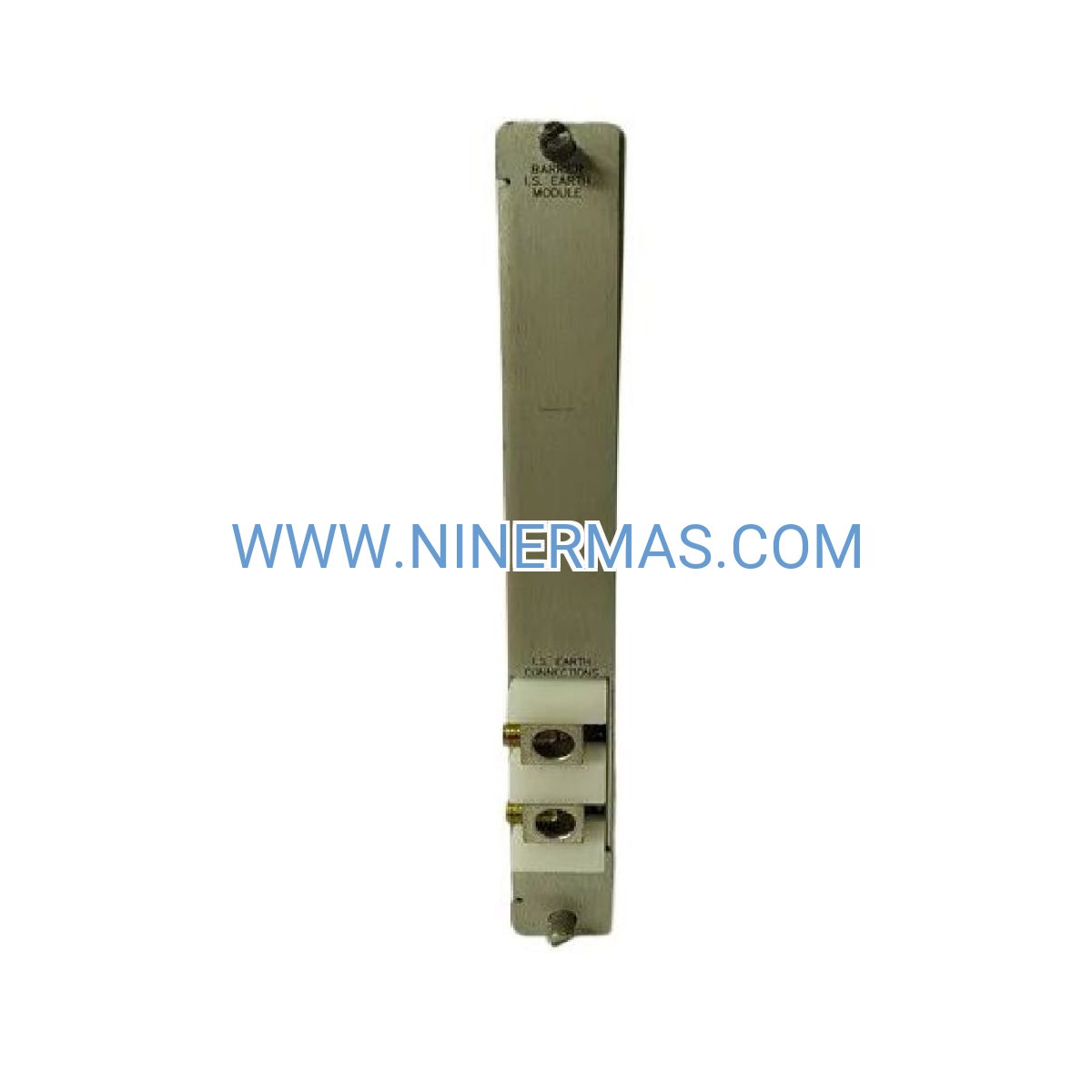

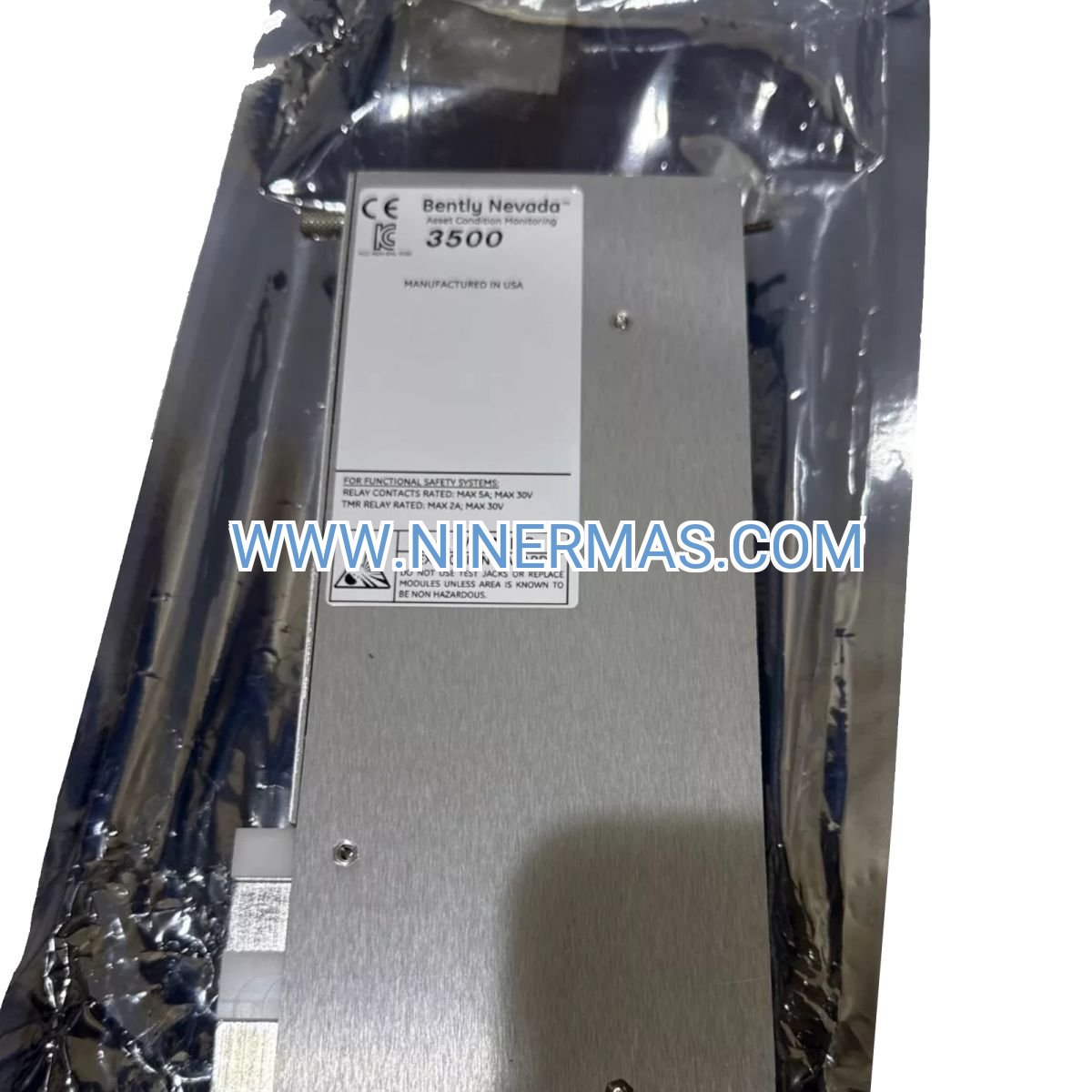

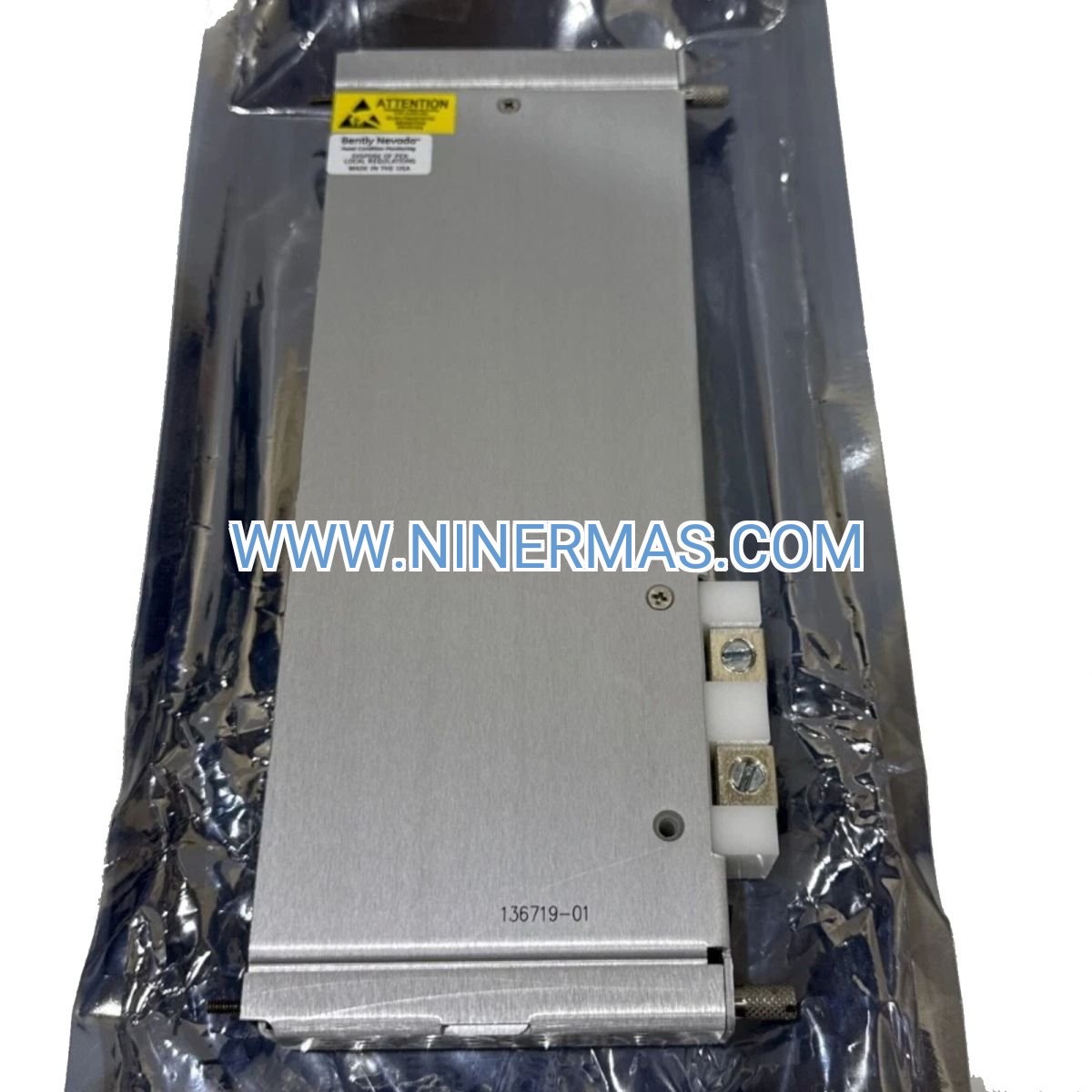

136719-01 Intrinsically Safe Earthing Module (Industrial-Grade Hazardous Area Interface)

The 136719-01 represents a purpose-engineered earthing I/O solution within the Bently Nevada 3500/04 platform, specifically architected for transducer signal conditioning in explosive atmosphere environments. This module bridges field-mounted sensors to centralized monitoring racks while maintaining intrinsic safety barriers that prevent ignition in Class I Division 1 and Zone 0/1 classified locations.

Designed for operators managing critical rotating assets in oil refineries, offshore platforms, and petrochemical facilities, the 136719-01 eliminates the need for external safety barriers through integrated energy-limiting circuitry. Plant engineers gain direct connectivity to proximity probes and accelerometers installed in hazardous zones, reducing installation complexity and improving signal integrity across turbomachinery protection systems.

With factory calibration to API 670 standards and compatibility across legacy 3500 rack configurations, this earthing module delivers immediate deployment capability for both greenfield installations and brownfield retrofits. The solution combines regulatory compliance, diagnostic transparency, and proven reliability for industries where machinery failure carries catastrophic operational and safety consequences.

Core Features & Benefits

✓ Certified Intrinsic Safety Protection
Meets ATEX, IECEx, and FM approval requirements for Class I Division 1 Groups A-D environments, enabling direct installation in the most stringent explosive atmosphere classifications without supplementary barriers. Business value: Reduces capital expenditure on external safety infrastructure while accelerating project timelines through simplified wiring architectures.

✓ Multi-Channel Earthing Interface
Accommodates simultaneous connections from multiple intrinsically safe transducers, supporting radial vibration, axial position, and dynamic pressure measurements on a single module. Business value: Consolidates monitoring points per rack slot, optimizing cabinet space utilization and reducing per-channel hardware costs by up to 40%.

✓ Enhanced Noise Immunity
Galvanic isolation and differential input stages reject common-mode interference from VFDs, welding equipment, and high-voltage switchgear, maintaining signal fidelity in electrically harsh industrial environments. Business value: Minimizes false alarms and improves predictive maintenance accuracy, reducing unplanned downtime by 25-35% in typical applications.

→ Wide Operating Temperature Range
Qualified for -30°C to +65°C ambient conditions without derating, supporting installations in Arctic gas processing facilities, desert refineries, and tropical offshore platforms. Business value: Eliminates climate control requirements for equipment rooms, lowering HVAC operational expenses.

→ Backward Compatible Architecture
Drop-in replacement for first-generation 3500/04 modules with identical form factor and pinout, preserving existing rack infrastructure and cabling investments. Business value: Enables technology refresh without system-wide overhauls, protecting capital deployed in installed base.

→ Integrated Diagnostic Capabilities
Real-time health monitoring detects open circuits, short circuits, and transducer degradation, with status reporting to SCADA/DCS systems via Modbus or proprietary protocols. Business value: Shifts maintenance from reactive to condition-based strategies, extending mean time between failures (MTBF) to 180,000+ hours.

Typical Application Scenarios

Offshore Oil & Gas Production Platforms
In FPSO (Floating Production Storage Offloading) vessels and fixed platforms, the 136719-01 monitors gas turbine generators, seawater injection pumps, and crude oil transfer compressors located in Zone 1 hazardous areas. The module's marine-grade construction withstands salt fog and vibration while maintaining SIL 2 functional safety integrity. Operators achieve 99.7% uptime on critical machinery through early fault detection, preventing production losses averaging $500K-$2M per unplanned shutdown event.

Petrochemical Ethylene Cracking Units
Ethylene plants deploy the 136719-01 to interface with proximity probes on cracked gas compressors and propylene refrigeration systems operating in Division 1 environments. The module's ability to process signals from -200°C cryogenic service to +400°C furnace applications enables comprehensive asset coverage. Maintenance teams reduce bearing failure incidents by 60% through vibration trend analysis, extending compressor run lengths from 18 to 30+ months between overhauls.

Refinery Fluid Catalytic Cracking (FCC) Units
FCC main air blowers and wet gas compressors require continuous monitoring in Class I Division 2 zones where hydrocarbon vapors are intermittently present. The 136719-01's intrinsic safety certification permits installation without hot work permits, accelerating turnaround project schedules. Reliability engineers correlate vibration signatures with catalyst circulation rates, optimizing unit throughput while maintaining mechanical integrity per API 618 standards.

LNG Liquefaction Trains
Mixed refrigerant compressors in LNG facilities demand precision monitoring in cryogenic and hazardous environments simultaneously. The module supports both proximity probe and accelerometer inputs, capturing shaft vibration and casing dynamics on equipment valued at $50M+ per train. Predictive analytics derived from 136719-01 data streams enable just-in-time maintenance, avoiding costly LNG cargo commitments failures.

Underground Coal Mining Longwall Systems
Continuous miners and conveyor drive systems in methane-rich underground environments utilize the 136719-01 for gearbox and motor monitoring in explosive dust atmospheres. The module's rugged construction survives shock loads and coal dust ingress, while intrinsic safety approval satisfies MSHA regulations. Mine operators reduce catastrophic gearbox failures by 80%, protecting worker safety and maintaining production quotas.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the 136719-01, confirm that connected transducers carry intrinsic safety certifications with entity parameters (Uo, Io, Co, Lo) compatible with the module's input specifications. For applications requiring more than 8 monitoring points, deploy multiple modules within the same rack. Consult factory application engineers for systems integrating both IS and non-IS transducers to ensure proper channel allocation and barrier coordination.

Extended Functions

IoT Integration & Remote Diagnostics
When paired with 3500/94M or 3500/95 communication gateways, the 136719-01 streams vibration data to cloud-based condition monitoring platforms via OPC UA, MQTT, or REST APIs. Plant reliability teams access real-time spectral analysis, trend comparisons, and machine learning-driven anomaly detection from mobile devices, enabling remote expert consultation during critical events.

Advanced Alarming Logic
The module supports configurable alert thresholds with hysteresis, rate-of-change detection, and multi-parameter voting logic. Operators define custom alarm setpoints aligned with equipment-specific acceptance criteria, reducing nuisance alarms while ensuring genuine fault conditions trigger immediate response protocols.

Customization Options
For OEM machinery builders and EPC contractors, Bently Nevada offers factory customization including pre-configured channel assignments, customer-specific labeling, and integration with proprietary control systems. Minimum order quantities and lead times apply—contact technical sales for feasibility assessment.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders requiring configuration or testing beyond standard specifications.

Expedited Shipping: Emergency replacement units available via next-flight-out (NFO) service to minimize unplanned downtime during critical machinery failures. Surcharges apply based on destination and carrier availability.

Warranty Coverage: 12-month comprehensive warranty from shipment date, covering material defects, workmanship issues, and calibration drift beyond published specifications. Warranty excludes damage from improper installation, electrical overstress, or operation outside rated environmental limits.

Technical Support: Lifetime access to application engineering assistance via phone, email, and web portal. Support includes configuration guidance, troubleshooting diagnostics, firmware updates, and integration consulting for complex multi-vendor systems.

Documentation Package: Each module ships with calibration certificate (traceable to NIST/PTB standards), hazardous area certification documents, installation manual, and quick-start guide. CAD drawings, 3D STEP models, and wiring diagrams available for download from manufacturer portal.

Frequently Asked Questions

What differentiates the 136719-01 earthing module from standard barrier I/O modules in vibration monitoring systems?
The 136719-01 integrates intrinsic safety barriers directly within the module circuitry, eliminating external Zener barrier panels required by conventional I/O cards. This reduces installation footprint by 30-40%, simplifies loop calculations per IEC 60079-25, and improves signal-to-noise ratio through shorter cable runs between barriers and monitoring electronics.

Can the 136719-01 interface with wireless vibration sensors for hazardous area applications?
While the module itself is designed for hardwired transducer connections, it can accept signals from wireless sensor gateways that provide intrinsically safe analog outputs. Ensure the wireless system carries appropriate hazardous area certifications (e.g., WirelessHART, ISA100.11a with IS approval) and that gateway output parameters comply with module input specifications.

How does the module perform in high-EMI environments such as near large VFD installations?
The 136719-01 employs triple-stage filtering (input RC networks, differential amplifiers, and digital signal processing) to reject electromagnetic interference up to 200 V/m field strength per IEC 61000-4-3. For extreme EMI scenarios (e.g., adjacent to 5MW+ VFDs), supplement with shielded twisted-pair cabling and ferrite core suppressors on transducer leads.

What is the maximum cable length between transducers and the 136719-01 module in hazardous locations?
Maximum cable length depends on transducer type and hazardous area classification. For proximity probes in Zone 0 applications, typical limits are 150-200 meters using 18 AWG shielded cable with capacitance ≤200 pF/m. Consult entity parameter calculations in the installation manual to verify compliance with Ui, Ii, Ci, and Li constraints for your specific configuration.

Does the 136719-01 require periodic recalibration to maintain measurement accuracy?
The module maintains factory calibration accuracy (typically ±0.5% of full scale) for 5+ years under normal operating conditions. However, industries with stringent quality management systems (ISO 9001, AS9100) may mandate annual verification. Recalibration services are available through authorized service centers with 5-7 business day turnaround.

Is the module compatible with third-party condition monitoring software platforms?
Yes, when integrated with 3500 rack communication modules (e.g., 3500/92, 3500/94M), the 136719-01 data streams are accessible via Modbus TCP/RTU, OPC DA/UA, and proprietary protocols. This enables integration with SKF @ptitude, Emerson AMS, or custom SCADA/historian systems. API documentation and driver libraries are available under NDA for software developers.

Ready to Protect Your Critical Assets?

Secure your machinery uptime with the 136719-01 intrinsically safe earthing module. Our technical specialists are available to assist with system design, hazardous area compliance verification, and integration planning. Request a quotation today or schedule a consultation to discuss your specific monitoring requirements.

For bulk orders, multi-site deployments, or custom configuration requirements, contact our industrial sales team for volume pricing and project support.
