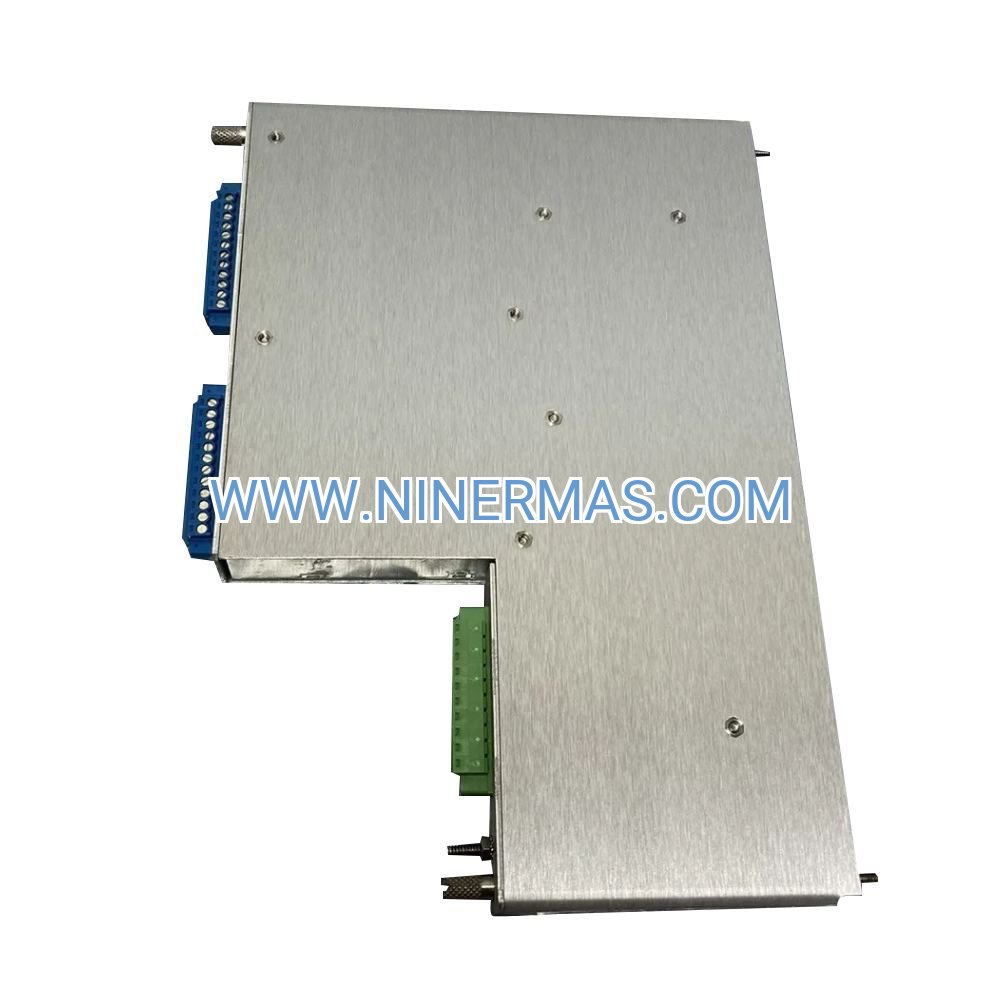

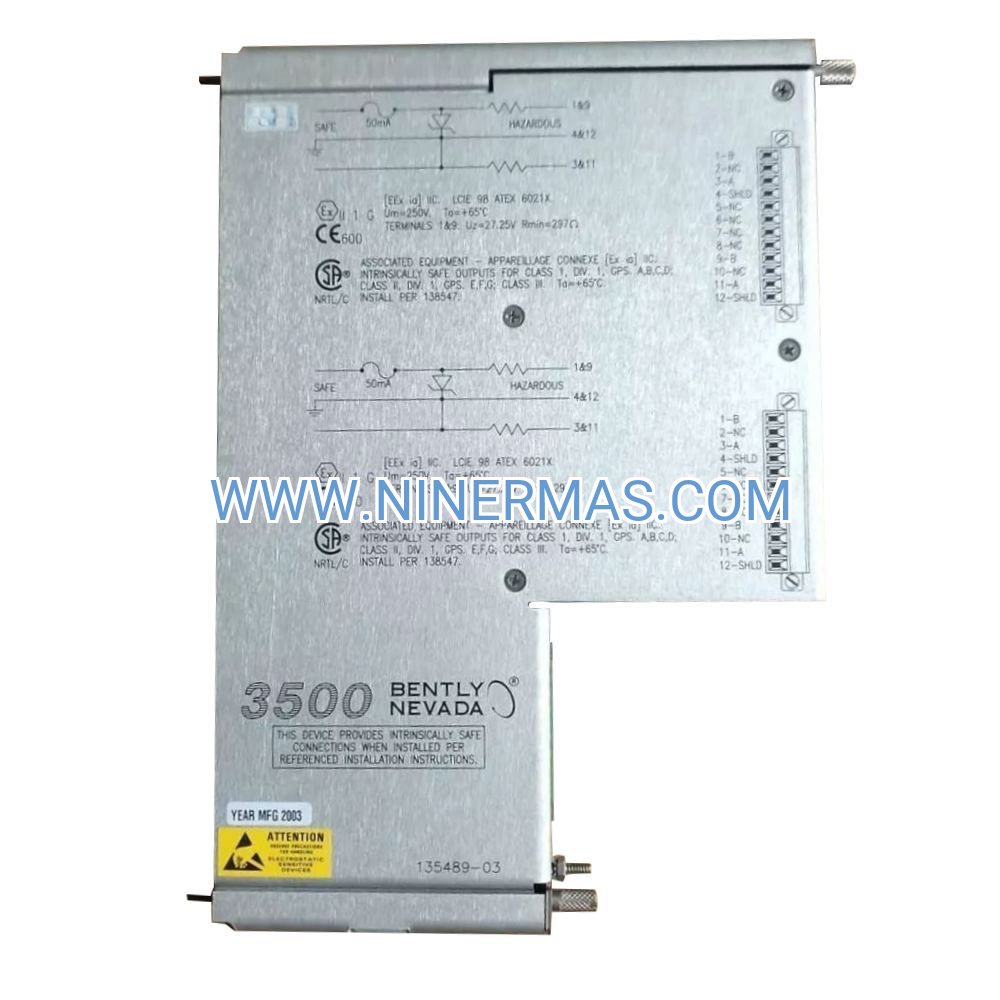

Bently Nevada 135489-03 Intrinsically Safe I/O Barrier (Industrial-Grade Protection)

The Bently Nevada 3500/04 I/O Module (135489-03) delivers certified intrinsically safe signal conditioning for transducer networks in explosive atmospheres. Designed for seamless rack integration with 3500 Series machinery protection systems, this barrier module safeguards field instrumentation while preserving measurement accuracy across vibration, temperature, and speed monitoring channels.

Built to withstand the rigors of Class I Division 1 hazardous locations, the 135489-03 eliminates the risk of ignition sources in oil refineries, offshore platforms, chemical plants, and mining operations. Its galvanically isolated architecture prevents ground loops and electrical noise, ensuring reliable data transmission from proximity probes, accelerometers, and RTD sensors to monitoring electronics.

Whether you're upgrading legacy protection systems or deploying new condition monitoring infrastructure, this factory-calibrated module reduces commissioning time and delivers plug-and-play reliability. Hot-swappable design minimizes unplanned downtime, while diagnostic LEDs accelerate troubleshooting during maintenance windows.

Core Features & Benefits

✓ Certified Intrinsic Safety Protection
Meets stringent Class I, Division 1 requirements for Zone 0/1 hazardous environments, enabling compliant transducer deployment in explosive gas and vapor atmospheres without costly enclosure modifications.

✓ Multi-Channel Barrier Architecture
Supports simultaneous signal conditioning for multiple field devices, reducing rack space consumption and simplifying wiring infrastructure compared to single-channel barrier solutions.

✓ Galvanic Isolation Technology
Eliminates ground loop interference and common-mode voltage issues that degrade measurement precision, ensuring clean signal paths for critical machinery health data.

✓ Hot-Swap Capability
Allows module replacement during live system operation without shutting down the entire monitoring rack, maximizing asset uptime during scheduled maintenance or emergency repairs.

✓ Factory Calibration & Testing
Ships pre-configured with verified barrier parameters, eliminating field calibration requirements and accelerating installation timelines by 40-60% versus field-configurable alternatives.

✓ Extended Temperature Range
Operates reliably from -30°C to +65°C, accommodating extreme ambient conditions in arctic facilities, desert installations, and high-temperature process areas.

Application Scenarios

→ Offshore Oil & Gas Production
Platform operators deploy the 135489-03 to monitor compressor vibration, turbine bearing temperatures, and pump shaft speeds in Zone 1 classified areas. The module's corrosion-resistant construction withstands salt spray and humidity while maintaining measurement integrity for predictive maintenance programs.

→ Petrochemical Refining Units
Refineries integrate this barrier module into fluid catalytic cracking (FCC) unit monitoring systems, protecting proximity probes on reactor compressors and fractionator pumps. Intrinsic safety certification enables transducer placement near process vessels without explosion-proof junction boxes.

→ Combined-Cycle Power Plants
Utility operators use the 3500/04 to interface gas turbine vibration sensors in combustion zones, ensuring continuous monitoring without compromising safety standards. The module's API 670 alignment supports compliance with turbine manufacturer protection requirements.

→ Underground Mining Operations
Mine operators monitor conveyor drive motors, crusher bearings, and ventilation fans in methane-rich environments using IS-certified transducer networks. The 135489-03's robust design survives dust, moisture, and mechanical shock common in underground installations.

→ Chemical Manufacturing Facilities
Plants producing flammable solvents, polymers, and intermediates rely on this barrier module to monitor agitator shafts, centrifuge rotors, and reactor circulation pumps. Galvanic isolation prevents electrical faults from propagating between hazardous and safe areas.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 135489-03 when your application requires intrinsically safe barriers for transducer networks in hazardous classified areas. Verify that your existing infrastructure uses 3500 Series racks (the module is incompatible with legacy 3300 XL systems). For non-hazardous environments, standard I/O modules may offer cost advantages, though the 135489-03 functions equally well in safe areas.

Extended Functions

System Integration Capabilities: The 3500/04 module interfaces with Bently Nevada System 1 software for centralized asset health visualization and predictive analytics. When paired with Ethernet communication modules, barrier-protected sensor data flows to SCADA systems, historians, and cloud-based condition monitoring platforms.

Advanced Diagnostics: Built-in self-test routines verify barrier integrity and signal path continuity, generating alerts when field wiring faults or transducer failures occur. This proactive fault detection reduces mean time to repair (MTTR) by 30-50% compared to systems lacking diagnostic capabilities.

Customization Options: While the 135489-03 ships with standard factory settings, barrier parameters can be adjusted via 3500 Rack Configuration Software to accommodate non-standard transducer impedances or specialized measurement requirements. Contact our technical team for application-specific configuration guidance.

Delivery & Service Assurance

Lead Time: In-stock 135489-03 modules ship within 24 hours of order confirmation for standard quantities (1-5 units). Bulk orders (6+ units) typically ship within 3-5 business days. Expedited shipping options available for critical outage situations.

Warranty Coverage: Every module includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and factory calibration. Warranty service includes advance replacement to minimize downtime.

Technical Support: Our application engineers provide pre-sale consultation for system design, installation guidance during commissioning, and troubleshooting assistance throughout the product lifecycle. Support available via email, phone, and remote diagnostics.

Documentation Package: Each shipment includes installation manuals, wiring diagrams, hazardous area certification documents, and configuration software access credentials. Digital copies available for immediate download upon order placement.

Frequently Asked Questions

Can the 135489-03 barrier module interface with third-party transducers from other manufacturers?
Yes, the module accepts standard 2-wire proximity probes, 3-wire accelerometers, and RTD sensors from manufacturers like SKF, Emerson, and IFM, provided they meet intrinsic safety parameters. Verify transducer specifications against barrier ratings before deployment.

What is the maximum cable length between field transducers and the barrier module in hazardous areas?
Cable length depends on transducer type and capacitance. Proximity probe circuits typically support 200-300 meters, while accelerometer circuits may be limited to 100 meters. Consult the module's intrinsic safety documentation for specific cable capacitance limits.

Does this module support remote monitoring and IoT connectivity for predictive maintenance programs?
The 135489-03 provides conditioned signals to 3500 Series monitors, which can then transmit data to System 1 software, OPC servers, and cloud platforms via Ethernet communication modules. This enables integration with IIoT ecosystems and machine learning analytics tools.

How does the hot-swap capability work during live system operation?
The 3500 rack architecture allows module removal and insertion without powering down adjacent modules. Simply release the module's retention clips, extract the unit, and insert the replacement. The system automatically recognizes the new module and resumes operation within seconds.

Are firmware updates required for the 135489-03 barrier module?
No, the module uses hardware-based barrier circuits that do not require firmware. However, the 3500 Rack Configuration Software may receive periodic updates to support new features or transducer types.

What energy efficiency benefits does galvanic isolation provide beyond safety?
Isolation eliminates circulating ground currents that waste power and generate heat. In large monitoring systems with 50+ channels, this can reduce rack power consumption by 5-10% while improving signal-to-noise ratios by 15-20 dB.

Ready to Protect Your Critical Assets?

Secure your hazardous area monitoring infrastructure with genuine Bently Nevada 135489-03 barrier modules. Our inventory team maintains stock for immediate shipment, and our technical specialists are standing by to assist with system design and integration questions.

Request a quote today or contact our sales team at sale@ninermas.com | +0086 187 5021 5667 to discuss volume pricing and custom configuration options.
