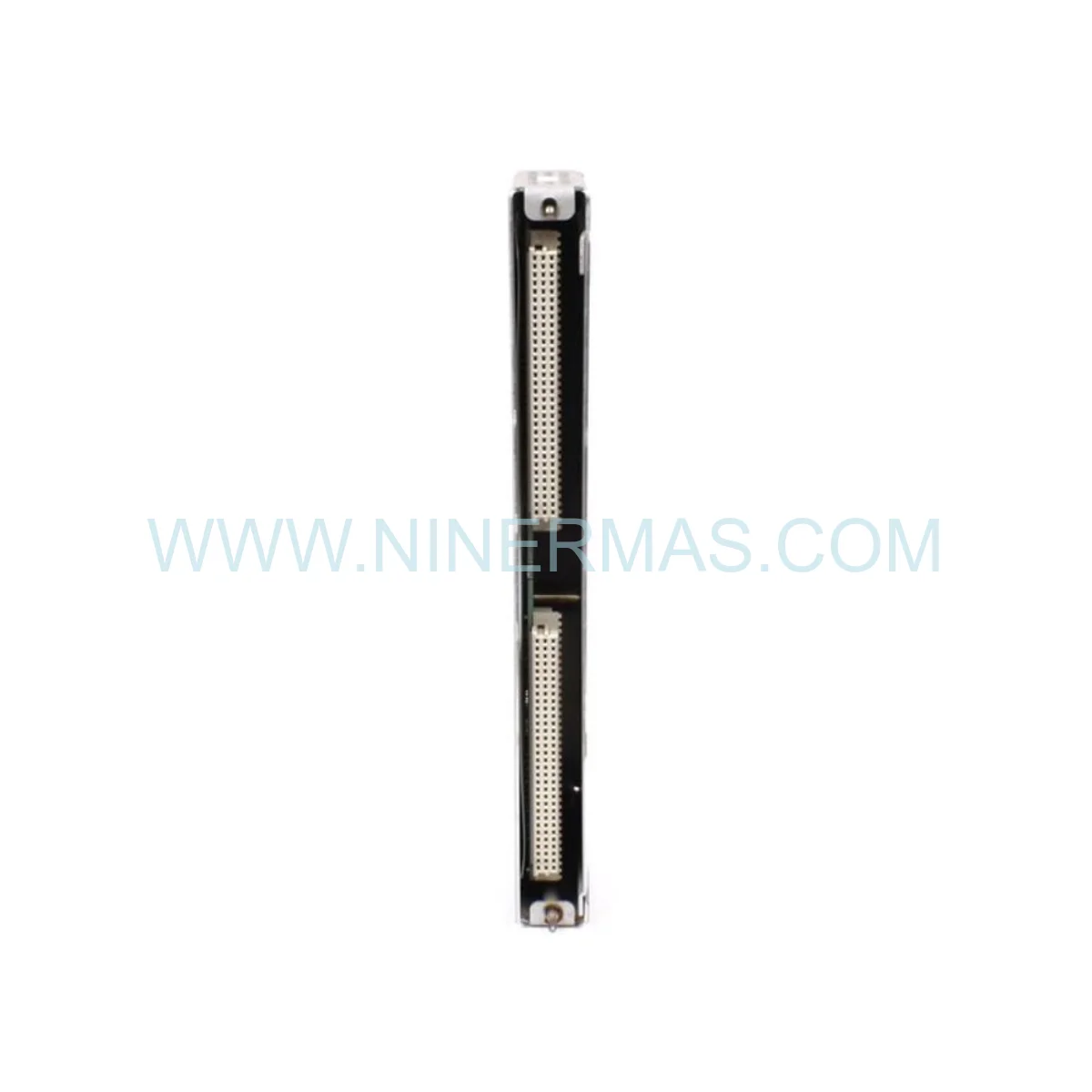

3500/04-01 Intrinsic Safety Earthing Module (Industrial-Grade IS Ground Solution)

The Bently Nevada 3500/04-01 is a purpose-built intrinsic safety earthing module that establishes the mandatory low-impedance ground reference for 3500 Series monitoring racks equipped with internal barrier technology. Certified to CSA, ATEX, and IECEx standards, this single-slot earthing component enables compliant vibration and process monitoring in explosive atmosphere installations—from offshore oil platforms to chemical processing units—where ignition prevention is non-negotiable.

Designed for integration with barrier-equipped monitors (3500/42M, 3500/44M, 3500/46M series), the 3500/04-01 ensures energy-limiting circuits maintain their protective characteristics under both normal operation and fault conditions. Its compact 24.4mm width footprint and <1Ω earth resistance deliver reliable IS grounding across -30°C to +65°C operating environments, supporting critical machinery protection in Zone 0/1/2 and Division 1/2 classified locations worldwide.

Core Features & Business Value

✓ Mandatory Compliance Component
Eliminates certification gaps by providing the required IS earth point for racks containing internal barrier modules—ensuring your monitoring system meets CSA/NRTL/C, ATEX 2014/34/EU, and IECEx scheme requirements without costly re-engineering.

✓ Single-Slot Rack Integration
Occupies just one slot in your 3500 rack configuration, preserving valuable real estate for additional monitoring channels while delivering full-system IS grounding through dedicated terminal connection.

✓ Multi-Certification Flexibility
Available with North American (CSA), European (ATEX), or global (IECEx) approvals—specify certification code during ordering to match your facility's jurisdictional requirements and avoid procurement delays.

✓ Verified Earth Continuity
Factory-tested to achieve <1Ω typical earth resistance, ensuring barrier circuits maintain energy limitation even under ground fault scenarios. Full traceability documentation supports site safety audits and hot work permit processes.

→ Wide Temperature Range
Operates reliably from -30°C to +65°C (-22°F to +149°F), accommodating Arctic offshore installations, desert gas processing facilities, and tropical refinery environments without performance degradation.

→ Lightweight Precision Design
At just 0.201 kg (0.443 lb), the module installs quickly without rack loading concerns, while its 241 × 24.4 × 103.1 mm dimensions align perfectly with standard 3500 Series mechanical interfaces.

Industrial Application Scenarios

Offshore Oil & Gas Production Platforms
When monitoring gas turbine generators and wellhead compressors in Zone 1 classified areas, the 3500/04-01 works alongside barrier-equipped vibration monitors to enable continuous machinery protection without hot work permits. Pair with the 3500/42M Proximitor/Seismic Monitor for radial vibration surveillance on FPSO turbocompressors, where unplanned shutdowns cost $500K+ per day in deferred production.

Petrochemical Refining & Cracking Units
Fluid catalytic cracking (FCC) units and hydrocracker compressor trains demand intrinsically safe monitoring in Division 2 process areas. The 3500/04-01 enables compliant integration of the 3500/44M Aeroderivative GT Monitor, protecting high-value rotating equipment while maintaining NEC Article 504 conformance during turnaround inspections and online diagnostics.

Chemical Manufacturing & Solvent Recovery
ATEX Zone 2 reactor vessels and spray-drying systems require temperature and vibration monitoring without ignition risk. Deploy the 3500/04-01 with the 3500/60 Temperature Monitor to track bearing RTD inputs and process thermocouples, ensuring pharmaceutical-grade batch consistency while meeting EU Directive 2014/34/EU equipment group IIC requirements.

LNG Terminals & Cryogenic Compression
Boil-off gas (BOG) compressors and LNG transfer pumps operate in IECEx Zone 1 environments where conventional monitoring creates unacceptable ignition sources. The 3500/04-01 supports the 3500/46M Hydro Monitor in measuring thrust position and differential expansion on cryogenic machinery, preventing catastrophic failures in -162°C service conditions.

Pipeline Compressor Stations
Natural gas transmission facilities require Division 2-compliant monitoring for reciprocating compressors. Integrate the 3500/04-01 with the 3500/72M Reciprocating Compressor Monitor to track rod position and cylinder pressure in unmanned stations, enabling predictive maintenance while satisfying pipeline operator safety management system (SMS) requirements.

Technical Parameters & Selection Guide

Selection Workflow:

1. Identify barrier-equipped modules in your 3500 rack (look for -M suffix: 3500/42M, 3500/44M, etc.)
2. Determine required hazardous area certifications (CSA for North America, ATEX for EU, IECEx for global projects)
3. Specify certification code during ordering: -01 for CSA only, -02 for multi-certification (CSA+ATEX+IECEx)
4. Allocate one rack slot for earthing module installation
5. Plan IS ground bus routing from module terminal to facility intrinsic safety ground system

Extended Capabilities & System Integration

Multi-Barrier Rack Configurations
A single 3500/04-01 earthing module supports multiple barrier-equipped monitors within the same rack. For example, a 14-slot 3500/05 rack can accommodate up to 12 barrier modules (3500/42M, 3500/44M, 3500/46M) plus one 3500/20 Rack Interface Module and one 3500/04-01 earthing module—enabling comprehensive turbomachinery train monitoring with centralized IS grounding.

Segregated Ground Architecture
The 3500/04-01 connects to a dedicated intrinsic safety ground bus that remains isolated from chassis ground and signal ground systems. This segregation prevents ground loop currents and ensures barrier energy-limiting characteristics are not compromised by facility electrical noise or fault currents, maintaining IEC 60079-11 compliance.

Retrofit & Upgrade Compatibility
When upgrading existing 3500 racks from standard monitors to barrier-equipped variants (e.g., replacing 3500/42 with 3500/42M for hazardous area expansion), simply add the 3500/04-01 earthing module to achieve instant IS compliance without rack replacement or extensive rewiring.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units with CSA certification; 7-10 business days for ATEX/IECEx multi-certified variants requiring factory configuration verification.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship, covering earth continuity failures and insulation breakdown. Warranty includes replacement module and technical support for installation troubleshooting.

Technical Support: Access to Bently Nevada-certified application engineers for hazardous area classification guidance, earth resistance testing procedures, and certification documentation assistance. Support available via email, phone, and remote diagnostics.

Documentation Package: Each module ships with installation manual (Bently Nevada 141535-01), certification declarations (CSA/ATEX/IECEx as applicable), material traceability certificates, and factory test reports documenting earth resistance and insulation integrity.

Frequently Asked Questions

Q: How do I determine if my 3500 rack requires the earthing module?
A: Check your rack configuration for any monitoring modules with -M suffix designations (3500/42M, 3500/44M, 3500/46M, 3500/72M). The presence of even one barrier-equipped module mandates installation of the 3500/04-01 earthing module for certification compliance.

Q: Can I install the earthing module in any rack slot position?
A: Yes, the 3500/04-01 can occupy any available slot within the 3500 rack. However, consult your rack configuration drawing to identify the optimal position that minimizes IS ground bus cable routing and maintains proper segregation from non-IS circuits.

Q: What is the difference between CSA, ATEX, and IECEx certifications?
A: CSA/NRTL/C covers North American installations (NEC Class I Division 1/2), ATEX applies to European Union facilities (Directive 2014/34/EU Zone 0/1/2), and IECEx provides international recognition across 30+ member countries. Multi-certified modules (-02 suffix) satisfy all three schemes for global project deployment.

Q: How do I verify proper earthing module installation and performance?
A: After physical installation, use a low-resistance ohmmeter to measure continuity between the module's IS ground terminal and your facility's intrinsic safety ground bus. Resistance should measure less than 1Ω. Document this reading in your hazardous area installation records and repeat annually during maintenance shutdowns.

Q: Is the earthing module compatible with external barrier systems like MTL or Pepperl+Fuchs?
A: The 3500/04-01 is specifically engineered for Bently Nevada 3500 Series racks with internal barrier modules. For third-party external barrier applications, the earthing module is not required—instead, follow the barrier manufacturer's grounding specifications for their standalone IS isolators.

Q: Can the module be hot-swapped during rack operation?
A: No. Removing or installing the 3500/04-01 while the rack is energized and connected to field devices in hazardous areas violates intrinsic safety principles and certification requirements. Always de-energize the rack, disconnect field wiring, and obtain appropriate hot work permits before servicing.

Complete Your 3500 Hazardous Area Monitoring System

Build a fully certified intrinsically safe machinery protection solution by pairing the 3500/04-01 earthing module with these essential components:

Barrier-Equipped Monitoring Modules:

• 3500/42M Proximitor/Seismic Monitor – Radial vibration and seismic monitoring with internal barriers for Zone 1/Division 1 turbomachinery
• 3500/44M Aeroderivative GT Monitor – Four-channel vibration surveillance for gas turbine generators in hazardous process areas
• 3500/46M Hydro Monitor – Thrust position and differential expansion tracking for cryogenic pumps and compressors
• 3500/72M Reciprocating Compressor Monitor – Rod position and cylinder pressure monitoring for pipeline compression stations

Rack Infrastructure Components:

• 3500/05 System Rack – 14-slot mechanical chassis with integrated power distribution and backplane communication
• 3500/20 Rack Interface Module – Primary rack controller providing Modbus protocol interface and monitor configuration management
• 3500/25 Enhanced Keyphasor Module – Speed reference and phase angle measurement for rotating machinery diagnostics

Communication & Integration:

• 3500/92 Communication Gateway – Modbus TCP/RTU and Ethernet/IP protocol conversion for DCS/SCADA integration
• 3500/93 Display Interface Module – Local HMI connectivity for operator interface panels and alarm annunciation

Additional IS Barriers & Accessories:

• 136703-01 Internal Barrier Card – Supplemental IS barrier option for additional field device channels
• 330130-040-00-00 Proximitor Sensor – 3300 XL 8mm proximity probe with -40°C to +85°C temperature range for hazardous area installations

Quality Standards & Regulatory Compliance

Manufactured under ISO 9001:2015 quality management system with full material traceability and batch-level documentation. Complies with IEC 60079-11 (Intrinsic Safety "i"), IEC 61010-1 (Safety Requirements for Electrical Equipment), and applicable regional standards:

• North America: NEC Article 504 (Intrinsic Safety), Article 505 (Zone Classification), Article 506 (Combustible Dusts); CSA C22.2 No. 157 (Intrinsically Safe Equipment)
• Europe: ATEX Directive 2014/34/EU Equipment Group II Category 1/2/3; EN 60079-0 (General Requirements), EN 60079-11 (Intrinsic Safety)
• International: IECEx Certification Scheme; IEC 60079-0 (Explosive Atmospheres - Equipment - General Requirements)

Installation Safety Notice: Intrinsic safety equipment installation must be performed by qualified personnel holding appropriate hazardous area electrical certifications. Consult your facility's area classification drawings, review applicable electrical codes (NEC/IEC), and obtain necessary hot work permits before commencing installation. Refer to Bently Nevada Installation Manual 141535-01 for detailed procedures and safety precautions.
