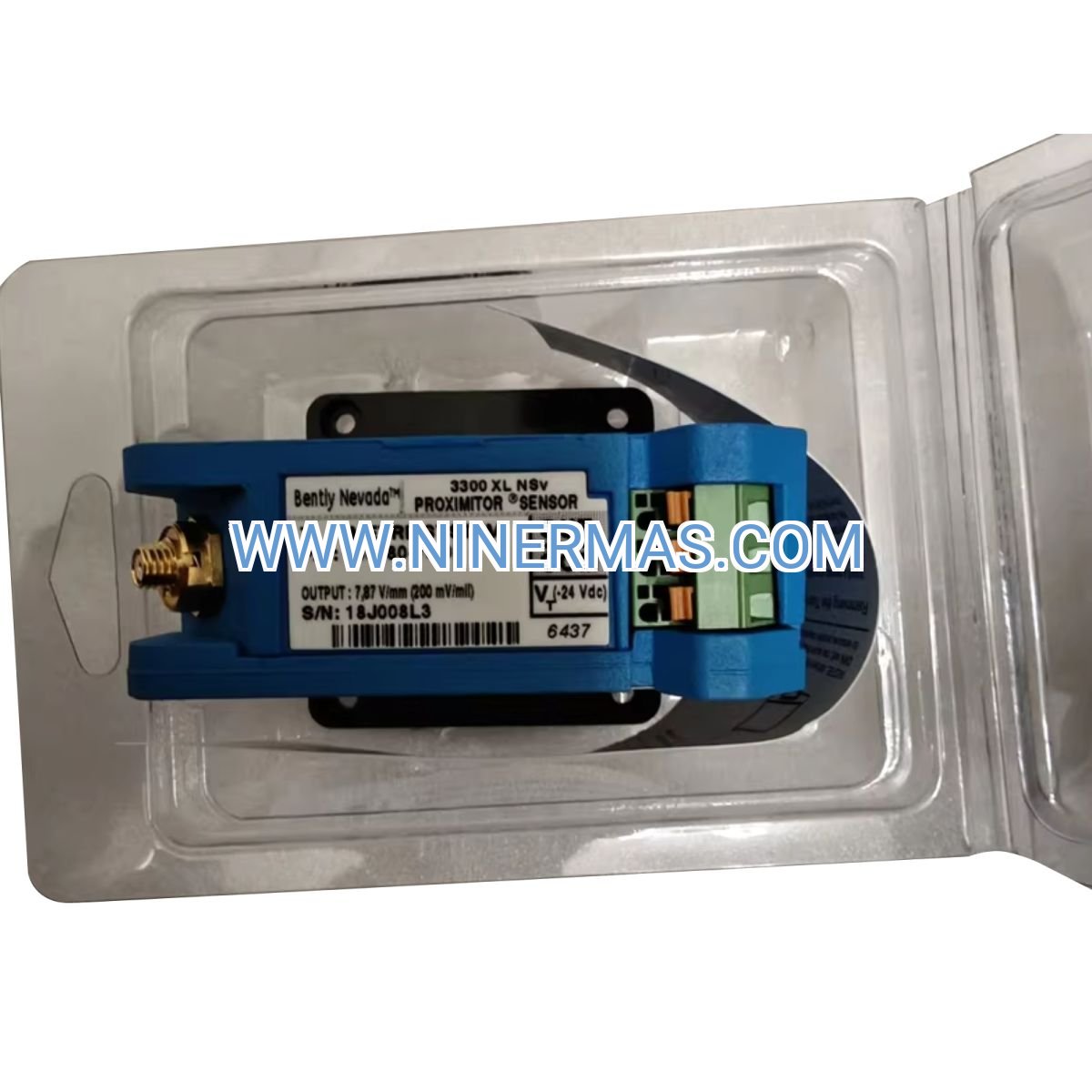

Bently Nevada 330980-70-00 NSv Proximitor Sensor – Industrial-Grade Vibration Monitoring Solution

The Bently Nevada 330980-70-00 NSv Proximitor Sensor is a factory-calibrated, high-precision displacement measurement device engineered for continuous vibration monitoring on critical rotating machinery. Utilizing advanced eddy current technology with a 7-meter integrated cable and panel mount configuration, this sensor delivers real-time shaft displacement data essential for turbomachinery protection and predictive maintenance programs.

Designed for integration into API 670-compliant machinery protection systems, the 330980-70-00 addresses common challenges in industrial environments: unreliable vibration data, false trip events, sensor drift over time, and complex installation requirements. It serves process engineers, maintenance teams, reliability specialists, and OEM integrators who demand accurate, stable measurements for steam turbines, gas compressors, centrifugal pumps, and high-speed generators.

Through standardized design and field-proven reliability, this NSv Proximitor Sensor offers exceptional signal stability, electromagnetic interference resistance, wide temperature tolerance, and seamless compatibility with existing 3300 XL monitoring infrastructure. Contact our application engineers for system configuration guidance, probe selection assistance, and project-specific quotations.

Core Features & Technical Advantages

Factory-Calibrated System Integration
Each 330980-70-00 sensor arrives pre-calibrated as a complete probe-cable-sensor assembly from Baker Hughes facilities, eliminating field calibration requirements and reducing commissioning time by up to 40% compared to field-assembled systems.

API 670 & ISO 20816 Compliance
Fully conforms to API 670 Fifth Edition machinery protection system standards and aligns with ISO 20816 vibration severity criteria, ensuring regulatory compliance for petrochemical, power generation, and oil & gas applications.

Enhanced Signal Integrity
Propretary NSv (Next-generation Sensor velocity) technology provides superior common-mode noise rejection and maintains ±1% linearity across the full measurement range, even in electrically noisy environments with VFDs and high-voltage switchgear.

Extended Cable Length Flexibility
The 7-meter (23-foot) armored cable configuration supports panel mounting up to 7m from the probe installation point, accommodating diverse machinery layouts without requiring extension cables or signal conditioners in most installations.

Robust Environmental Protection
A380 aluminum alloy housing with conformal coating withstands exposure to industrial contaminants, moisture, and temperature cycling from 0°C to +45°C, maintaining measurement accuracy in harsh process environments.

Simplified Maintenance & Diagnostics
Integrated OK/Alert LED indicators and standardized -24 Vdc power supply enable rapid health checks during routine inspections, reducing troubleshooting time and minimizing unplanned downtime.

Typical Application Scenarios

The 330980-70-00 NSv Proximitor Sensor is engineered for applications demanding continuous shaft displacement monitoring, radial vibration measurement, and axial position tracking, particularly in:

Steam & Gas Turbine Protection Systems
Monitors journal bearing clearances and rotor eccentricity on utility-scale turbines operating at 3,000–10,000 RPM, providing early warning of bearing wear, rotor bow, and thermal growth anomalies before catastrophic failure occurs.

Centrifugal Compressor Condition Monitoring
Tracks radial shaft displacement on multi-stage compressors in natural gas processing and air separation plants, detecting surge conditions, impeller imbalance, and seal rub events that compromise process efficiency and equipment integrity.

High-Speed Generator Bearing Surveillance
Measures shaft runout and vibration amplitude on generators in combined-cycle power plants and industrial cogeneration facilities, supporting predictive maintenance strategies that extend bearing life by 25–35% through optimized lubrication and alignment practices.

Critical Pump Reliability Programs
Provides continuous displacement monitoring on boiler feed pumps, pipeline transfer pumps, and reactor circulation pumps in chemical processing, enabling condition-based maintenance that reduces unplanned outages by up to 60%.

Industrial Fan & Blower Vibration Analysis
Supports vibration diagnostics on induced draft fans, forced draft blowers, and process exhaust systems, identifying imbalance, misalignment, and structural resonance issues before they escalate into costly repairs.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, the following specifications define the operational parameters and physical characteristics of the 330980-70-00 sensor:

Selection Considerations
When specifying the 330980-70-00 sensor, evaluate the following application parameters: maximum shaft displacement range (typically 0–2mm), probe-to-target gap requirements (1.0–2.0mm nominal), available panel space for sensor mounting, power supply voltage stability (±5% regulation recommended), and environmental conditions including ambient temperature, humidity, and vibration exposure. For installations requiring cable lengths beyond 7 meters, consult factory engineering for extension cable compatibility and signal integrity validation. If hazardous area certification is required, specify Option 05 for CSA/ATEX/IECEx approvals.

System Integration & Compatibility

Probe System Requirements
The 330980-70-00 sensor operates exclusively with Bently Nevada 3300 XL NSv 8mm proximity probes (part numbers 330980-9x-xx series). It is not compatible with legacy 3300 XL 8mm or 11mm standard probes, 7200 series probes, or third-party eddy current sensors.

Extension Cable Compatibility
For installations requiring cable lengths exceeding 7 meters, use only Bently Nevada 330980-5x-xx NSv extension cables. Maximum total system length (probe + extension + sensor cable) must not exceed 9 meters to maintain calibration accuracy within ±2%.

Barrier Integration
When deploying in Class I Division 1 or Zone 0 hazardous areas, pair with approved intrinsic safety barriers (MTL, Pepperl+Fuchs, or equivalent) and ensure power supply voltage remains within -23 to -26 Vdc range. Consult barrier manufacturer datasheets for entity parameters and maximum cable capacitance limits.

DCS/PLC Interface
The sensor's -8 to -2 Vdc output signal (proportional to gap) connects directly to analog input modules on DCS platforms (Honeywell, Emerson DeltaV, Yokogawa), PLC systems (Allen-Bradley, Siemens), or dedicated vibration monitors (Bently Nevada 3500, GE Orbit 60). Configure input modules for 0–10 Vdc range with negative voltage capability.

Installation, Commissioning & Service Support

Delivery & Lead Time
Standard 330980-70-00 sensors ship from regional distribution centers within 3–5 business days for stock configurations. Custom cable lengths, agency approvals, or special materials require 4–6 weeks manufacturing lead time. Expedited delivery available for critical outages.

Warranty Coverage
All sensors include a comprehensive 18-month manufacturer warranty from shipment date, covering material defects, workmanship issues, and calibration drift beyond ±2%. Warranty excludes damage from improper installation, electrical overstress, or mechanical abuse.

Technical Documentation
Each sensor ships with complete installation instructions, dimensional drawings, wiring diagrams, calibration certificates, and material traceability documentation. CAD models (STEP/IGES), loop diagrams, and integration guides available for download from the manufacturer's technical library.

Field Service & Training
Factory-certified technicians provide on-site installation supervision, commissioning support, and operator training (regional availability varies). Remote technical assistance available 24/7 via phone and email for troubleshooting, configuration guidance, and application engineering consultation.

Frequently Asked Questions (FAQ)

Q: How does the 330980-70-00 NSv Proximitor Sensor integrate with existing 3300 XL monitoring systems?
A: The NSv sensor uses the same -24 Vdc power supply and output signal format as standard 3300 XL sensors, allowing direct replacement in existing racks and panels. However, it requires NSv-specific probes and cannot be mixed with standard 3300 XL 8mm probes on the same system. Verify probe compatibility before ordering.

Q: What is the maximum number of sensors supported per power supply?
A: Each 330980-70-00 sensor draws 12 mA maximum. A typical -24 Vdc, 2A power supply can support up to 160 sensors theoretically, but practical installations limit to 50–80 sensors per supply to maintain voltage regulation and allow for inrush current during power-up.

Q: What energy savings or efficiency improvements can be expected?
A: While the sensor itself does not directly reduce energy consumption, the vibration data it provides enables predictive maintenance strategies that prevent catastrophic failures, reduce unplanned downtime by 40–60%, and extend equipment life by 20–30%, resulting in significant operational cost savings.

Q: What are the environmental installation requirements and protection ratings?
A: The sensor is rated for indoor industrial environments with 0°C to +45°C ambient temperature, up to 95% non-condensing humidity, and moderate vibration exposure (5g maximum). For outdoor or washdown applications, specify IP66/NEMA 4X enclosures. Standard units are not rated for submersion or direct spray.

Q: Does the system support remote monitoring and data acquisition protocols?
A: The sensor provides a standard analog voltage output that integrates with any DCS, SCADA, or vibration monitoring system supporting 0–10 Vdc inputs. For digital protocols (Modbus, OPC-UA, HART), pair with compatible signal conditioners or vibration monitors that offer protocol conversion and remote connectivity.

Q: Can the sensor be recalibrated in the field, or must it be returned to the factory?
A: The 330980-70-00 is factory-calibrated as a sealed system and cannot be field-calibrated. If calibration drift is suspected (typically after 5–7 years of continuous operation), the sensor must be returned to an authorized service center for recalibration and certification. Verification testing using calibrated gap standards is recommended during annual maintenance.

Request Technical Support & Quotation

For detailed application engineering, system configuration assistance, or project-specific pricing, please provide the following information to our technical sales team:

• Project name and application description (equipment type, operating conditions)
• Number of measurement points and sensor quantity required
• Machinery specifications (shaft diameter, operating speed, bearing type)
• Probe mounting constraints (axial/radial, available space, target material)
• Cable routing requirements (distance from probe to panel, conduit/tray)
• Power supply availability (voltage, current capacity, grounding)
• Environmental conditions (temperature range, hazardous area classification)
• Delivery timeline and budget parameters

Our application engineers will provide one-on-one consultation, recommend optimal probe-sensor combinations, validate system compatibility, and deliver comprehensive quotations including sensors, probes, cables, mounting hardware, and commissioning support.
