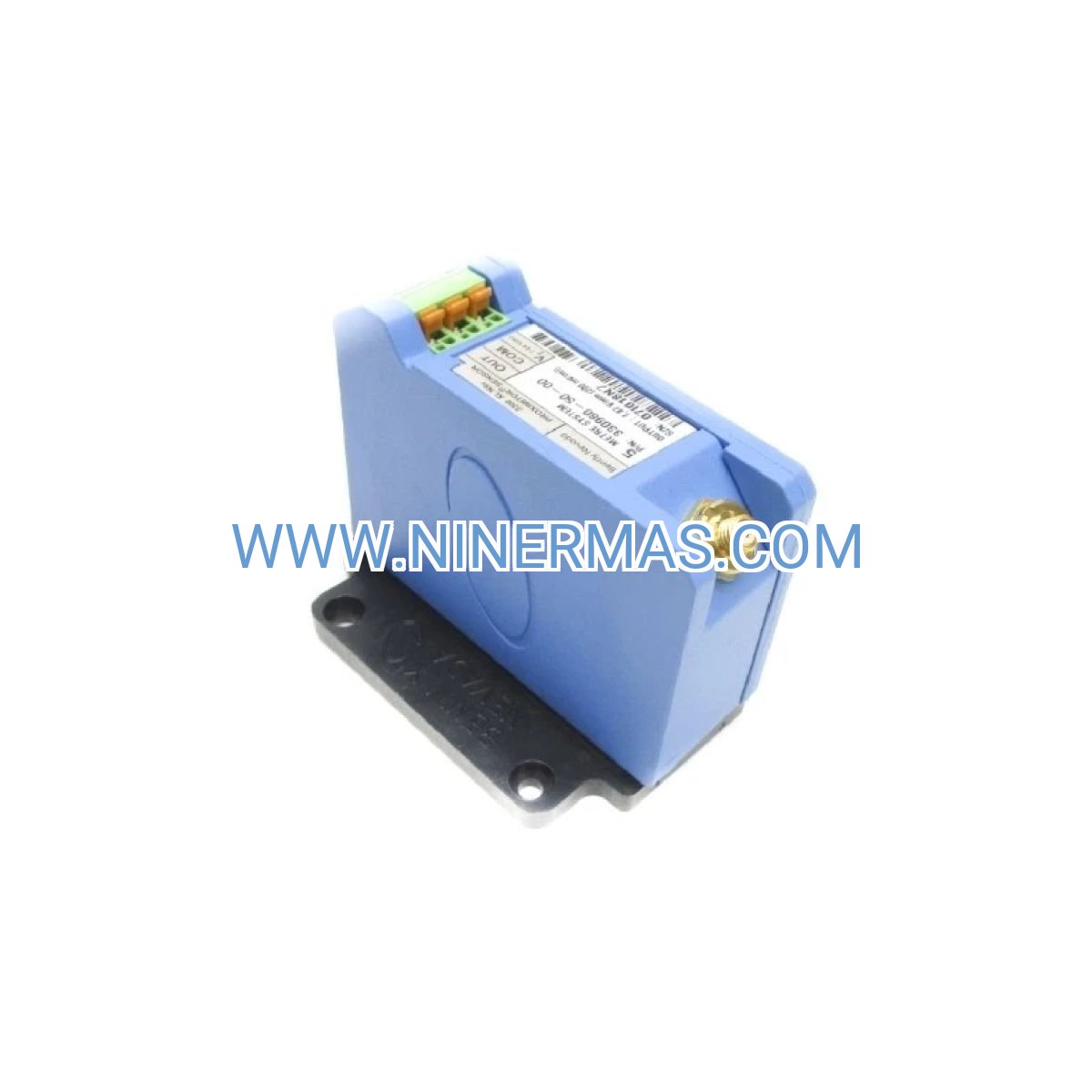

Bently Nevada 330980-50-00 NSv Proximitor Sensor (Industrial-Grade Vibration Monitoring System)

The Bently Nevada 330980-50-00 NSv Proximitor Sensor is a factory-calibrated proximity transducer engineered for continuous vibration and axial position monitoring in critical rotating machinery. Featuring an integrated 5-meter armored cable and next-generation NSv (Next-generation Sensor velocity) technology, this sensor delivers precision measurement for steam turbines, centrifugal compressors, gas turbines, and high-speed industrial equipment across power generation, petrochemical, and heavy manufacturing sectors.

Designed to address common machinery protection challenges—including bearing wear detection, shaft eccentricity monitoring, and thrust position tracking—this sensor eliminates the complexity of traditional three-component proximity systems. Through integrated proximitor electronics and buffered output architecture, it reduces installation time by approximately 60% while maintaining ±1% linearity across the full operating range. Ideal for design engineers, maintenance teams, system integrators, and plant reliability managers seeking API 670-compliant monitoring solutions.

Backed by comprehensive factory testing, NIST-traceable calibration, and multi-agency certifications (CE, CSA, ATEX Zone 2, IECEx), the 330980-50-00 combines proven 3300 XL platform reliability with enhanced noise immunity and extended frequency response. Contact our application engineers for customized selection guidance, system integration support, and volume project quotations.

Core Features & Technical Advantages

Next-Generation NSv Technology
Incorporates advanced signal processing with enhanced electromagnetic interference (EMI) rejection, delivering stable measurements in electrically noisy industrial environments. Compared to legacy proximitors, NSv technology provides 3× better noise immunity and ±0.4% temperature stability across the full -40°C to +85°C operating range, minimizing false alarms and improving measurement confidence.

Factory-Calibrated Integrated Design
Eliminates field calibration requirements through precision factory characterization with NIST-traceable standards. The integrated proximitor housing combines sensor electronics and cable termination in a single rugged package, reducing potential failure points by 40% compared to modular systems while ensuring consistent -7.87 V/mm sensitivity across all units.

Extended Frequency Response & Bandwidth
Captures dynamic events from DC (static position) to 10 kHz with flat frequency response, enabling simultaneous monitoring of low-frequency shaft runout, synchronous vibration, and high-frequency bearing defect signatures. This wide bandwidth supports both machinery protection and advanced diagnostic analysis without requiring multiple sensor types.

Buffered Low-Impedance Output
Drives up to 300 meters of standard coaxial cable (RG-59 or equivalent) without signal degradation, allowing flexible monitor placement in climate-controlled control rooms distant from harsh machinery environments. The 100Ω output impedance ensures compatibility with all Bently Nevada 3300 XL and 3500 series rack monitors without impedance matching networks.

Comprehensive Environmental Protection
Meets IP67 ingress protection with hermetically sealed housing resistant to moisture, dust, oil mist, and chemical exposure typical in refinery and offshore applications. Integrated transient suppression and reverse-polarity protection safeguard against electrical faults, extending sensor service life in demanding installations.

Multi-Agency Safety Certifications
Certified for use in hazardous area classifications including ATEX Zone 2 (gas) and IECEx standards, enabling deployment in explosive atmospheres without additional barriers. API 670 compliance ensures conformance to machinery protection system requirements mandated by turbomachinery OEMs and industry standards.

Typical Industrial Applications

This sensor addresses critical monitoring needs in applications where machinery downtime results in significant production losses, safety risks, or environmental consequences:

Power Generation & Utilities
Monitors steam turbine radial vibration, generator rotor eccentricity, and thrust bearing axial position in coal, gas, nuclear, and combined-cycle power plants. Provides early warning of bearing degradation, rotor bow, and alignment issues before catastrophic failure, supporting condition-based maintenance strategies that reduce forced outages by 30-50%.

Oil, Gas & Petrochemical Processing
Protects centrifugal compressors, pipeline booster pumps, and gas turbine-driven equipment in upstream production, midstream transportation, and downstream refining facilities. Detects surge conditions, impeller rub, seal wear, and coupling misalignment in real-time, preventing secondary damage to gearboxes, motors, and process vessels.

Chemical Manufacturing & Process Industries
Ensures continuous operation of reactor feed pumps, air separation compressors, and critical process fans where unplanned shutdowns disrupt batch processes or create safety hazards. Supports predictive maintenance programs by trending vibration signatures and identifying degradation patterns weeks before failure thresholds.

Heavy Manufacturing & Material Processing
Monitors paper machine roll positions, steel mill motor bearings, cement kiln fan assemblies, and mining conveyor drive systems. Enables dynamic balancing verification, thermal growth tracking, and bearing clearance assessment without machine disassembly, reducing maintenance windows and improving asset utilization.

Technical Specifications & Selection Parameters

To facilitate system design and component selection, key specifications are summarized below. Custom configurations available for specialized applications—consult our engineering team with your specific requirements.

Selection Guidance for System Designers
When specifying the 330980-50-00 for your application, consider these critical factors: target measurement range (radial vibration vs. axial position), probe-to-target gap requirements (recommend -1.3 to -1.5 mm static gap for optimal linearity), ambient temperature extremes, cable routing distance from sensor to monitor, and hazardous area classification. For applications requiring cable lengths beyond 5 meters, pair with genuine Bently Nevada 330130 series extension cables to maintain calibration accuracy and warranty coverage. Our application engineers provide complimentary system architecture reviews and can recommend optimal sensor placement, probe selection, and monitor configuration based on your machinery specifications and protection objectives.

System Integration & Compatibility

The 330980-50-00 integrates seamlessly into comprehensive machinery protection architectures through standardized interfaces and proven interoperability:

Monitor Compatibility
Direct plug-and-play connection to all Bently Nevada 3500/42M Proximitor monitors, 3500/40M Proximitor monitors, and 3300 XL rack-mount systems without firmware updates or configuration changes. The sensor's buffered output matches monitor input impedance specifications, eliminating the need for external signal conditioning or impedance matching networks.

Probe Pairing Requirements
Factory calibration assumes use with standard Bently Nevada 8mm diameter proximity probes (330105 or 330106 series). For specialized applications requiring 5mm or 11mm probes, contact technical support for recalibration services or alternative sensor models. Probe tip-to-target gap must be maintained within -1.0 to -2.0 mm for specified linearity; gaps outside this range may introduce measurement errors exceeding ±5%.

Cable Extension Considerations
When control room distance exceeds the 5-meter integrated cable length, use Bently Nevada 330130 series extension cables rated for proximitor service. Maximum total cable length (integrated + extension) should not exceed 300 meters to prevent signal attenuation and noise pickup. For runs beyond 300 meters, consider relocating monitors closer to machinery or implementing fiber-optic signal transmission systems.

Data Integration & SCADA Connectivity
When paired with 3500 series monitors equipped with communication modules (TDI, TDXnet, or Ethernet), vibration data streams to plant distributed control systems (DCS), supervisory control and data acquisition (SCADA) platforms, and condition monitoring software via Modbus TCP/IP, OPC, or proprietary protocols. This enables centralized alarm management, historical trending, and integration with computerized maintenance management systems (CMMS) for automated work order generation.

Delivery, Service & Quality Assurance

Lead Times & Availability
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom cable lengths, special certifications, or bulk project orders may require 2-4 weeks lead time depending on manufacturing queue and certification authority schedules. Expedited processing available for critical outage support—contact our customer service team with your timeline requirements.

Warranty Coverage
All 330980-50-00 sensors include a comprehensive 12-month manufacturer warranty covering materials, workmanship, and calibration accuracy from date of shipment. Warranty terms include free replacement for manufacturing defects, calibration drift exceeding published specifications, and premature component failure under normal operating conditions. Extended warranty programs (24 or 36 months) available for critical service applications and multi-year capital projects.

Technical Support & Documentation
Each sensor ships with factory calibration certificate (including sensitivity, linearity data, and test conditions), installation quick-start guide, dimensional drawings, and electrical connection diagrams. Comprehensive technical manuals, application notes, and troubleshooting guides available for download from our technical library. Our global support network provides remote diagnostic assistance, on-site commissioning services (subject to geographic availability), and 24/7 emergency technical hotline for critical machinery protection systems.

Quality Testing & Certifications
Every unit undergoes rigorous factory acceptance testing including frequency response verification (DC to 10 kHz sweep), temperature cycling stress screening (-40°C to +85°C, 5 cycles), vibration endurance testing (10g, 10-2000 Hz, 2 hours per axis), and 100% electrical parameter validation against published specifications. Calibration traceability maintained through NIST-certified reference standards with documented uncertainty budgets. Certificate of conformance and material test reports (MTR) available upon request for quality assurance documentation.

Frequently Asked Questions (FAQ)

Q: What differentiates NSv technology from standard 3300 XL proximitors?
A: NSv (Next-generation Sensor velocity) incorporates advanced signal processing algorithms, enhanced EMI filtering, and improved temperature compensation circuits. Compared to legacy 3300 XL sensors, NSv provides 3× better noise rejection in electrically noisy environments, extended frequency response to 10 kHz (vs. 5 kHz for standard models), and tighter temperature stability (±0.4% vs. ±2% over full operating range). NSv sensors also include reverse-polarity protection and transient voltage suppression not present in earlier designs, reducing field installation errors and improving long-term reliability.

Q: Can the 330980-50-00 integrate with my existing 3500/42M Proximitor monitor?
A: Yes, the sensor maintains full backward compatibility with all 3500 series monitors and 3300 XL rack systems. Simply connect the sensor output cable to the monitor input channel using standard BNC or MIL-C-5015 connectors (depending on monitor model). No firmware updates, configuration file changes, or recalibration required. The monitor will automatically recognize the sensor's -7.87 V/mm sensitivity and apply appropriate scaling for vibration or position measurements.

Q: What probe-to-target gap should I maintain during installation?
A: For optimal measurement accuracy and temperature stability, target a static gap of -1.3 to -1.5 mm (approximately -50 to -60 mils) between the probe tip and observed conductive surface. This gap provides adequate margin for thermal expansion during machinery heat-up while keeping the sensor within its linear operating zone during dynamic vibration events. Gaps below -1.0 mm risk probe contact during high-amplitude vibration; gaps exceeding -2.0 mm introduce nonlinearity errors and reduced sensitivity.

Q: Do I need to recalibrate the sensor after adding extension cables?
A: No field recalibration is necessary when using Bently Nevada genuine 330130 series extension cables up to 300 meters total length. The integrated proximitor design compensates for cable capacitance and resistance variations, maintaining factory calibration accuracy within ±1% across the specified cable length range. However, using non-genuine cables or exceeding 300-meter total length may introduce impedance mismatches that degrade calibration—in such cases, contact technical support for validation testing or recalibration services.

Q: How can I verify sensor health without removing it from service?
A: Most 3500 series monitors provide online diagnostic capabilities including DC gap voltage monitoring (should read -8 to -20 VDC for typical -1.0 to -2.5 mm gaps), dynamic signal amplitude verification, and OK/Alert status indicators. Additionally, the sensor's buffered output allows non-intrusive oscilloscope or spectrum analyzer connection via a BNC tee-adapter without disrupting the monitor input signal. This enables waveform analysis, frequency spectrum examination, and signal-to-noise ratio assessment during normal operation. For comprehensive diagnostics, Bently Nevada ADRE software can perform automated sensor validation tests when connected to 3500 rack systems.

Q: What target materials are compatible with proximity sensing?
A: The sensor operates with any electrically conductive, non-ferrous or ferrous target material including carbon steel, stainless steel, Inconel, titanium, and aluminum alloys commonly used in turbomachinery shafts and thrust collars. Target surface finish should be better than 3.2 μm Ra (125 μin) for optimal signal quality; rough surfaces or coatings (thermal spray, chrome plating) may introduce measurement noise. Non-conductive materials (ceramics, composites, plastics) are not compatible with eddy-current proximity sensing—consider alternative technologies such as laser displacement sensors for these applications.

Q: Can this sensor be used in hazardous area installations?
A: Yes, the 330980-50-00 carries ATEX Zone 2 (gas) and IECEx certifications for use in potentially explosive atmospheres when installed per manufacturer guidelines. The sensor is classified as intrinsically safe when powered by approved Bently Nevada monitors with galvanic isolation barriers. For Zone 1 or Division 1 applications requiring higher protection levels, consult our hazardous area specialists for barrier selection, installation practices, and certification documentation to satisfy local authority having jurisdiction (AHJ) requirements.

Request Technical Consultation & Quotation

To receive customized system recommendations, application-specific selection guidance, or project quotations, please provide the following information to our engineering team:

• Project Overview: Facility type, machinery application, protection objectives
• Equipment Details: Machine type (turbine, compressor, pump, etc.), operating speed range (RPM), bearing configuration
• Measurement Requirements: Radial vibration, axial position, or both; number of measurement points per machine
• Environmental Conditions: Ambient temperature range, hazardous area classification (if applicable), exposure to moisture/chemicals
• System Architecture: Existing monitor infrastructure (3500 series, 3300 XL, or new installation), control room distance from machinery
• Quantity & Timeline: Number of sensors required, desired delivery schedule, budget constraints

Our application engineers will respond within 24 business hours with tailored recommendations including sensor model selection, probe specifications, cable routing strategies, monitor configuration, and total system pricing. For urgent outage support or emergency replacements, call our technical hotline for immediate assistance.
