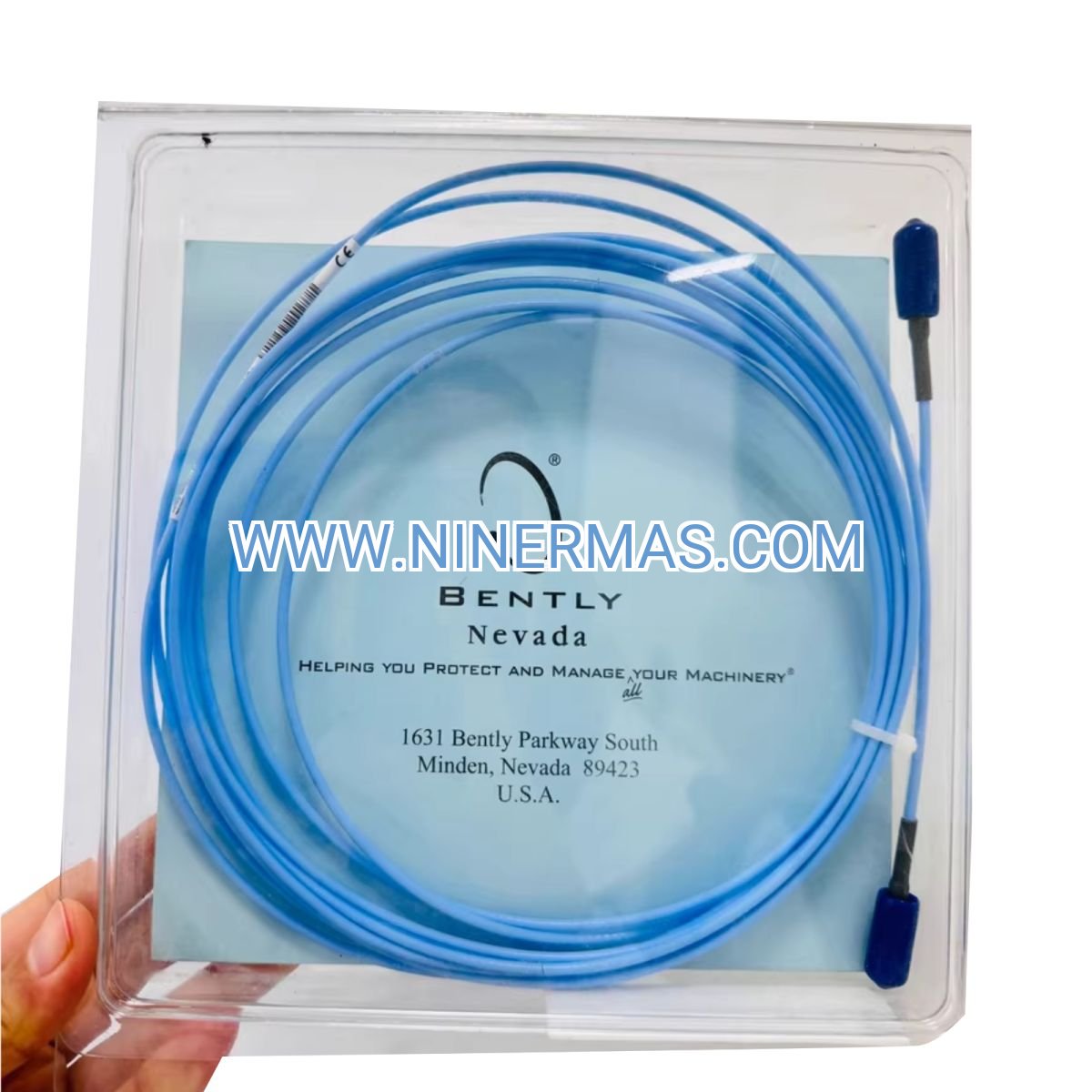

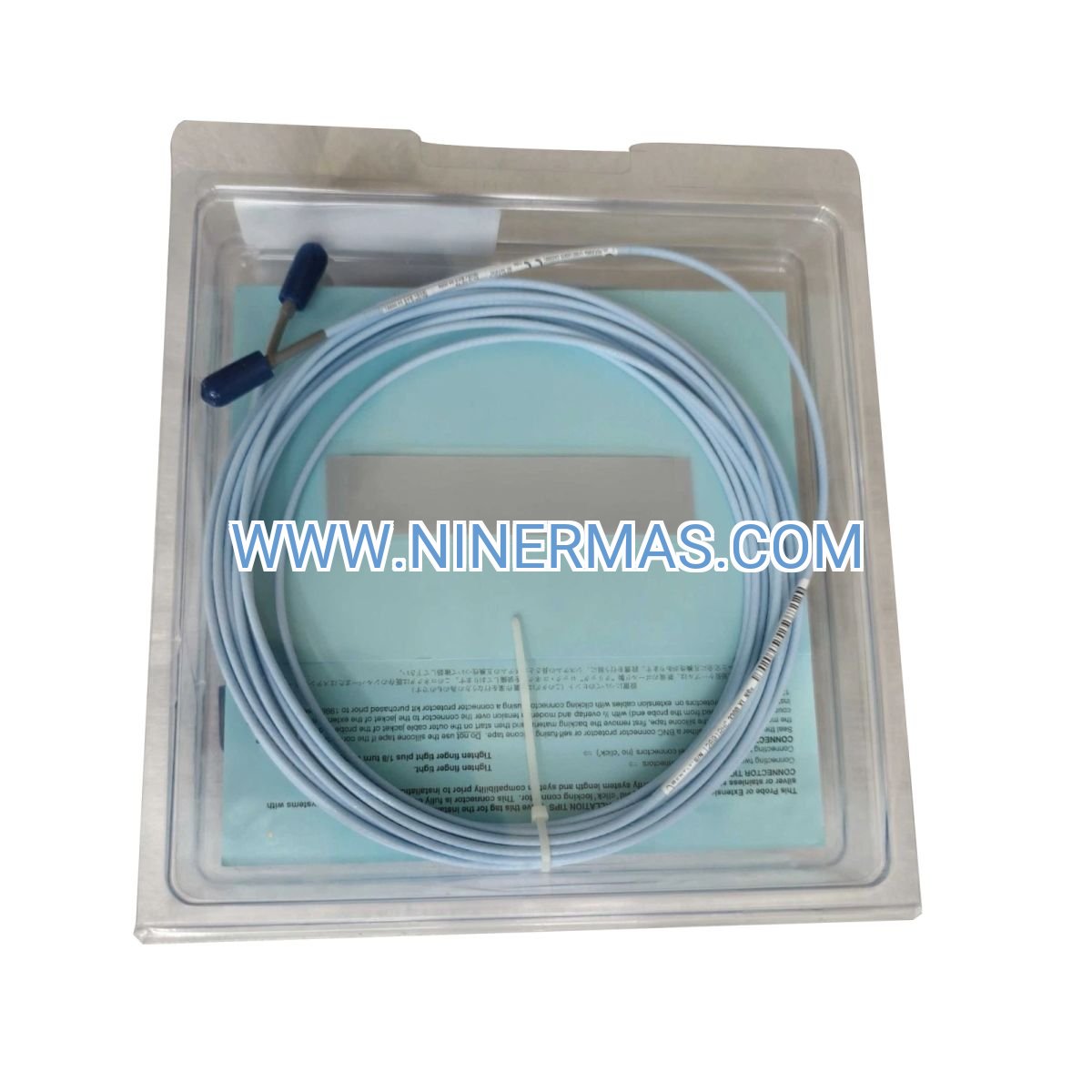

Bently Nevada 330930-065-04-RU NSv Extension Cable (Industrial Vibration Monitoring System Component)

The Bently Nevada 330930-065-04-RU is an industrial-grade NSv extension cable engineered for 3300 XL proximity transducer systems. Through precision coaxial construction and multi-layer EMI shielding, this 6.5-meter cable delivers stable signal transmission between proximity probes and proximitor sensors, enabling accurate vibration amplitude and shaft position measurement in critical rotating machinery applications.

Designed for power generation plants, petrochemical facilities, oil & gas compression stations, and heavy manufacturing environments where continuous condition monitoring prevents catastrophic equipment failure. The cable addresses common challenges including signal degradation over distance, electromagnetic interference in electrically noisy environments, installation flexibility constraints in complex machinery layouts, and compatibility risks with legacy monitoring infrastructure.

Built on standardized NSv connector architecture with field-proven electrical characteristics, the 330930-065-04-RU offers genuine OEM reliability, -40°C to +85°C temperature tolerance, oil and moisture resistance, and seamless integration with existing 3300 XL NSv ecosystems. Ideal for design engineers, maintenance teams, instrumentation contractors, and plant reliability specialists requiring certified components for safety-critical monitoring systems. Contact our application engineers for system compatibility verification and technical specifications.

Core Capabilities & Performance Advantages

Precision Signal Integrity Preservation
Employs matched impedance design and low-capacitance dielectric materials to maintain gap voltage linearity across the full 6.5-meter length. Ensures measurement accuracy within ±1% of system specification, critical for detecting early-stage bearing defects and rotor dynamic anomalies in high-speed turbomachinery.

Industrial-Grade Environmental Protection
Features triple-layer shielding (aluminum-mylar foil + tinned copper braid + PVC outer jacket) providing >90dB EMI/RFI rejection. Withstands continuous exposure to hydraulic fluids, lubricating oils, coolants, and condensation typical in power plant and process industry installations, with IP65-equivalent connector sealing when properly mated.

Flexible Installation Architecture
The 6.5-meter length accommodates routing through cable trays, conduit systems, and around structural obstacles while maintaining minimum bend radius requirements (10× cable diameter). Reduces installation time by 30-40% compared to custom cable fabrication, particularly valuable in retrofit projects with space constraints.

System Compatibility Assurance
Manufactured to Bently Nevada's NSv (Next-generation Sensor with Verification) specifications, ensuring electrical parameter matching with 330980 proximitors, 330905 probes, and 3500 rack monitoring systems. Eliminates calibration drift and false alarm risks associated with third-party cable substitutes.

Extended Service Life Design
Constructed with stranded tinned copper conductors and cross-linked polyethylene insulation rated for 100,000+ flexing cycles. Typical field service life exceeds 15 years in stationary installations, reducing total cost of ownership through minimized replacement frequency and unplanned downtime.

Integrated Diagnostic Support
Compatible with Bently Nevada TK-3 test kits and ADAPT software for pre-installation verification and in-service troubleshooting. Enables technicians to validate cable integrity, measure gap voltage response, and confirm system linearity without disassembling machinery, accelerating commissioning and fault isolation procedures.

Target Application Environments

This extension cable serves as a critical infrastructure component in condition monitoring systems across industries where rotating equipment reliability directly impacts production continuity, safety compliance, and operational economics:

Power Generation & Cogeneration Facilities
Connects proximity probes on steam turbine journal bearings, gas turbine compressor sections, generator exciter shafts, and boiler feed pump thrust bearings. Supports continuous monitoring per API 670 and ISO 20816 standards, enabling predictive maintenance strategies that reduce forced outage rates by 40-60% compared to reactive maintenance approaches.

Upstream & Midstream Oil & Gas Operations
Integrates into vibration monitoring systems for centrifugal compressors (pipeline boosters, gas lift, refrigeration), reciprocating compressors, crude oil transfer pumps, and offshore platform turbomachinery. Operates reliably in Zone 1/Division 1 classified areas when installed per NEC/IEC guidelines, withstanding salt spray, hydrocarbon vapor exposure, and temperature cycling from -30°C Arctic to +50°C desert conditions.

Petrochemical & Refining Process Units
Monitors critical machinery in ethylene crackers, catalytic reformers, fluid catalytic cracking units, and hydrogen compression trains. The cable's chemical resistance and high-temperature rating support installations near furnaces, reactors, and distillation columns where equipment failure triggers process safety incidents and multi-million dollar production losses.

Heavy Manufacturing & Metal Processing
Deployed on rolling mill drive trains, large motor-generator sets, air separation unit compressors, and industrial gas turbines. Enables condition-based maintenance programs that extend bearing life 2-3× through early detection of misalignment, unbalance, and looseness—reducing spare parts inventory costs and emergency repair expenses.

Marine Propulsion & Auxiliary Systems
Supports vibration surveillance on main propulsion turbines, reduction gearboxes, shaft line bearings, and generator sets aboard LNG carriers, naval vessels, and offshore support vessels. Meets DNV, ABS, and Lloyd's Register requirements for machinery monitoring systems, contributing to vessel class certification and insurance compliance.

Technical Specifications & Selection Parameters

To facilitate accurate system design and procurement, the following specifications define the 330930-065-04-RU's electrical, mechanical, and environmental characteristics:

Selection Guidance for System Designers
When specifying the 330930-065-04-RU for new installations or system upgrades, consider these critical factors: Total cable run length (probe cable + extension cable should not exceed 9 meters for optimal system performance per Bently Nevada guidelines), environmental conditions (verify temperature extremes, chemical exposure, and vibration levels at installation location), routing path complexity (account for bend radius requirements and cable tray fill ratios per NEC Article 392), system architecture (confirm NSv technology deployment—this cable is NOT compatible with legacy 3300 XL non-NSv systems), and future expansion needs (standardize on cable lengths to simplify spare parts inventory).

For applications requiring different lengths, Bently Nevada offers the 330930 series in 1m, 3m, 5m, and 9m variants. Consult our application engineering team with your machinery layout drawings, proximitor mounting locations, and probe installation points for optimized cable length recommendations that balance cost, installation labor, and signal integrity.

Advanced Integration Capabilities

Multi-Channel Monitoring System Scalability
Supports deployment in 4-channel, 8-channel, and 16-channel 3500 rack configurations monitoring XY vibration, thrust position, and differential expansion simultaneously. Cable color-coding and labeling provisions facilitate organized installations in densely instrumented turbine pedestals and compressor casings.

Hazardous Area Compliance
When installed per manufacturer guidelines and local electrical codes, the cable assembly maintains intrinsic safety barriers and explosion-proof enclosure integrity required for Class I Division 2 (NEC) and Zone 2 (IEC) classified locations. Consult entity parameters and maximum cable capacitance limits documented in your proximitor's ATEX/IECEx certification.

Predictive Maintenance Platform Integration
Seamlessly interfaces with Bently Nevada System 1 software, OSI-PI historians, and third-party CMMS platforms via 3500 rack Ethernet/Modbus connectivity. Enables automated alarm notification, trend analysis, and machine learning-based anomaly detection that reduces diagnostic time from hours to minutes.

Retrofit Compatibility
Direct replacement for aging 330930 cables in existing 3300 XL NSv installations without system recalibration. Maintains backward compatibility with 330980-5X and 330980-7X proximitor models, protecting capital investment in legacy monitoring infrastructure while improving reliability through new-manufacture components.

Delivery, Quality Assurance & Technical Support

Lead Time & Logistics
Standard stock items ship within 2-3 business days via express courier with anti-static packaging and shock-absorbing materials. Custom cable assemblies with special connector configurations or non-standard lengths require 12-18 business days for factory fabrication and testing. International shipments include full export documentation (commercial invoice, packing list, certificate of origin) and comply with ITAR/EAR regulations for dual-use technology.

Warranty Coverage
Every 330930-065-04-RU cable includes a comprehensive 18-month manufacturer warranty covering defects in materials, workmanship, and electrical performance. Warranty terms align with Bently Nevada's global service policy, providing replacement units or credit for verified manufacturing defects. Extended warranty programs available for critical sparing applications and long-term service agreements.

Installation & Commissioning Support
Purchase includes access to detailed installation manuals (PDF format), wiring diagrams, and connector torque specifications. Our technical support team provides remote guidance for cable routing optimization, connector assembly verification, and system checkout procedures. On-site commissioning assistance available through our network of certified field service engineers (quoted separately based on location and scope).

Quality Documentation
Each cable ships with a serialized Certificate of Conformance (CoC) traceable to factory test records. Documentation package includes: electrical test report (impedance, capacitance, insulation resistance), mechanical inspection certificate, material composition declaration (RoHS/REACH compliance), and country of origin statement. Additional certifications (3.1 material certificates, calibration traceability) available upon request for nuclear, aerospace, and pharmaceutical applications.

Technical Resources
Comprehensive product documentation available through our online portal: installation quick-start guide, connector mating/de-mating procedures, troubleshooting flowcharts, and compatibility matrices. Video tutorials demonstrate proper cable handling, bend radius management, and connector inspection techniques. Quarterly webinars cover best practices for proximity system maintenance and upgrade planning.

Frequently Asked Questions

Q: How do I determine if my existing 3300 XL system uses NSv technology or legacy architecture?
A: Check your proximitor model number—NSv systems use 330980-5X or 330980-7X proximitors with "NSv" designation on the nameplate. Legacy systems use 330180 or 330780 proximitors. If uncertain, provide your system serial number and we'll verify compatibility. Mixing NSv and non-NSv components causes measurement errors and system faults.

Q: What is the maximum total cable length (probe cable + extension cable) for maintaining system accuracy?
A: Bently Nevada recommends a combined length not exceeding 9 meters (29.5 feet) for 3300 XL NSv systems to maintain ±1% linearity specification. Longer runs increase capacitance loading, shifting the gap voltage curve and introducing measurement error. For installations requiring >9m total length, consider relocating the proximitor closer to the probe or using a 330980 proximitor with extended range capability.

Q: Can this cable be used outdoors or in direct sunlight exposure?
A: The standard PVC jacket provides limited UV resistance suitable for indoor industrial environments and enclosed outdoor cable trays. For continuous direct sunlight exposure (>4 hours/day), specify UV-stabilized jacket variants or install the cable in UV-opaque conduit. Prolonged UV exposure degrades jacket integrity over 3-5 years, potentially compromising moisture seal and shielding effectiveness.

Q: How do I verify cable integrity after installation but before energizing the monitoring system?
A: Use a Bently Nevada TK-3 test kit or equivalent proximitor simulator to inject a known gap voltage and measure system response. Proper readings: -2.0 VDC to -20.0 VDC linear range with <2% deviation from calibration curve. Additionally, perform insulation resistance testing (500 VDC megger) between center conductor and shield—readings should exceed 100 MΩ. Document baseline values for future troubleshooting reference.

Q: Are there any special storage requirements for spare cables?
A: Store cables in original anti-static packaging at 15-30°C (59-86°F) and <70% relative humidity. Avoid coiling tighter than 300mm diameter to prevent insulation stress. Keep away from ozone-generating equipment (welders, motors) and direct heat sources. Properly stored cables maintain full specifications for 10+ years. Inspect connectors for corrosion and test electrical parameters before installing cables stored >3 years.

Q: What troubleshooting steps should I take if I suspect cable failure in an operating system?
A: First, verify the issue isn't probe or proximitor related by swapping to a known-good channel (if available). Inspect connectors for moisture intrusion, corrosion, or loose pins. Measure cable capacitance and compare to specification (≤650 pF for 6.5m cable). Check for physical damage—pinch points, excessive bending, or jacket cuts. If cable tests fail, replace immediately as intermittent failures cause false alarms and mask real machinery problems.

Request Technical Consultation & Quotation

To ensure optimal system performance and compatibility, our application engineering team provides complimentary pre-sales consultation for 3300 XL proximity monitoring projects. Please provide the following information for personalized recommendations:

• Project Overview: Facility type, machinery being monitored (turbine, compressor, pump, etc.), and monitoring objectives
• Existing System Details: Current proximitor model numbers, probe types (8mm/5mm), and installed cable lengths
• Installation Environment: Temperature range, chemical exposure, classified area requirements (if applicable)
• Quantity Requirements: Number of channels, spare cable needs, and delivery timeline
• Technical Constraints: Cable routing distance, bend radius limitations, and mounting accessibility

Our engineers will respond within 24 business hours with cable length recommendations, compatibility verification, installation best practices, and project-specific pricing. For urgent requirements or complex multi-channel systems, schedule a technical consultation call to discuss your application in detail.
