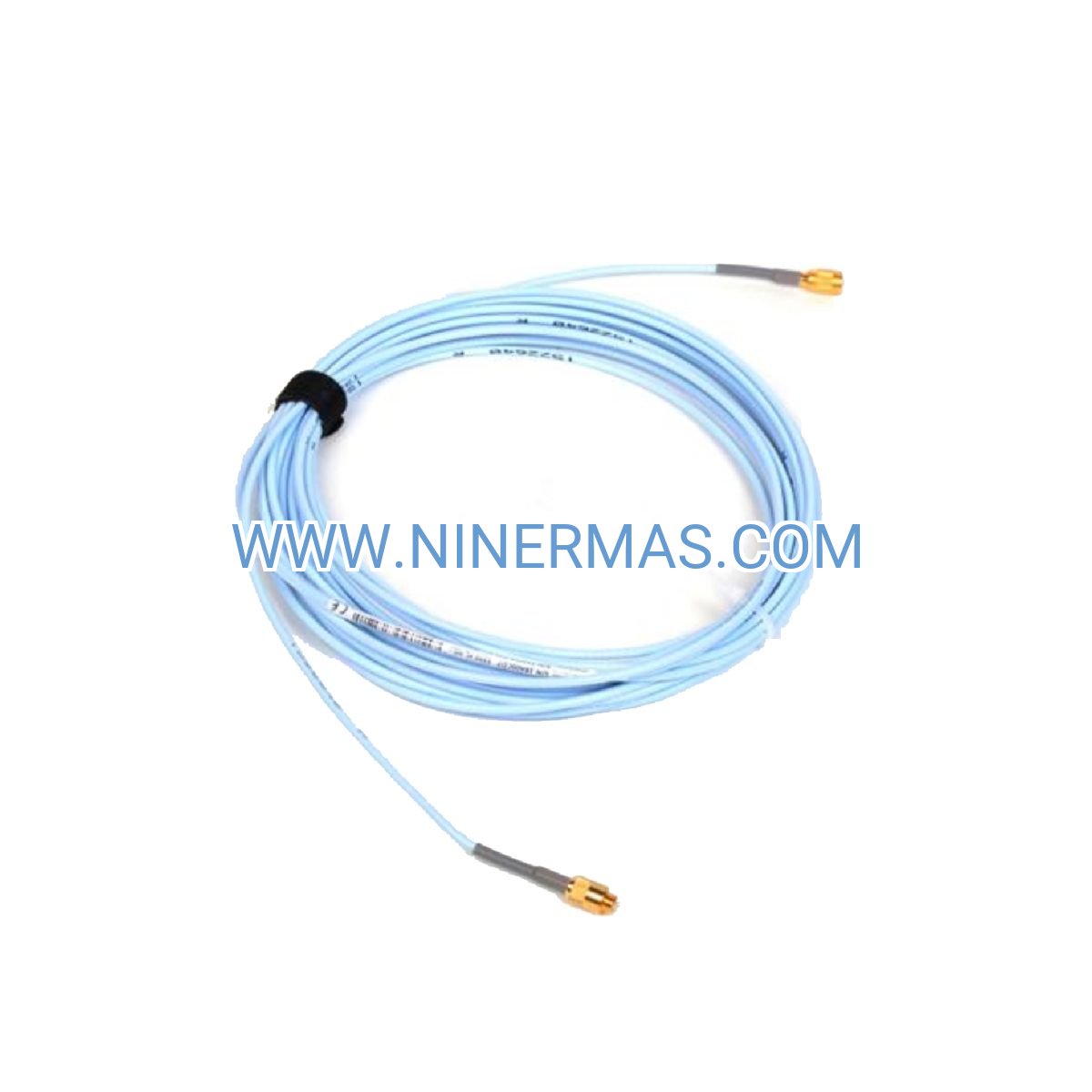

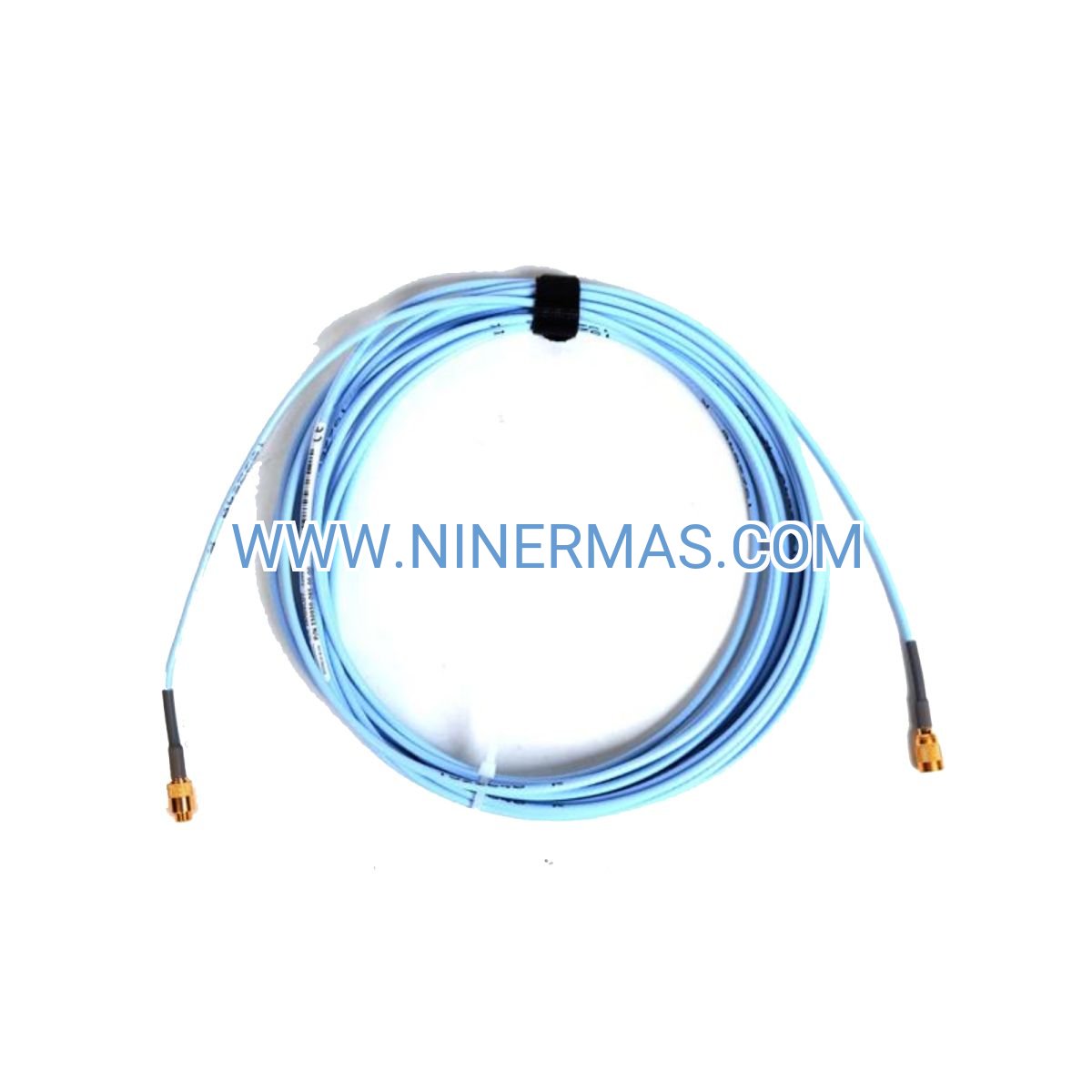

330930-065-04-BR Industrial-Grade Armored Extension Cable

The 330930-065-04-BR represents a critical connectivity solution for precision vibration monitoring in extreme industrial environments. Engineered with 6.5 meters of armored construction and FEP insulation, this NSv extension cable delivers uncompromising signal fidelity for turbomachinery health monitoring systems where equipment failure is not an option.

Designed for integration with Bently Nevada 3300 XL proximity sensor networks, this cable solves the persistent challenge of maintaining accurate vibration data transmission in electrically hostile environments—from petrochemical processing units to power generation turbines operating under continuous thermal and mechanical stress.

With double-braided electromagnetic shielding and chemical-resistant jacketing, the 330930-065-04-BR ensures your critical asset monitoring infrastructure remains operational through temperature extremes (-40°C to +125°C), corrosive atmospheres, and high-interference zones where standard cables fail.

Core Features & Performance Advantages

✓ Dual-Layer Braided Armor Protection
Provides mechanical resilience against abrasion, crushing forces, and cable tray damage while delivering 95%+ EMI/RFI rejection for clean signal transmission in VFD-heavy environments.

✓ FEP High-Performance Jacket
Fluorinated polymer construction resists acids, bases, hydrocarbons, and solvents—extending operational life 3-5x beyond PVC alternatives in chemical processing applications.

✓ Precision 50-Ohm Impedance Matching
Eliminates signal reflections and maintains waveform integrity across the full 6.5m length, ensuring accurate displacement measurements critical for bearing fault detection.

→ Extended Temperature Capability
Operates reliably from cryogenic to high-heat zones without degradation, supporting installations near furnaces, steam lines, and refrigeration systems.

→ Plug-and-Play 3300 Series Compatibility
Direct replacement for legacy cables with zero reconfiguration—minimizes downtime during maintenance windows and emergency repairs.

→ Flexible Routing Design
Balances armor rigidity with bend tolerance (10:1 ratio) for complex cable paths through congested machinery spaces and vertical risers.

Industrial Application Scenarios

1. Steam Turbine Vibration Monitoring
Challenge: High-temperature steam leaks and electromagnetic interference from generator fields corrupt vibration signals.
Solution: FEP jacket withstands 125°C ambient temperatures while braided shield blocks EMI, ensuring reliable thrust bearing position monitoring for predictive maintenance programs.

2. Offshore Gas Compression Platforms
Challenge: Salt spray, hydrocarbon exposure, and mechanical vibration degrade standard cables within months.
Solution: Chemical-resistant construction and armor protection deliver 5+ year service life in marine environments, reducing replacement costs and platform downtime.

3. Refinery Catalytic Cracker Units
Challenge: Corrosive process gases and extreme thermal cycling cause insulation breakdown and false alarms.
Solution: FEP material maintains dielectric properties through temperature swings, providing stable proximity probe signals for critical rotating equipment protection.

4. Pulp & Paper Mill Dryer Sections
Challenge: Moisture, chemical additives, and mechanical stress from moving machinery damage cable integrity.
Solution: Sealed armor construction prevents moisture ingress while flexible design accommodates dynamic equipment movement without conductor fatigue.

5. Power Plant Boiler Feed Pumps
Challenge: Limited access space and high-vibration environments require durable, compact cabling solutions.
Solution: 6.5m length provides optimal reach for typical pump-to-monitor distances while armor withstands installation through tight conduit runs.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose armored (-BR) versions for installations with mechanical hazards, cable tray routing, or outdoor exposure
• Verify 6.5m length meets your probe-to-monitor distance requirements (consider 10-15% slack for service loops)
• Confirm FEP jacket compatibility with specific chemicals in your process environment
• Match connector types to existing 3300 series proximitor and monitor configurations
• For lengths beyond 6.5m, consult signal attenuation specifications to maintain measurement accuracy

Extended Functionality & Integration

Condition Monitoring System Integration: Seamlessly interfaces with Bently Nevada System 1 software platforms, enabling real-time vibration trending, alarm management, and predictive analytics for rotating machinery fleets.

Retrofit Compatibility: Direct drop-in replacement for aging 3300 series cables without system recalibration—ideal for phased infrastructure upgrades and emergency spares inventory.

Multi-Channel Installations: Supports parallel deployment across multiple measurement points (radial, axial, thrust) for comprehensive machinery health monitoring with consistent signal quality.

Hazardous Area Approvals: Suitable for use in classified locations when installed per NEC/IEC guidelines with appropriate intrinsically safe barriers and grounding practices.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping available for critical outage support.

Custom Configurations: 10-15 business days for non-standard lengths or specialized connector assemblies (contact engineering for feasibility).

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship under normal operating conditions.

Technical Support: Lifetime access to application engineering for installation guidance, troubleshooting, and system optimization recommendations.

Documentation Package: Includes dimensional drawings, electrical specifications, installation instructions, and material certifications for quality assurance compliance.

Frequently Asked Questions

Q: How does the armored construction affect cable flexibility during installation?
A: The braided armor maintains sufficient flexibility for typical industrial routing while providing crush resistance up to 500 lbf. Observe the 10:1 bend radius guideline to prevent armor kinking and conductor damage during pulls through conduit or cable tray.

Q: Can this cable withstand direct burial or submersion applications?
A: While the FEP jacket offers excellent moisture resistance, the 330930-065-04-BR is not rated for continuous submersion. For wet environments, ensure proper connector sealing and consider conduit protection. Contact engineering for underwater monitoring applications.

Q: What signal degradation should I expect over the 6.5m cable length?
A: At 50-ohm impedance matching, signal attenuation is typically <0.5 dB across the vibration monitoring frequency range (0-10 kHz). This negligible loss maintains measurement accuracy within ±1% for standard proximity probe applications.

Q: Is the -BR version compatible with non-armored cable terminations in existing systems?
A: Yes, the -BR designation affects only the cable body construction. Connector interfaces remain identical to standard 330930 series cables, allowing mixed installations without adapter requirements.

Q: How do I verify proper grounding for electromagnetic shielding effectiveness?
A: The braided shield should be grounded at the monitor end only (single-point ground) to prevent ground loops. Verify <1Ω resistance between shield and chassis ground using a low-resistance ohmmeter during commissioning.

Q: What maintenance intervals are recommended for cable inspection?
A: Perform visual inspections during annual turbine outages, checking for jacket damage, armor fraying, or connector corrosion. Electrical testing (insulation resistance, capacitance) should be conducted every 3-5 years or after exposure to abnormal conditions.
