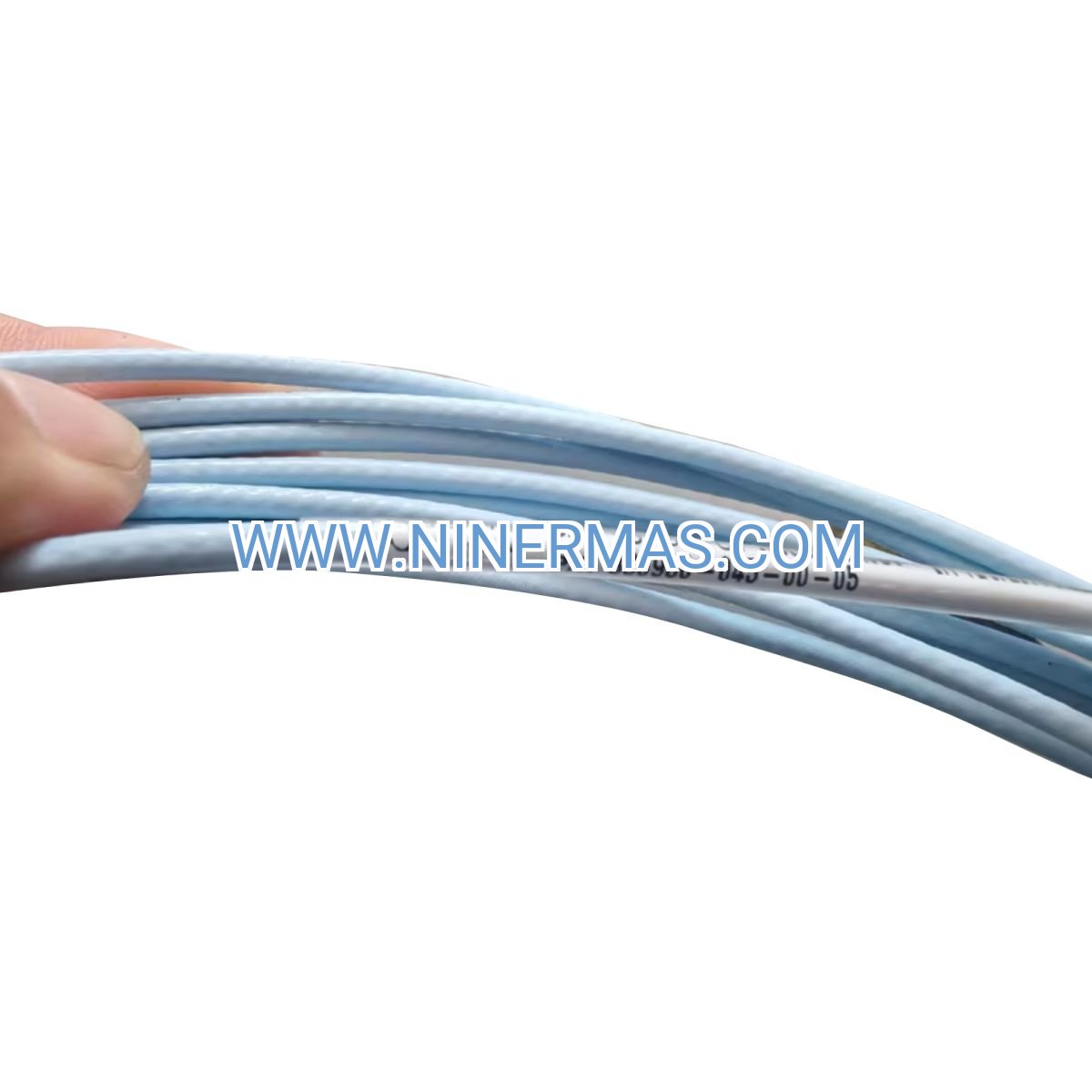

Bently Nevada 330930-045-00-05 Extension Cable (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330930-045-00-05 is a precision-engineered 4.5-meter extension cable designed for 3300 XL NSv vibration monitoring systems. Through advanced shielded construction and factory-terminated connectors, it delivers reliable signal transmission between proximity probes and Proximitor sensors, ensuring accurate machinery health monitoring in demanding industrial environments.

Ideal for turbomachinery installations, rotating equipment monitoring, and multi-point sensor networks across power generation, oil & gas, petrochemical, and heavy manufacturing facilities. This cable solves distance limitations, signal integrity challenges, and installation complexity while maintaining compliance with Bently Nevada OEM specifications.

Engineered with industrial-grade materials and electromagnetic shielding, the 330930-045-00-05 provides stable performance, simplified installation, and long-term durability. Suitable for design engineers, maintenance teams, system integrators, and plant operators requiring certified components for critical machinery protection systems. Contact our technical team for application-specific guidance and quotation.

Core Features & Advantages

OEM-Certified Compatibility
Manufactured to Bently Nevada specifications, ensuring seamless integration with 3300 XL NSv Proximitor sensors and proximity probe systems. Eliminates compatibility risks and maintains warranty compliance for complete monitoring installations.

Superior Signal Integrity
Multi-layer shielding design with low-capacitance conductors minimizes electromagnetic interference (EMI) and radio frequency interference (RFI). Preserves millivolt-level signals from eddy current probes, delivering accurate vibration and position measurements critical for predictive maintenance programs.

Optimized 4.5-Meter Length
Provides flexible routing options for machinery installations where standard probe cables cannot reach sensor mounting locations. Reduces need for custom cable fabrication while maintaining signal quality within system specifications.

Rugged Industrial Construction
Chemical-resistant polymer insulation withstands exposure to oils, coolants, and industrial solvents. Flexible yet mechanically robust design tolerates vibration, bending stress, and temperature extremes from -40°C to +85°C (-40°F to +185°F).

Pre-Terminated Connectors
Factory-installed connectors with positive locking mechanisms eliminate field wiring errors and reduce installation time by up to 60%. Hand-tighten design requires no special tools, simplifying commissioning and replacement procedures.

Maintenance-Friendly Design
Standardized component simplifies spare parts inventory management and accelerates emergency replacements. Color-coded or labeled connectors (depending on variant) prevent mis-wiring during multi-channel system installations.

Typical Application Scenarios

This extension cable addresses critical connectivity requirements in vibration monitoring deployments, particularly where:

Turbomachinery Installations
Connects proximity probes on steam turbines, gas turbines, compressors, and expanders to remotely mounted Proximitor sensor racks. Accommodates machinery layouts where sensor electronics must be positioned away from high-temperature or high-vibration zones for reliability and accessibility.

Rotating Equipment Monitoring
Enables multi-point vibration and shaft position monitoring on motors, pumps, fans, blowers, and gearboxes in power plants, refineries, chemical processing facilities, and pulp & paper mills. Supports radial vibration, axial position, and differential expansion measurements on critical assets.

Retrofit & Upgrade Projects
Facilitates migration from legacy 3300 systems to 3300 XL NSv architecture when existing probe locations require extended cable runs. Maintains investment in installed proximity probes while upgrading to modern sensor electronics with enhanced diagnostics and communication capabilities.

Distributed Sensor Networks
Supports machinery train monitoring across multiple bearing housings, thrust positions, and coupling locations. Enables centralized sensor mounting in junction boxes or DIN-rail enclosures while maintaining optimal probe placement on machinery.

Harsh Environment Deployments
Provides reliable connectivity in offshore platforms, mining operations, steel mills, and cement plants where cables face exposure to moisture, dust, chemicals, and mechanical abuse. Shielding and insulation materials maintain performance in Class I Division 2 and similar industrial environments.

Technical Parameters & Selection Guide

To ensure optimal system performance, the 330930-045-00-05 extension cable is designed with the following specifications:

Selection Considerations
When specifying extension cables for your vibration monitoring system, consider: total cable run distance (probe cable + extension cable should not exceed system maximum), installation routing path and bend radius requirements, environmental conditions (temperature, chemical exposure, mechanical stress), and connector orientation constraints at sensor mounting locations. For applications requiring cable lengths other than 4.5m, Bently Nevada offers variants from 1.5m to 9m in standard increments. Our application engineers can assist with cable length optimization and system configuration—provide machinery layout drawings, probe locations, and sensor rack positions for customized recommendations.

Extended Capabilities

System Integration Support
Compatible with Bently Nevada 3500 monitoring systems, ADAPT software, and System 1 condition monitoring platforms when used with appropriate Proximitor sensors. Supports integration into DCS, SCADA, and plant-wide asset management systems via 4-20mA outputs or digital communication protocols.

Multi-Channel Installations
Can be deployed in arrays for simultaneous monitoring of X-Y radial vibration pairs, axial position, and differential expansion measurements. Consistent electrical characteristics across cables ensure balanced channel performance in multi-probe configurations.

Diagnostic Capabilities
When used with 3300 XL NSv sensors featuring OK/Alert status LEDs, the cable's low-loss design preserves diagnostic signal integrity, enabling real-time cable and probe health monitoring through sensor electronics.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard model 330930-045-00-05 typically ships from stock within 3-5 business days. Custom cable assemblies or bulk orders may require 2-3 weeks depending on configuration and quantity. Expedited shipping options available for critical outage support.

Warranty Coverage
All cables include a 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Warranty covers cable integrity, connector functionality, and electrical performance per published specifications.

Technical Support
Our engineering team provides pre-sale application consulting, installation guidance, and post-installation troubleshooting assistance. Remote support available via phone and email; on-site commissioning support can be arranged for large-scale projects or complex system integrations (subject to location and scope).

Documentation Package
Each cable ships with product datasheet, installation instructions, and electrical specifications. Complete system documentation including wiring diagrams, connector pinouts, and integration guidelines available upon request for system integrators and OEM partners.

Frequently Asked Questions (FAQ)

Q: How does the 330930-045-00-05 extension cable connect to proximity probes and Proximitor sensors?
A: The cable features factory-terminated connectors on both ends—one end connects to the proximity probe's integral cable (typically via a probe extension cable connector), while the other end plugs directly into the 3300 XL NSv Proximitor sensor input. Connectors use bayonet-lock or threaded coupling (depending on variant) for secure, vibration-resistant connections. Verify connector types match your specific probe and sensor models before ordering.

Q: What is the maximum number of extension cables that can be used in series for a single measurement channel?
A: Bently Nevada recommends using a single extension cable of appropriate length rather than daisy-chaining multiple cables. Total cable length (probe integral cable + extension cable) should not exceed system specifications—typically 9 meters (30 feet) for 3300 XL NSv systems to maintain signal quality. Exceeding maximum cable length can cause measurement errors, reduced sensitivity, or system calibration issues. Consult factory documentation or contact technical support for specific system limits.

Q: Can this cable be used with older 3300 (non-NSv) Proximitor sensors or other vibration monitoring systems?
A: No, the 330930-045-00-05 is specifically engineered for 3300 XL NSv systems and is not backward-compatible with legacy 3300 or 3300 XL (non-NSv) sensors due to connector and electrical differences. For older systems, use appropriate 3300/03 or 3300/05 series extension cables. Mixing incompatible components can result in measurement errors or system damage. If upgrading from legacy systems, consult our migration guides or contact engineering for component compatibility verification.

Q: What environmental protection does the cable provide, and can it be used in hazardous area installations?
A: The cable features industrial-grade insulation resistant to oils, coolants, and common industrial chemicals, with an operating temperature range of -40°C to +85°C. While suitable for harsh industrial environments, the cable itself does not carry intrinsic safety (IS) or explosion-proof certifications—hazardous area compliance depends on the complete system design including sensors, barriers, and installation methods. For Class I Division 1/2 or ATEX/IECEx installations, consult Bently Nevada hazardous area installation guidelines and use appropriate barriers or IS interfaces. Our team can provide application-specific guidance for hazardous location deployments.

Q: Does the cable require special installation tools, and are there any installation precautions?
A: No special tools required—connectors feature hand-tighten coupling with positive locking mechanisms. Key installation precautions include: observe minimum bend radius (typically 10x cable diameter for dynamic routing, 5x for static installations) to prevent conductor damage; avoid routing near high-voltage power cables or variable frequency drives (VFDs) to minimize EMI pickup; secure cable at intervals to prevent excessive movement or strain on connectors; protect cable from sharp edges, pinch points, and mechanical abuse; verify connector seating and locking engagement after installation. For outdoor or wet locations, use appropriate cable glands and sealing methods at enclosure entries.

Request Technical Consultation

For detailed application engineering, system configuration assistance, or quotation requests, please provide the following information to our technical sales team:

• Project name and application description (machinery type, monitoring objectives)
• Proximity probe model numbers and integral cable lengths currently installed or specified
• Proximitor sensor model numbers (e.g., 330180 series) and mounting locations
• Required cable routing distance and environmental conditions (temperature, chemical exposure, mechanical stress)
• Quantity required and delivery timeline
• Existing system configuration (if retrofit/upgrade project)

Our application engineers will provide cable length recommendations, connector compatibility verification, and system integration guidance to ensure optimal performance and compliance with Bently Nevada specifications.
