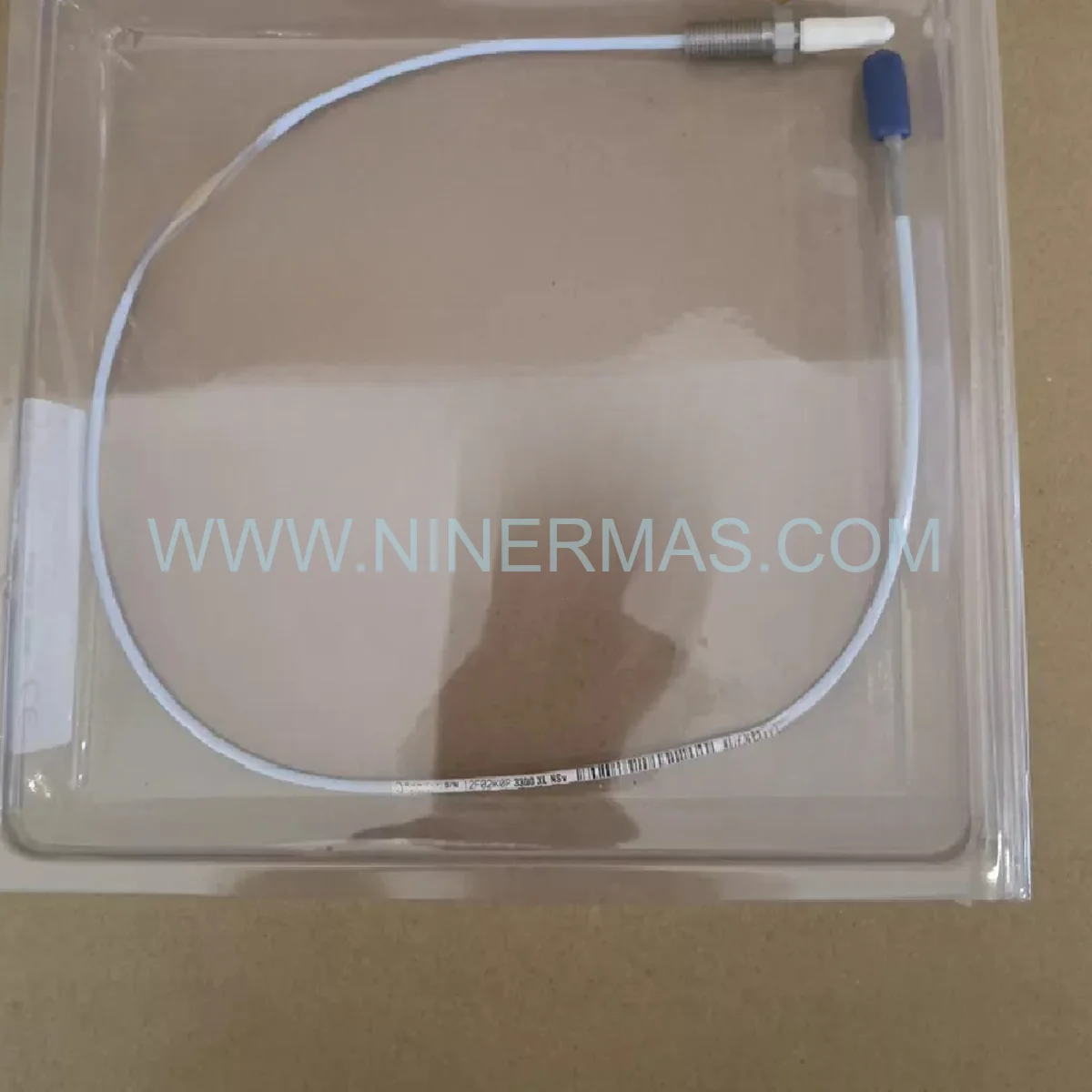

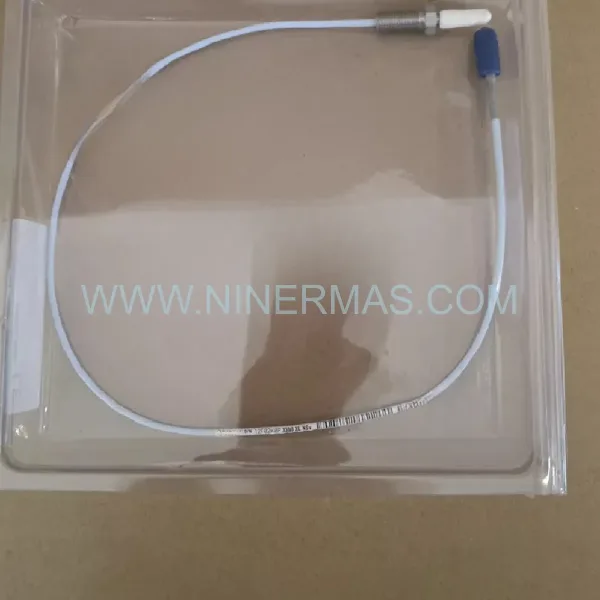

8mm Industrial Proximity Sensor (Model 330101-00-08-10-02-00)

The 330101-00-08-10-02-00 represents a precision-engineered 8mm proximity sensor designed specifically for continuous vibration and displacement monitoring in mission-critical rotating equipment. Manufactured to Bently Nevada's exacting 3300 XL standards, this sensor provides real-time shaft position data essential for predictive maintenance programs and machinery protection systems across power generation, oil & gas, and heavy industrial sectors.

Built for operators managing high-value turbomachinery assets, this sensor addresses the fundamental challenge of detecting mechanical degradation before catastrophic failure occurs. By delivering micron-level accuracy in harsh process environments, it enables condition-based maintenance strategies that reduce unplanned downtime by up to 70% while extending equipment service life.

Key differentiators include factory-matched calibration curves, extended temperature tolerance from -40°C to +125°C, and a robust stainless steel construction that maintains measurement integrity in corrosive atmospheres, high-vibration installations, and extreme thermal cycling conditions.

Core Capabilities & Technical Advantages

→ Precision Measurement Architecture
Delivers 2.0mm linear sensing range with ±1% full-scale accuracy, enabling detection of bearing wear, rotor eccentricity, and thermal growth with resolution down to 0.5 microns. This sensitivity level supports API 670 compliance for critical machinery monitoring.

→ Wide-Bandwidth Signal Capture
DC to 10kHz frequency response (-3dB point) captures both slow-roll baseline data and high-frequency transient events such as blade pass frequencies, rub impacts, and surge phenomena that standard sensors miss.

→ Environmental Resilience
Stainless steel housing with hermetically sealed construction withstands continuous exposure to steam, process gases, hydraulic fluids, and chemical vapors. IP67-rated protection ensures reliable operation in washdown environments and outdoor installations.

✓ Universal System Integration
Standard 3/8-24 UNF threading provides drop-in compatibility with existing probe mounting hardware across all major turbomachinery OEMs. Integral armored cable eliminates field termination errors and reduces installation time by 40%.

✓ Factory Calibration Assurance
Each unit ships with NIST-traceable calibration data specific to the probe-cable assembly, eliminating field calibration requirements and ensuring measurement accuracy from day one of commissioning.

✓ Long-Term Stability
Proven drift characteristics of <0.5% per year maintain calibration integrity over 10+ year service intervals, reducing lifecycle costs and minimizing recalibration downtime in continuous process operations.

Industrial Application Scenarios

Steam Turbine Generator Sets
Monitors journal bearing clearances, thrust position, and differential expansion in utility-scale power plants. Detects thermal bowing during startup sequences and provides early warning of bearing degradation before oil whirl or instability develops. Typical installations include HP/IP/LP turbine sections and generator drive ends.

Centrifugal Compressor Trains
Tracks rotor axial position and radial vibration in multi-stage compressors handling natural gas, air, and process gases. Identifies surge precursors, impeller rubs, and seal degradation in real-time, preventing catastrophic failures that can cost $2M+ in repairs and lost production.

Refinery Process Pumps
Measures shaft displacement in high-energy pumps transferring crude oil, hydrocarbons, and corrosive fluids. Detects cavitation-induced vibration, coupling misalignment, and impeller imbalance before mechanical seal failure or bearing seizure occurs.

Gas Turbine Packages
Provides continuous monitoring of rotor position in aero-derivative and industrial gas turbines driving compressors or generators. Critical for detecting blade tip rubs, bearing wear, and rotor bow conditions that compromise efficiency and reliability.

Paper Machine Dryer Sections
Monitors roll eccentricity and bearing condition in high-speed dryer drums operating at 1,200+ FPM. Early detection of bearing wear prevents web breaks and unplanned shutdowns that cost $50K+ per hour in lost production.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose this 8mm probe for standard API 670 installations where shaft diameters exceed 100mm and operating speeds range from 1,000 to 20,000 RPM. For smaller shafts or confined spaces, consider 5mm variants. Verify target material composition—ferrous metals (carbon steel, stainless steel, Inconel) provide optimal performance; aluminum and titanium targets require application review.

Advanced Integration Features

3300 XL System Compatibility: Designed for seamless pairing with Bently Nevada 3300 XL Proximitor sensors that provide -24 VDC excitation and signal conditioning. The probe-Proximitor combination delivers industry-standard -2 to -18 VDC output proportional to gap distance, compatible with all major DCS, PLC, and vibration monitoring platforms.

Hazardous Area Certification: When installed with intrinsically safe barriers and certified Proximitor models, the system achieves Class I Division 1 / Zone 0 approvals for explosive atmospheres per IECEx, ATEX, and NEC standards.

Predictive Analytics Ready: High-resolution output supports advanced diagnostic techniques including orbit analysis, Bode plots, polar plots, and waterfall spectra for root cause analysis of machinery faults. Compatible with condition monitoring software from Bently Nevada, SKF, Emerson, and third-party platforms.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for stock items | 2-3 weeks for factory-direct orders
Warranty Coverage: 12 months from shipment date covering materials and workmanship defects
Technical Support: Application engineering assistance for system design, installation troubleshooting, and performance optimization
Documentation Package: Includes calibration certificate, installation manual, dimensional drawings, and material certifications

Frequently Asked Questions

What gap voltage should I expect during installation verification?
At the recommended 40-mil (1.0mm) gap, the system should produce -10 VDC ±0.5 VDC when measured at the Proximitor output. Deviations beyond ±1 VDC indicate improper probe installation, target surface issues, or cable damage requiring correction before commissioning.

Can this proximity sensor monitor non-ferrous rotating shafts?
While optimized for ferrous targets, the sensor can measure aluminum, brass, and titanium shafts with reduced sensitivity and altered calibration curves. Contact our application engineers with target material specifications and operating conditions for feasibility assessment and custom calibration data.

How does operating temperature affect measurement accuracy?
The sensor maintains ±2% accuracy across its full -40°C to +125°C range through internal temperature compensation. For applications with rapid thermal transients exceeding 50°C/hour, allow 15-minute stabilization periods after temperature changes for optimal accuracy.

What cable length options are available for this probe model?
Standard configurations include 1-meter and 5-meter integral cables. Extension cables up to 9 meters can be added using Bently Nevada 330130 series extension cables without recalibration. Total system length (probe + extension) should not exceed 9 meters to maintain signal integrity.

Is this sensor suitable for vertical pump applications?
Yes, the sensor's orientation-independent design supports vertical, horizontal, and angled installations. Ensure proper probe holder selection to maintain axial alignment and prevent cable strain. For submerged applications, verify IP rating compatibility with fluid exposure conditions.

How do I verify proper probe-to-target gap during installation?
Use a feeler gauge or dial indicator to set the initial mechanical gap, then verify electrically by measuring Proximitor output voltage. The -10 VDC setpoint at 40 mils provides optimal ±40 mil linear range. Document gap voltage during installation for future reference and trending.

Order Your Precision Monitoring Solution

Protect your critical rotating assets with proven vibration monitoring technology trusted by Fortune 500 industrial operators worldwide. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 for application consultation, system design support, and volume pricing on complete monitoring packages.
