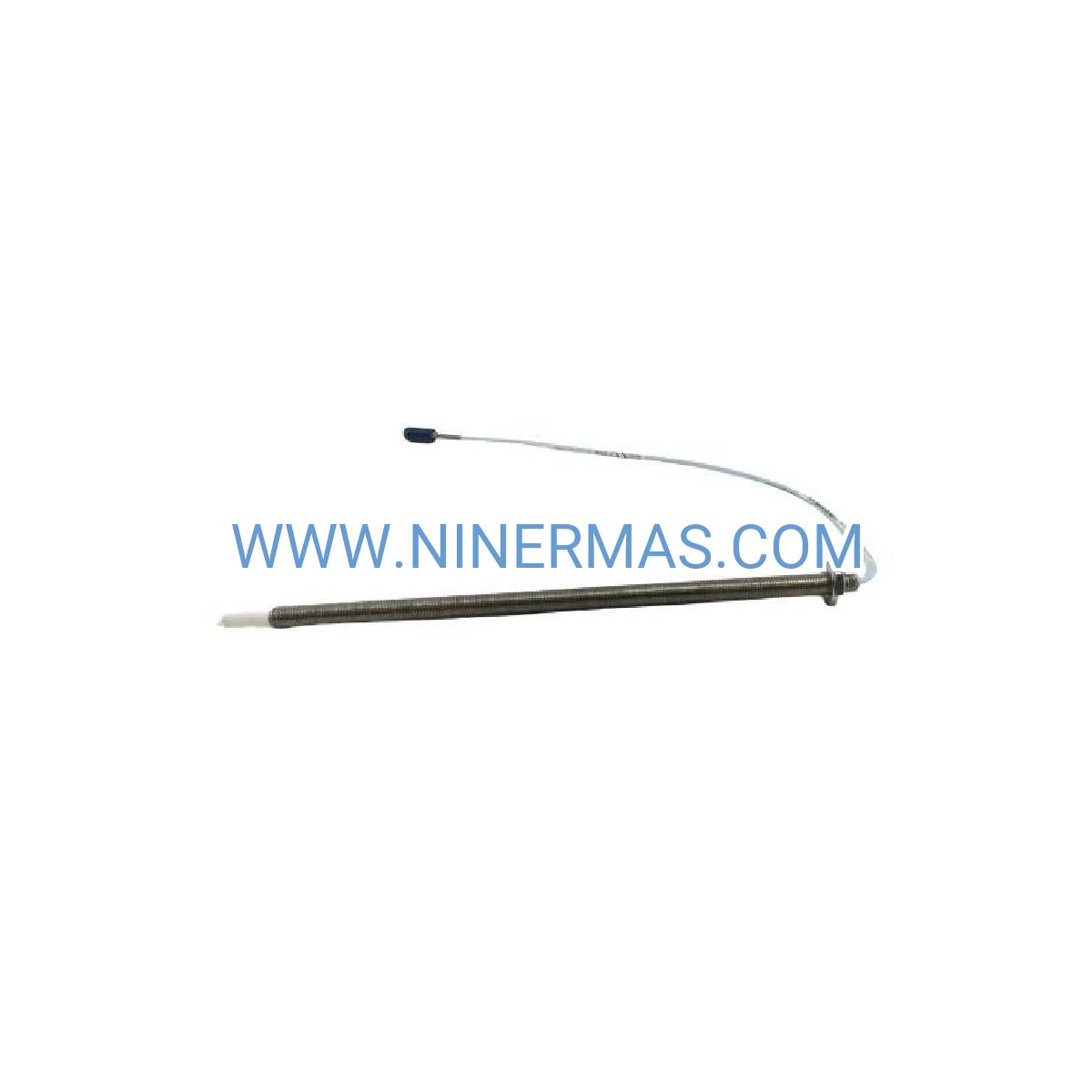

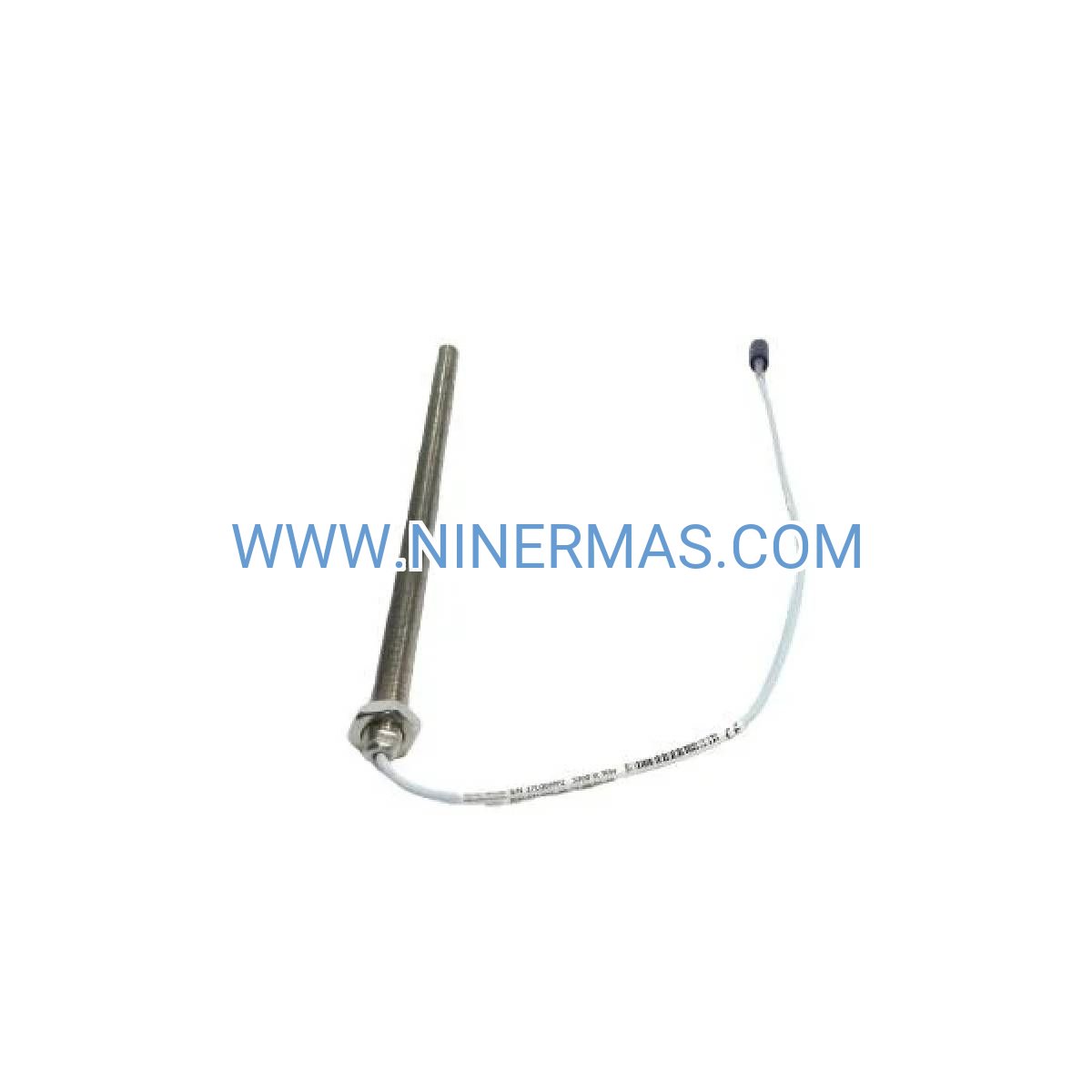

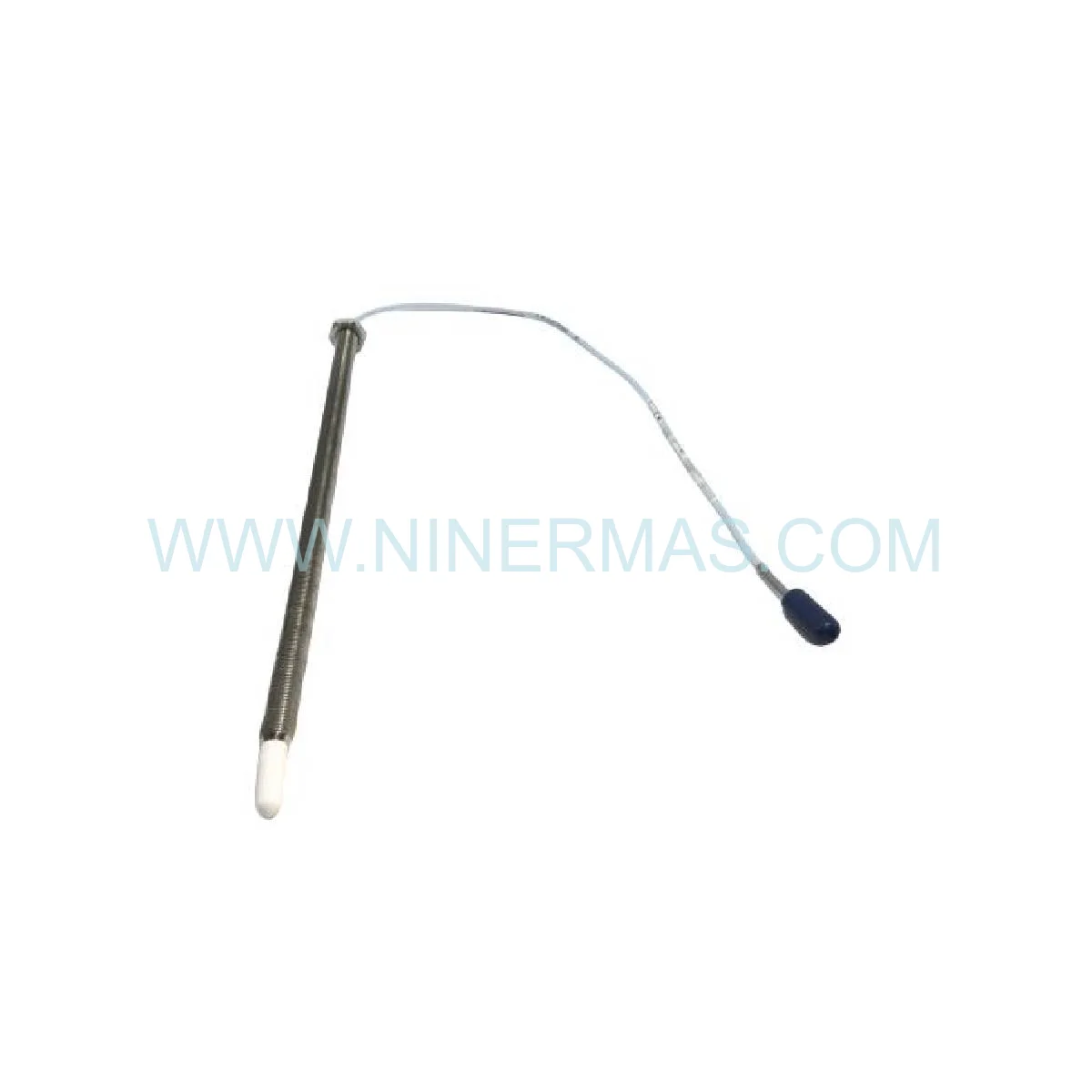

330905-00-25-05-02-05 NSv Proximity Probe (Industrial-Grade Vibration Sensor)

The Bently Nevada 330905-00-25-05-02-05 is a next-generation proximity sensor engineered for non-contact vibration measurement in rotating machinery. Built on the NSv (Next-Generation System Velocity) platform, this probe combines compact dimensions with exceptional electromagnetic interference rejection, making it the optimal choice for space-constrained installations and electrically noisy environments.

Designed for predictive maintenance professionals and reliability engineers, this sensor addresses critical challenges in turbomachinery monitoring: false alarms from electrical noise, installation limitations in tight clearances, and the need for reliable performance across extreme temperature ranges. Its stainless steel 316 construction and enhanced shielding ensure long-term stability in harsh industrial conditions.

With a 25mm active length and M5 threading, the 330905-00-25-05-02-05 delivers precise displacement measurements from 0.4 to 2.0mm, supporting early fault detection in bearings, shafts, and rotating components. Factory calibration and backward compatibility with existing 3300 systems enable rapid deployment without extensive reconfiguration.

Core Features & Benefits

✓ Advanced EMI Suppression Technology
Proprietary electromagnetic shielding eliminates spurious signals in high-interference environments, reducing nuisance trips by up to 85% compared to legacy sensors. Critical for installations near VFDs, motors, and power distribution equipment.

✓ Space-Optimized Design
30% smaller footprint than conventional proximity probes enables monitoring in previously inaccessible locations—ideal for retrofits, multi-bearing assemblies, and compact gearbox configurations where mounting space is limited.

✓ Extended Thermal Operating Range
Operates continuously from -40°C to +125°C without calibration drift or signal degradation. Suitable for cryogenic pumps, high-temperature turbines, and outdoor installations exposed to seasonal extremes.

→ Plug-and-Play System Integration
Full compatibility with 3300 XL proximitors and 3500 monitoring frameworks eliminates costly system upgrades. Pre-configured sensitivity settings reduce commissioning time by 40%, accelerating project timelines.

→ Built-In Diagnostic Intelligence
SMART sensor technology provides real-time health status monitoring, detecting cable faults, probe wear, and target surface anomalies before they compromise measurement accuracy. Supports condition-based maintenance strategies.

→ Superior Frequency Response
0 to 10 kHz bandwidth captures high-frequency bearing defects, gear mesh frequencies, and blade-pass phenomena that lower-bandwidth sensors miss—essential for comprehensive machinery diagnostics.

Typical Application Scenarios

Steam & Gas Turbine Monitoring
Tracks shaft vibration and axial position in power generation turbines operating at 3,000-3,600 RPM. Detects rotor imbalance, misalignment, and thrust bearing wear before catastrophic failure. Reduces unplanned downtime by enabling scheduled maintenance during planned outages.

Centrifugal Compressor Protection
Monitors radial vibration in multi-stage compressors handling corrosive gases and high-pressure applications. Early detection of surge conditions, impeller rubs, and seal degradation prevents equipment damage and process interruptions in petrochemical facilities.

High-Speed Motor & Generator Applications
Provides continuous bearing condition assessment in motors exceeding 10,000 RPM. Identifies developing faults such as race spalling, cage defects, and lubrication breakdown—critical for avoiding costly rewinds and extended outages.

Tight-Clearance Retrofit Installations
Solves monitoring challenges in legacy equipment where standard probes cannot physically fit. Compact M5 threading allows installation in confined bearing housings, gearbox casings, and pump assemblies without major modifications.

Electrically Noisy Industrial Environments
Delivers reliable measurements in facilities with heavy VFD usage, arc furnaces, or high-voltage switchgear. Enhanced EMI immunity maintains signal integrity where conventional sensors produce erratic readings or false alarms.

Technical Parameters & Selection Guide

Selection Criteria: Choose this probe when installation space is limited (clearance <35mm), EMI levels exceed 10 V/m, or operating temperatures fall outside -20°C to +85°C. For longer sensing distances (>2.5mm), consider the 330930 series. For hazardous area installations, specify intrinsically safe barriers compatible with your proximitor model.

Extended Functions

IoT & Remote Monitoring Integration: Compatible with System 1 Evolution and Orbit 60 cloud platforms for remote diagnostics, trend analysis, and fleet-wide asset management. Supports OPC-UA and Modbus TCP protocols for integration with third-party SCADA systems.

Advanced Diagnostic Capabilities: When paired with 3500/42M monitors, enables advanced analytics including orbit plots, Bode diagrams, polar plots, and full-spectrum cascade analysis for root-cause failure investigation.

Customization Options: Available with custom cable lengths (1m to 9m), special temperature ratings (-55°C to +177°C), and application-specific calibration for non-standard target materials including aluminum, titanium, and Inconel alloys.

Delivery & Service Assurance

Lead Time: Standard configuration ships within 3-5 business days. Custom cable lengths or special calibrations require 10-15 business days. Expedited processing available for critical outages.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications requiring 5-year coverage.

Technical Support: Access to application engineers for installation guidance, system integration assistance, and troubleshooting support. Phone and email support available during business hours (GMT+8).

Documentation Package: Includes calibration certificate, installation manual, dimensional drawings, cable termination specifications, and proximitor compatibility matrix. Digital copies provided via download link upon shipment.

Frequently Asked Questions

What proximitor models are compatible with the 330905-00-25-05-02-05 probe?
This NSv probe works with all 3300 XL proximitors (models 125800-01, 125808-01, 125840-01) and 3300 NSv proximitors. It is NOT compatible with older 3300 (non-XL) or 7200 series proximitors. Verify your proximitor model before ordering.

Can this sensor measure vibration on non-ferrous materials like aluminum or stainless steel shafts?
Standard calibration is for 4140 steel targets. For non-ferrous materials, request custom calibration at time of order. Measurement sensitivity decreases approximately 60% on 300-series stainless steel and 80% on aluminum—consider alternative sensor technologies for these applications.

How much energy savings can I expect from implementing predictive maintenance with this probe?
While the probe itself doesn't reduce energy consumption, early fault detection prevents efficiency-degrading conditions like misalignment (5-10% energy penalty) and bearing wear (3-7% penalty). Customers report 8-15% energy savings on monitored rotating equipment through optimized maintenance timing.

What are the installation clearance requirements for this proximity probe?
Minimum radial clearance: 12mm from probe tip to target surface at installation gap (typically 1.0mm). Axial clearance: 40mm behind mounting surface for cable bend radius. Ensure target surface runout <25 microns for accurate measurements.

Does this probe support remote condition monitoring and cloud connectivity?
Yes, when connected to 3500 rack systems with communication gateways or System 1 software. Data streams to cloud platforms for remote diagnostics, automated alarming, and predictive analytics. Requires network infrastructure and appropriate software licenses.

What is the expected service life of the 330905 proximity probe in continuous operation?
Mean time between failures (MTBF) exceeds 150,000 hours under normal operating conditions. Primary failure modes are cable fatigue (mitigated by proper strain relief) and contamination buildup on sensing tip (preventable through periodic inspection). Typical replacement interval: 10-15 years.

Get Started with Precision Vibration Monitoring

Protect your critical assets with proven proximity sensing technology trusted by reliability professionals worldwide. Contact our technical team for application-specific recommendations, system design assistance, or to request a detailed quotation for your monitoring project.
