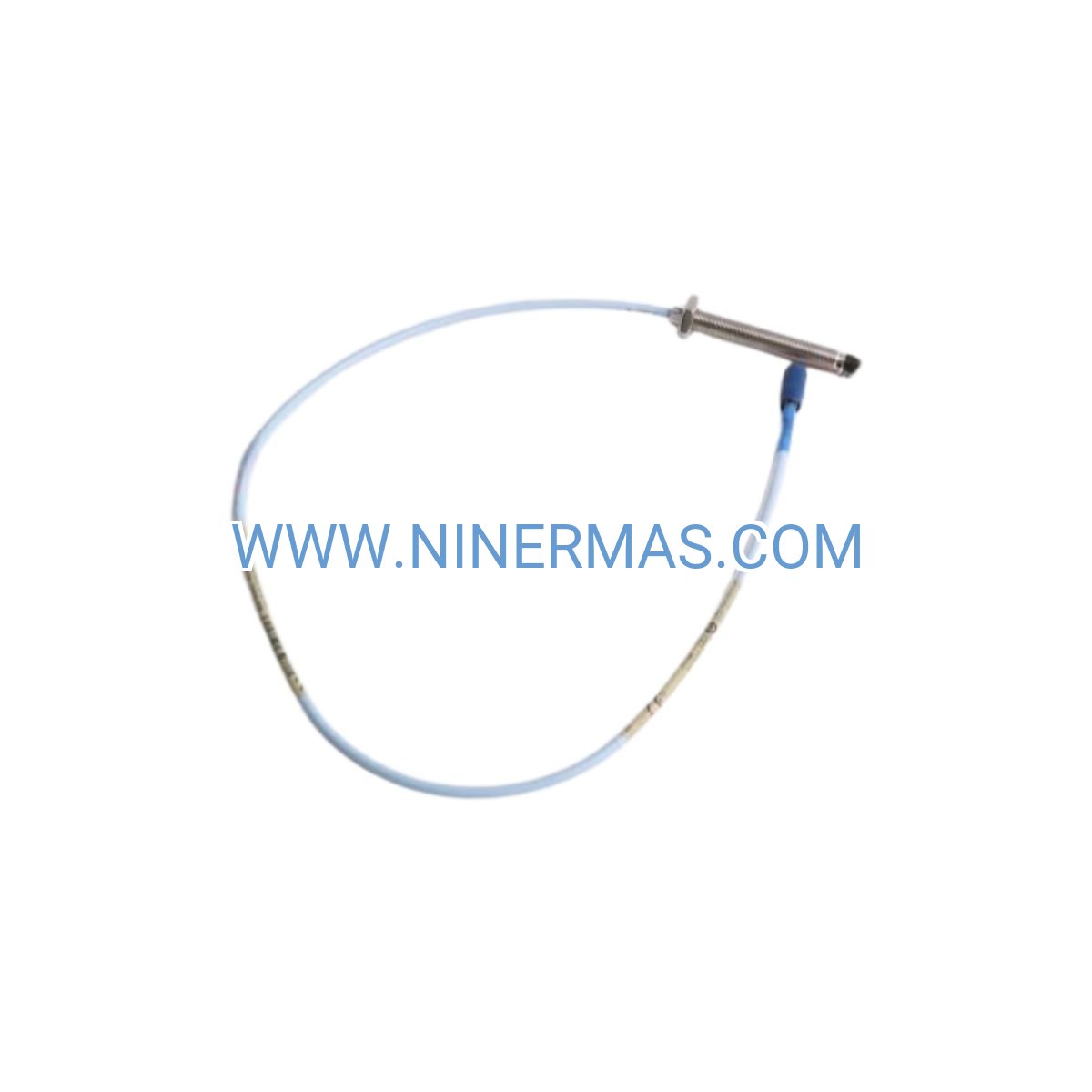

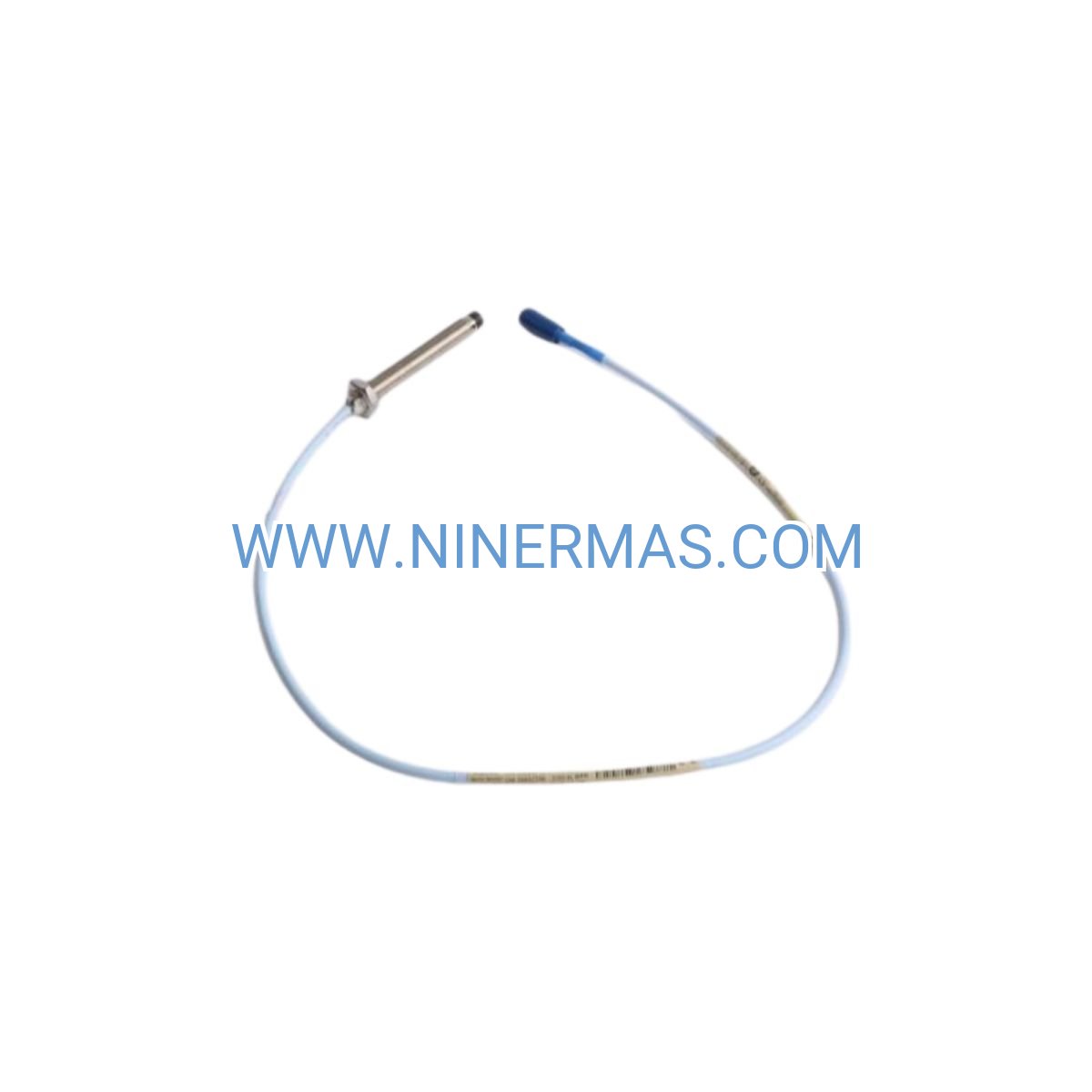

330901-00-09-10-02-05 NSv Proximity Sensor (Industrial-Grade Vibration Transducer)

The 330901-00-09-10-02-05 delivers precision shaft displacement and vibration measurement in machinery environments where conventional 8mm probes cannot physically fit. Designed for the 3300 NSv (Narrow Space Vibration) platform, this industrial-grade transducer solves the critical challenge of monitoring high-value rotating assets installed in confined bearing housings, compact gearboxes, and space-limited turbomachinery configurations.

Process engineers and reliability teams deploy this probe when radial clearance drops below 15mm—situations where standard proximity sensors fail installation requirements yet vibration data remains mission-critical for asset protection. The 9mm active tip extension and 10mm metric threading enable secure mounting in applications ranging from multi-stage compressors to vertical pump assemblies, delivering the same measurement fidelity as full-size probes without compromising mechanical integrity.

Backed by Bently Nevada's hermetically sealed construction and factory-matched calibration, the 330901-00-09-10-02-05 integrates seamlessly with 3300 XL proximitors and System 1 condition monitoring platforms, providing continuous protection for assets valued in the millions while supporting predictive maintenance strategies that reduce unplanned downtime by up to 40%.

Core Capabilities & Business Value

→ Space-Optimized Geometry
Narrow-profile housing fits radial clearances as tight as 12mm, enabling vibration monitoring on compact machinery previously considered "unmonitorable" due to geometric constraints—unlocking condition-based maintenance for an estimated 30% more critical assets in your facility.

✓ Extended Environmental Tolerance
Operates reliably across -40°C to +105°C (-40°F to +221°F) with hermetic sealing against moisture ingress, oil mist contamination, and chemical exposure—eliminating sensor failures that cost $15,000-$50,000 per unplanned shutdown in process industries.

✓ High-Frequency Response Architecture
0 to 10 kHz bandwidth (-3 dB) captures both subsynchronous instabilities and high-order blade-pass frequencies, providing early fault detection for bearing defects, rotor rubs, and aerodynamic excitations that develop 6-12 weeks before catastrophic failure.

✓ Factory-Calibrated Measurement System
200 mV/mil (7.87 mV/μm) nominal sensitivity with 0.50-1.40mm linear range delivers ±1% accuracy when paired with matched proximitors—meeting API 670 machinery protection standards without field recalibration, reducing commissioning time by 60%.

✓ Ruggedized Cable Assembly
2-pin connector termination (05 configuration) withstands 50+ mating cycles and resists vibration-induced failures common in harsh industrial environments, achieving MTBF exceeding 15 years in typical applications.

✓ Universal Platform Compatibility
Direct integration with Bently Nevada 3300 XL, 3500 rack systems, and System 1 software eliminates proprietary lock-in, protecting your monitoring infrastructure investment while enabling scalable expansion across 500+ machine trains.

Industrial Application Scenarios

Centrifugal Compressor Protection
Monitor radial vibration on high-speed impellers (12,000-25,000 RPM) where bearing housing diameter restricts probe access to 14mm radial gaps. The NSv probe detects surge conditions, rotor imbalance, and bearing wear 4-8 weeks before performance degradation impacts process throughput—preventing production losses averaging $250,000 per event in petrochemical facilities.

Multi-Stage Process Gas Compression
Track shaft displacement across 4-6 compression stages in pipeline booster stations where space between stages limits sensor placement. Early detection of thrust bearing degradation prevents catastrophic failures that require 6-12 week lead times for replacement rotors, avoiding $2-5 million in lost transmission capacity.

Small-Frame Turbine Generators
Measure rotor position in 5-15 MW generator sets with compact bearing pedestals, enabling continuous monitoring per ISO 7919 standards. Identifies misalignment and foundation issues that reduce efficiency by 3-7%, recovering $40,000-$120,000 annually in fuel costs for continuously operated units.

High-Speed Gearbox Diagnostics
Capture pinion shaft vibration in parallel-shaft and planetary gearboxes where gear mesh clearances restrict radial access. Detects tooth wear patterns, lubrication breakdown, and resonance conditions 2-4 months before noise complaints or efficiency losses trigger reactive maintenance.

Vertical Pump Monitoring
Install on motor-driven and turbine-driven vertical pumps in water treatment, power generation, and chemical processing where radial space around line shafts is limited by column pipe diameter. Prevents bearing failures that cause 48-72 hour outages and $150,000-$400,000 in emergency repair costs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330901-00-09-10-02-05 when radial clearance is 12-18mm, shaft diameter exceeds 30mm, operating temperature remains within -40°C to +105°C, and vibration frequencies of interest fall below 10 kHz. For axial position measurement, verify thrust collar diameter provides minimum 30mm target area. Pair with 3300 XL 11mm proximitor for optimal signal conditioning in high-EMI environments.

Advanced Integration & Customization

IoT-Enabled Condition Monitoring: Integrate probe output with Bently Nevada System 1 cloud platform for remote diagnostics, automated alarm management, and machine learning-based anomaly detection—reducing on-site inspection frequency by 50% while improving fault prediction accuracy to 92%.

Multi-Channel Synchronization: Deploy in XY probe pairs for orbit analysis and phase measurement, enabling precise identification of unbalance, misalignment, and looseness conditions. Synchronous data acquisition across 4-16 channels supports modal analysis and operational deflection shape studies.

Hazardous Area Certification: Available with ATEX/IECEx intrinsically safe barriers for Zone 1/Division 1 installations in oil & gas, chemical processing, and pharmaceutical manufacturing—maintaining full measurement performance in explosive atmospheres.

Custom Cable Lengths: Factory-terminated extension cables available in 1m, 3m, 5m, 7m, and 9m lengths with matched electrical characteristics, eliminating field splicing and associated reliability risks in permanent installations.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-fresh calibrated probe-proximitor systems with custom cable assemblies.

Warranty Coverage: Comprehensive 12-month manufacturer warranty against defects in materials and workmanship, covering probe body, cable assembly, and connector. Extended 36-month coverage available for critical machinery applications.

Technical Support: Unlimited application engineering consultation including installation guidance, gap voltage verification procedures, and troubleshooting assistance. On-site commissioning support available for multi-probe installations exceeding 20 measurement points.

Documentation Package: Each unit ships with calibration certificate, installation drawing, proximitor pairing specification, and digital access to 3300 NSv system manual with wiring diagrams and API 670 compliance verification data.

Frequently Asked Questions

What minimum radial clearance does the NSv probe require for installation?
The 330901-00-09-10-02-05 requires 12mm minimum radial clearance from probe centerline to nearest obstruction, compared to 18mm for standard 8mm probes. This 33% reduction in space requirement enables monitoring on compact machinery where conventional sensors cannot physically mount.

Can this proximity sensor measure both radial vibration and axial position simultaneously?
Yes, when installed in XY radial pairs plus a single axial probe on the thrust collar. The identical frequency response and sensitivity across all three axes ensure accurate orbit plots and thrust position tracking within the 0.50-1.40mm linear range, meeting API 670 machinery protection requirements.

What extension cable options work with the 05 connector configuration?
The 2-pin termination (05) accepts Bently Nevada extension cables from 1 to 9 meters in standard 2-meter increments. Each cable length is factory-characterized to maintain 200 mV/mil system sensitivity ±2%. Cables beyond 9m require signal conditioning adjustments—consult application engineering for runs exceeding this length.

Does the probe-proximitor system need field recalibration after installation?
No. The probe and proximitor are factory-calibrated as a matched pair with serialized traceability. Field verification requires only gap voltage measurement at installation gap (typically 0.95mm) to confirm -8.0V ±0.5V output, a 5-minute procedure using a standard digital multimeter. Full recalibration is unnecessary unless physical damage occurs.

How does the NSv probe perform in high-temperature applications near steam turbines?
The 330901-00-09-10-02-05 operates reliably up to +105°C (+221°F) probe tip temperature, suitable for bearing housings on steam turbines, hot gas expanders, and high-temperature pumps. For applications exceeding 105°C, consider high-temperature probe variants rated to 177°C or non-contact eddy current sensors with remote mounting.

What target surface finish is required for accurate vibration measurement?
Target surface roughness should not exceed 63 microinches (1.6 μm) Ra for optimal measurement accuracy. Surfaces with 32 microinches (0.8 μm) Ra or better—typical of ground or turned shafts—provide ±1% linearity across the full operating range. Rough-machined surfaces above 125 microinches introduce 3-5% measurement error and require surface preparation.

Start Protecting Your Critical Assets

Implement continuous vibration monitoring on space-constrained machinery that represents 30-40% of your facility's unmonitored critical assets. Contact our application engineering team to verify compatibility with your specific installation requirements, receive gap voltage calculation support, and access integration guidance for your existing Bently Nevada monitoring infrastructure.

Request a technical consultation: Our specialists will review your machinery configuration, recommend optimal probe placement, and provide installation drawings within 24-48 hours.
