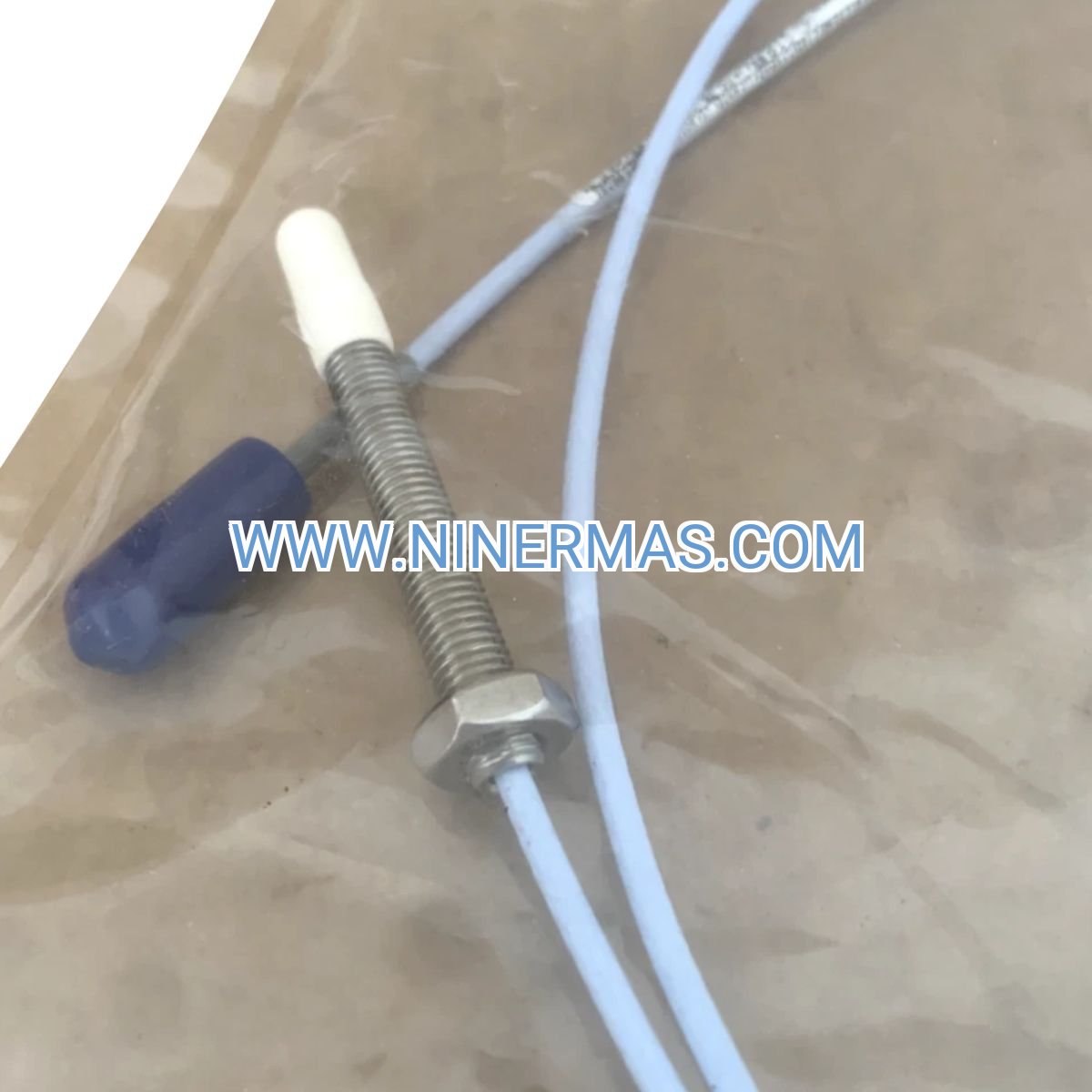

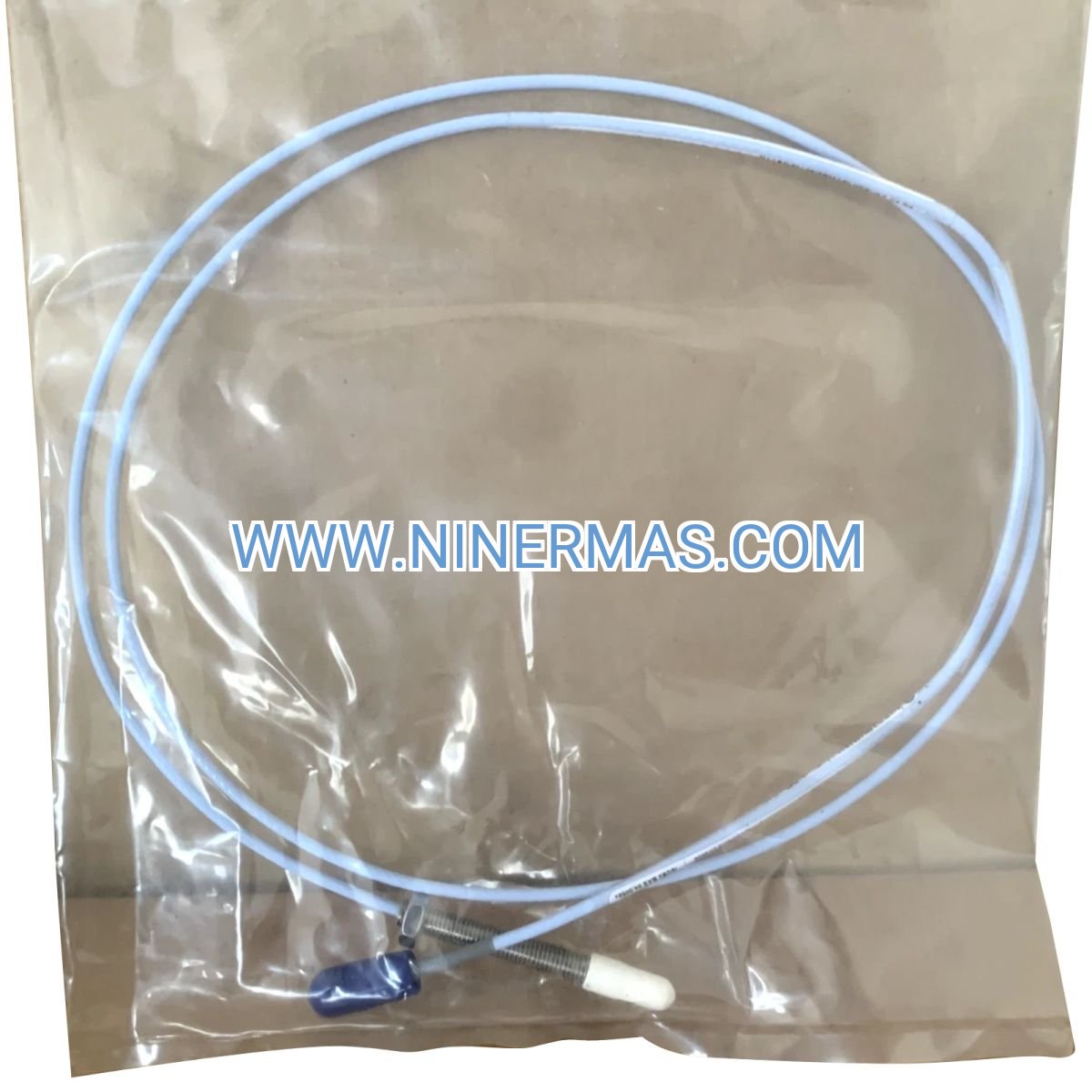

Bently Nevada 330901-00-08-10-02-RU Proximity Probe (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330901-00-08-10-02-RU is an industrial-grade proximity probe designed for non-contact vibration and displacement measurement in rotating machinery. Through eddy current sensing technology and precision signal conditioning, it enables real-time shaft position tracking, radial vibration analysis, and axial displacement monitoring with exceptional accuracy and stability.

Ideal for turbomachinery protection systems, compressor monitoring applications, steam/gas turbine surveillance, and critical motor bearing diagnostics. This probe addresses common challenges including late fault detection, sensor drift in harsh environments, incompatible legacy system integration, and excessive maintenance downtime caused by unreliable transducers.

Featuring standardized 1/4-28 UNF mounting with customizable cable lengths, this product delivers proven reliability, seamless 3300 system compatibility, extended temperature tolerance (-40°C to +85°C), and simplified installation procedures. Suitable for plant engineers, maintenance teams, OEM integrators, and condition monitoring specialists. Contact our application engineers for system configuration assistance and technical quotations.

Core Features & Advantages

High-Precision Eddy Current Sensing
Utilizes advanced eddy current technology with 200 mV/mil nominal sensitivity, delivering accurate displacement measurement within 0.50 mm linear range while maintaining excellent signal-to-noise ratio for early anomaly detection.

Extended Environmental Durability
Stainless steel housing withstands corrosive atmospheres, mechanical shock, and extreme temperature cycling from -40°C to +85°C, ensuring continuous operation in power generation, petrochemical, and offshore installations.

Wide Frequency Response Capability
Captures dynamic events from DC to 10 kHz (-3 dB point), enabling simultaneous monitoring of slow roll runout, synchronous vibration, subsynchronous instabilities, and high-frequency bearing defects within a single measurement channel.

Seamless System Integration
Direct compatibility with Bently Nevada 3300 proximitor modules, extension cables, and monitoring racks eliminates configuration complexity, reduces commissioning time, and leverages existing infrastructure investments.

Long-Term Measurement Stability
Factory-calibrated sensor maintains output accuracy over multi-year service intervals, minimizing recalibration requirements and reducing total cost of ownership compared to alternative sensing technologies.

Comprehensive Fault Protection
When integrated with 3300 monitoring systems, provides continuous surveillance with programmable alarm setpoints, automatic fault logging, and relay outputs for emergency shutdown sequences to prevent catastrophic machinery failures.

Typical Application Scenarios

This proximity probe is engineered for installations demanding high reliability, continuous uptime, and precise condition assessment, particularly in:

Steam & Gas Turbine Monitoring
Measures journal bearing clearances, thrust position, and differential expansion in power generation turbines, enabling operators to detect rubs, misalignment, and thermal growth before damage occurs.

Centrifugal & Axial Compressor Protection
Tracks rotor position and vibration amplitude in critical compression equipment for oil & gas processing, chemical plants, and air separation units, supporting API 670 compliance and machinery protection standards.

Large Motor & Generator Surveillance
Monitors shaft eccentricity, magnetic center position, and bearing wear in motors above 500 HP and synchronous generators, facilitating predictive maintenance scheduling and avoiding unplanned outages.

Pump & Fan Condition Monitoring
Provides continuous vibration trending for high-value rotating equipment in water treatment facilities, HVAC systems, and industrial process applications where reliability directly impacts production throughput.

Research & Development Testing
Supports machinery development programs, rotor dynamics validation, and bearing performance characterization in test laboratories requiring traceable, repeatable displacement measurements.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive specifications for the 330901-00-08-10-02-RU model. Custom configurations available upon request.

Selection Recommendations:
When specifying proximity probes, consider shaft material composition (ferrous vs. non-ferrous), required measurement range and resolution, installation space constraints and mounting accessibility, ambient temperature and vibration exposure, cable routing distance to proximitor module, and integration with existing monitoring infrastructure. For application-specific guidance, please provide machinery type, shaft diameter, operating speed range, and environmental conditions. Our engineering team will recommend optimal probe configuration and system architecture.

Extended Capabilities

Multi-Channel Monitoring Configurations
Deploy multiple probes in XY radial pairs for orbit analysis, combine with keyphasor signals for phase-referenced vibration vectors, or integrate with axial position probes for comprehensive six-degree-of-freedom rotor tracking.

Remote Monitoring Integration
When paired with compatible data acquisition systems, enables 4-20mA output conversion, Modbus/OPC connectivity for SCADA integration, cloud-based vibration trending platforms, and mobile alert notification for off-site personnel.

Compliance & Standards Support
Meets requirements for API 670 machinery protection systems, ISO 20816 vibration severity standards, and industry-specific guidelines for turbomachinery monitoring in power generation and hydrocarbon processing sectors.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers; custom cable lengths or special configurations require 10-15 business days manufacturing lead time.

Warranty Coverage: All proximity probes include a comprehensive 12-month manufacturer warranty covering material defects, workmanship issues, and performance specification compliance from date of shipment.

Technical Support: Factory-trained application engineers provide remote installation guidance, system commissioning assistance, and troubleshooting support via phone and email. On-site startup services available in select regions (quoted separately).

Documentation Package: Each unit ships with calibration certificate, dimensional drawings, electrical connection diagrams, installation instructions, and compatibility matrix for proximitor module selection. Complete system integration manuals available upon request.

Frequently Asked Questions (FAQ)

Q: How does the 330901-00-08-10-02-RU proximity probe integrate with existing Bently Nevada monitoring systems?
A: This probe connects directly to any 3300 series proximitor module via standard coaxial extension cable. Verify proximitor input impedance matches probe specifications (typically 7-meter system length). Consult factory documentation for cable length limitations and signal conditioning requirements.

Q: What is the maximum shaft speed this proximity probe can accurately measure?
A: With 10 kHz frequency response, the probe reliably tracks vibration events up to approximately 600,000 CPM (10,000 Hz). Practical speed limits depend on number of events per revolution and required frequency resolution. For machinery above 15,000 RPM, consult application engineering for optimal probe placement.

Q: Can this probe measure vibration on non-ferrous shafts such as stainless steel or aluminum?
A: Eddy current probes require conductive ferromagnetic targets for optimal performance. Stainless steel (400-series magnetic grades) works adequately; austenitic stainless (300-series) and aluminum require alternative sensing technologies. Contact technical support for material-specific sensitivity data.

Q: What installation clearances and mounting torque specifications are required?
A: Maintain minimum 50 mm clearance from adjacent metallic structures to avoid electromagnetic interference. Install probe perpendicular to shaft surface within ±5 degrees. Apply 15-20 Nm (11-15 ft-lb) mounting torque using thread sealant suitable for operating temperature range. Detailed installation procedures included with product documentation.

Q: How do I verify probe functionality after installation and before commissioning?
A: Use a Bently Nevada TK-3 test kit or equivalent proximitor simulator to inject calibrated gap voltages and verify output linearity. Perform static gap measurement with feeler gauges to confirm installation depth. Dynamic runout checks during slow roll validate signal quality and electrical noise immunity.

Q: What are typical failure modes and expected service life for proximity probes in continuous operation?
A: Properly installed probes typically exceed 10-year service life in normal industrial environments. Common failure modes include cable insulation degradation from thermal cycling, connector corrosion in humid atmospheres, and mechanical damage from improper handling. Implement periodic resistance checks and insulation testing per maintenance schedules.

Request Technical Consultation

For detailed system design assistance, competitive quotations, or application-specific recommendations, please provide the following information to our engineering team:

• Project name and installation location
• Machinery type (turbine, compressor, motor, pump, etc.)
• Shaft material, diameter, and operating speed range
• Number of measurement points and monitoring objectives
• Environmental conditions (temperature, humidity, vibration, corrosive exposure)
• Existing monitoring infrastructure and integration requirements
• Delivery timeline and budget parameters

Our application specialists will respond within one business day with tailored probe selection guidance, system architecture recommendations, and comprehensive pricing.
