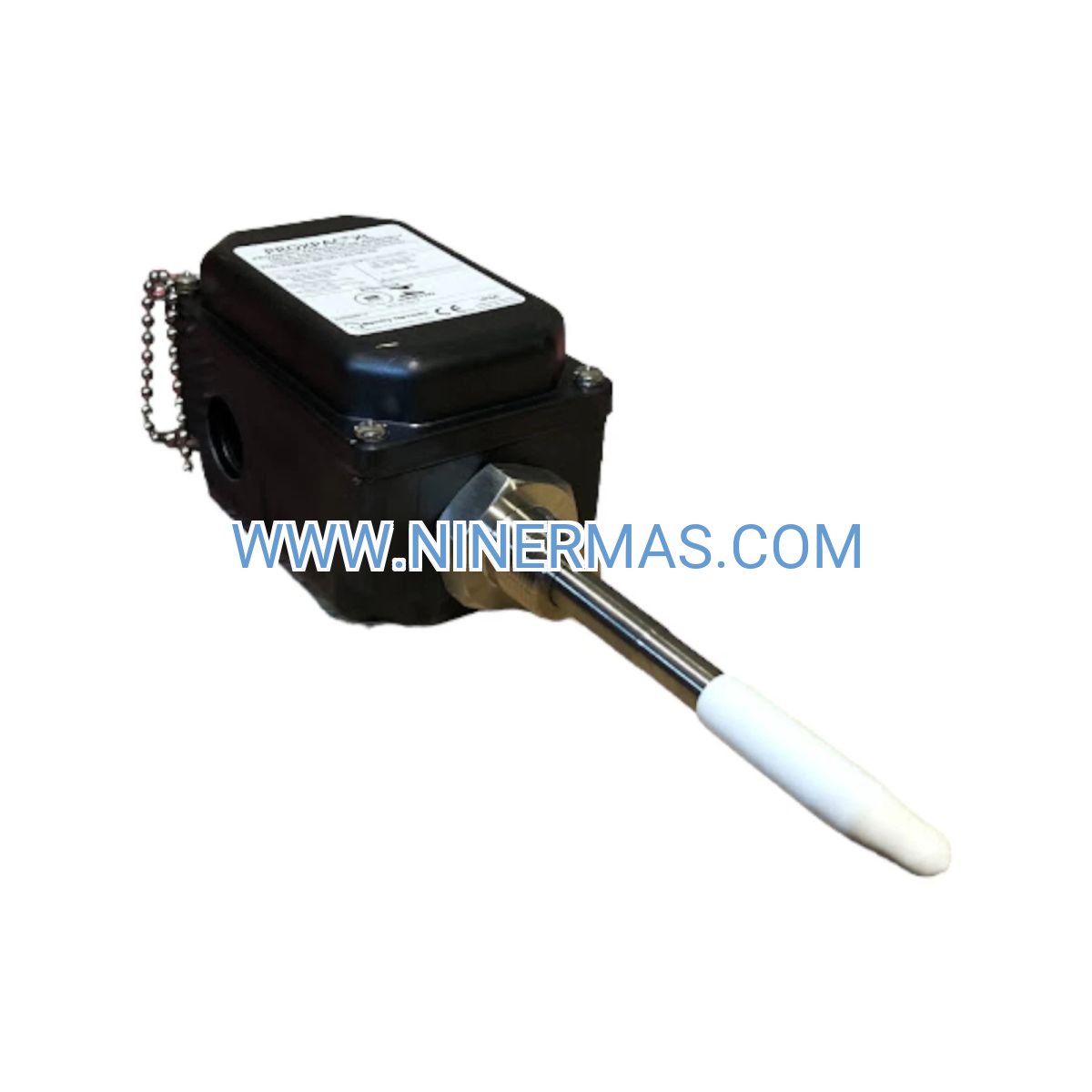

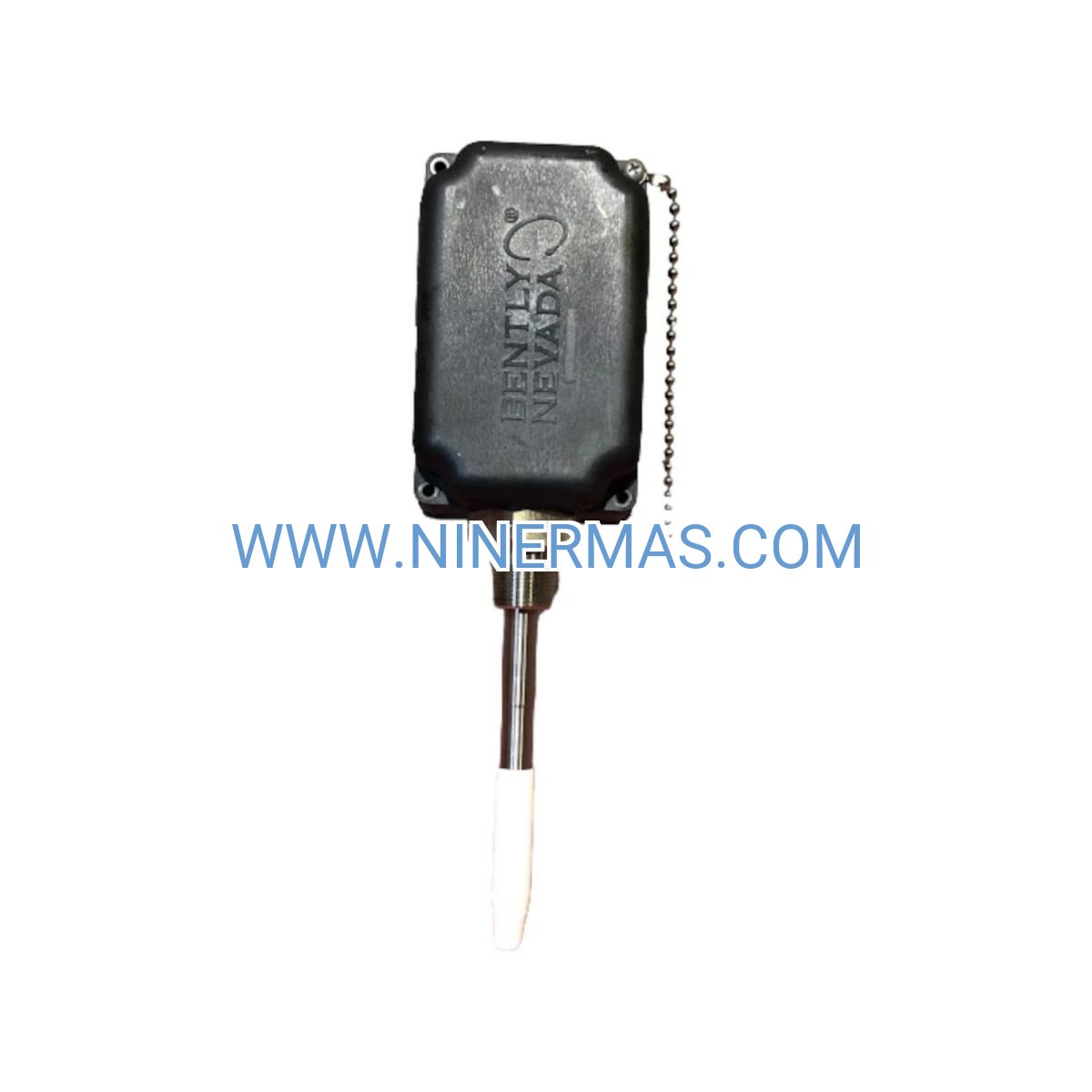

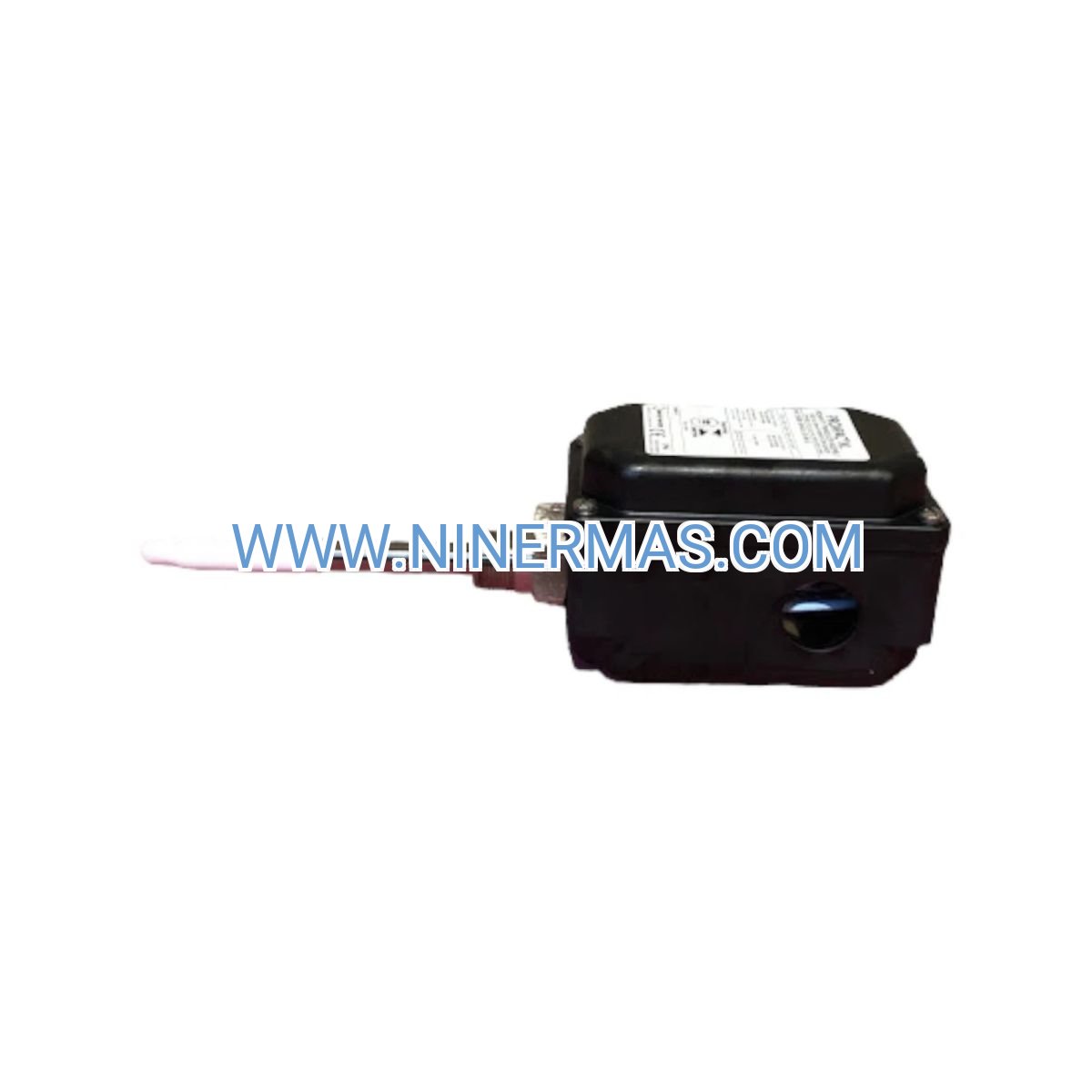

Bently Nevada 330881 PROXPAC XL Proximity Transducer System (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330881-BR-04-150-06-02 PROXPAC XL is an industrial-grade proximity transducer system designed for non-contact vibration and displacement measurement in critical rotating machinery. Through factory-calibrated integration of probe and extension cable, this system delivers precise shaft displacement monitoring, radial vibration analysis, and axial position tracking with API 670 compliance.

Engineered for turbomachinery applications including steam turbines, gas compressors, centrifugal pumps, and high-speed generators, the PROXPAC XL addresses challenges such as bearing wear detection, rotor imbalance identification, shaft misalignment monitoring, and early fault prediction in continuous-operation environments. The integrated design eliminates field calibration errors and reduces installation complexity for maintenance teams.

With standardized 0-150 mils measurement range and customizable mounting configurations, this transducer system offers reliable performance, wide temperature tolerance (-30°C to +100°C), superior frequency response (0-10 kHz), and comprehensive protection against harsh industrial conditions. Ideal for design engineers, instrumentation contractors, OEM integrators, and plant maintenance departments. Contact our application engineers for system selection assistance and technical specifications.

Core Features & Advantages

Factory-Calibrated Integration
Pre-matched probe and extension cable assembly eliminates on-site calibration requirements, ensuring measurement accuracy from installation through operational lifecycle while reducing commissioning time by up to 60%.

API 670 Compliance & Industry Standards
Meets API 670 machinery protection system requirements and ISO 20816 vibration standards, ensuring regulatory conformity for critical equipment in power generation, oil & gas, and petrochemical facilities.

Extended Operating Range
Operates reliably across -30°C to +100°C ambient temperatures with stable output characteristics, suitable for both arctic installations and high-temperature process environments without performance degradation.

Wide Frequency Response Capability
0 to 10 kHz (-3 dB) frequency bandwidth captures both low-speed rotor dynamics and high-frequency bearing defects, enabling comprehensive machinery health assessment from a single measurement point.

Robust Construction & Protection
Sealed probe housing with IP67 protection rating resists moisture, dust, and chemical exposure, while stainless steel construction ensures long-term durability in corrosive atmospheres and high-vibration mounting locations.

Seamless System Integration
Direct compatibility with Bently Nevada 3300 XL proximitor signal conditioners and monitoring platforms enables plug-and-play installation into existing condition monitoring infrastructure without adapter requirements.

Typical Application Scenarios

This PROXPAC XL transducer system is engineered for applications demanding continuous vibration monitoring, precise displacement measurement, and reliable fault detection capabilities, particularly in:

Power Generation Turbomachinery
Steam turbines, gas turbines, and turbo-generators in utility and cogeneration plants require shaft vibration monitoring to prevent catastrophic failures. The 330881 system provides real-time displacement data for bearing condition assessment and rotor dynamic analysis.

Oil & Gas Compression Systems
Centrifugal and reciprocating compressors in upstream production, midstream processing, and LNG facilities benefit from continuous proximity monitoring to detect thrust bearing wear, rotor rubs, and surge conditions before equipment damage occurs.

Petrochemical Process Pumps
High-energy pumps handling corrosive fluids, high-temperature liquids, and multi-phase flows utilize proximity transducers for shaft position monitoring, ensuring safe operation within design clearances and preventing seal failures.

Industrial Rotating Equipment
Large motors, blowers, fans, and gearboxes in steel mills, cement plants, mining operations, and manufacturing facilities employ vibration monitoring systems to optimize maintenance schedules, reduce unplanned downtime, and extend asset life.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide comprehensive technical specifications for the 330881-BR-04-150-06-02 PROXPAC XL system. Custom configurations are available for specialized applications.

Selection Recommendations
When specifying proximity transducer systems, consider: maximum shaft displacement during startup/shutdown transients, required measurement bandwidth for fault detection, ambient temperature extremes at installation location, available mounting space and probe insertion depth, compatibility with existing proximitor signal conditioners, and cable routing constraints. For application-specific guidance, provide machinery type, operating speed range, shaft material and diameter, mounting configuration, and environmental conditions. Our engineering team will recommend optimal sensor configuration and mounting hardware.

Advanced Monitoring Capabilities

Multi-Channel Integration
Deploy multiple 330881 transducers in XY probe configurations for comprehensive radial vibration analysis, or combine with axial position sensors for complete rotor dynamic monitoring across thrust and journal bearing locations.

Condition-Based Maintenance Support
Integrate with Bently Nevada System 1 software platforms or third-party SCADA systems via 4-20 mA output modules, enabling automated alarm generation, trend analysis, and predictive maintenance scheduling based on vibration thresholds.

Transient Event Capture
High-frequency response capability captures startup/shutdown transients, blade-pass frequencies, and bearing defect signatures that lower-bandwidth accelerometers may miss, providing early warning of developing mechanical faults.

Delivery, Service & Quality Assurance

Standard catalog items ship from regional distribution centers within 3-5 business days; custom-configured systems with specialized cable lengths or mounting adapters require 10-15 business days lead time. Each PROXPAC XL transducer includes a minimum 12-month manufacturer warranty covering materials and workmanship defects, with extended warranty options available for critical applications.

Technical support services include remote application engineering consultation, on-site installation supervision (region-dependent), and commissioning assistance. Complete documentation package accompanies each system: dimensional drawings, electrical connection diagrams, calibration certificates, installation instructions, and maintenance guidelines for seamless integration and long-term serviceability.

Frequently Asked Questions (FAQ)

Q: How does the PROXPAC XL proximity transducer integrate with existing monitoring systems?
A: The 330881 system connects directly to Bently Nevada 3300 XL proximitor signal conditioners via standard BNC connectors. The proximitor converts the transducer's variable reluctance output to industry-standard 4-20 mA or buffered voltage signals compatible with PLC, DCS, or vibration monitoring platforms. Verify proximitor power supply voltage (typically -24 VDC) and input channel availability before installation.

Q: What is the maximum number of transducers supported per monitoring point?
A: Typical turbomachinery installations use two proximity transducers per radial bearing (XY configuration at 90° orientation) plus one or two axial position sensors per thrust bearing. A complete monitoring system for a single-bearing machine may include 2-4 transducers; multi-bearing trains can require 8-16 channels depending on API 670 requirements and machinery criticality.

Q: What energy savings or efficiency improvements can proximity monitoring provide?
A: While proximity transducers don't directly reduce energy consumption, continuous vibration monitoring enables condition-based maintenance strategies that prevent catastrophic failures, reduce forced outages by 40-60%, and extend bearing life by 25-35%. Early detection of rotor imbalance or misalignment allows corrective action before efficiency-degrading mechanical degradation occurs.

Q: What are the environmental requirements for installing proximity transducers?
A: The 330881 probe assembly carries IP67 protection rating, suitable for outdoor installations with proper cable gland sealing. Avoid direct water spray on connector interfaces; use protective boots or junction boxes in washdown environments. Proximitor signal conditioners require NEMA 4/IP65 minimum enclosure protection. Operating temperature range is -30°C to +100°C; consult factory for extreme temperature applications beyond this range.

Q: Can the system support remote monitoring and data acquisition?
A: Yes, when paired with Bently Nevada 3500 rack-based monitoring systems or System 1 software platforms, the 330881 transducer data can be transmitted via Modbus TCP/IP, OPC UA, or proprietary protocols to remote operations centers. Real-time vibration data, alarm status, and historical trends are accessible through web-based dashboards or mobile applications for off-site diagnostics and expert analysis.

Request Technical Support & Quotation

For detailed system selection assistance, application-specific configuration recommendations, or project quotations, please provide the following information to our engineering team: project name and location, machinery type and application (turbine/compressor/pump/motor), operating speed range (RPM), shaft material and diameter, number of monitoring points required, environmental conditions (temperature/humidity/hazardous area classification), existing monitoring infrastructure (if any), and preferred delivery timeline. Our specialists will respond within 24 hours with tailored recommendations and pricing.
