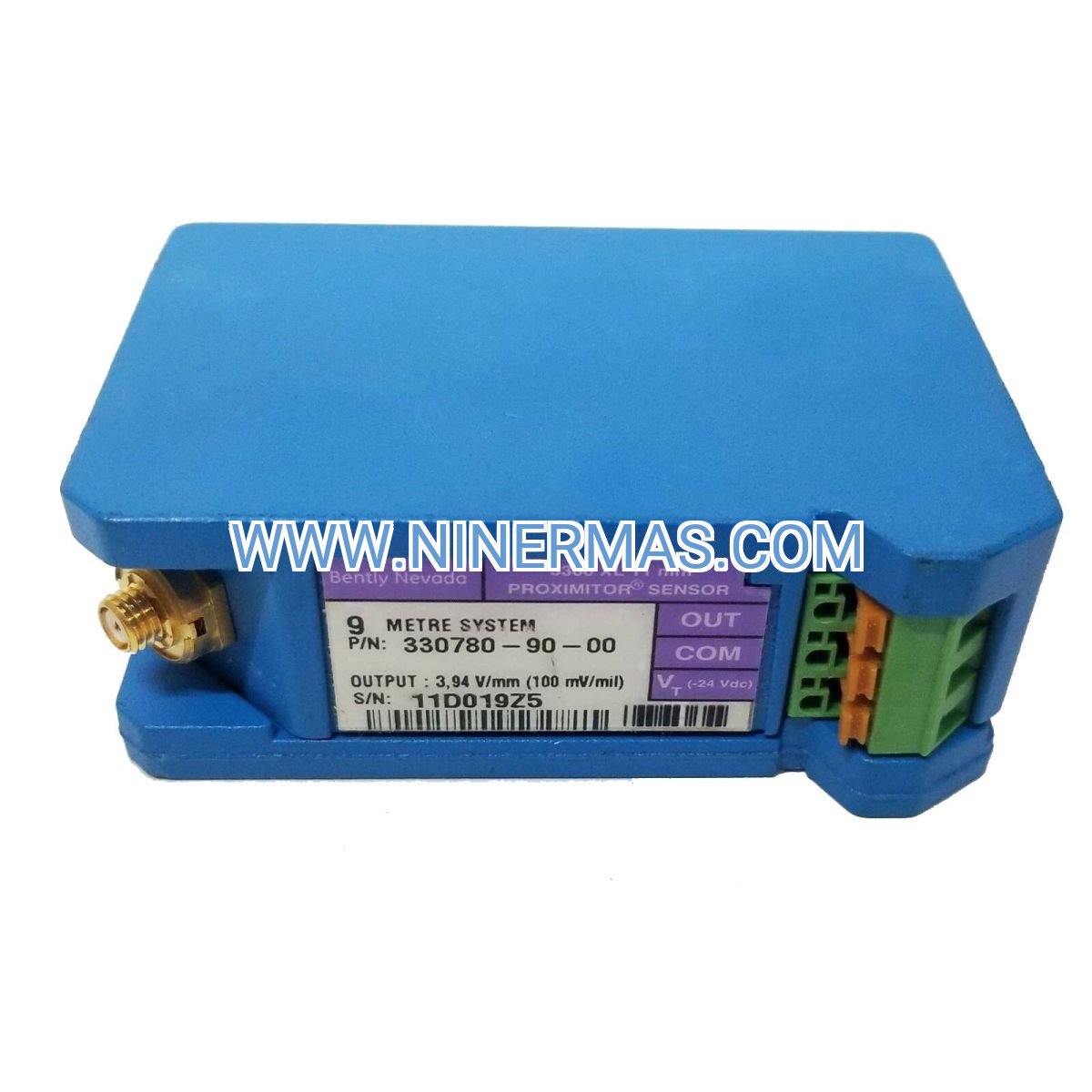

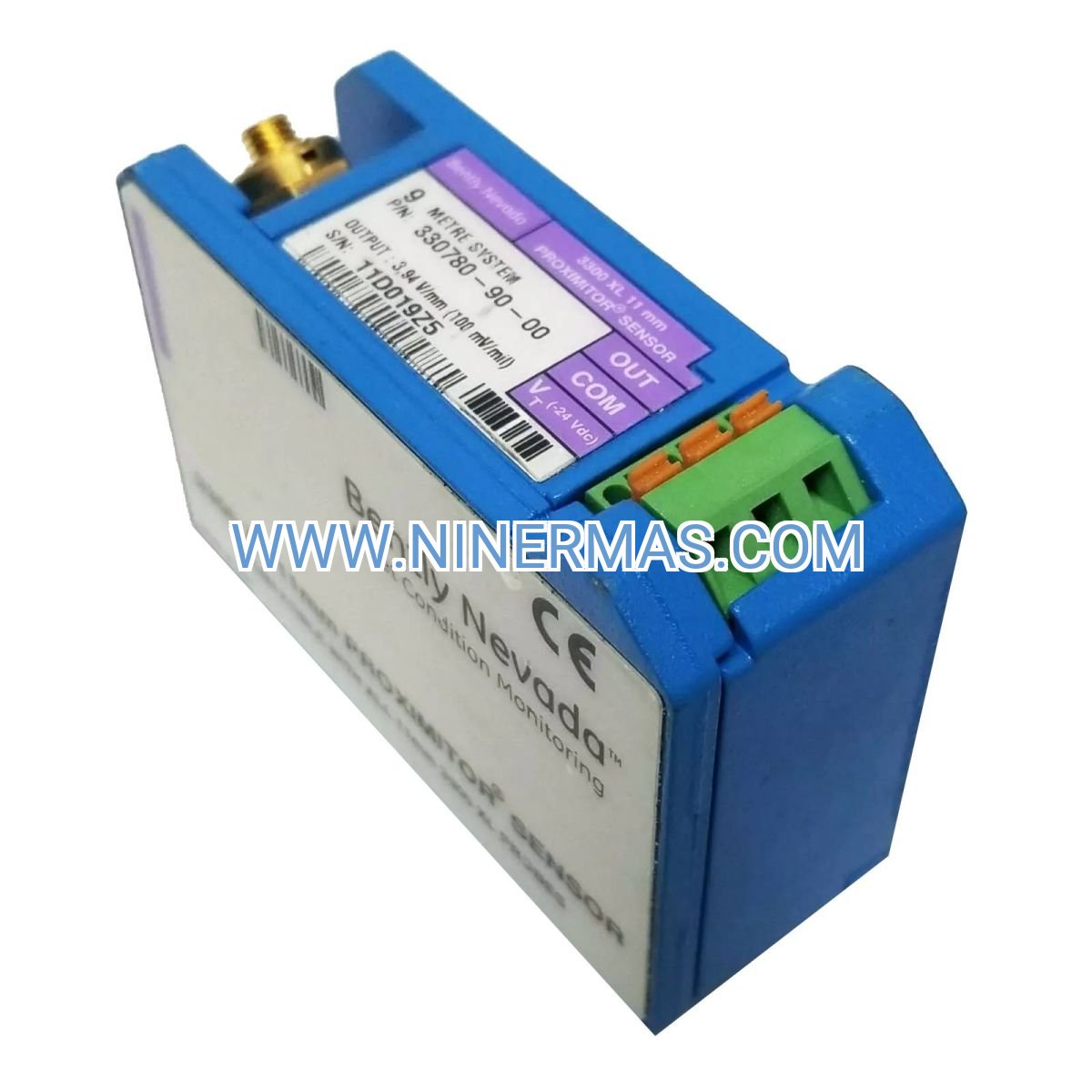

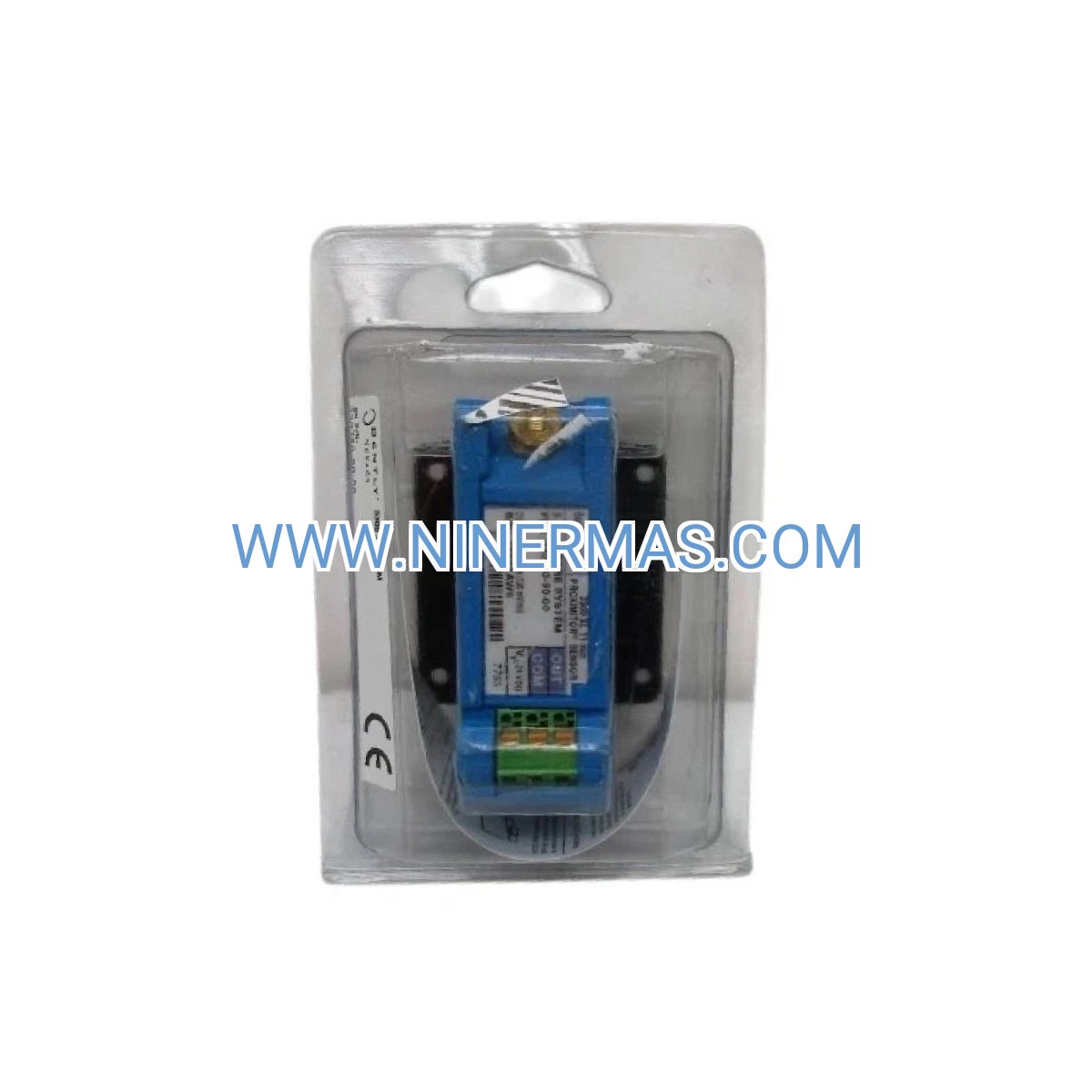

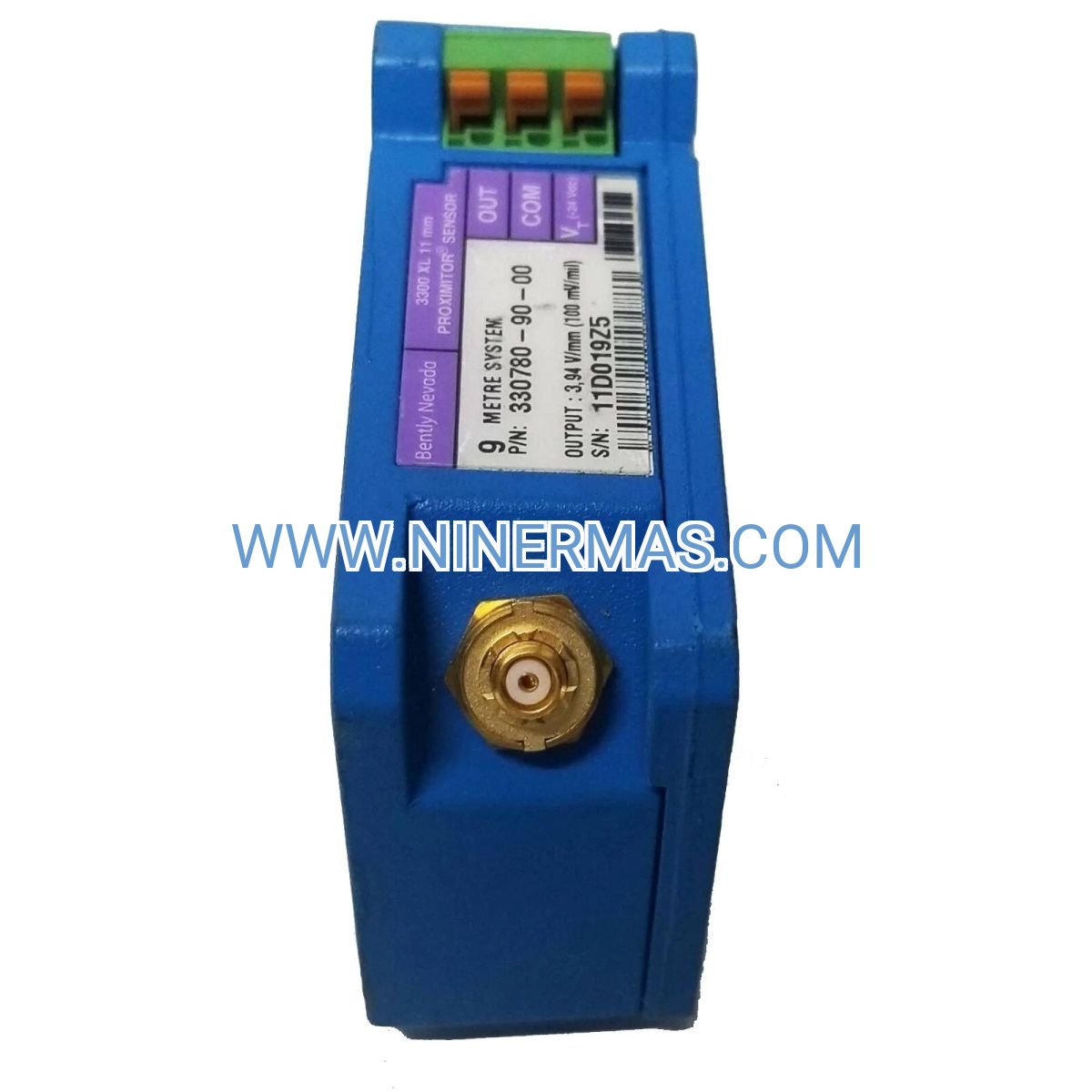

Bently Nevada 330780-90-00 Proximitor Sensor (Industrial-Grade Vibration Monitoring System)

The Bently Nevada 330780-90-00 is an industrial-grade 11mm Proximitor Sensor engineered for non-contact shaft vibration and position measurement in critical rotating machinery. Utilizing advanced eddy current technology with a 9-meter system length and 3.94 V/mm output sensitivity, this sensor delivers precise real-time monitoring through closed-loop proximity detection, ensuring operational stability and extended equipment lifespan.

Designed for high-reliability applications across turbomachinery, compressors, pumps, and motor-driven systems, the 330780-90-00 addresses common challenges including vibration-induced failures, bearing wear detection delays, unplanned downtime, and insufficient early-fault diagnostics. Its factory-calibrated matched-system design eliminates field calibration requirements while maintaining measurement accuracy under harsh industrial conditions.

Through standardized configuration and application-specific customization options, this Proximitor Sensor offers exceptional linearity, thermal stability, contamination resistance, and seamless integration with 3300 XL and 3500 series monitoring platforms. Ideal for design engineers, maintenance teams, system integrators, and plant reliability managers seeking API 670-compliant condition monitoring solutions. Contact our application engineers for tailored selection guidance and technical specifications.

Core Features & Performance Advantages

Non-Contact Eddy Current Measurement
Employs high-frequency eddy current technology with precision-wound coil assembly to detect shaft displacement and vibration without physical contact, eliminating mechanical wear and enabling continuous long-term monitoring in high-speed rotating equipment up to 100,000 RPM.

Extended Linear Range & Accuracy
Delivers 3.94 V/mm (100 mV/mil) output sensitivity across an extended linear measurement range, providing superior resolution for detecting micro-level vibration changes and shaft position deviations critical for predictive maintenance and machinery protection applications.

Factory-Matched System Calibration
Shipped as a complete factory-calibrated sensor system (probe + extension cable), ensuring measurement consistency and eliminating costly field calibration procedures. Reduces installation time by approximately 40% compared to field-calibrated alternatives while guaranteeing traceable accuracy certification.

Robust Environmental Protection
Engineered with hermetically-sealed construction and industrial-grade materials to withstand extreme temperatures (-40°C to +177°C), high vibration environments (up to 50g), moisture ingress (IP67 rating), and chemical exposure common in petrochemical, power generation, and heavy manufacturing facilities.

Comprehensive Machinery Protection
Integrates multiple self-diagnostic capabilities including cable fault detection, target material verification, and temperature drift compensation. Supports critical alarm functions for bearing failure prediction, rotor rub detection, and thrust position monitoring to prevent catastrophic equipment damage.

Universal Platform Compatibility
Seamlessly interfaces with Bently Nevada 3300 XL Proximitor modules, 3500 series rack-based monitoring systems, and third-party DCS/SCADA platforms via industry-standard 4-20mA, Modbus RTU, and OPC UA protocols, enabling flexible integration into existing plant automation architectures.

Typical Application Scenarios

This Proximitor Sensor is engineered for demanding industrial environments requiring continuous vibration monitoring, precise shaft positioning, and early fault detection capabilities, particularly in:

Turbomachinery & Rotating Equipment
Provides critical vibration and axial position monitoring for steam turbines, gas turbines, centrifugal compressors, and turboexpanders in power generation and oil & gas facilities. Detects bearing degradation, rotor imbalance, and shaft misalignment before catastrophic failure, supporting API 670 and ISO 20816 compliance requirements.

Petrochemical & Refining Process Equipment
Monitors high-speed pumps, blowers, and agitators handling corrosive fluids and operating under extreme pressure/temperature conditions. Enables condition-based maintenance strategies that reduce unplanned shutdowns by up to 60% while extending mean time between failures (MTBF) for critical process machinery.

Power Generation & Utility Systems
Essential for generator rotor eccentricity measurement, hydro turbine guide bearing monitoring, and balance-of-plant auxiliary equipment protection. Supports real-time vibration trending and automated trip logic integration for grid stability and asset protection in combined-cycle, nuclear, and renewable energy installations.

Heavy Industry & Manufacturing
Applied in steel mill rolling stands, paper machine dryer sections, mining conveyor drive systems, and cement kiln support bearings. Facilitates predictive maintenance programs through continuous vibration signature analysis, reducing maintenance costs by 25-35% compared to time-based service intervals.

Technical Parameters & Selection Guide

To streamline engineering design and equipment specification, we provide standardized configurations with comprehensive technical parameters. Custom system lengths, mounting options, and cable terminations are available for project-specific requirements.

Selection Considerations
When specifying the 330780-90-00 Proximitor Sensor, consider the following application parameters: maximum shaft diameter and surface finish, required measurement range and resolution, installation space constraints and probe mounting orientation, ambient temperature and vibration exposure levels, cable routing distance from sensor to monitoring system, and compatibility with existing Bently Nevada infrastructure. For assistance with system configuration, provide machinery specifications including shaft material, operating speed range, bearing type, and monitoring objectives. Our application engineers will recommend optimal sensor placement, mounting hardware, and compatible Proximitor modules.

Advanced Integration Capabilities

Multi-Channel Monitoring Architecture
Supports radial vibration measurement in XY orthogonal configurations, enabling orbit analysis and phase-resolved vibration diagnostics. Compatible with dual-channel Proximitor modules for simultaneous horizontal and vertical plane monitoring, critical for rotor dynamic analysis and balancing operations.

Predictive Maintenance Integration
Seamlessly connects to Bently Nevada System 1 condition monitoring software and third-party CMMS platforms via OPC UA and Modbus TCP protocols. Enables automated vibration trending, spectral analysis, and machine learning-based anomaly detection for proactive maintenance scheduling and asset performance optimization.

Safety Instrumented System (SIS) Compliance
When paired with certified safety barriers and SIL-rated Proximitor modules, achieves SIL 2 capability per IEC 61508 for machinery protection applications. Supports redundant sensor configurations and voting logic for critical shutdown systems in high-consequence failure scenarios.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog items ship within 3-5 business days from regional distribution centers. Custom system lengths and special cable configurations require 2-3 weeks manufacturing lead time. Expedited processing available for critical outage support and emergency replacement requirements.

Warranty & Technical Support
All 330780-90-00 sensors include a comprehensive 24-month manufacturer warranty covering materials, workmanship, and calibration accuracy. Extended warranty programs and on-site commissioning services available upon request. Lifetime technical support includes application engineering consultation, troubleshooting assistance, and firmware updates.

Documentation & Certification
Each sensor system ships with complete technical documentation including calibration certificates (traceable to NIST standards), installation drawings per Bently Nevada specification 141092, wiring diagrams, dimensional specifications, and material certifications. ATEX, IECEx, and CSA hazardous location certifications available for Zone 1/Division 1 installations when used with approved intrinsic safety barriers.

Installation & Commissioning Services
Factory-trained field service engineers provide on-site installation supervision, sensor alignment verification, baseline vibration surveys, and operator training. Remote commissioning support available via secure VPN connection for system configuration, diagnostic testing, and performance validation.

Frequently Asked Questions (FAQ)

Q: How does the 330780-90-00 Proximitor Sensor differ from accelerometer-based vibration monitoring?
A: Proximitor sensors measure absolute shaft displacement relative to the bearing housing using non-contact eddy current technology, providing direct rotor vibration data independent of casing vibration. Accelerometers measure casing acceleration and require double integration to derive displacement. For rotating machinery with fluid-film bearings, Proximitor sensors offer superior low-frequency response (down to 0 Hz) and direct measurement of rotor dynamic behavior, making them the preferred choice for API 670 machinery protection systems.

Q: What is the maximum system length available, and can extension cables be added?
A: The 330780-90-00 is factory-calibrated as a 9-meter complete system. While extension cables (such as 330130 series) can physically connect, adding extensions after factory calibration will alter system sensitivity and require field recalibration using a Bently Nevada TK-3 calibration kit. For installations requiring longer cable runs, we recommend ordering factory-calibrated systems in 5m, 9m, or custom lengths up to 15 meters to maintain measurement accuracy and warranty coverage.

Q: Can this sensor monitor non-ferrous shafts such as stainless steel or titanium?
A: The 330780-90-00 is factory-calibrated for AISI 4140 carbon steel targets. Non-ferrous materials (stainless steel 300-series, titanium, aluminum) exhibit different magnetic permeability and electrical conductivity, resulting in altered sensitivity curves. For non-ferrous applications, contact our engineering team for material-specific calibration data or consider ordering sensors with custom calibration certificates. Alternative probe designs optimized for non-magnetic materials are available within the 3300 XL product family.

Q: Is the 330780-90-00 suitable for hazardous area installations in oil & gas facilities?
A: Yes, when installed with approved intrinsic safety (IS) barriers such as Bently Nevada 330990 series Proximitor modules with built-in IS interfaces, the sensor system can be certified for Class I Division 1 (North America) or Zone 0 (IECEx/ATEX) hazardous locations. The sensor itself is a passive device; hazardous area compliance is achieved through the barrier/module combination. Consult factory documentation for specific entity parameters and installation requirements per NEC Article 504 or IEC 60079-11 standards.

Q: What maintenance is required for Proximitor Sensors in continuous operation?
A: Proximitor sensors are solid-state devices with no moving parts, requiring minimal maintenance. Recommended practices include quarterly visual inspection of cable connections and probe mounting security, annual verification of gap voltage to confirm proper target clearance (typically 1.0-2.0mm for 11mm probes), and periodic comparison of vibration readings against baseline signatures to detect sensor drift or target surface degradation. Cable insulation resistance testing every 2-3 years helps identify moisture ingress before measurement errors occur.

Q: How do I select between 5m, 9m, and custom system lengths?
A: System length selection depends on the physical distance between the sensor mounting location and the Proximitor module/monitoring rack. Measure the cable routing path including vertical rises, cable tray runs, and penetration seals, then add 15-20% margin for service loops and future modifications. The 9-meter (330780-90-00) configuration suits most turbomachinery installations with centralized control rooms. For compact skid-mounted equipment, 5-meter systems (330780-50-00) reduce cable clutter. Custom lengths minimize excess cable while avoiding the sensitivity errors introduced by field-added extensions.

Request Technical Consultation

For detailed application engineering support, custom system configuration, or project-specific quotations, please provide the following information to our technical sales team:

• Equipment type and manufacturer (e.g., centrifugal compressor, steam turbine model)
• Shaft diameter, material, and surface finish at measurement location
• Operating speed range (minimum/maximum RPM)
• Number of measurement points and radial/axial orientation requirements
• Cable routing distance from sensor to monitoring system
• Environmental conditions (temperature range, hazardous area classification)
• Existing monitoring infrastructure (3300 XL, 3500 series, or third-party DCS)
• Compliance requirements (API 670, ISO 20816, SIL rating)

Our application engineers will provide comprehensive selection guidance including sensor placement recommendations, mounting hardware specifications, compatible Proximitor modules, and system integration drawings within 24-48 hours.
