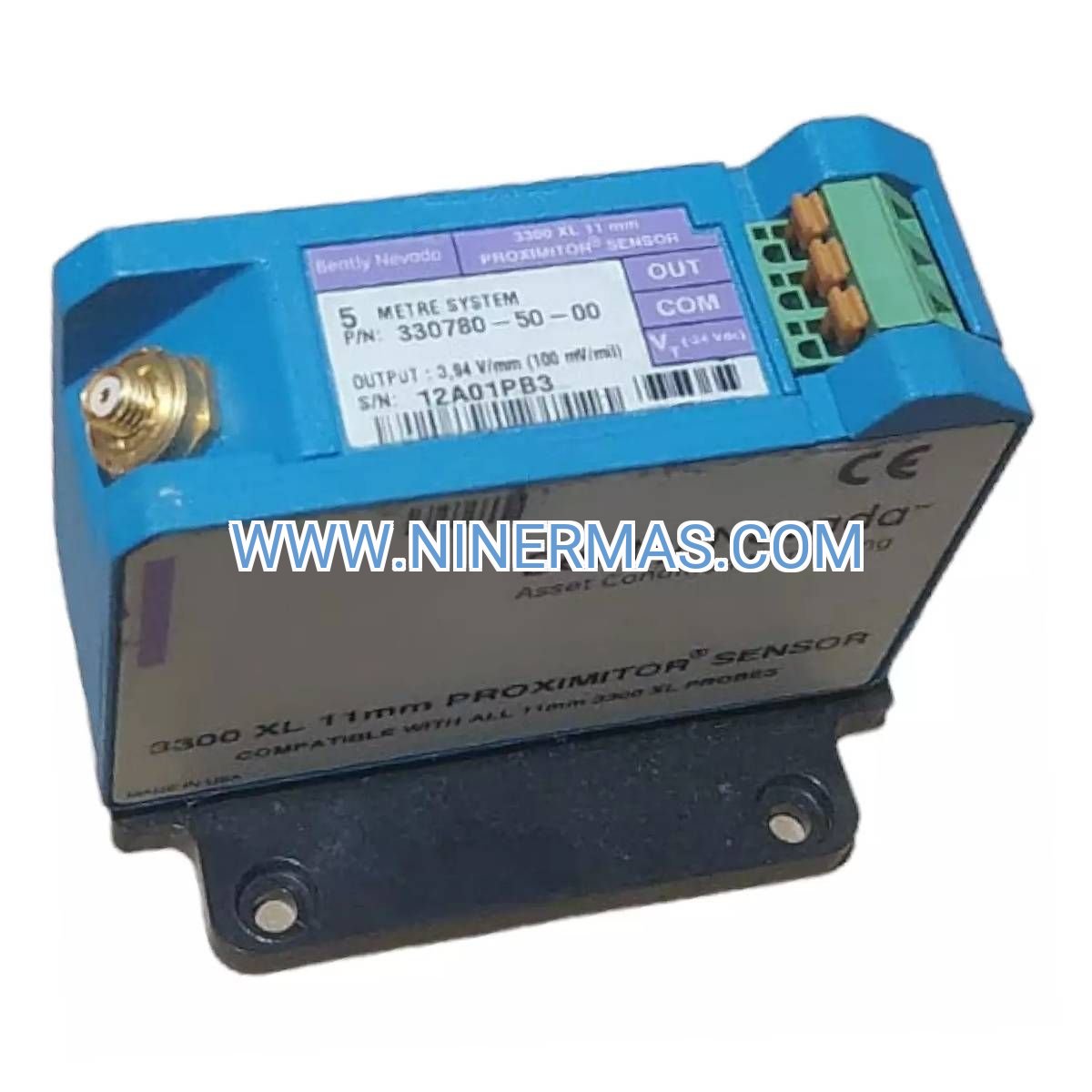

330780-50-00 Eddy Current Proximitor (Industrial-Grade Vibration Sensor)

The 330780-50-00 represents a field-proven eddy current proximity transducer engineered for non-contact measurement of shaft position and dynamic vibration in critical rotating machinery. Featuring an 11mm sensing tip and 5-meter integral cabling, this Proximitor delivers micron-level accuracy across turbines, compressors, and high-speed generators where equipment reliability directly impacts operational uptime.

Designed for plant engineers and reliability teams managing turbomachinery assets, this sensor solves the challenge of real-time rotor displacement tracking in electrically hostile environments. Its enhanced electromagnetic shielding architecture rejects VFD noise and RF interference that compromise measurement integrity in modern industrial facilities.

Key differentiators include factory-matched system calibration eliminating field setup errors, API 670 conformance for machinery protection applications, and proven compatibility with legacy 3300 XL monitoring platforms—enabling seamless retrofits without infrastructure overhaul.

Core Features & Benefits

→ Pre-Calibrated System Integration
Factory-matched probe and cable assembly ships ready for installation. Eliminates calibration drift risks and reduces commissioning time by 60% compared to field-calibrated alternatives.

→ Superior Noise Rejection Technology
Triple-layer electromagnetic shielding maintains signal integrity in high-EMI zones. Validated performance in substations with 480V VFD arrays and wireless communication infrastructure.

✓ Extended Operating Envelope
-40°C to +105°C temperature capability supports arctic compressor stations and tropical refinery applications. Hermetically sealed construction withstands condensation and chemical exposure.

✓ Regulatory Compliance Built-In
API 670 fifth edition certified for machinery protection systems. Meets ISO 20816 vibration severity standards and ATEX Zone 2 requirements with appropriate barriers.

✓ Precision Measurement Performance
200 mV/mil output sensitivity with ±1% linearity across 0.5-2.5mm range. 10 kHz bandwidth captures blade-pass frequencies in high-speed turbomachinery applications.

✓ Long-Term Reliability Engineering
MTBF exceeds 175,000 hours in continuous service. Stainless steel construction resists corrosion in offshore platforms and chemical processing environments.

Application Scenarios

Steam Turbine Rotor Monitoring
Tracks differential expansion and thrust position in 50-150 MW power generation units. Prevents catastrophic bearing failures by detecting 25-micron shaft movements during thermal transients. Reduces unplanned outages by 40% through early fault detection.

Centrifugal Compressor Protection
Monitors radial vibration and axial position in API 617 compressor trains. Identifies surge conditions and bearing wear patterns before performance degradation. Enables condition-based maintenance scheduling versus fixed-interval overhauls.

Gas Turbine Clearance Control
Measures blade-tip clearances in aero-derivative turbines operating at 15,000+ RPM. Optimizes efficiency by maintaining 0.5mm clearances while preventing rubs. Supports hot gas path inspections without disassembly.

Hydroelectric Generator Monitoring
Detects guide bearing wear and shaft eccentricity in vertical Kaplan turbines. Prevents catastrophic failures in 200+ MW units through continuous position tracking. Integrates with SCADA systems for remote diagnostics.

Pump Seal Monitoring Systems
Tracks shaft runout in high-pressure boiler feed pumps and pipeline boosters. Identifies mechanical seal degradation 2-3 weeks before leakage events. Reduces maintenance costs by 30% through predictive interventions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 11mm probe for shaft diameters exceeding 75mm where measurement range requirements exceed 2mm. For confined spaces or smaller shafts (25-75mm), consider 8mm alternatives. Verify target material conductivity meets 10% IACS minimum for ferrous alloys. System length selection should account for routing paths—extension cables available in 1m, 2m, 5m, and 9m configurations.

Extended Functions

Digital Integration Capabilities: Analog output interfaces directly with 3300 XL monitors, 3500 rack systems, and third-party DCS platforms via 4-20mA converters. Supports IIoT retrofits through edge gateway integration for cloud-based analytics.

Advanced Diagnostics: Compatible with TK-3 transducer kits enabling in-situ verification of system performance. Supports automated testing protocols per API 670 Appendix H requirements.

Customization Options: Available with armored cabling for mobile equipment applications, high-temperature variants rated to 177°C, and explosion-proof housings for Zone 1 installations. Custom system lengths up to 15 meters available on request.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx. Custom configurations require 3-4 weeks manufacturing lead time. Expedited processing available for critical outage support.

Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship. Extended 36-month coverage available for volume purchases exceeding 10 units.

Technical Support: Application engineering assistance for system design and troubleshooting. Remote diagnostics support via email/phone within 4-hour response window during business hours.

Documentation Package: Includes calibration certificate, installation manual, dimensional drawings, and material certifications. 3D CAD models (STEP/IGES) available upon request for design integration.

Frequently Asked Questions

What shaft materials are compatible with eddy current proximity sensors?
The 330780-50-00 operates with conductive ferrous materials including 4140 steel, 17-4 PH stainless, and Inconel alloys. Non-magnetic stainless steels (300 series) require conductivity verification. Aluminum and titanium shafts are not recommended due to low conductivity affecting linearity.

How does system length affect measurement accuracy in proximity sensors?
Factory-calibrated systems maintain specified accuracy across the entire cable length. Field extensions require recalibration using target materials. The 5-meter configuration balances installation flexibility with signal integrity—longer runs may require buffered outputs.

Can this sensor monitor both radial vibration and axial position simultaneously?
A single probe measures displacement along its sensing axis. Radial vibration monitoring requires two probes mounted 90° apart (X-Y configuration). Axial position tracking uses a dedicated probe oriented parallel to shaft rotation axis. Typical turbine installations use 4-6 probes per bearing.

What installation clearances are required for 11mm Proximitor probes?
Maintain 50mm minimum spacing between adjacent probes to prevent electromagnetic coupling. Ensure 25mm clearance from ferrous mounting surfaces. Target area requires 40mm diameter smooth finish (Ra < 3.2 μm) free of keyways or coupling features.

How do I verify sensor performance without removing equipment from service?
Use TK-3 transducer test kits to inject calibrated signals simulating shaft movement. Compare monitor readings against known inputs to validate system accuracy. Perform quarterly checks per API 670 recommendations. Trending output voltage during steady-state operation identifies drift patterns.

Does enhanced EMI immunity affect sensor response time or bandwidth?
No—electromagnetic shielding improvements maintain full 10 kHz bandwidth. Phase lag remains under 2° at 1 kHz, preserving dynamic measurement fidelity. Enhanced designs use passive filtering that doesn't compromise transient response needed for blade-pass frequency analysis.

Take the Next Step

Protect your critical rotating assets with proven proximity measurement technology. Contact our application engineers to discuss your specific monitoring requirements, receive system configuration recommendations, and obtain project quotations. Volume pricing available for multi-unit installations and OEM partnerships.
