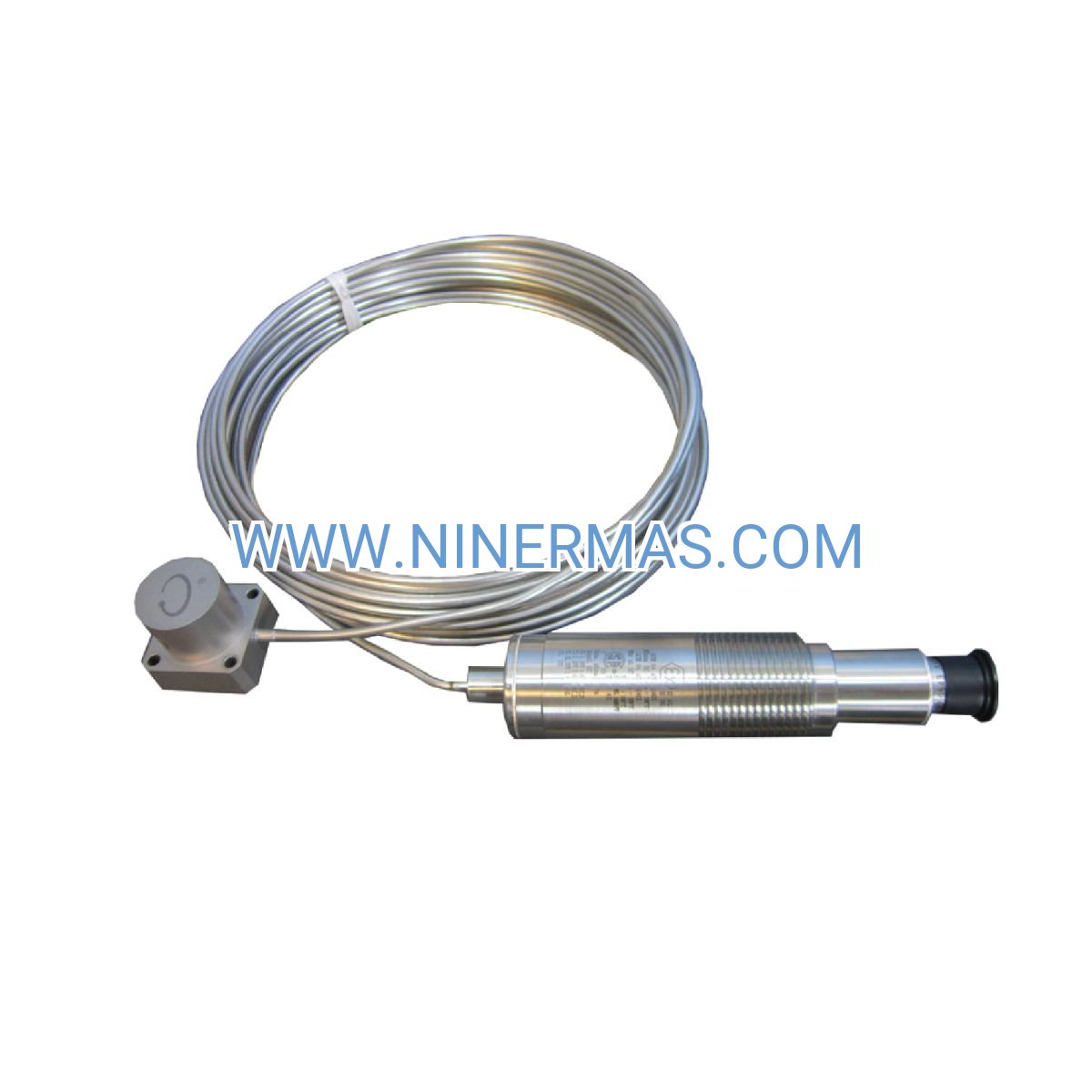

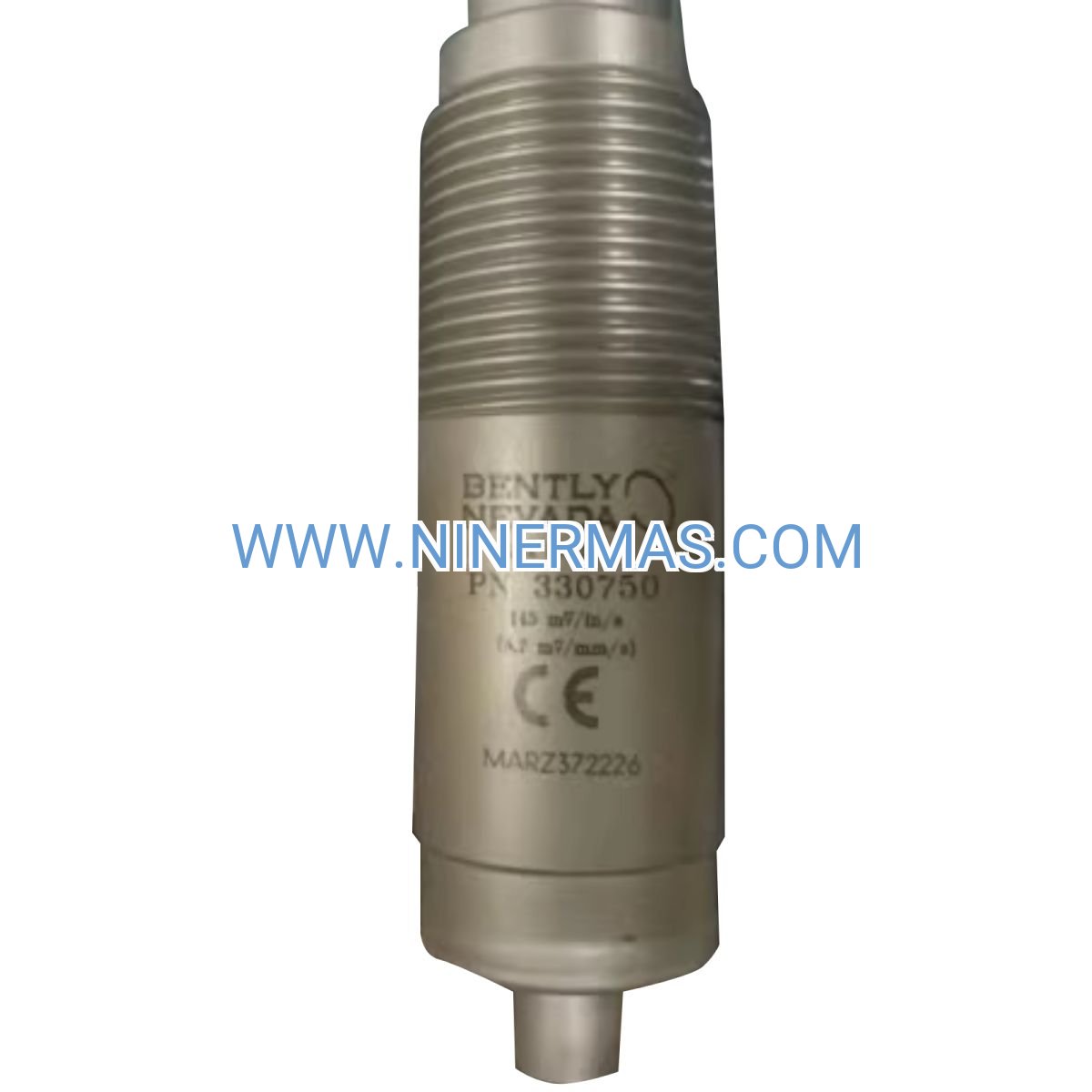

330750-80-05 Velomitor Sensor (Industrial-Grade Velocity Transducer)

The 330750-80-05 represents Bently Nevada's premium solution for velocity-based vibration monitoring in extreme thermal environments. This self-generating transducer delivers continuous casing vibration data from rotating machinery operating at temperatures reaching +400°C (+752°F), enabling predictive maintenance strategies that prevent costly unplanned shutdowns in power generation, petrochemical processing, and heavy industrial facilities.

Engineered for mission-critical applications where sensor failure is not an option, the 330750-80-05 combines hermetically sealed construction with integral armored cabling to withstand thermal cycling, mechanical shock, and electromagnetic interference. Target users include reliability engineers, maintenance managers, and plant operators responsible for gas turbines, steam turbines, centrifugal compressors, and other high-value rotating assets.

Key advantages include zero external power requirements, direct compatibility with 3300 series monitoring infrastructure, and proven field reliability across thousands of installations worldwide. The sensor's 10 Hz to 2000 Hz frequency response captures both low-speed imbalance signatures and high-frequency bearing defects, providing comprehensive machinery health visibility.

Core Features & Benefits

• ✓ Extreme Thermal Capability: Continuous operation from -55°C to +400°C enables monitoring in turbine hot sections, exhaust casings, and high-pressure steam environments where standard sensors fail within hours
• li>

✓ Self-Generating Technology:

• Velocity-proportional output requires no external power supply, eliminating failure modes associated with powered accelerometers and reducing installation complexity
• ✓ Hermetic Seal Construction: Stainless steel housing with welded seams prevents moisture ingress and contamination, ensuring 10+ year service life in corrosive industrial atmospheres
• ✓ Integral Armored Cable: Factory-terminated MIL-C-5015 connector with braided armor provides superior EMI rejection and mechanical protection compared to field-wired alternatives
• ✓ Wide Frequency Bandwidth: 10-2000 Hz response (±3 dB) captures subsynchronous instabilities, running speed harmonics, gear mesh frequencies, and rolling element bearing defects in a single measurement
• ✓ 3300 Series Integration: Plug-and-play compatibility with existing Bently Nevada monitors eliminates costly system upgrades while leveraging proven diagnostic algorithms

Application Scenarios

→ Combined-Cycle Power Plants: Monitor combustion turbine bearing housings and exhaust frames where temperatures exceed 350°C during peak load operation. Early detection of bearing wear prevents secondary damage to rotors and casings, avoiding $2M+ repair costs and 6-week outages.

→ Petrochemical Cracking Units: Track centrifugal compressor casing vibration in ethylene plants and refineries where process temperatures reach 300°C. Velocity trending identifies developing rotor rubs and seal failures before catastrophic release events.

→ Steam Turbine High-Pressure Sections: Install on HP turbine casings operating at 540°C steam temperatures in coal-fired and nuclear facilities. Continuous monitoring satisfies regulatory requirements while enabling condition-based inspection intervals.

→ Industrial Gas Turbine Generators: Deploy on Frame 7/9 class turbines in cogeneration and mechanical drive applications. Velocity data feeds into overall vibration calculations per ISO 20816 standards, supporting warranty compliance and insurance requirements.

→ Offshore Platform Compression: Monitor gas lift compressors and pipeline booster stations in high-temperature offshore environments. Hermetic construction withstands salt spray and humidity while armored cable resists mechanical damage during maintenance activities.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330750-80-05 when surface temperatures exceed +200°C or when hermetic sealing is required for washdown environments. For standard industrial applications below +120°C, consider the 330500 series for cost optimization. Cable length options include -03 (3m), -05 (5m), -08 (8m), and -15 (15m) suffixes—select based on distance to monitoring system to minimize signal degradation.

Extended Functions

IoT Integration: Velocity outputs interface with Bently Nevada System 1 software for cloud-based condition monitoring and remote diagnostics. API connectivity enables integration with plant-wide asset performance management (APM) platforms including GE Predix, Siemens MindSphere, and OSIsoft PI System.

Advanced Diagnostics: When paired with 3500 series rack monitors, the sensor supports automated fault detection algorithms including imbalance, misalignment, looseness, resonance, and bearing defect pattern recognition. Spectral analysis and orbit plots provide root-cause identification without specialist interpretation.

Customization Options: Factory modifications available for special applications include extended cable lengths to 30 meters, alternative connector styles (Bendix, Deutsch), metric mounting threads (M8×1.25), and custom sensitivity ranges. Intrinsically safe (IS) versions certified for Zone 0 hazardous areas available on request.

Delivery & Service Assurance

Lead Time: Standard configuration units ship within 3-5 business days from regional distribution centers. Custom cable lengths and special certifications require 2-3 weeks factory lead time. Expedited processing available for critical outage support.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, calibration drift, and hermetic seal integrity. Extended warranty programs available for up to 5 years with annual calibration verification.

Technical Support: Unlimited access to application engineers for mounting guidance, cable routing recommendations, and monitor configuration assistance. 24/7 emergency support hotline for troubleshooting during planned and unplanned outages.

Documentation Package: Each sensor ships with factory calibration certificate traceable to NIST standards, dimensional drawings, installation instructions, and material certifications (MTRs) for pressure equipment compliance. Digital copies available via QR code for paperless maintenance systems.

Frequently Asked Questions

Q: How does the 330750-80-05 high-temperature Velomitor compare to standard accelerometers for turbine monitoring?
A: Unlike accelerometers that require external power and fail above 150°C, the 330750-80-05 is self-generating and operates continuously to +400°C. Velocity output directly indicates vibration severity per ISO standards without integration or differentiation, simplifying alarm setpoint configuration.

Q: What cable routing precautions are necessary for high-temperature installations?
A: Route the armored cable away from surfaces exceeding +200°C for the first 300mm from the sensor body. Use cable clamps every 500mm to prevent vibration-induced fatigue. Maintain 150mm minimum separation from AC power cables to prevent electromagnetic interference.

Q: Can the sensor measure axial vibration or only radial casing movement?
A: The 330750-80-05 measures vibration along its sensing axis. For comprehensive monitoring, install sensors in orthogonal pairs (horizontal/vertical) or triaxial configurations. Axial measurements require mounting perpendicular to the shaft axis on thrust bearing housings.

Q: Is field calibration required after installation or following sensor replacement?
A: No field calibration is necessary. Each sensor ships with factory calibration at 100 mV/in/s ±10%. Monitor systems accept this standard sensitivity. Recalibration is recommended every 5 years or after exposure to temperatures exceeding +425°C.

Q: What monitoring system compatibility exists beyond Bently Nevada 3300 series?
A: The sensor's voltage output is compatible with any vibration monitor accepting 100 mV/in/s velocity signals, including SKF, Emerson CSI, Metrix, and Commtest systems. Verify input impedance exceeds 10 kΩ and frequency response matches sensor bandwidth.

Q: How do I verify sensor functionality before commissioning critical machinery?
A: Perform a tap test by gently striking the sensor body with a plastic mallet while monitoring output on an oscilloscope or portable vibration meter. A clean decaying sinusoid at the sensor's natural frequency (~180 Hz) confirms proper operation. Output amplitude should exceed 500 mV peak.

Ready to Enhance Your Machinery Protection Strategy?

Contact our vibration monitoring specialists to discuss your specific application requirements, receive mounting recommendations, and obtain a detailed quotation. Our team provides complimentary site surveys for multi-sensor installations and can coordinate with your maintenance planning to minimize installation downtime.

Request a Quote: Email your machinery specifications, operating temperatures, and monitoring objectives to our technical sales team for same-day response.
