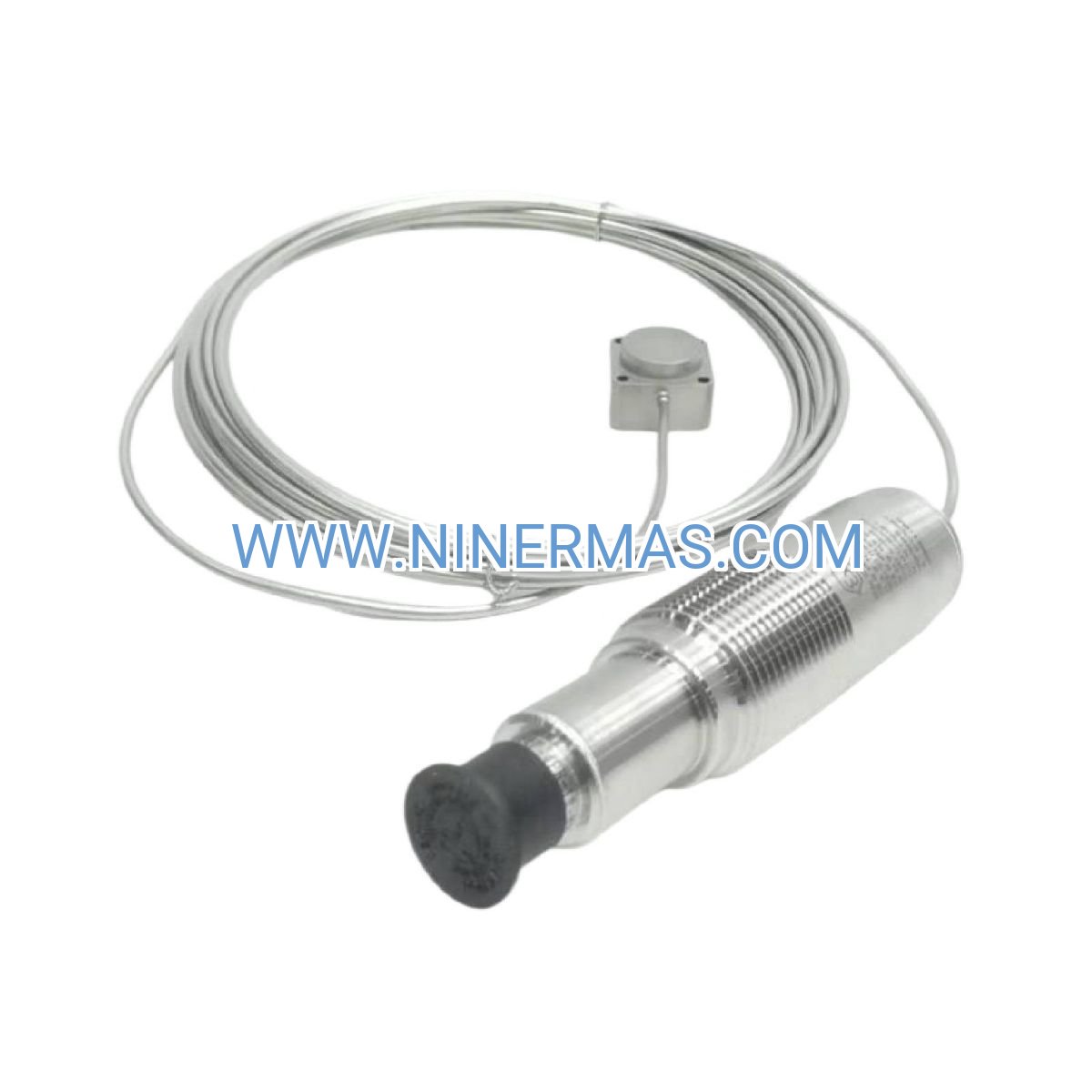

The 330750-60-05 High Temperature Velomitor is an industrial vibration monitoring sensor engineered for extreme thermal environments, utilizing advanced piezoelectric velocity sensing technology combined with hermetically sealed construction to deliver continuous, accurate velocity measurements in operating zones from -40°C to +350°C (-40°F to +662°F).
Designed for critical rotating machinery in power generation, petrochemical processing, steel production, and cement manufacturing facilities, this system addresses challenges including sensor failure under thermal stress, measurement drift in high-heat zones, inadequate early fault detection in extreme conditions, and costly unplanned shutdowns due to monitoring blind spots.
Through ruggedized design and field-proven reliability, the 330750-60-05 delivers thermal stability across 390°C operating span, hermetic IP68 protection against contamination, 4-20 mA loop-powered output for long-distance transmission, and seamless integration with existing 3300 Series infrastructure. Ideal for design engineers, maintenance teams, EPC contractors, and plant reliability managers requiring specification-grade solutions. Contact our application engineers for thermal zone mapping, sensor placement optimization, and system integration proposals.
Extended Thermal Operating Range
Continuous operation from -40°C to +350°C enables monitoring on steam turbine casings, kiln shell bearings, hot gas compressors, and reformer furnace equipment where standard sensors cannot survive, eliminating thermal monitoring gaps in your asset protection strategy.
Precision Velocity Measurement Architecture
Factory-calibrated 100 mV/in/s sensitivity with 10 Hz to 2000 Hz frequency response captures bearing defects, unbalance, misalignment, and looseness signatures across the machinery fault spectrum, providing actionable diagnostic intelligence for condition-based maintenance programs.
Hermetic Environmental Protection
Stainless steel housing with IP68 ingress protection and integral armored cable assembly withstands washdown environments, corrosive atmospheres, moisture ingress, and mechanical impact, ensuring measurement integrity in the harshest industrial settings.
Loop-Powered 4-20 mA Output
Industry-standard current loop transmission enables cable runs exceeding 1000 meters without signal degradation, simplifies integration with DCS/SCADA systems, and provides intrinsic noise immunity in electrically noisy plant environments.
Plug-and-Play 3300 Series Compatibility
Direct electrical and mechanical interchangeability with existing Bently Nevada monitor modules, proximitor racks, and data acquisition systems accelerates retrofit projects, reduces commissioning time, and leverages your installed monitoring infrastructure investment.
Long-Term Calibration Stability
High-Curie-temperature piezoelectric elements and thermal compensation circuitry maintain measurement accuracy within ±5% over 24-month intervals, reducing calibration frequency, minimizing maintenance windows, and lowering total cost of ownership.
This sensor addresses velocity monitoring requirements in thermally demanding installations where asset criticality and environmental extremes converge:
Power Generation & Cogeneration Plants
Steam turbine bearing pedestals, gas turbine hot sections, boiler feed pump casings, generator exciter bearings, and condensate extraction pump housings operating at sustained elevated temperatures require continuous vibration surveillance to prevent catastrophic failures and forced outages.
Petrochemical & Refining Operations
Catalytic cracker main air blowers, delayed coker drum equipment, hot oil circulation pumps, reformer charge heaters, and ethylene cracker compressor trains demand thermal-resistant monitoring to maintain process uptime and personnel safety in hazardous area classifications.
Primary Metals & Steel Production
Continuous casting machine drives, reheat furnace pusher mechanisms, hot strip mill backup roll bearings, blast furnace blower assemblies, and ladle transfer car gearboxes experience extreme thermal cycling requiring robust velocity monitoring for predictive maintenance scheduling.
Cement & Mineral Processing
Rotary kiln support roller assemblies, clinker cooler fan bearings, raw mill gearbox housings, preheater tower equipment, and coal mill drives operate in high-temperature, high-dust environments where sensor survivability directly impacts production availability and maintenance costs.
Pulp, Paper & Biomass Energy
Recovery boiler induced draft fans, Yankee dryer bearing assemblies, black liquor evaporator drives, lime kiln support systems, and biomass boiler equipment require continuous monitoring despite sustained thermal exposure and corrosive process conditions.
To facilitate engineering specification and procurement, we provide comprehensive technical data for the 330750-60-05 system. Custom configurations available for non-standard mounting, cable lengths, and output signal requirements.
| Parameter | Specification |
|---|---|
| Model Designation | 330750-60-05 |
| Operating Temperature | -40°C to +350°C (-40°F to +662°F) continuous |
| Measurement Type | Velocity (in/s or mm/s) |
| Frequency Response | 10 Hz to 2000 Hz (±3 dB) |
| Sensitivity | 100 mV/in/s nominal (3.94 mV/mm/s) |
| Measurement Range | 0 to 2.0 in/s pk (0 to 50 mm/s pk) |
| Output Signal | 4-20 mA proportional to velocity |
| Power Requirement | Loop-powered via 4-20 mA circuit |
| Housing Material | 316 stainless steel, hermetically sealed |
| Mounting Interface | 1/4-28 UNF stud mount |
| Cable Type | Integral armored cable with MIL-spec connector |
| Environmental Rating | IP68 (dust-tight and waterproof to 1.5m) |
| Weight | Approximately 0.2 kg (sensor body) |
| Compliance | CE, RoHS, ATEX/IECEx available |
Application Selection Guidelines
When specifying the 330750-60-05, consider: maximum sustained surface temperature at mounting location, ambient vibration levels and expected fault frequencies, available mounting surface preparation and thread engagement depth, cable routing distance to monitoring system or junction box, hazardous area classification requirements (if applicable). For applications below 120°C, standard-temperature Velomitor models offer cost advantages. Our application engineers provide complimentary sensor placement studies, thermal zone analysis, and system architecture recommendations—submit your machinery drawings, operating parameters, and monitoring objectives for tailored proposals.
Multi-Point Monitoring Architecture
Deploy the 330750-60-05 as part of a comprehensive machinery protection system by combining with proximity probes for shaft displacement, accelerometers for high-frequency bearing diagnostics, and temperature sensors for thermal trending. Integrate with Bently Nevada 3500 rack-based monitors or 1900/65A general-purpose equipment monitors for alarm generation, trending, and predictive analytics.
Wireless & Remote Monitoring Options
For installations where cable routing is cost-prohibitive or physically impractical, pair with wireless vibration transmitters supporting 4-20 mA input for battery-powered remote monitoring. Cloud-connected IIoT gateways enable centralized multi-site condition monitoring dashboards and automated alert escalation workflows.
Calibration & Verification Equipment
Maintain measurement traceability with portable vibration calibrators, handheld data collectors for field verification, and benchtop shaker systems for periodic recertification. We supply NIST-traceable calibration services and can coordinate factory recalibration with expedited turnaround for critical spares.
Q: How does the 330750-60-05 high temperature Velomitor maintain accuracy at 350°C when standard sensors fail above 120°C?
A: The sensor employs specialized high-Curie-temperature piezoelectric crystal elements (Curie point >600°C) that retain piezoelectric properties at elevated temperatures, combined with internal thermal compensation circuitry and thermally isolated preamplifier electronics. The hermetically sealed stainless steel housing prevents moisture ingress that would otherwise cause measurement drift, while high-temperature cable insulation rated to 400°C ensures signal integrity from sensing element to connector.
Q: Can I retrofit the 330750-60-05 into existing Bently Nevada 3300 Series monitoring installations without system modifications?
A: Yes, the 330750-60-05 is electrically and mechanically compatible with all 3300 Series monitor modules, proximitor racks, and data acquisition systems. The 4-20 mA output interfaces directly with standard monitor inputs, and the 1/4-28 UNF mounting thread matches conventional Velomitor footprints. However, verify that your application genuinely requires high-temperature capability (surface temps >120°C sustained), as standard Velomitor models provide identical performance at lower cost for moderate-temperature zones.
Q: What is the recommended calibration and verification interval for the 330750-60-05 in continuous high-temperature service?
A: For critical machinery protection applications, Bently Nevada recommends annual calibration verification against NIST-traceable reference standards. The sensor exhibits excellent long-term stability with typical sensitivity drift <5% over 24 months in continuous 300°C+ service. For non-critical monitoring or lower-temperature duty cycles, 24-month intervals are acceptable. We offer factory recalibration services with 5-7 day turnaround and provide calibration certificates traceable to national standards.
Q: How should I install the 330750-60-05 on machinery to ensure optimal measurement accuracy and sensor longevity?
A: Mount the sensor on a flat, clean, machined surface perpendicular to the desired measurement axis using a 1/4-28 UNF threaded stud welded or tapped into the bearing housing. Ensure minimum 6mm thread engagement depth and torque to 8-10 ft-lbs (11-14 Nm) using a calibrated torque wrench. Verify electrical continuity and insulation resistance before commissioning. For surface temperatures exceeding 250°C, consider thermal standoff adapters to reduce conducted heat into the cable assembly. Route cables away from hot surfaces and secure with high-temperature cable ties or stainless steel strapping.
Q: Does the 330750-60-05 require external power supplies, or is it self-powered from the monitoring system?
A: The sensor is loop-powered via the 4-20 mA current loop, drawing operating power directly from the connected monitor module or DCS input card. No external power supply is required. Ensure the monitoring system provides minimum 12 VDC loop supply voltage and can source at least 25 mA to power the sensor and maintain full-scale output current.
Q: What warranty coverage and technical support is included with the 330750-60-05 purchase?
A: Every 330750-60-05 includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Warranty includes free replacement or repair, return shipping, and expedited processing for critical applications. Extended warranty programs, calibration service contracts, and on-site commissioning support are available upon request. Our technical support team provides application engineering assistance, troubleshooting guidance, and integration consulting at no additional charge.
Lead Times & Availability
Standard 330750-60-05 configurations ship from stock within 3-5 business days for single-unit orders. Custom cable lengths, special connectors, or hazardous area certifications require 4-6 weeks manufacturing lead time. Expedited processing available for emergency shutdowns and critical path projects—contact our order desk for same-day shipping options.
Warranty & Service Commitment
All sensors include a minimum 12-month warranty from date of shipment, covering manufacturing defects and performance deviations from published specifications. Extended warranty programs available for up to 36 months. We provide remote technical support via phone and email, field service coordination through regional partners, and factory repair/recalibration services with typical 7-10 day turnaround.
Technical Documentation Package
Each shipment includes: product datasheet with dimensional drawings and electrical specifications, installation and mounting instructions with torque requirements, wiring diagrams for 4-20 mA loop connections, calibration certificate with traceability data, and quick-start commissioning guide. CAD models (STEP, IGES formats), 3D PDF drawings, and integration manuals available for download from our technical library.
Application Engineering Support
Our team provides complimentary pre-sales consultation including sensor placement optimization, thermal zone mapping, cable routing recommendations, and system architecture design. Post-sales support includes commissioning assistance, baseline establishment guidance, alarm setpoint recommendations, and troubleshooting diagnostics. On-site startup services available in major industrial regions—inquire for regional coverage and pricing.
Q: How do I select between velocity sensors and accelerometers for high-temperature bearing monitoring?
A: Velocity sensors like the 330750-60-05 excel at detecting low-to-mid frequency faults (10-1000 Hz) including unbalance, misalignment, looseness, and bearing wear—the most common machinery problems. Accelerometers provide superior high-frequency response (>5 kHz) for early bearing defect detection and gear mesh analysis but require more complex signal conditioning. For general-purpose machinery protection in thermal environments, velocity monitoring offers the best balance of diagnostic capability, cost-effectiveness, and installation simplicity.
Q: Can the 330750-60-05 be used in hazardous area installations requiring ATEX or IECEx certification?
A: Yes, hazardous area certified versions are available with ATEX Zone 1/2 and IECEx Zone 1/2 approvals for gas/vapor atmospheres, as well as Zone 21/22 for combustible dust environments. Certified models carry extended lead times (typically 6-8 weeks) and require specification of gas group, temperature class, and installation category during ordering. Consult our hazardous location specialists for application-specific certification requirements and intrinsic safety barrier selection.
Q: What cable length limitations apply to the 4-20 mA output signal?
A: The 4-20 mA current loop architecture supports cable runs exceeding 1000 meters (3300 feet) without signal degradation, assuming adequate loop supply voltage and proper cable sizing. For runs beyond 500 meters, use shielded twisted-pair cable with minimum 18 AWG conductors and verify loop resistance remains below maximum specified by your monitoring system. We can supply pre-terminated cable assemblies in custom lengths up to 100 meters with factory-tested continuity and insulation resistance.
Q: How does ambient temperature affect the sensor's measurement accuracy?
A: The 330750-60-05 incorporates internal temperature compensation circuitry that maintains sensitivity within ±5% across the full -40°C to +350°C operating range. For applications with rapid thermal cycling (>50°C/hour), allow 15-20 minutes thermal stabilization time after major temperature changes before relying on absolute amplitude measurements. Trending and fault detection algorithms remain effective during thermal transients as relative vibration changes are preserved.
To receive detailed sensor selection recommendations, system integration proposals, or project-specific quotations, please provide the following information to our application engineering team:
Our engineers will provide sensor placement drawings, bill of materials with pricing, integration schematics, and commissioning support recommendations within 48 hours of receiving your inquiry.
