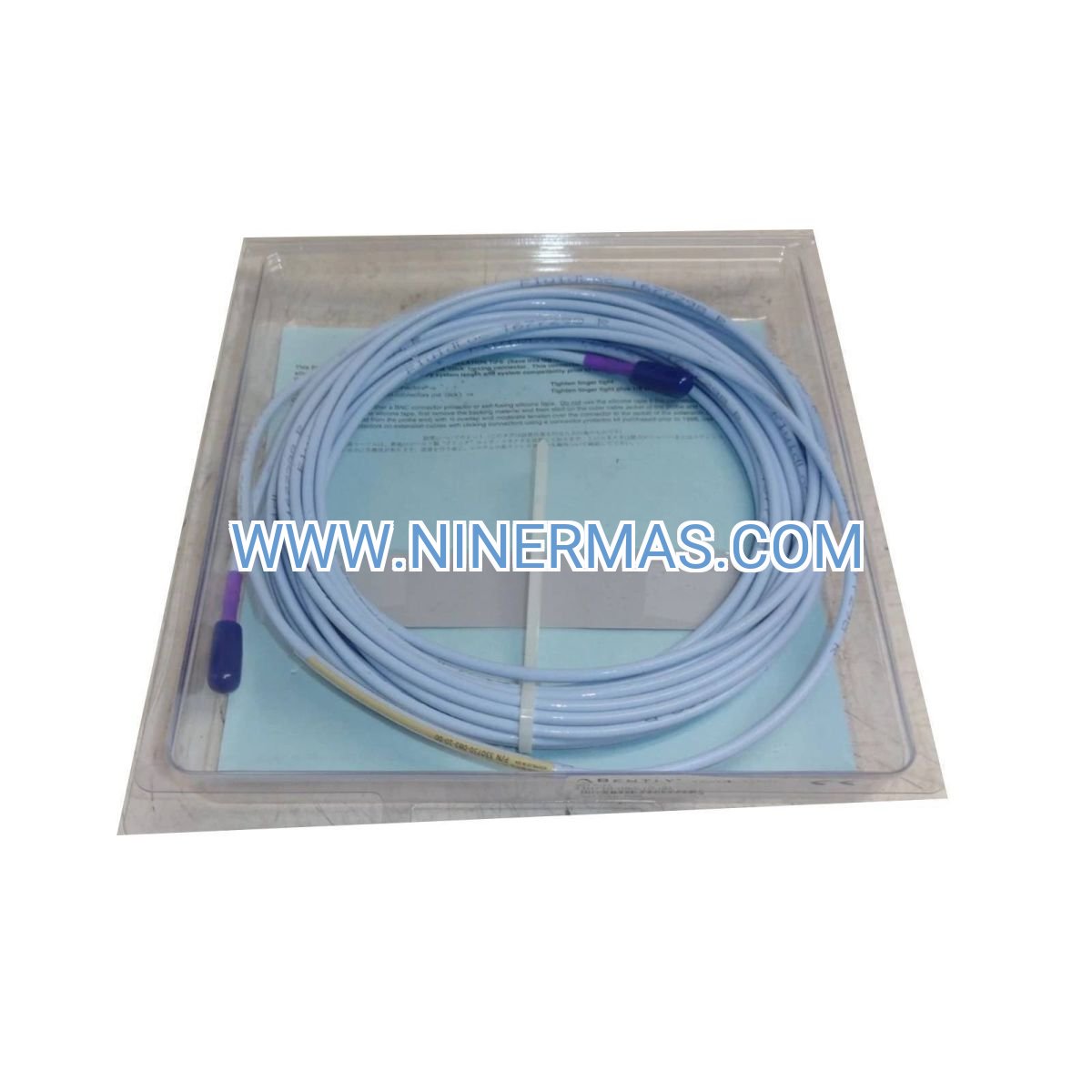

Bently Nevada 330730-080-13-00 Extension Cable (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330730-080-13-00 is a precision-engineered 11mm extension cable designed for the 3300 XL Proximitor vibration monitoring system. Through advanced shielding technology and 50-ohm impedance matching, it delivers reliable signal transmission between Proximitor sensors and monitoring modules, ensuring accurate real-time vibration data acquisition in critical rotating machinery applications.

Ideal for turbomachinery installations, power generation facilities, and process industries where sensor positioning requires extended cable runs. This OEM component addresses challenges such as signal degradation over distance, electromagnetic interference in harsh environments, and installation flexibility constraints in retrofit projects.

Featuring double-braided EMI/RFI shielding, flame-retardant construction, and wide temperature tolerance (-40°C to +85°C), the 330730-080-13-00 provides stable performance, seamless 3300 XL system integration, and simplified maintenance workflows. Suitable for design engineers, system integrators, plant maintenance teams, and OEM equipment manufacturers. Contact our technical specialists for application-specific cable length recommendations and system configuration guidance.

Core Features & Performance Advantages

High-Fidelity Signal Transmission
Maintains 50-ohm impedance throughout the cable run with precision BNC-to-BNC connectors, preserving vibration waveform integrity and enabling accurate bearing fault detection, rotor imbalance analysis, and resonance identification in predictive maintenance programs.

Superior Environmental Protection
Double-braided shielding rejects electromagnetic interference from VFDs, motors, and high-voltage equipment, while flame-retardant polyurethane jacketing withstands exposure to oils, coolants, and industrial solvents commonly found in turbine halls and compressor stations.

Extended Operating Temperature Range
Certified for continuous operation from -40°C to +85°C, supporting installations in outdoor substations, arctic pipeline facilities, desert petrochemical plants, and high-temperature steam turbine enclosures without signal drift or insulation degradation.

Universal 3300 XL Compatibility
Seamlessly interfaces with all 3300 XL Proximitor sensors (5mm, 8mm, 11mm), proximity transducers, and monitor modules including 3300 XL NSv, 3300 XL 8mm, and legacy 3300 series systems, eliminating compatibility concerns during system upgrades or expansions.

Rapid Deployment & Maintenance
Hand-tightenable BNC connectors enable tool-free installation and removal, reducing downtime during sensor replacements, system troubleshooting, or temporary monitoring setups. Factory-tested assemblies arrive ready for immediate field deployment.

Rugged Industrial Construction
Reinforced strain relief at connector interfaces prevents cable fatigue in high-vibration mounting locations, while the 11mm diameter provides optimal balance between flexibility for routing through cable trays and mechanical strength for long-term reliability.

Typical Application Scenarios

This extension cable is engineered for installations demanding reliable vibration monitoring signal integrity across extended distances:

Steam & Gas Turbine Monitoring
Extends Proximitor sensor reach in turbine-generator sets where bearing housings are located remotely from control room monitoring racks. Supports multi-point radial vibration, thrust position, and differential expansion measurements in combined-cycle power plants and cogeneration facilities.

Centrifugal Compressor Protection Systems
Enables flexible sensor placement on compressor casings while routing cables through congested pipe racks to centralized machinery protection panels. Critical for API 670 compliant installations in natural gas processing, LNG liquefaction, and air separation units.

Large Motor & Generator Condition Monitoring
Facilitates permanent vibration monitoring on motors above 500 HP, synchronous generators, and induction machines in steel mills, mining operations, and water treatment plants. Supports both online continuous monitoring and periodic route-based data collection architectures.

Pump & Fan Reliability Programs
Provides installation flexibility for boiler feed pumps, cooling tower fans, induced draft fans, and process pumps where sensor-to-monitor distances exceed standard cable lengths. Maintains measurement accuracy for ISO 10816 vibration severity assessments and trend analysis.

Retrofit & System Expansion Projects
Allows reuse of existing sensor mounting locations when relocating monitoring equipment or adding channels to legacy 3300 systems. Minimizes civil work and hot work permits by eliminating the need to reposition sensors or penetrate equipment enclosures.

Technical Specifications & Selection Guide

To ensure optimal system performance, verify the following parameters match your application requirements:

Cable Length Selection Guidance
When specifying extension cables, consider total cable run length (sensor cable + extension cable) should not exceed system maximum, typically 7-9 meters for 3300 XL monitors. For installations requiring longer runs, consult factory documentation or contact our application engineers to evaluate signal conditioning requirements, potential use of in-line amplifiers, or alternative sensor placement strategies.

System Integration Considerations
Verify compatibility with your specific monitor model (e.g., 3300 XL NSv 25mm, 3300 XL 8mm, 3300 XL 11mm). Confirm available cable entry points in your monitoring rack or junction box. For hazardous area installations (Class I Div 2, ATEX Zone 2), ensure cable routing complies with area classification requirements and consult intrinsic safety barrier specifications if applicable.

Advanced Configuration Options

Multi-Channel Installations
For machines requiring radial vibration monitoring at multiple bearing locations (typically 2 probes per bearing at 90° orientation), order sufficient extension cables to maintain consistent cable lengths across all channels, minimizing phase shift variations in orbit analysis and ensuring accurate shaft centerline position calculations.

Redundant Monitoring Architectures
In critical machinery protection applications (API 670 TMR voting systems), use matched-length extension cables across redundant sensor channels to preserve timing relationships essential for 2-out-of-3 voting logic and avoid spurious trip conditions due to propagation delay mismatches.

Temporary Monitoring & Diagnostics
Maintain spare extension cables in your site spares inventory to support temporary sensor installations during machinery commissioning, post-maintenance run-in periods, or troubleshooting campaigns where additional measurement points are needed beyond permanently installed instrumentation.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom cable lengths or special connector configurations available with 10-15 business day lead time. Expedited shipping options available for emergency outage support and critical path project schedules.

Warranty Coverage
Every 330730-080-13-00 extension cable includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty support includes cable replacement, technical troubleshooting assistance, and field failure analysis to identify root causes and prevent recurrence.

Technical Support Services
Our application engineering team provides pre-sales consultation for cable length calculations, system architecture reviews, and compatibility verification. Post-installation support includes remote diagnostics for signal quality issues, on-site commissioning assistance (subject to geographic availability), and training on proper cable handling and installation best practices.

Documentation Package
Each cable ships with product certification documents including material traceability, electrical test reports (impedance, shielding effectiveness, insulation resistance), and installation guidelines. CAD drawings and 3D STEP models available upon request for design integration into P&ID drawings and 3D plant models.

Frequently Asked Questions (FAQ)

Q: Is the 330730-080-13-00 extension cable compatible with legacy 3300 series monitors in addition to 3300 XL systems?
A: Yes, this cable maintains backward compatibility with original 3300 series proximitor systems while being optimized for 3300 XL performance specifications. The 50-ohm impedance and BNC connector interface are standardized across both product generations, allowing seamless integration during phased system upgrades or mixed-vintage installations.

Q: Can multiple extension cables be connected in series to achieve longer total cable runs?
A: While daisy-chaining is physically possible, we recommend consulting your monitor's technical manual as cumulative cable length affects signal amplitude and frequency response. Total cable length (sensor cable + all extensions) should remain within manufacturer specifications—typically 7-9 meters for most 3300 XL monitors. For applications requiring longer runs, contact our technical team to evaluate signal conditioning solutions or alternative sensor technologies.

Q: What is the maximum recommended total cable length for maintaining measurement accuracy in vibration monitoring applications?
A: Maximum cable length varies by monitor model and sensor type. For 3300 XL 8mm systems, total length up to 9 meters is generally acceptable. For 3300 XL 5mm and 11mm systems, consult specific monitor documentation. Exceeding recommended lengths may result in reduced sensitivity, increased noise floor, and potential measurement errors in high-frequency vibration components above 1 kHz.

Q: Does installation of this extension cable require specialized tools or calibration procedures?
A: No special tools are required—BNC connectors feature hand-tightenable coupling nuts for quick, secure installation. System recalibration is not necessary when adding extension cables, as the cable is factory-tested and impedance-matched. However, we recommend verifying overall system functionality using monitor self-test features or known vibration sources after any cable modifications.

Q: Can the 330730-080-13-00 be used in hazardous area installations or explosive atmospheres?
A: The cable itself is suitable for general industrial environments and can be routed through Class I Division 2 / Zone 2 areas when used with appropriately certified monitors and intrinsic safety barriers. For Class I Division 1 / Zone 1 installations, verify that your complete monitoring system (sensors, cables, barriers, monitors) carries the required certifications (FM, CSA, ATEX, IECEx) and consult your site electrical classification drawings.

Q: How should extension cables be routed to minimize electromagnetic interference in electrically noisy environments?
A: Route cables in grounded metallic conduit or cable tray systems separated from high-voltage power cables (maintain minimum 300mm / 12-inch separation). Avoid parallel runs with VFD output cables, welding equipment feeds, or radio transmitters. Ensure cable shields are properly grounded at the monitor end only (single-point grounding) to prevent ground loop currents. For severe EMI environments, consider additional ferrite suppression or shielded cable tray systems.

Request Technical Consultation & Quotation

To receive application-specific recommendations, detailed pricing, or technical support for your vibration monitoring project, please provide the following information to our engineering team:

• Project name and facility location
• Equipment type and criticality classification (API 670 machinery class)
• Existing monitor model numbers (e.g., 3300 XL 8mm, 3300 XL NSv)
• Number of monitoring channels and required cable quantities
• Approximate sensor-to-monitor distances for each channel
• Environmental conditions (temperature range, hazardous area classification)
• Project timeline and delivery requirements

Our application specialists will provide one-on-one consultation including cable length verification, system compatibility confirmation, and delivered pricing within 24 business hours.
