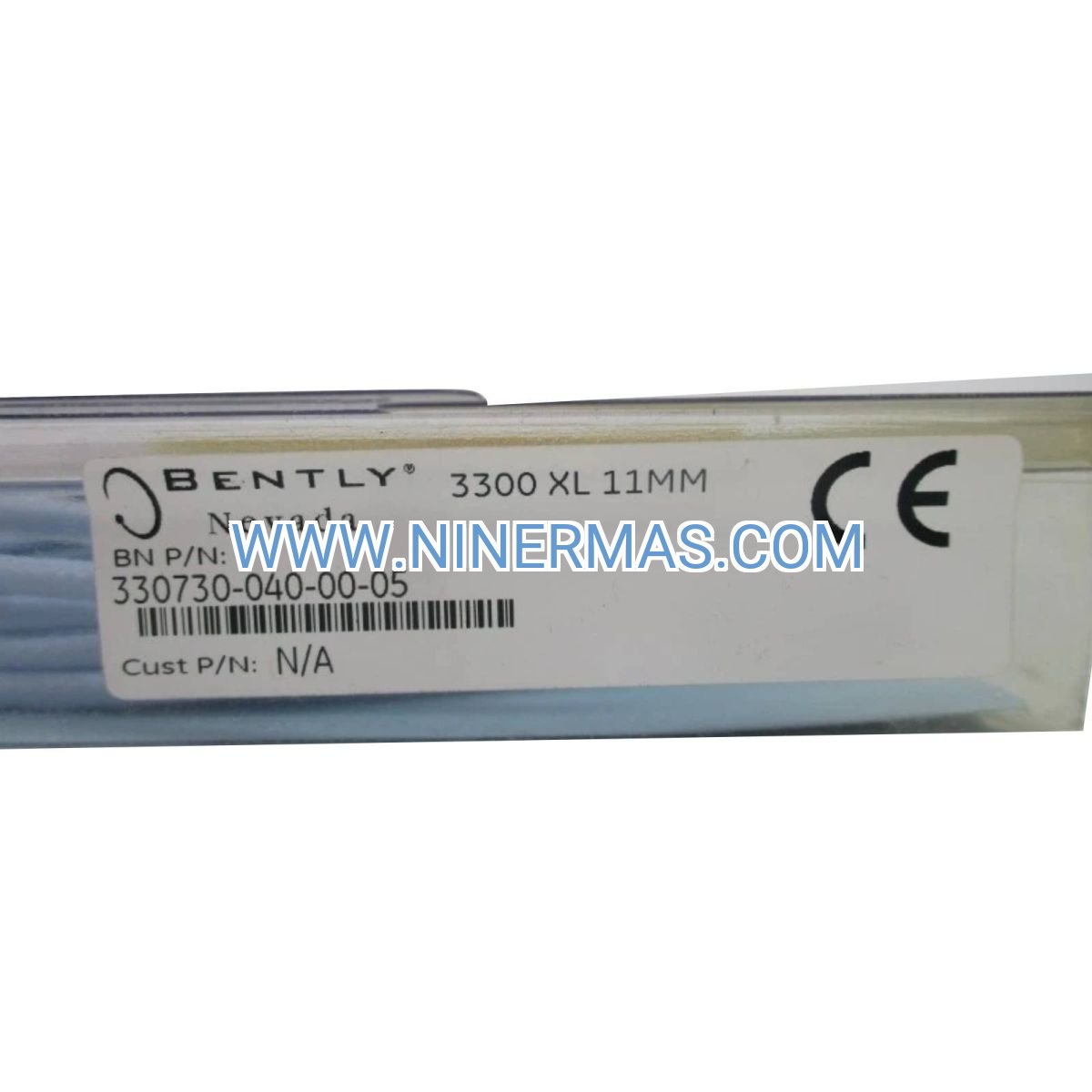

330730-040-00-05 Extension Cable for 3300 XL 11mm Proximity Probe Systems

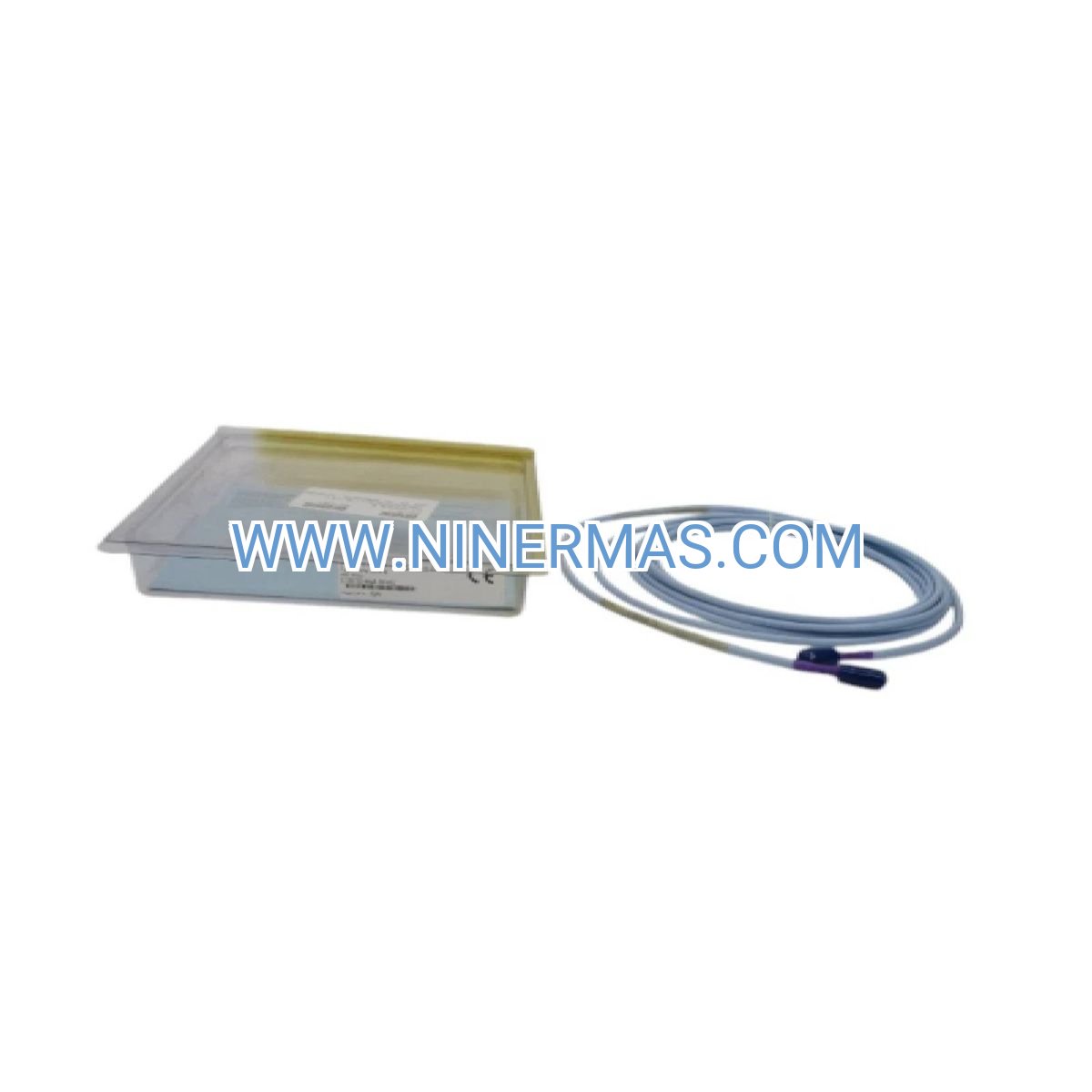

The Bently Nevada 330730-040-00-05 is a factory-calibrated 4-meter extension cable engineered for 3300 XL 11mm proximity probe systems. Through precision coaxial construction and electromagnetic shielding, it delivers stable signal transmission for critical vibration monitoring applications on rotating machinery. This cable maintains measurement accuracy across turbines, compressors, pumps, and generators in power generation, oil & gas, and heavy industrial environments.

Designed for installations requiring extended probe-to-proximitor distances, the 330730-040-00-05 solves challenges including harsh environmental conditions, limited mounting space, and high electromagnetic interference zones. It serves design engineers, maintenance teams, instrumentation contractors, and plant reliability specialists who demand zero-drift performance and long-term stability.

Built with industrial-grade materials and API 670 compliance, this extension cable offers factory calibration eliminating field setup time, multi-layer EMI protection ensuring clean signals, and bayonet connectors enabling tool-free installation. Contact our application engineers for system integration guidance, cable length selection, and technical specifications tailored to your monitoring requirements.

Core Features & Performance Advantages

Factory-Matched Calibration System
Each cable undergoes precision calibration with designated proximity probes at the manufacturing facility. Calibration coefficients are permanently encoded, eliminating on-site calibration procedures and ensuring measurement accuracy from initial startup through years of continuous operation.

Superior Signal Integrity Architecture
Low-capacitance coaxial design with triple-layer shielding maintains signal-to-noise ratios exceeding 60dB. This construction prevents voltage drop, phase shift, and electromagnetic coupling that cause false trip alarms and measurement drift in high-interference industrial environments.

Extended Environmental Operating Range
Operates reliably from -40°C to +85°C with resistance to moisture ingress (IP67 when mated), chemical exposure, and mechanical vibration up to 10g. Fluoropolymer jacket withstands oil, coolant, and solvent contact common in machinery installations.

Rapid Installation & Maintenance
Bayonet-style connectors enable single-motion locking without crimping tools or soldering. Color-coded shells prevent mis-mating, while strain relief boots protect cable integrity during routing through cable trays and conduit systems.

Multi-Layer Protection Functions
Integrated shielding guards against RF interference from VFDs, welding equipment, and radio transmitters. Drain wire provides 360-degree shield termination, while armored variants (available on request) offer mechanical protection in high-traffic maintenance areas.

Comprehensive Compliance Certification
Meets API 670 machinery protection system standards and aligns with ISO 20816 vibration severity guidelines. RoHS compliant construction supports global environmental regulations and corporate sustainability initiatives.

Industrial Application Scenarios

This extension cable addresses critical monitoring needs across industries where equipment reliability directly impacts production continuity, safety, and operational costs:

Turbomachinery Condition Monitoring
Steam turbines, gas turbines, and centrifugal compressors in power plants and petrochemical facilities require continuous shaft vibration surveillance. The 330730-040-00-05 enables probe placement in high-temperature zones while routing signals to climate-controlled proximitor locations, maintaining accuracy despite 150°C+ bearing housing temperatures.

Rotating Equipment Protection Systems
Critical pumps, motors, blowers, and generators benefit from dual-probe radial vibration monitoring. This 4-meter cable length accommodates junction box mounting requirements while keeping proximitors accessible for maintenance inspection and troubleshooting without machinery shutdown.

Process Industry Continuous Operations
Paper mills, steel rolling mills, cement kilns, and mining conveyors operate 24/7 with minimal planned downtime. Factory-calibrated cables reduce commissioning time by 60-80% compared to field-calibrated systems, accelerating project schedules and reducing installation labor costs.

Marine & Offshore Platform Applications
Ship propulsion systems, offshore drilling rigs, and FPSO turbo-generators face saltwater corrosion, constant vibration, and temperature cycling. The cable's sealed connectors and corrosion-resistant materials ensure reliable operation in these demanding maritime environments.

Retrofit & Upgrade Projects
When upgrading legacy monitoring systems to 3300 XL platforms, the 330730-040-00-05 integrates with existing cable routing infrastructure. Its 4-meter length matches common probe-to-monitor distances in brownfield installations, minimizing structural modifications and installation complexity.

Technical Specifications & Selection Parameters

To ensure optimal system performance, review these key specifications against your application requirements:

Selection Guidance for System Designers

When specifying extension cables for proximity probe systems, consider these critical factors: probe-to-proximitor distance based on mounting accessibility and cable routing paths; environmental conditions including temperature extremes, chemical exposure, and EMI sources; installation constraints such as conduit size, bend radius limitations, and connector clearance; system total cable length combining probe cable + extension cable to stay within manufacturer limits (typically 9m maximum).

For applications requiring distances beyond 4 meters, we offer 330730 series cables in 1m, 2m, 5m, 7m, and 9m lengths. Our application engineers can calculate optimal cable combinations to meet your specific installation geometry while maintaining calibration accuracy and signal quality. Provide your mounting layout, proximitor location, and environmental parameters for customized recommendations.

System Integration & Compatibility

Compatible Proximity Probe Models
3300 XL 11mm probe series including 330105, 330106, and 330107 models. Verify probe tip diameter (11mm) before ordering, as this cable is not compatible with 8mm probe systems (use 330130 series for 8mm applications).

Proximitor Sensor Compatibility
Works with 3300 XL proximitor models 330180 and 330780 series. For 3300 NSv systems, consult factory for NSv-optimized cable recommendations to ensure full diagnostic capability and extended temperature performance.

Monitoring System Integration
Integrates seamlessly with Bently Nevada 3500 rack monitoring systems, 1900/65A general purpose equipment monitors, and 2300 vibration monitors. Also compatible with third-party monitoring platforms accepting 3300 XL probe inputs.

Cable Routing Best Practices
Maintain minimum 6-inch separation from AC power cables and VFD motor leads. Use grounded metal conduit in high-EMI areas. Avoid sharp bends (minimum 10x cable diameter bend radius). Secure cables every 18-24 inches to prevent mechanical fatigue from vibration.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard 330730-040-00-05 cables ship from stock within 2-5 business days for quantities up to 20 units. Custom cable assemblies with special connectors or armored jackets require 3-4 weeks manufacturing lead time. Expedited processing available for critical outage support and emergency replacements.

Warranty Coverage
All extension cables include a 12-month comprehensive warranty covering manufacturing defects, calibration accuracy, and connector integrity. Warranty begins from shipment date and covers replacement parts plus technical support for troubleshooting and root cause analysis.

Technical Support Services
Our instrumentation specialists provide pre-sale application engineering consultation, installation guidance via phone/email/video, post-installation commissioning support, and troubleshooting assistance. On-site installation supervision and training available in select regions (contact for availability and pricing).

Documentation Package
Each cable ships with calibration certificate showing factory test data, installation instructions with wiring diagrams, connector pinout specifications, and dimensional drawings. Digital copies available for download from our technical library for project documentation and maintenance records.

Quality Control Process
Every cable undergoes 100% electrical testing including continuity verification, insulation resistance measurement (minimum 500MΩ), capacitance verification, and shield effectiveness validation. Connectors are mating-cycle tested to 500 insertions. Calibration traceability maintained to NIST standards.

Frequently Asked Questions

Q: Can the 330730-040-00-05 extension cable be used with 8mm diameter proximity probes?
A: No, this cable is specifically engineered for 11mm probe systems with matching connector configurations and calibration parameters. For 8mm probe applications, specify the 330130 series extension cables which provide proper electrical characteristics and mechanical fit for smaller probe diameters.

Q: Does this cable require field calibration after installation in the monitoring system?
A: No field calibration is necessary. Each 330730-040-00-05 cable is factory-calibrated as a matched assembly with proximity probes, and calibration coefficients are permanently stored in the system. Simply connect the cable between probe and proximitor, verify continuity, and the system is ready for operation with full accuracy.

Q: What is the maximum total cable length allowed for 3300 XL proximity probe systems?
A: The combined length of probe cable plus extension cable should not exceed 9 meters (approximately 30 feet) to maintain signal integrity and measurement accuracy. For installations requiring greater distances, consider relocating the proximitor or using signal conditioning modules. Contact our engineers for distance-extension solutions.

Q: Is the 330730-040-00-05 compatible with 3300 NSv (Next Generation) monitoring systems?
A: While mechanically compatible and functionally operational, Bently Nevada recommends using NSv-specific cables for installations with 3300 NSv proximitors to access enhanced diagnostic features and extended temperature capabilities. We can provide NSv-optimized alternatives with identical mechanical dimensions for seamless upgrades.

Q: Can this cable withstand outdoor installation or exposure to weather conditions?
A: The standard 330730-040-00-05 features weather-resistant fluoropolymer jacketing suitable for protected outdoor installations (under cable trays, in conduit). For direct burial, continuous UV exposure, or submersion applications, specify armored cable variants with additional protective layers. Consult our team for environmental-specific recommendations.

Q: What warranty coverage is provided, and what does it include?
A: All cables include a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and calibration accuracy under normal operating conditions. Warranty includes free replacement parts, technical support for troubleshooting, and expedited shipping for critical applications. Extended warranty programs available for long-term service agreements.

Request Technical Consultation & Quotation

Our application engineering team is ready to assist with cable selection, system design review, and project-specific recommendations. For detailed technical specifications, pricing quotations, or installation support, please provide the following information:

• Project Overview: Application type, machinery being monitored, industry sector
• System Configuration: Number of measurement points, probe models, proximitor types
• Installation Environment: Temperature range, chemical exposure, EMI sources, indoor/outdoor
• Cable Requirements: Quantity needed, required lengths, delivery timeline
• Technical Constraints: Mounting distances, routing paths, existing infrastructure

Our engineers will respond within 24 hours with tailored cable recommendations, system integration guidance, and competitive pricing. For urgent outage support or emergency replacements, call our technical hotline for immediate assistance.
