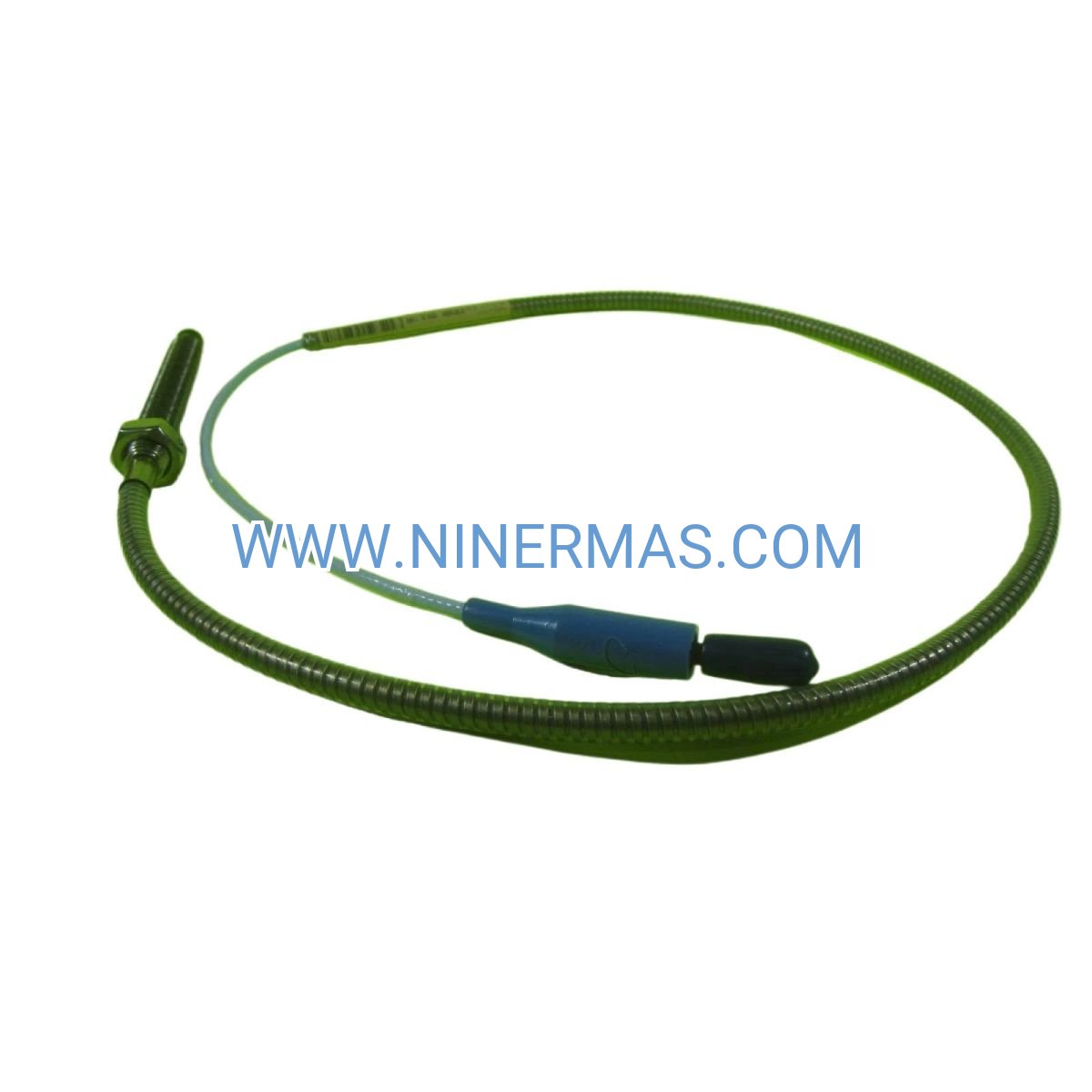

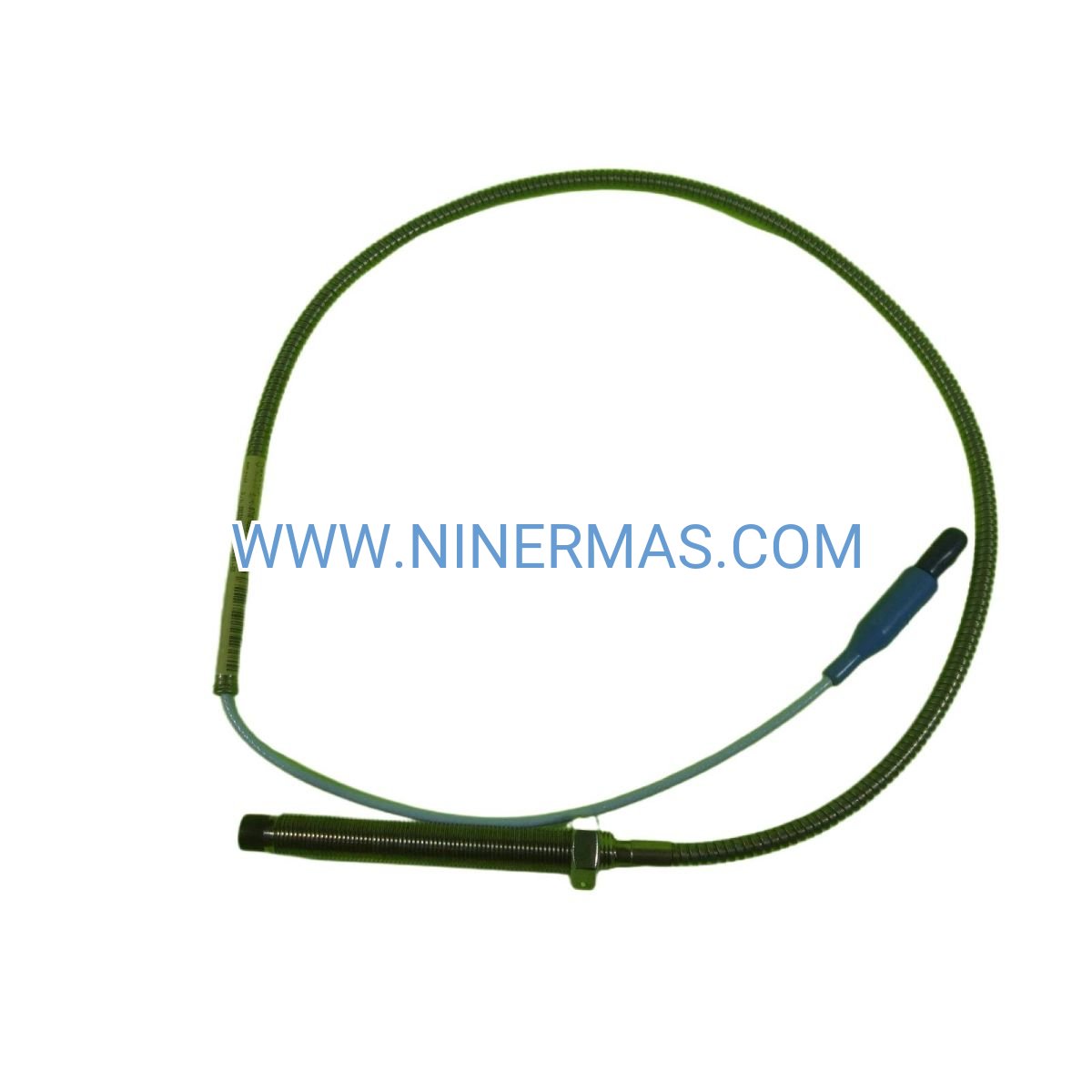

Bently Nevada 330702 Proximity Probe (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330702 proximity probe is a precision eddy current sensor designed for continuous vibration and displacement monitoring in critical rotating machinery. Through non-contact measurement technology and advanced signal processing, it delivers real-time shaft position data, enabling early fault detection and preventing catastrophic equipment failures.

Ideal for turbomachinery applications including steam turbines, gas turbines, compressors, and high-speed pumps, this probe addresses common challenges such as bearing wear detection, rotor eccentricity monitoring, thrust position measurement, and critical speed analysis. It serves design engineers, maintenance teams, OEM integrators, and plant reliability managers across power generation, oil & gas, petrochemical, and heavy manufacturing sectors.

Featuring API 670 certification, rugged construction, and field-proven reliability, the 330702 series offers superior temperature stability, excellent linearity performance, and seamless integration with Bently Nevada monitoring systems. Contact our application engineers for customized monitoring solutions and technical specifications tailored to your machinery protection requirements.

Core Features & Technical Advantages

• Non-Contact Eddy Current Technology
  Utilizes high-frequency electromagnetic field to measure gap distance without physical contact, eliminating wear and extending sensor lifespan while maintaining measurement accuracy over millions of operating cycles.
• API 670 Compliance & Industry Certification
  Meets stringent API 670 standards for machinery protection systems, ensuring compatibility with critical safety instrumented systems and satisfying insurance and regulatory requirements for turbomachinery installations.
• Wide Frequency Response (DC to 10 kHz)
  Captures both slow-roll displacement and high-frequency vibration events, enabling comprehensive analysis from startup transients to steady-state operation and detection of blade-pass frequencies in turbomachinery.
• Extended Cable Length Configuration
  Standard 10-meter integral cable design provides installation flexibility for large machinery frames and remote proximitor mounting, reducing signal degradation and electromagnetic interference in industrial environments.
• Superior Temperature Stability
  Engineered for -40°C to +120°C operating range with minimal thermal drift, maintaining calibration accuracy in extreme ambient conditions typical of power plants and process industries.
• Factory Calibration & Traceability
  Each probe ships with individual calibration certificate traceable to NIST standards, documenting sensitivity, linearity, and frequency response characteristics for quality assurance and compliance documentation.

Typical Application Scenarios

This proximity probe system is engineered for demanding industrial environments requiring continuous machinery health monitoring and protection:

• Steam & Gas Turbine Monitoring
  Measures radial shaft vibration, axial thrust position, and differential expansion in power generation turbines, providing critical data for condition-based maintenance and preventing unplanned outages in utility and cogeneration facilities.
• Centrifugal Compressor Protection
  Monitors bearing clearances and rotor dynamics in high-pressure gas compressors used in natural gas processing, petrochemical plants, and air separation units, enabling early detection of surge conditions and mechanical degradation.
• High-Speed Rotating Equipment
  Tracks shaft displacement in pumps, motors, gearboxes, and fans operating above first critical speed, supporting vibration analysis programs and predictive maintenance strategies in manufacturing and process industries.
• Hydro Turbine & Generator Sets
  Provides runout measurement and eccentricity monitoring for large hydroelectric generators, ensuring alignment integrity and detecting issues such as loose wedges, rotor bow, or foundation settlement.

Technical Parameters & Selection Guide

To facilitate engineering design and system integration, we provide comprehensive technical specifications. Custom configurations available for special operating conditions or legacy system retrofits.

Selection Considerations: When specifying proximity probes, evaluate target shaft material and surface finish, required measurement range and linearity zone, installation space constraints and mounting thread compatibility, cable routing distance and environmental exposure, and proximitor/monitor system interface requirements. Our application engineers can review your machinery drawings and recommend optimal probe configuration, mounting hardware, and extension cable options.

System Integration & Compatibility

• Proximitor Interface: Designed for use with Bently Nevada 3300 XL proximitor modules (330180 series) or legacy 3300 NSv proximitors, providing -24 VDC excitation and signal conditioning.
• Monitor Compatibility: Outputs compatible with 3500 rack-based monitoring systems, ADAPT software platforms, and third-party DCS/SCADA systems via 4-20mA or Modbus interfaces.
• Mounting Hardware: Standard M18 or 3/4-16 UNF threads accommodate industry-standard mounting brackets, adjustable probe holders, and retaining nuts for secure installation.
• Cable Extension Options: Field-installable extension cables available in 5m, 10m, and custom lengths using Bently Nevada approved connectors and shielded cable assemblies.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from stock. Custom cable lengths or special configurations require 2-3 weeks manufacturing lead time.

Warranty Coverage: All proximity probes include a minimum 24-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions.

Technical Support: Comprehensive installation guidance, commissioning assistance, and troubleshooting support available via phone, email, and remote diagnostics. On-site startup services available for major projects (region-dependent).

Documentation Package: Each shipment includes factory calibration certificate with sensitivity curves, installation drawing with dimensional specifications, wiring diagram for proximitor connection, and operation manual with maintenance recommendations.

Quality Certifications: Manufactured under ISO 9001 quality management system with full material traceability and compliance documentation for critical service applications.

Frequently Asked Questions (FAQ)

Q: How do I integrate the Bently Nevada 330702 proximity probe with my existing monitoring system?
A: The 330702 probe requires a compatible proximitor module (such as 330180 series) to provide excitation voltage and signal conditioning. The proximitor output connects to your monitoring system via standard -1 to -10 VDC or 4-20mA signals. Verify your monitor input specifications and proximitor compatibility before ordering.

Q: What is the maximum number of proximity probes I can install on a single machine?
A: Typical turbomachinery installations use 2 probes per bearing (X-Y radial measurement) plus 1-2 axial probes for thrust monitoring. A standard steam turbine might have 8-12 probes total. System capacity depends on your monitoring rack configuration and available I/O channels.

Q: What measurement accuracy and linearity can I expect from this probe?
A: The 330702 provides ±1% linearity over the calibrated range (typically 0.5 to 2.0 mm gap) with sensitivity of approximately 7.87 V/mm (200 mV/mil). Actual performance depends on target material, surface finish, and operating temperature. Consult factory calibration data for your specific serial number.

Q: What are the installation environment requirements and protection rating?
A: The probe body is rated for -40°C to +120°C ambient temperature with IP65 protection when properly installed with sealing washers. Avoid direct steam impingement, corrosive chemical exposure, or submersion. Cable routing should protect against mechanical damage and maintain minimum bend radius of 10x cable diameter.

Q: Can I connect this probe to remote monitoring systems or implement predictive maintenance analytics?
A: Yes, when interfaced through Bently Nevada 3500 series monitors or compatible DCS systems, probe data can be transmitted via Modbus TCP, OPC, or proprietary protocols to cloud-based condition monitoring platforms, enabling remote diagnostics, trend analysis, and machine learning-based anomaly detection.

Q: How often does the proximity probe require recalibration or replacement?
A: Under normal operating conditions, proximity probes maintain calibration for 5-10 years or longer. Periodic verification (annually or per plant procedures) using calibration fixtures is recommended. Replace probes if physical damage occurs, cable insulation degrades, or sensitivity drift exceeds ±5% of original calibration values.

Request Technical Support & Custom Solutions

For detailed application engineering, system integration assistance, or project quotations, please provide the following information: project name and industry sector, machinery type and operating parameters (speed, temperature, environment), number of measurement points and monitoring objectives, existing monitoring system details (if retrofit application), electrical specifications and communication protocol requirements, installation timeline and delivery location.

Our vibration monitoring specialists will provide one-on-one consultation, recommend optimal probe configurations, proximitor modules, and system architecture, and deliver comprehensive technical proposals with pricing within 24-48 hours.
