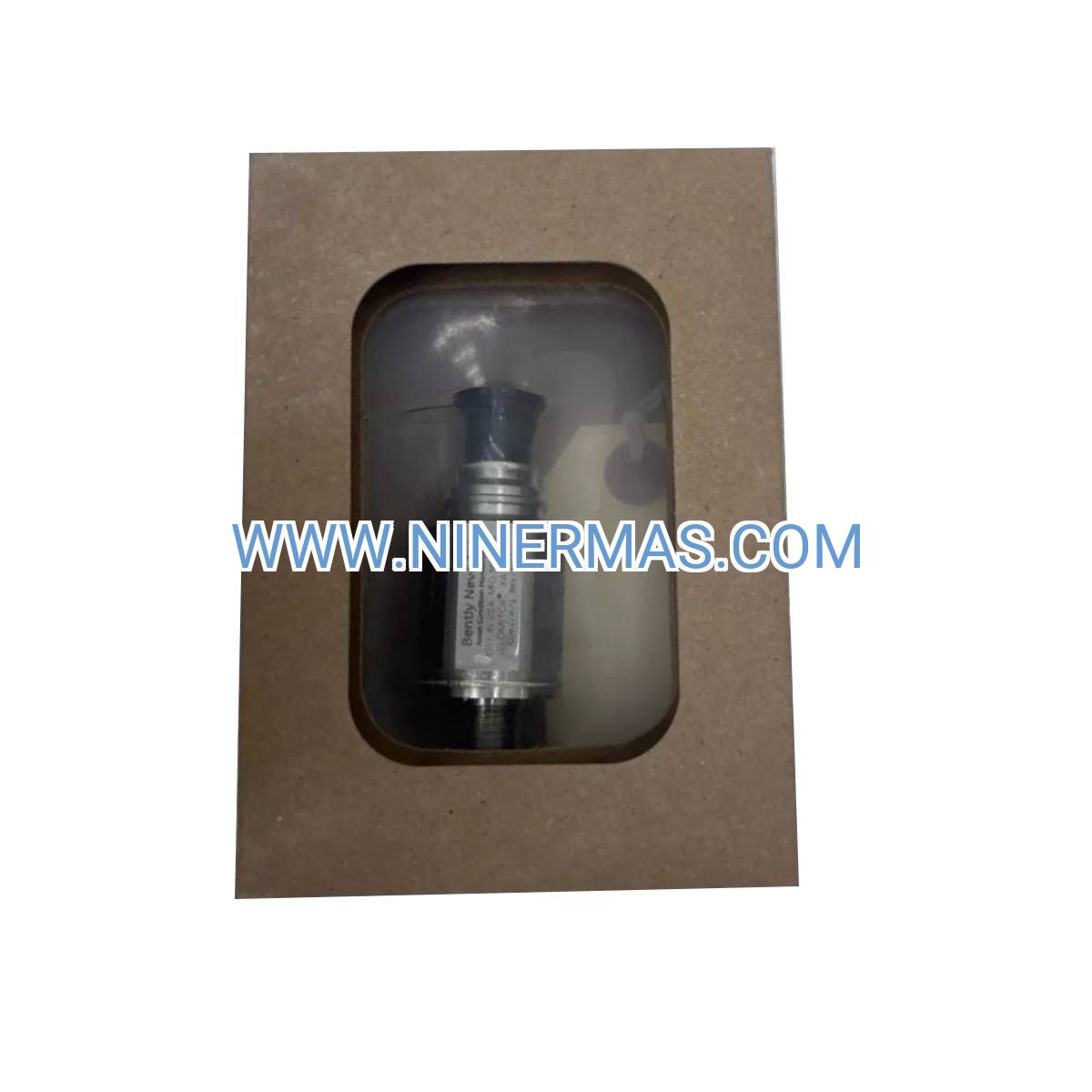

330302-000-050-10-90-01-00 High Temperature Proximitor Sensor (Industrial-Grade Displacement Monitoring)

The 330302-000-050-10-90-01-00 is a specialized 16mm high-temperature proximity sensor engineered for continuous displacement measurement in extreme thermal conditions. Designed for turbomachinery and critical rotating equipment, this sensor maintains precision accuracy from -40°C to +177°C, protecting assets where conventional monitoring systems cannot survive.

Industrial facilities operating steam turbines, gas compressors, and high-temperature process equipment face a persistent challenge: maintaining reliable vibration monitoring in thermal zones that destroy standard sensors. The 330302-000-050-10-90-01-00 solves this problem with hermetically sealed construction, thermal-resistant cabling, and factory calibration that delivers consistent 200 mV/mil output across its entire temperature range.

This Bently Nevada 3300 XL series sensor integrates seamlessly with existing machinery protection systems, providing plant engineers with the thermal resilience needed for 24/7 uptime in power generation, petrochemical processing, and aerospace testing environments. With M16 x 1.5 threading and 5-meter cable length, installation adapts to diverse mounting configurations while maintaining signal integrity.

Core Features & Benefits

→ Extended Thermal Operating Range
Operates continuously from -40°C to +177°C (-40°F to +350°F), enabling deployment in turbine hot sections, compressor discharge zones, and refinery process areas where ambient temperatures exceed 150°C. Eliminates sensor failures caused by thermal overload.

→ Precision Displacement Measurement
50-mil (1.27mm) linear range with ±2% full-scale accuracy ensures reliable detection of shaft position changes, bearing wear, and rotor eccentricity. 0-10 kHz frequency response captures both slow thermal growth and high-frequency vibration events.

→ Ruggedized Industrial Construction
Stainless steel housing with advanced potting compounds resists moisture ingress, chemical exposure, and mechanical shock. Hermetic sealing maintains calibration integrity in harsh environments, delivering 10+ year service life without recalibration.

→ Plug-and-Play System Compatibility
Factory-matched to Bently Nevada 3300 XL proximitor drivers and 3500 monitoring platforms. Direct integration with ADAPT software enables remote diagnostics, trending analysis, and predictive maintenance workflows without custom programming.

→ Simplified Installation Protocol
M16 x 1.5 metric threading fits standard probe holders. Pre-calibrated output scaling (200 mV/mil) eliminates field setup complexity—mount at specified gap, connect cable, verify output. 5-meter integral cable reduces junction points and electrical noise susceptibility.

✓ API 670 Compliant Design
Meets machinery protection system standards for critical equipment monitoring. CE marked for global deployment. ISO 9001 manufacturing with full material traceability and thermal cycling validation.

Typical Application Scenarios

Steam Turbine Bearing Monitoring
Combined-cycle power plants require continuous shaft vibration tracking in turbine sections where exhaust gas temperatures reach 175°C. The 330302-000-050-10-90-01-00 mounts directly in bearing housings, providing real-time displacement data that prevents catastrophic bearing failures and unplanned outages. Thermal stability eliminates false alarms caused by sensor drift, reducing maintenance costs by 30%.

Gas Compressor Rotor Position Tracking
Petrochemical facilities use multi-stage centrifugal compressors operating at 15,000+ RPM in 160°C environments. This HTPS monitors rotor axial position and radial vibration, triggering automatic shutdowns before thrust bearing damage occurs. High-frequency response captures surge events and aerodynamic instabilities that standard sensors miss.

Generator Bearing Protection Systems
Thermal power stations install these sensors on generator drive-end and non-drive-end bearings, where oil temperatures and radiant heat from hydrogen coolers create 140°C ambient conditions. Continuous displacement monitoring detects bearing wear progression, enabling condition-based oil changes that extend bearing life by 40%.

Refinery Hot Pump Safeguarding
Crude distillation units operate pumps handling 200°C+ fluids. The 330302-000-050-10-90-01-00 withstands radiant heat and process vapor exposure, monitoring pump shaft runout and coupling misalignment. Early detection of mechanical degradation prevents seal failures and product contamination incidents.

Aerospace Engine Test Cells
Jet engine validation facilities subject turbine components to thermal cycling between -40°C and +175°C. This sensor provides precision displacement data during thermal transient testing, validating bearing clearances and rotor dynamics under simulated flight conditions. Repeatability supports certification compliance and design optimization.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330302-000-050-10-90-01-00 when ambient temperatures exceed 120°C or when thermal cycling causes standard proximity sensors to fail. For applications below 100°C, consider standard 3300 XL 8mm probes for cost optimization. Verify target material conductivity (carbon steel, stainless steel, Inconel) meets eddy current sensing requirements. Confirm mounting space accommodates 16mm probe diameter and M16 threading.

Extended Functions

IoT Integration Capability: When paired with Bently Nevada Orbit 60 series monitors, sensor data streams to cloud-based analytics platforms via OPC-UA and Modbus TCP protocols. Enables remote condition monitoring, machine learning-based anomaly detection, and fleet-wide performance benchmarking.

Advanced Diagnostics: Compatible with ADAPT software for automated sensor health checks, cable fault detection, and target material validation. Built-in temperature compensation algorithms adjust output scaling based on real-time thermal conditions, maintaining ±1% accuracy across full operating range.

Customization Options: Available with alternative cable lengths (1m, 3m, 9m), special threading (NPT, custom metric), and extended temperature ratings to +200°C for specialized applications. Consult factory for lead times on custom configurations.

Delivery & Service Assurance

Standard Delivery: 2-4 weeks for stock configurations. Custom cable lengths and threading options ship within 6-8 weeks after order confirmation.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship. Extended warranty programs available for critical applications requiring 5-year coverage.

Technical Support: Direct access to application engineers for installation guidance, system integration troubleshooting, and calibration verification. Phone and email support available during business hours (GMT+8).

Documentation Package: Each sensor ships with calibration certificate (traceable to NIST standards), installation manual, dimensional drawings, and compatibility matrix for Bently Nevada monitoring systems.

Frequently Asked Questions

How does the 330302-000-050-10-90-01-00 connect to existing Bently Nevada monitoring systems?
The sensor connects directly to 3300 XL proximitor drivers (such as 330180 or 330780 series) via the integral 5-meter cable. The driver converts the probe's variable inductance into a calibrated voltage output (200 mV/mil) that feeds into 3500 rack monitors or standalone recorders. No signal conditioning or adapters required for standard installations.

What is the maximum continuous operating temperature this sensor can withstand?
The 330302-000-050-10-90-01-00 is rated for continuous operation at +177°C (+350°F) ambient temperature. Short-duration excursions to +185°C are permissible during thermal transients. For applications requiring sustained operation above 180°C, consult factory for extended-range sensor options.

Can this high-temperature proximity sensor reduce energy consumption in monitoring systems?
While the sensor itself does not directly reduce energy use, its thermal resilience eliminates the need for active cooling systems (fans, heat exchangers) often required to protect standard sensors in hot zones. Facilities report 15-20% reduction in auxiliary power consumption by deploying HTPS sensors instead of cooled sensor assemblies.

What are the installation clearance requirements for the 16mm probe diameter?
Minimum radial clearance of 25mm (1 inch) from adjacent metallic surfaces is recommended to prevent electromagnetic interference. Axial installation depth should position the probe tip 1.27mm (50 mils) from the target surface at normal operating gap. Mounting holes require 18mm diameter for M16 threading with adequate wrench clearance.

Does the 330302-000-050-10-90-01-00 support remote monitoring and predictive maintenance programs?
Yes. When integrated with Bently Nevada System 1 or Orbit 60 platforms, the sensor enables cloud-based condition monitoring with automated alert generation, trend analysis, and remaining useful life calculations. Data exports to CMMS systems (SAP PM, Maximo) for work order triggering and maintenance scheduling.

What is the typical calibration interval for this sensor in continuous high-temperature service?
Factory calibration remains stable for 5+ years in continuous 150°C+ operation. Annual verification checks are recommended for critical machinery protection applications. Field recalibration is not required unless physical damage or cable replacement occurs.

Request Technical Consultation

Our application engineers provide complimentary system design reviews for turbomachinery monitoring projects. Contact us with your equipment specifications, operating temperatures, and vibration monitoring objectives to receive sensor selection guidance, mounting recommendations, and integration support.
