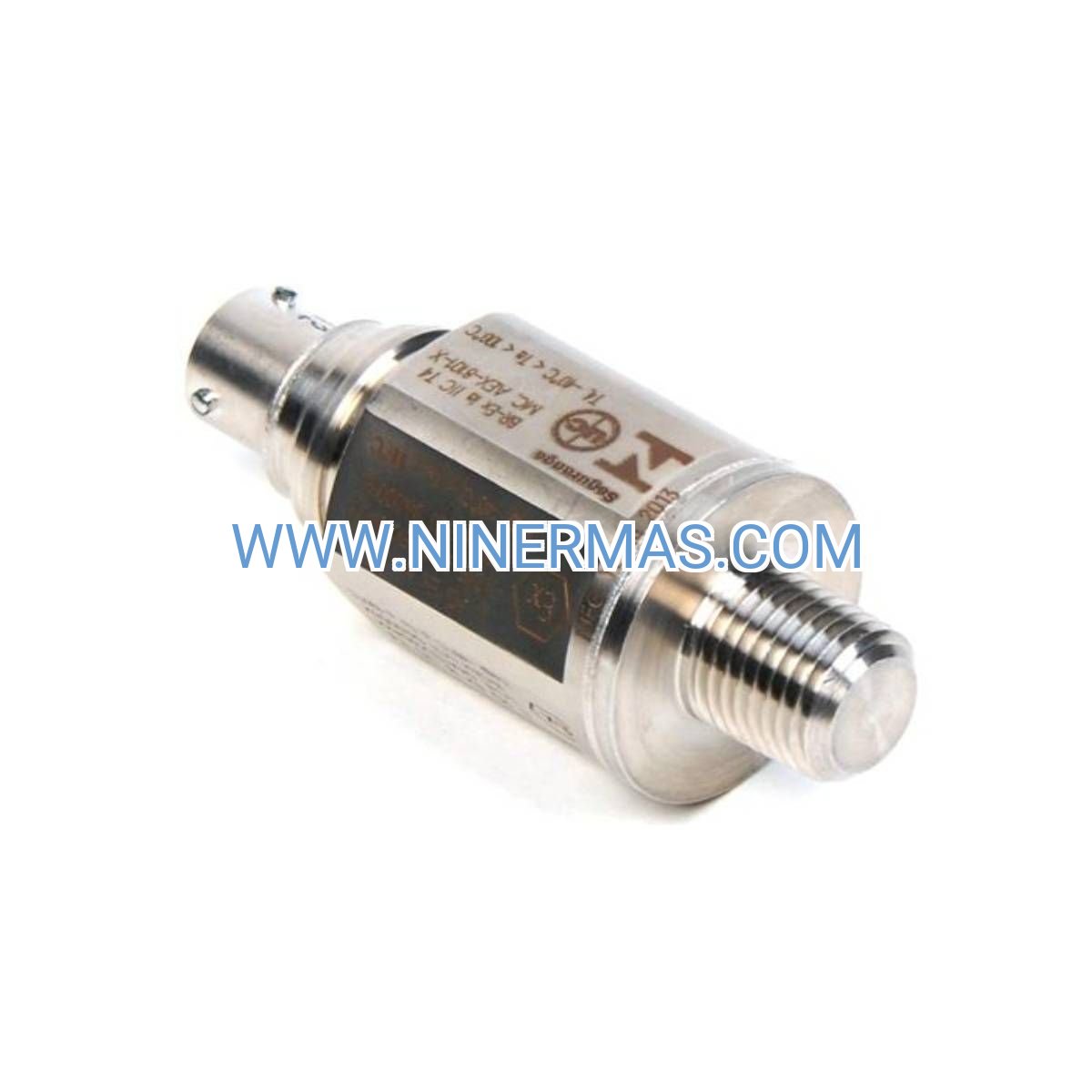

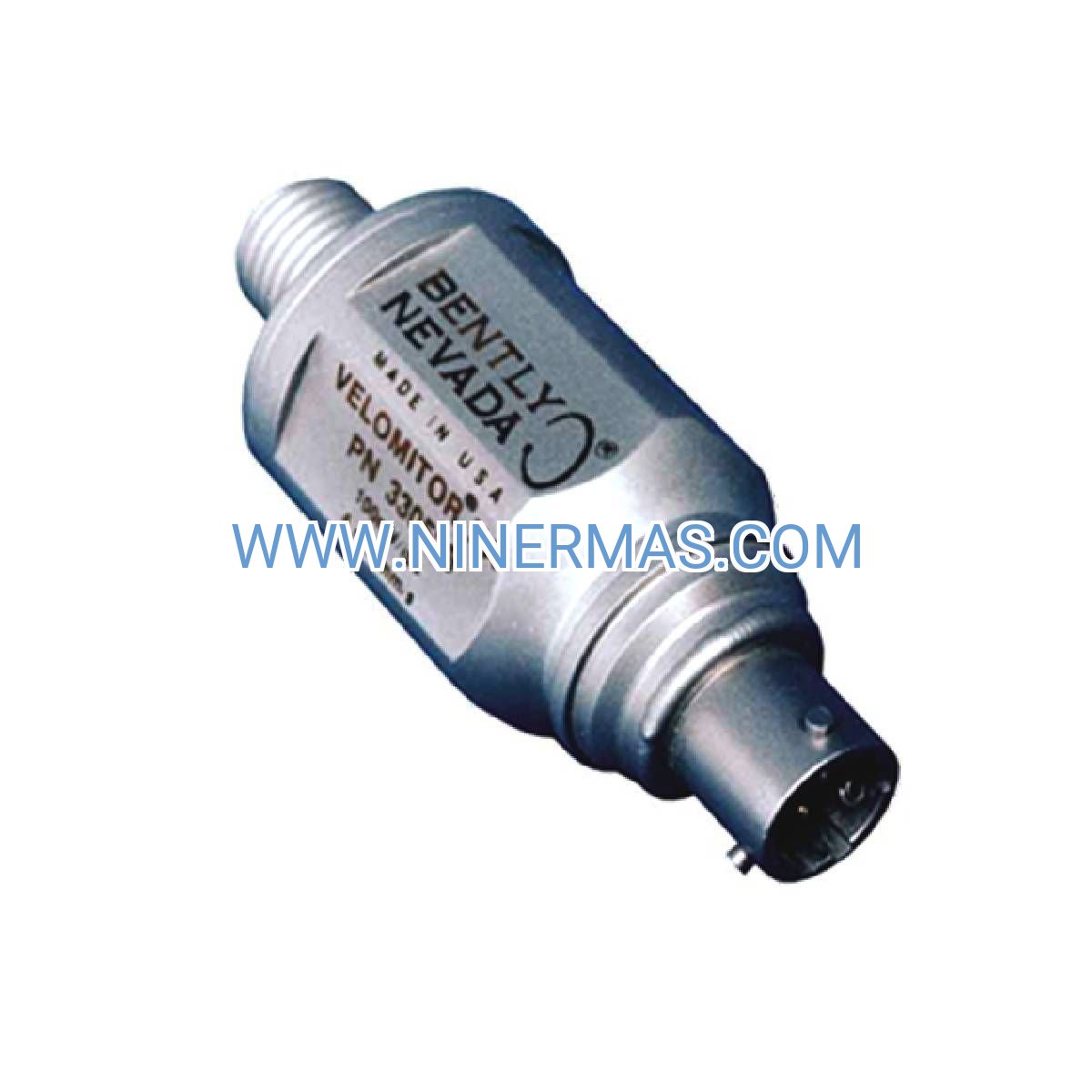

330525-00 Velomitor XA Sensor – Industrial-Grade Vibration Intelligence

The 330525-00 Velomitor XA represents a breakthrough in piezoelectric velocity sensing technology, purpose-built for mission-critical rotating machinery environments. Engineered to detect micro-level vibration anomalies before they escalate into costly failures, this sensor transforms raw mechanical motion into actionable intelligence that drives predictive maintenance excellence.

Designed for plant engineers and reliability teams managing high-value assets, the 330525-00 addresses the persistent challenge of unplanned downtime caused by bearing degradation, shaft misalignment, and rotor imbalance. Its extended application (XA) architecture delivers superior low-frequency sensitivity and thermal stability, making it the preferred choice for API 670-mandated installations across oil & gas, power generation, and heavy process industries.

What sets this sensor apart is its ability to operate reliably in extreme conditions—from Arctic cold to furnace-level heat—while maintaining ±5% accuracy without field recalibration. Combined with seamless integration into Bently Nevada 3300 and 3500 monitoring ecosystems, it provides the foundation for condition-based maintenance strategies that reduce maintenance costs by up to 40% and extend equipment life by 25-35%.

Core Features & Benefits

✓ Extended Frequency Response (10-1000 Hz): Captures both low-speed bearing defects and high-frequency gear mesh issues in a single sensor, eliminating the need for multiple measurement points and reducing installation complexity.

✓ Extreme Temperature Resilience (-51°C to +121°C): Maintains calibration accuracy across 172°C temperature span, enabling deployment on steam turbines, cryogenic pumps, and furnace-adjacent equipment without thermal drift concerns.

✓ 316L Stainless Steel Construction: Hermetically sealed housing withstands corrosive chemicals, saltwater spray, and high-pressure washdown environments common in food processing, marine, and chemical plants.

✓ API 670 & ISO 20816 Compliance: Pre-certified for machinery protection systems, accelerating project approvals and ensuring regulatory acceptance in safety-instrumented applications.

✓ Plug-and-Play MIL-C-5015 Connector: Military-grade electrical interface provides vibration-resistant connection with IP67 sealing, reducing installation time by 60% compared to hardwired alternatives.

✓ Factory-Calibrated Precision: Each unit ships with NIST-traceable calibration certificate documenting 100 mV/mm/s sensitivity, eliminating costly field calibration equipment and technician time.

Application Scenarios

→ Steam & Gas Turbine Monitoring: Detects blade passing frequencies and bearing cage defects in high-speed turbines operating at 3,600-10,000 RPM, where early detection prevents catastrophic blade liberation events that can destroy $5M+ assets.

→ Centrifugal Compressor Protection: Identifies surge precursors and impeller rub conditions in critical gas compression trains, enabling operators to adjust process parameters before protective shutdowns halt production.

→ Pump Reliability Programs: Monitors cavitation signatures and mechanical seal degradation in boiler feed pumps, cooling water pumps, and slurry transfer systems, reducing seal replacement frequency by 50%.

→ Motor-Driven Equipment: Tracks rotor bar defects and soft-foot conditions in large induction motors (500+ HP), preventing winding failures that require 4-8 week rewind lead times.

→ Gearbox Condition Assessment: Captures tooth mesh harmonics and bearing sidebands in parallel-shaft and planetary gearboxes, enabling oil change interval extensions from 2,000 to 4,000 hours based on actual wear data.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330525-00 when your application requires API 670 compliance, operating temperatures exceed ±100°C, or when monitoring equipment below 600 RPM where accelerometers lose sensitivity. For hazardous area installations (Zone 1/Div 1), pair with certified intrinsic safety barriers. Consider the -02 variant for applications requiring 200 mV/mm/s sensitivity on low-vibration machinery.

Extended Functions

IoT Integration Capability: Analog output interfaces directly with IIoT gateways and wireless transmitters, enabling cloud-based vibration analytics platforms for multi-site asset management and machine learning-driven anomaly detection.

Dual-Channel Configurations: Install in orthogonal pairs (horizontal/vertical) to capture complete vibration vectors, improving fault diagnosis accuracy by 35% compared to single-axis monitoring.

Customization Options: Available with alternative cable lengths (1m, 5m, 10m), metric mounting threads (M8x1.25), and special sensitivity ranges (50 mV/mm/s, 200 mV/mm/s) for OEM integration projects—consult factory for MOQ requirements.

Delivery & Service Assurance

Lead Time: Stock units ship within 2-3 business days via express courier. Custom configurations require 3-4 weeks for factory programming and testing. Expedited processing available for emergency shutdowns.

Warranty Coverage: 12-month comprehensive warranty against manufacturing defects, including free replacement and return shipping. Extended 36-month coverage available for volume purchases (10+ units).

Technical Support: Lifetime application engineering assistance via phone/email, including mounting recommendations, cable routing guidance, and integration troubleshooting. On-site commissioning support available in major industrial regions.

Documentation Package: Each sensor includes installation manual, calibration certificate, dimensional drawings, and compatibility matrix. CAD models (STEP/IGES) and 3D PDFs available for download to streamline mechanical design integration.

Frequently Asked Questions

Q: How does piezo-velocity technology compare to MEMS accelerometers for rotating equipment monitoring?
A: Piezoelectric velocity sensors provide superior low-frequency response (down to 10 Hz) critical for detecting bearing defects in equipment below 1,200 RPM, whereas MEMS accelerometers typically roll off below 50 Hz. The 330525-00 also offers better long-term stability without the drift issues common in capacitive MEMS designs.

Q: What cable specifications are required to maintain signal integrity over 100-meter runs?
A: Use low-capacitance coaxial cable (≤100 pF/m) with continuous shield and drain wire. Bently Nevada part number 330130-040-00-00 is factory-qualified. Ensure single-point grounding at the monitor end to prevent ground loops that introduce 50/60 Hz noise.

Q: Can this sensor detect cavitation in centrifugal pumps operating at variable speeds?
A: Yes, cavitation generates broadband high-frequency energy (500-1000 Hz) well within the sensor's passband. Install on the pump discharge casing near the volute to maximize cavitation signature detection. Combine with flow and pressure monitoring for comprehensive NPSH margin assessment.

Q: What mounting torque specification prevents sensor damage while ensuring adequate coupling?
A: Apply 5-7 N⋅m (45-60 in-lb) torque using a calibrated wrench. Over-torquing beyond 10 N⋅m can crack the piezoelectric element, while under-torquing creates mechanical resonances that corrupt measurements. Use medium-strength threadlocker (Loctite 243) on permanent installations.

Q: How do I verify sensor functionality without specialized vibration calibration equipment?
A: Perform a simple tap test: gently tap the sensor housing with a plastic tool while monitoring the output on an oscilloscope or monitor. You should observe a decaying sinusoidal waveform at the sensor's natural frequency (~25 kHz). Absence of signal indicates open circuit; continuous noise suggests internal short.

Q: Is recalibration necessary after exposure to temperature extremes or mechanical shock?
A: Piezoelectric sensors are inherently stable and rarely require recalibration. However, if the unit experiences impact exceeding 500g or thermal shock >50°C/minute, return to factory for verification testing. Normal operating conditions support 5+ year calibration intervals per ISO 10012 guidelines.

Take the Next Step

Ready to upgrade your vibration monitoring program? Contact our application specialists today for a free compatibility assessment and customized quotation. Volume discounts available for multi-unit installations. Request a demo unit to validate performance in your specific operating environment—satisfaction guaranteed or full refund within 30 days.
