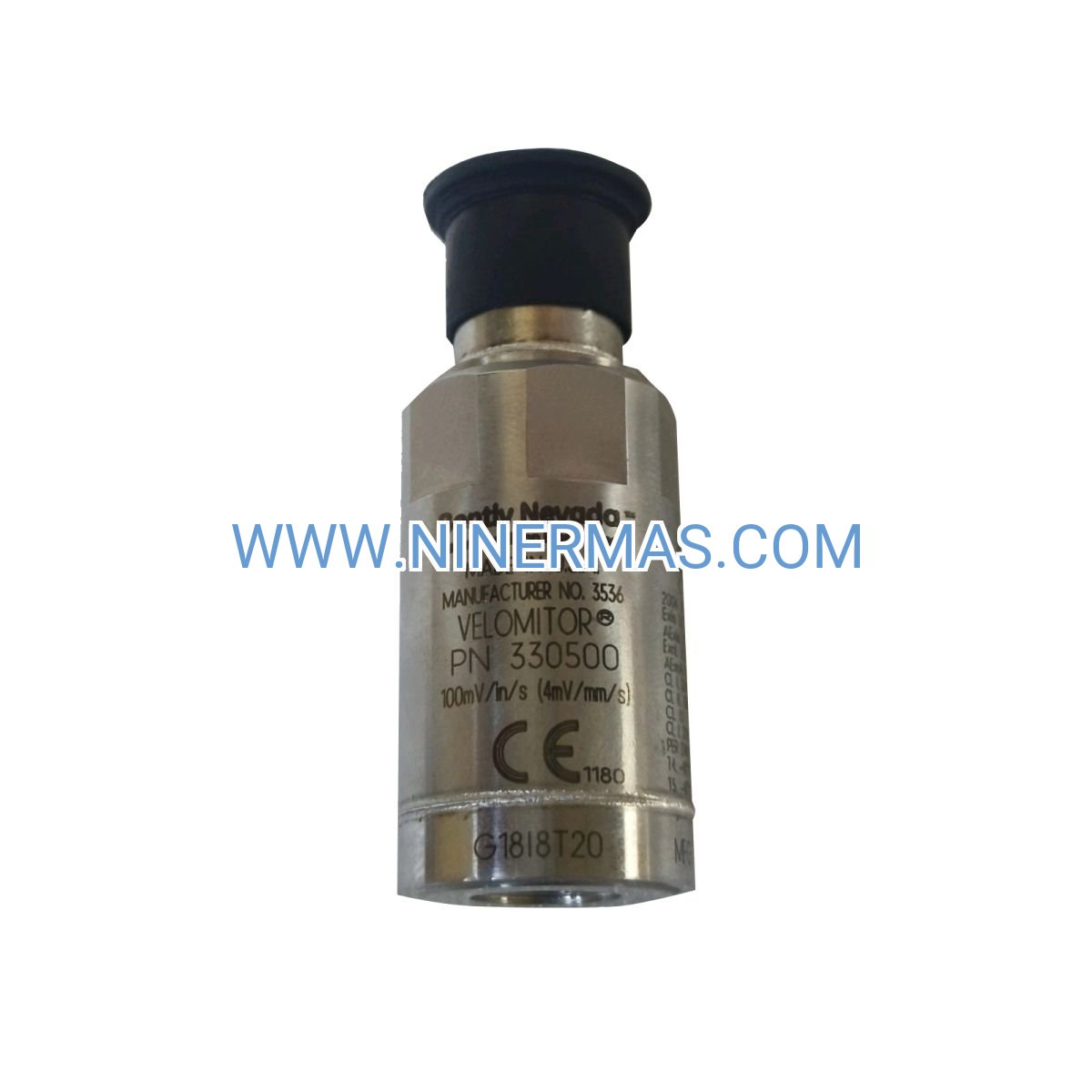

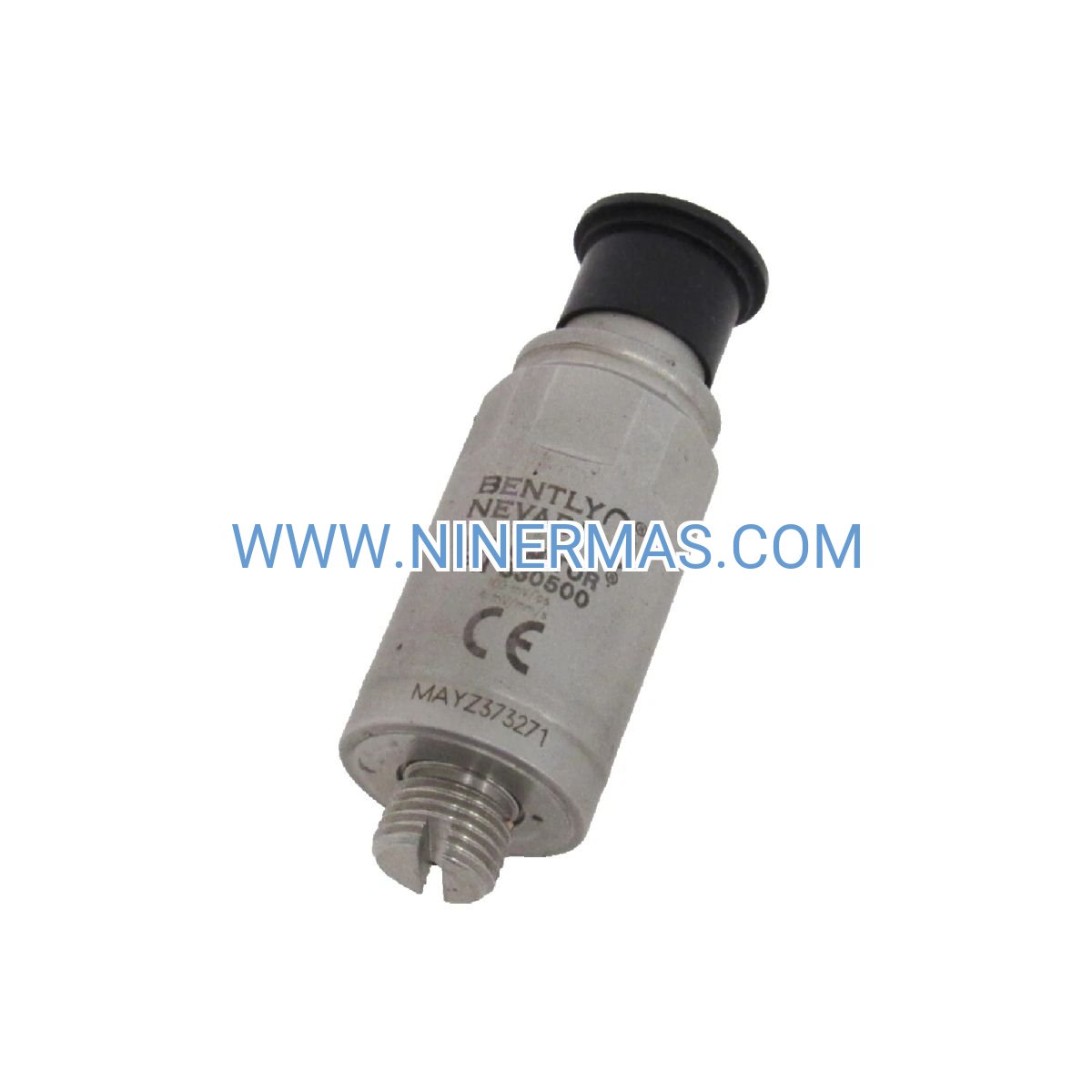

Bently Nevada 330500 Velomitor Piezo-Velocity Sensor (Industrial Vibration Monitoring System)

The Bently Nevada 330500 Velomitor is an industrial-grade piezo-velocity sensor engineered for continuous vibration monitoring of rotating machinery, bearing housings, and structural components. Through integrated piezoelectric sensing technology and built-in signal conditioning electronics, this sensor delivers real-time velocity measurements across a wide frequency spectrum, enabling early fault detection and predictive maintenance strategies.

Designed for critical applications in power generation, oil & gas processing, petrochemical plants, and heavy manufacturing environments, the 330500 series addresses common challenges including bearing degradation, unbalance conditions, misalignment issues, and structural resonance problems. Its robust construction and hermetically sealed design ensure reliable operation in harsh industrial conditions where continuous uptime is essential.

With standardized mounting configurations and customizable thread adapters, this sensor integrates seamlessly into existing condition monitoring systems. Suitable for design engineers, maintenance teams, system integrators, and plant reliability managers seeking to implement comprehensive machinery health monitoring programs. Contact our application engineers for sensor selection guidance, mounting recommendations, and system integration support.

Core Features & Technical Advantages

Wide Frequency Response for Comprehensive Fault Detection
Captures vibration signatures from 4.5 Hz to 5 kHz (±3.0 dB), covering critical fault frequencies including imbalance, misalignment, bearing defects, and gear mesh issues. The extended bandwidth enables detection of both low-speed machinery faults and high-frequency bearing defects in a single sensor.

Integrated Electronics for Superior Signal Integrity
Built-in IEPE (Integrated Electronics Piezo-Electric) conditioning provides low-impedance output (<2400 Ω), enabling cable runs up to 305 meters without signal degradation. Eliminates the need for external charge amplifiers and reduces installation complexity.

Industrial-Grade Environmental Resilience
Operates reliably across -55°C to +121°C (-67°F to +250°F) temperature range with 316L stainless steel construction. Withstands shock loads up to 5000 g peak and 100% relative humidity, making it suitable for extreme industrial environments including steam turbines, compressors, and outdoor installations.

High Sensitivity with Low Noise Floor
Factory-calibrated sensitivity of 100 mV/in/s (3.94 mV/mm/s) ±5% combined with ultra-low noise floor of 0.004 mm/s RMS enables detection of incipient faults before they escalate into catastrophic failures. Transverse sensitivity <5% ensures accurate axial measurements.

Hermetically Sealed MIL-Spec Connector
2-pin MIL-C-5015 hermetic connector provides IP-rated environmental protection and vibration-resistant electrical connection. Case-isolated grounding design minimizes ground loop interference in electrically noisy industrial environments.

Flexible Mounting Options
Available with multiple thread adapter configurations (1/4-28 UNF, 1/2-20 UNF, M8×1.0, 3/8-16 UNC, and others) to accommodate diverse machinery mounting requirements. Compact form factor (25.3 mm diameter × 63.2 mm height) fits constrained installation spaces.

Typical Application Scenarios

The Bently Nevada 330500 Velomitor sensor is engineered for applications demanding continuous vibration monitoring, predictive maintenance capabilities, and reliable fault detection, particularly in:

Rotating Machinery & Turbomachinery
Monitors steam turbines, gas turbines, centrifugal compressors, and turbo-generators in power plants and process industries. Detects rotor imbalance, bearing wear, blade passing frequencies, and coupling misalignment before scheduled outages.

Pumps & Motor-Driven Equipment
Provides bearing condition monitoring for centrifugal pumps, cooling water pumps, boiler feed pumps, and large electric motors. Identifies cavitation, hydraulic instability, mechanical looseness, and rolling element bearing defects through vibration signature analysis.

Gearboxes & Transmission Systems
Captures gear mesh frequencies, sidebands, and modulation patterns in industrial gearboxes, speed increasers/reducers, and power transmission assemblies. Enables early detection of tooth wear, misalignment, and lubrication issues.

Fans, Blowers & Air Handling Units
Monitors induced draft fans, forced draft fans, and large HVAC blowers in power generation, cement plants, and steel mills. Detects blade imbalance, bearing degradation, and structural resonance conditions.

Process Industry Critical Equipment
Supports condition-based maintenance programs in refineries, chemical plants, pulp & paper mills, and mining operations where unplanned downtime results in significant production losses and safety risks.

Technical Specifications & Selection Guide

To facilitate engineering design and sensor selection, the following specifications define the 330500 series performance envelope. Custom configurations are available for specialized applications.

Electrical Performance

Environmental & Mechanical

Selection Guidance

When specifying the 330500 Velomitor sensor, consider the following application parameters:

• Machinery Type & Speed Range: Ensure frequency response covers 10× running speed and bearing fault frequencies
• Mounting Surface & Thread: Select appropriate thread adapter (A-code) based on existing tapped holes or mounting studs
• Environmental Conditions: Verify operating temperature, exposure to moisture, chemicals, or explosive atmospheres
• Monitoring System Compatibility: Confirm IEPE input compatibility (constant current 2-20 mA, compliance voltage 18-30 VDC)
• Agency Approvals: Specify B-code for CSA, ATEX, or other hazardous area certifications if required
• Cable Routing & Length: Plan cable paths; standard low-noise coaxial cable supports up to 305 m runs

For assistance with sensor selection, mounting design, or system integration, provide the following information: machinery type, operating speed (RPM), bearing frequencies, mounting location details, ambient temperature range, and monitoring system specifications. Our application engineers will recommend the optimal configuration and provide installation drawings.

Model Number Configuration

The 330500 series uses a structured part numbering system: 330500-A-BB

A = Mounting Thread Adapter

• 00: No adapter (1/4-28 UNF base thread)
• 01: 1/2-20 UNF adapter
• 02: M8 × 1.0 metric adapter
• 03: 1/4-28 UNF adapter
• 04: 1/4-20 UNC adapter
• 06: 5/8-18 UNF adapter
• 07: 3/8-16 UNC adapter
• 08: 1/2-13 UNC adapter

Note: For 1/4-18 NPT threaded mounting, use model 330525 instead of 330500.

B = Agency Approval Code

• 00: No agency approvals
• 01: CSA/US/C certified
• 02: ATEX (European Union) certified
• 04: Multiple approvals (CSA + ATEX)

Example: Model 330500-A00-C04 = No thread adapter + Multiple agency approvals (CSA/ATEX)

Delivery, Support & Documentation

Lead Time: Standard catalog models typically ship within 3-5 business days from stock. Custom configurations with specific thread adapters or agency certifications may require 2-4 weeks. Expedited delivery available upon request.

Warranty & Support: All Bently Nevada 330500 sensors include manufacturer's warranty coverage. Technical support includes application engineering assistance, installation guidance, troubleshooting support, and calibration certificate verification. Remote consultation and on-site commissioning services available depending on project scope and location.

Documentation Package: Each sensor ships with:

• Product datasheet with certified calibration data
• Installation and mounting instructions
• Electrical connection diagram (IEPE wiring)
• Dimensional drawings and mounting hole specifications
• Material certifications and compliance declarations
• Recommended cable specifications (Bently Nevada P/N 02173006 or equivalent)

Integration Services: We provide system integration support including sensor placement optimization, cable routing design, monitoring system configuration, and baseline vibration surveys for new installations.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 330500 Velomitor sensor connect to existing vibration monitoring systems?
A: The 330500 uses standard IEPE (Integrated Electronics Piezo-Electric) output, compatible with most industrial vibration monitors, data collectors, and PLC-based monitoring systems. It requires a constant current power source (2-20 mA) at 18-30 VDC compliance voltage. Connection is via 2-pin MIL-C-5015 connector using standard coaxial cable. Verify your monitoring system provides IEPE/ICP® compatible inputs before ordering.

Q: What is the maximum number of sensors that can be connected to a single monitoring channel?
A: Typically one sensor per monitoring channel. The 330500 requires dedicated constant current excitation and individual signal conditioning. Multi-channel monitoring systems (such as Bently Nevada 3500 or 1900/65A) support multiple sensors with separate input channels. Consult your monitoring system specifications for channel count and input configuration.

Q: What level of vibration reduction or energy savings can be achieved with this sensor?
A: The 330500 is a measurement sensor, not an active vibration control device. However, by enabling early fault detection and predictive maintenance, it helps prevent catastrophic failures that cause unplanned downtime (typically reducing maintenance costs by 20-30% and extending equipment life by 15-25%). Energy savings occur indirectly through optimized machinery operation and reduced emergency repairs.

Q: What are the installation environment requirements and protection rating?
A: The sensor operates from -55°C to +121°C in up to 100% relative humidity (non-submersible). The hermetically sealed 316L stainless steel case and MIL-spec connector provide excellent environmental protection equivalent to IP65/IP67 when properly installed. Suitable for indoor and outdoor installations. For explosive atmospheres, specify ATEX or CSA-certified models (B-code 02 or 04).

Q: Can the sensor support remote monitoring and wireless data transmission?
A: The 330500 provides analog voltage output requiring wired connection to a monitoring system. For wireless capability, integrate with wireless vibration transmitters (such as Bently Nevada Ranger Pro or third-party IEPE-compatible wireless nodes) that accept IEPE sensor inputs. Many modern condition monitoring platforms support Modbus TCP/IP, OPC-UA, or proprietary protocols for remote SCADA/DCS integration.

Q: How do I select the correct thread adapter for my machinery?
A: Identify the existing tapped hole or mounting stud thread on your machinery bearing housing or mounting pad. Common industrial standards include 1/4-28 UNF (small machines), 3/8-16 UNC (medium pumps/motors), and 1/2-20 UNF (large turbomachinery). Metric equipment typically uses M8×1.0 or M10×1.0. If uncertain, provide machinery make/model and mounting location photos for application engineering review.

Request Technical Support & Custom Solutions

For detailed application engineering support, sensor selection assistance, or custom monitoring system design, please provide the following information:

• Equipment type and manufacturer (e.g., centrifugal pump, steam turbine, gearbox)
• Operating speed range (RPM) and bearing type
• Mounting location and available thread size
• Ambient temperature range and environmental conditions
• Existing monitoring system model or required output interface
• Quantity required and project timeline

Our application engineers will provide sensor configuration recommendations, installation drawings, cable specifications, and integration guidance tailored to your specific machinery monitoring requirements.
