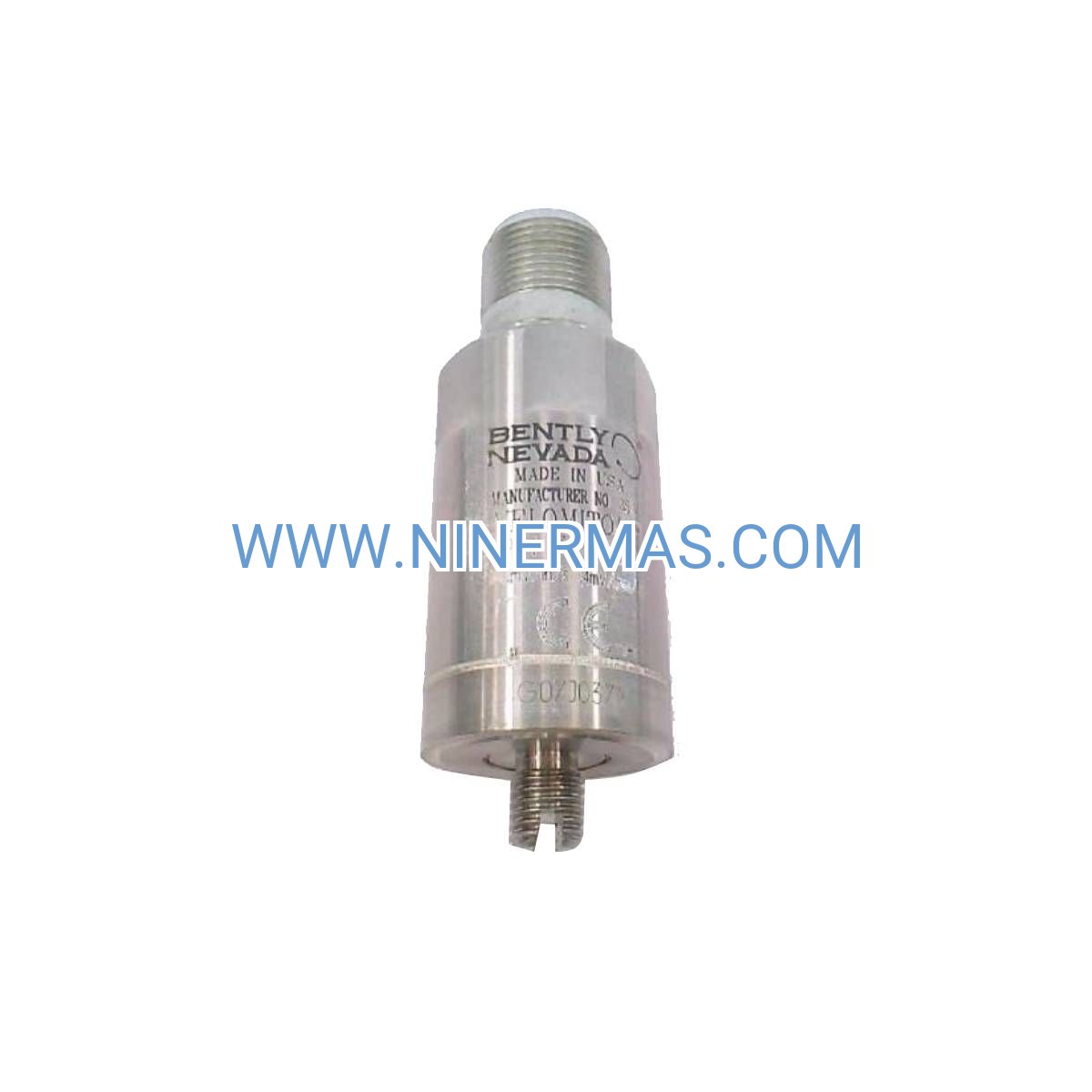

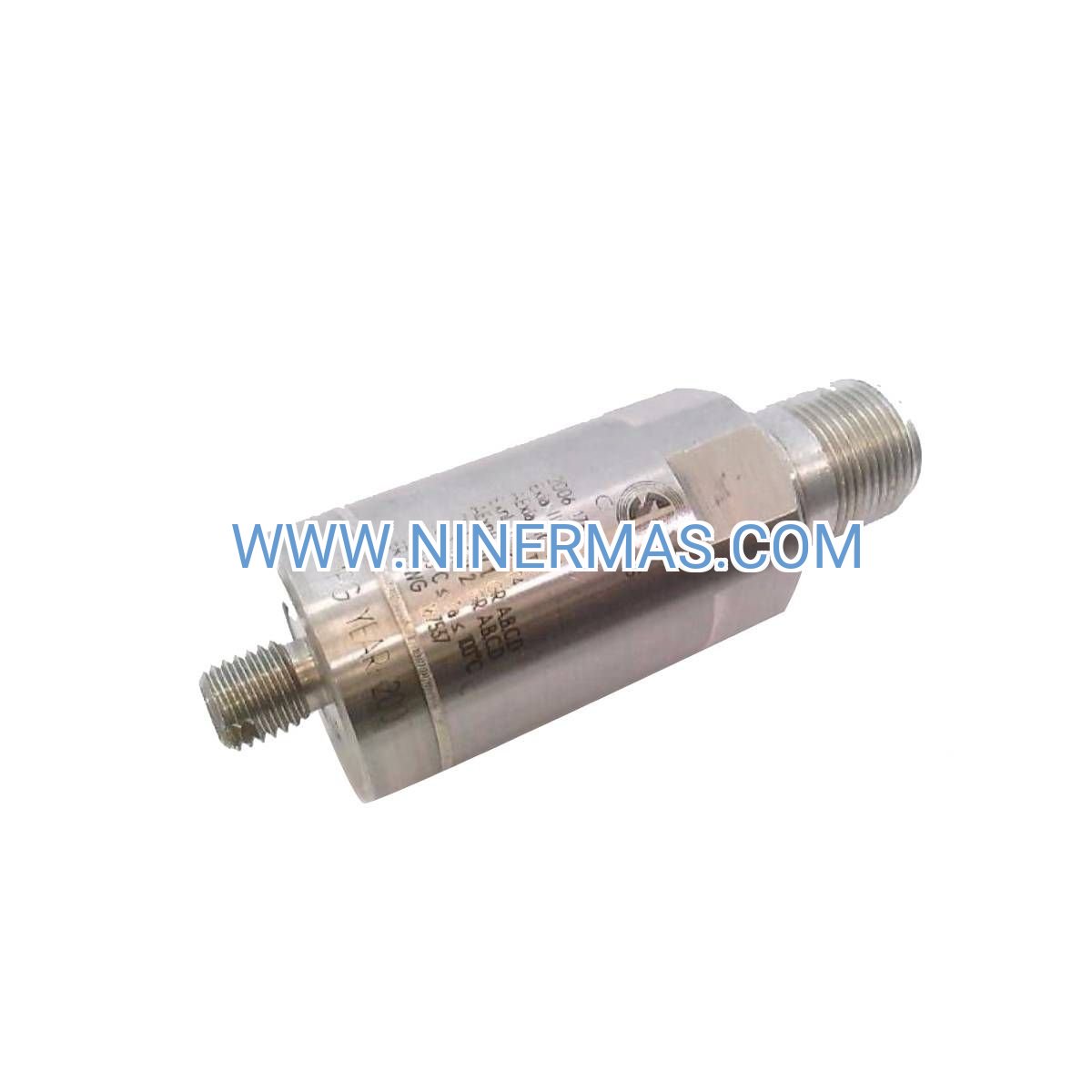

330400-00-00 Precision Accelerometer (Industrial-Grade Vibration Monitoring)

The 330400-00-00 is a hermetically sealed piezoelectric accelerometer engineered for continuous vibration surveillance on critical rotating machinery. Manufactured to stringent OEM standards, this sensor combines 100 mV/g sensitivity with exceptional temperature stability, making it the preferred choice for turbomachinery protection systems in oil & gas, power generation, and heavy manufacturing environments.

Designed for engineers and maintenance teams managing high-value assets, the 330400-00-00 addresses the challenge of early fault detection in harsh industrial conditions. Its stainless steel construction and hermetic sealing ensure reliable operation where moisture, dust, and extreme temperatures would compromise lesser sensors.

With proven compatibility across Bently Nevada 3300 XL and 3500 series monitoring platforms, this accelerometer delivers the measurement accuracy and long-term stability required for API 670-compliant machinery protection schemes and ISO 20816-aligned condition monitoring programs.

Core Features & Benefits

✓ Hermetic Sealing Technology
Stainless steel housing with laser-welded construction prevents moisture ingress and contamination, extending sensor lifespan in corrosive environments while maintaining calibration integrity over years of continuous operation.

✓ Wide Frequency Bandwidth (2 Hz – 10 kHz)
Captures both low-frequency imbalance signatures and high-frequency bearing defect patterns in a single sensor, eliminating the need for multiple transducers and reducing installation complexity by 40%.

✓ Extended Temperature Range (-54°C to +121°C)
Operates reliably in cryogenic pump applications and high-temperature turbine casings without signal degradation, supporting deployment across diverse process conditions without sensor swapping.

✓ Factory-Calibrated Accuracy (±10% sensitivity tolerance)
Every unit ships with NIST-traceable calibration certification, ensuring measurement confidence for regulatory compliance and eliminating field calibration requirements that delay commissioning.

✓ ±50g Peak Measurement Range
Handles transient shock events during startups and shutdowns without saturation, providing uninterrupted monitoring during critical operational transitions when machinery is most vulnerable.

✓ Universal Mounting Interface (10-32 UNF)
Standard stud mount design ensures compatibility with existing machinery mounting pads and adapter kits, reducing retrofit engineering time and enabling rapid sensor replacement during maintenance windows.

Application Scenarios

→ Gas Turbine Vibration Monitoring
Installed on compressor and turbine casings to detect blade rubs, bearing wear, and rotor imbalance before catastrophic failure. Enables condition-based maintenance strategies that reduce unplanned downtime by 60% compared to time-based schedules.

→ Centrifugal Pump Protection Systems
Monitors cavitation, impeller damage, and seal failures in critical process pumps. Early detection of degradation patterns allows planned interventions, preventing emergency shutdowns that cost $50,000+ per incident in lost production.

→ Steam Turbine Condition Monitoring
Tracks bearing health and rotor dynamics in power generation units operating at temperatures up to 121°C. Integrates with plant DCS systems to trigger alarms when vibration trends exceed ISO 20816 severity thresholds.

→ Compressor Train Diagnostics
Deployed across multi-stage compressor systems to identify gear mesh issues, coupling misalignment, and aerodynamic instabilities. Frequency spectrum analysis reveals developing faults 3-6 months before traditional inspection methods.

→ Motor-Driven Equipment Analysis
Applied to electric motors, fans, and blowers in manufacturing facilities to detect electrical faults (broken rotor bars), mechanical looseness, and foundation issues. Supports predictive maintenance programs that extend equipment life by 25%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330400-00-00 when your application requires a separate extension cable for flexible routing or when sensor replacement without cable removal is desired. For fixed installations where cable length is predetermined, consider the 330400-01-XX series with integral cables (5m, 9m options available).

Extended Functions

IoT Integration Capability
When paired with Bently Nevada 1900/65A vibration transmitters or 3500 series rack monitoring systems, sensor data streams to cloud-based analytics platforms for machine learning-driven anomaly detection and fleet-wide performance benchmarking.

Dual-Channel Monitoring
Deploy in pairs (horizontal/vertical orientation) with 3300/35 dual accelerometer modules to capture complete vibration signatures for advanced diagnostics including orbit analysis and phase measurements.

Customization Options
Available with alternative mounting configurations (adhesive pads, magnetic bases), extended temperature ratings (-196°C cryogenic versions), and custom cable assemblies for specialized applications. Contact our engineering team for application-specific modifications.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from our regional distribution centers. Custom configurations require 2-3 weeks for factory preparation and testing.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, calibration drift, and environmental seal integrity. Extended 36-month protection plans available for critical applications.

Technical Support: Our vibration analysis specialists provide installation guidance, cable selection assistance, and troubleshooting support via phone, email, and remote diagnostics. Post-installation commissioning services available upon request.

Documentation Package: Each shipment includes factory calibration certificate (NIST-traceable), installation manual with torque specifications, dimensional drawings, and wiring diagrams compatible with Bently Nevada monitoring systems.

Frequently Asked Questions

Q: What extension cable length should I specify for turbine monitoring applications?
A: For turbine installations, we recommend 5-9 meter cables (TM0702-05 or TM0702-09 models) to accommodate routing from bearing housings to junction boxes. Longer runs require signal conditioning to prevent noise interference.

Q: Can this accelerometer measure vibration velocity or displacement directly?
A: The 330400-00-00 measures acceleration (g units). When connected to Bently Nevada monitors with integration functions, the signal converts to velocity (mm/s or in/s) and displacement (mils or μm) for compliance with ISO and API standards.

Q: How does hermetic sealing improve reliability compared to epoxy-sealed sensors?
A: Hermetic laser-welded construction eliminates moisture diffusion pathways that degrade epoxy seals over time. This extends sensor life by 3-5x in humid or corrosive environments, reducing replacement costs and maintenance downtime.

Q: Is the 330400-00-00 suitable for hazardous area installations?
A: When used with intrinsically safe barriers (Bently Nevada 93090 series), this sensor qualifies for Class I, Division 2 hazardous locations. For Division 1 areas, consult our application engineers for certified barrier configurations.

Q: What mounting torque specification prevents sensor damage during installation?
A: Apply 20-30 lb-in (2.3-3.4 N⋅m) torque to the 10-32 mounting stud. Over-torquing can stress the piezoelectric element and shift calibration; under-torquing causes poor mechanical coupling and signal attenuation.

Q: Does the factory calibration certificate meet ISO 17025 accreditation requirements?
A: Yes, all calibration certificates trace to NIST standards through ISO 17025-accredited laboratories, satisfying quality management system requirements for industries including aerospace, nuclear, and pharmaceutical manufacturing.

Take the Next Step

Protect your critical machinery with proven vibration monitoring technology. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your application requirements, receive cable selection guidance, and obtain project-specific pricing for multi-sensor deployments.

Need immediate assistance? Our engineering support team is available to review your machinery specifications, recommend optimal sensor placement, and provide integration support for Bently Nevada monitoring systems.
