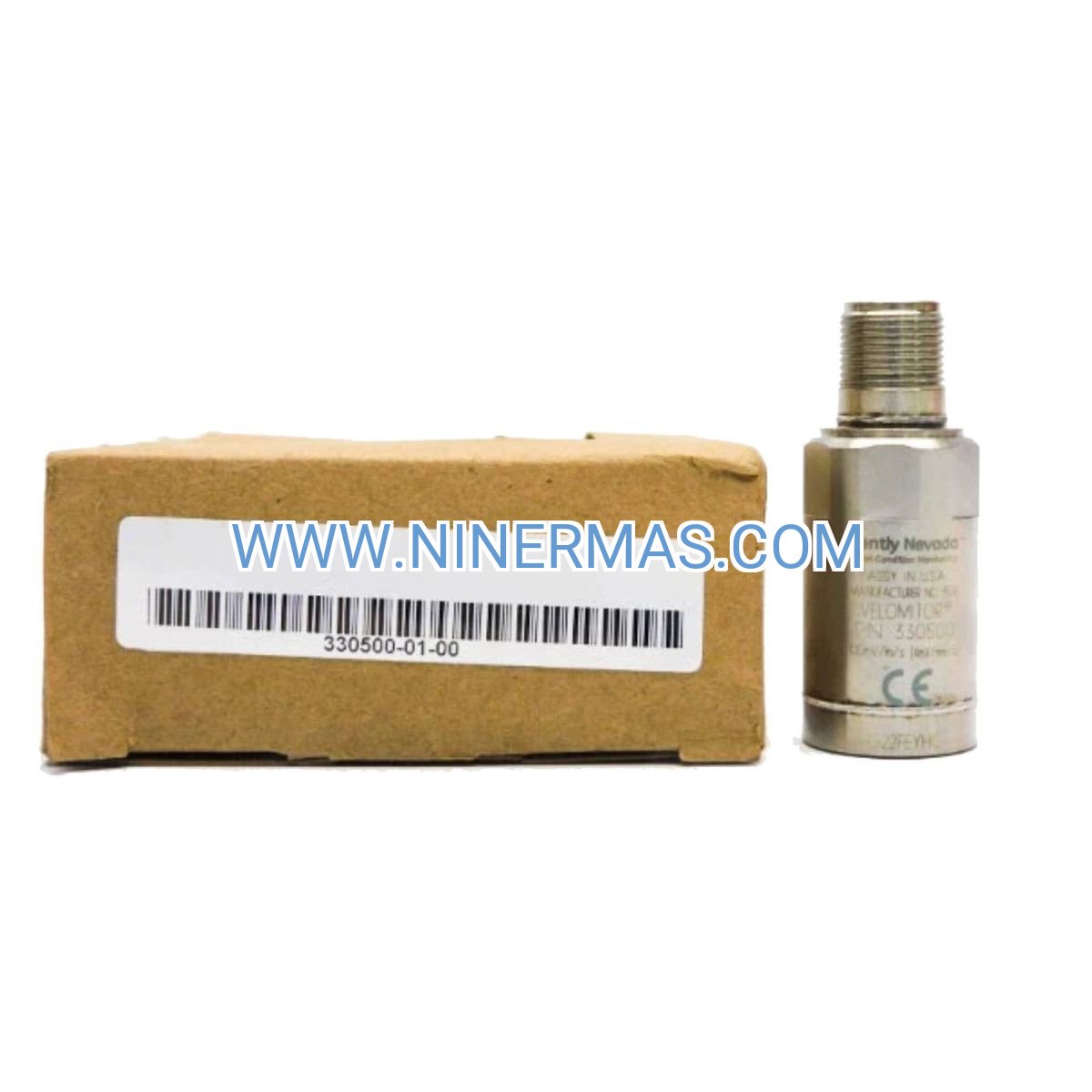

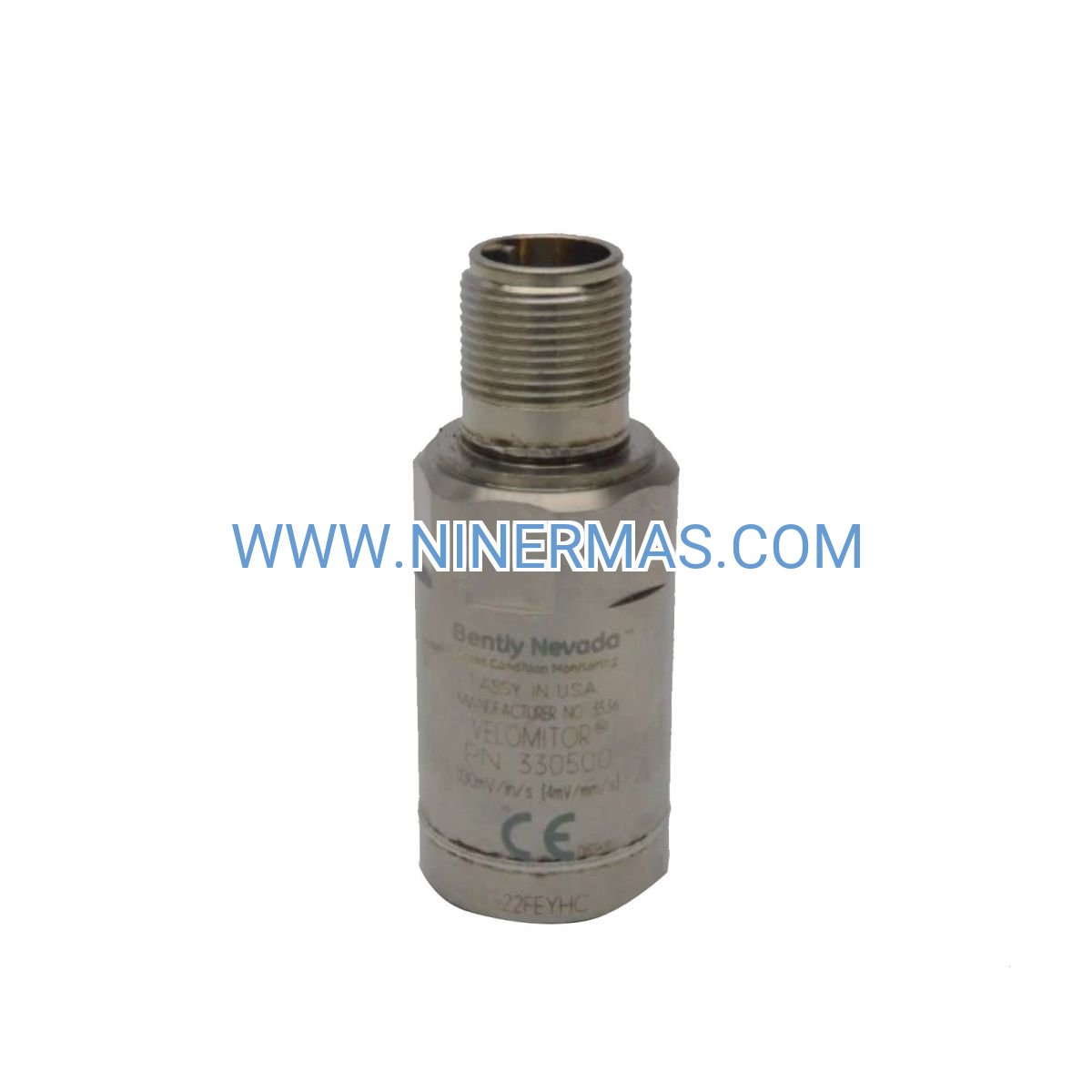

Bently Nevada 330500-01-00 Velomitor Piezoelectric Velocity Sensor (Industrial Vibration Monitoring Solution)

The Bently Nevada 330500-01-00 Velomitor is a high-performance piezoelectric velocity sensor engineered for continuous vibration monitoring of rotating machinery and critical industrial equipment. Utilizing advanced piezoelectric crystal technology with integrated charge amplification, this transducer delivers real-time velocity measurements to detect bearing wear, unbalance, misalignment, and mechanical looseness before catastrophic failures occur.

Designed for demanding industrial environments including power generation plants, petrochemical facilities, pulp & paper mills, steel manufacturing, and heavy machinery operations, the 330500-01-00 addresses critical challenges such as unexpected equipment downtime, inadequate early fault detection, harsh environmental exposure (-51°C to +121°C), and the need for reliable long-term monitoring with minimal maintenance intervention.

Through ISO 10816 compliance and IP68 hermetic sealing, this sensor provides exceptional measurement accuracy, environmental resilience, and installation flexibility. Ideal for plant engineers, maintenance teams, condition monitoring specialists, and OEM integrators seeking proven vibration sensing technology. Contact our application engineers for customized mounting solutions and system integration guidance.

Core Features & Technical Advantages

• High-Fidelity Velocity Measurement
  Delivers 100mV/in/s (3.94mV/mm/s) sensitivity with integrated charge amplifier, providing direct velocity output without external signal conditioning. Eliminates low-frequency drift common in accelerometer integration methods.
• Optimized Frequency Response
  Covers 10Hz to 1kHz frequency range, capturing critical machinery fault signatures including bearing defects (50-500Hz), unbalance (1X running speed), and gear mesh frequencies. Ideal for equipment operating 600-60,000 RPM.
• Industrial-Grade Environmental Protection
  IP68 hermetically sealed stainless steel housing withstands continuous exposure to moisture, oil mist, chemical vapors, and temperature extremes from -51°C to +121°C (-60°F to +250°F). Suitable for outdoor and hazardous area installations.
• ISO 10816 Compliance
  Meets international standards for mechanical vibration evaluation of machines, ensuring measurement consistency across global facilities and compatibility with condition monitoring systems from all major vendors.
• Flexible Mounting Options
  Standard 1/4-28 UNF threaded stud mount with optional magnetic base, adhesive pad, or welded bracket adapters. Enables installation on bearing housings, gearbox casings, motor frames, and structural supports without machining.
• Low-Impedance Output
  Built-in MOSFET amplifier provides low-impedance voltage output compatible with standard PLC analog inputs, DCS systems, portable analyzers, and protection monitors. Supports cable runs up to 300 meters without signal degradation.
• Long-Term Stability
  Solid-state piezoelectric design with no moving parts ensures measurement repeatability over years of continuous operation. Typical calibration interval exceeds 24 months under normal operating conditions.

Typical Application Scenarios

The 330500-01-00 Velomitor sensor is engineered for applications requiring reliable velocity-based vibration monitoring with minimal maintenance, particularly in:

• Rotating Machinery & Turbomachinery
  Continuous monitoring of steam turbines, gas turbines, compressors, blowers, and large pumps in power plants and process industries. Detects rotor unbalance, misalignment, and bearing degradation through velocity trend analysis.
• Electric Motors & Generators
  Condition monitoring of induction motors (1-5000 HP), synchronous generators, and motor-driven equipment. Identifies stator/rotor issues, coupling problems, and foundation looseness through broadband velocity measurements.
• Gearboxes & Transmission Systems
  Fault detection in industrial gearboxes, speed reducers, and mechanical drives. Captures gear mesh frequencies, sidebands, and bearing tones to enable predictive maintenance scheduling and prevent catastrophic failures.
• Pumps & Hydraulic Systems
  Monitoring of centrifugal pumps, positive displacement pumps, and hydraulic power units in water treatment, oil & gas, and chemical processing. Detects cavitation, impeller damage, and seal wear through velocity signature analysis.
• Fans & Air Handling Equipment
  Vibration surveillance of induced draft fans, forced draft fans, and HVAC blowers. Identifies blade imbalance, bearing wear, and structural resonance issues before performance degradation or safety hazards develop.
• Conveyor & Material Handling Systems
  Condition assessment of conveyor drive systems, crushers, mills, and screening equipment in mining, cement, and aggregate industries. Enables transition from reactive to predictive maintenance strategies.

Technical Specifications & Selection Guide

Selection Considerations

When specifying the 330500-01-00 for your application, consider the following factors:

• Frequency Content: Ensure primary fault frequencies fall within 10Hz-1kHz range. For higher frequency bearing analysis (>1kHz), consider accelerometer-based systems.
• Mounting Surface: Verify mounting location provides rigid coupling to vibration source. Avoid flexible structures or locations with poor transmission paths.
• Environmental Conditions: Confirm operating temperature remains within -51°C to +121°C. For extreme temperatures beyond this range, consult factory for special configurations.
• Cable Length: Standard 2-meter integral cable; extension cables available up to 300 meters. Specify total cable length during ordering for optimal signal integrity.
• Monitoring System Compatibility: Verify your DCS, PLC, or condition monitoring system accepts 100mV/in/s velocity input with 18-30VDC constant current excitation.

For assistance with sensor selection, mounting design, or system integration, please provide: equipment type, operating speed (RPM), mounting location description, ambient temperature range, and monitoring system specifications. Our application engineers will recommend the optimal configuration and provide technical drawings.

Extended Capabilities & System Integration

• Multi-Point Monitoring Networks: Integrate multiple 330500-01-00 sensors into centralized condition monitoring systems for comprehensive machinery health assessment across entire facilities.
• Alarm & Trip Protection: Configure velocity thresholds in protection monitors for automated equipment shutdown when vibration exceeds safe operating limits, preventing secondary damage.
• Trend Analysis & Diagnostics: Combine with FFT analyzers and vibration management software to track velocity trends, identify developing faults, and optimize maintenance intervals.
• Wireless Retrofit Solutions: Pair with wireless transmitters for cost-effective monitoring of remote or rotating equipment without extensive cabling infrastructure.
• Compliance Documentation: Includes calibration certificate, material traceability, and ISO 10816 conformance documentation to support quality management and regulatory requirements.

Delivery, Service & Quality Assurance

Lead Time: Standard 330500-01-00 sensors typically ship within 3-5 business days from stock. Custom cable lengths or special mounting configurations require 10-15 business days.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship. Extended warranty programs available for critical applications.

Technical Support: Comprehensive installation guidance, wiring diagrams, and mounting drawings provided with each sensor. Remote technical consultation and on-site commissioning support available (region-dependent).

Documentation Package: Each unit includes calibration certificate with traceability to NIST standards, dimensional drawings, electrical specifications, and installation instructions in English.

Quality Certifications: Manufactured under ISO 9001 quality management system. Complies with ISO 10816 vibration measurement standards and API 670 machinery protection system requirements.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 330500-01-00 Velomitor sensor integrate with existing vibration monitoring systems?
A: The 330500-01-00 provides a standard 100mV/in/s velocity output compatible with most DCS analog inputs, PLC modules, and condition monitoring systems. It requires 18-30VDC constant current excitation (typically 2-20mA). Connection is straightforward via the integral 2-meter cable with industry-standard 2-pin connector. For systems expecting accelerometer inputs, a simple scaling factor adjustment in your monitoring software accommodates the velocity signal.

Q: What is the maximum number of sensors that can be connected to a single monitoring channel?
A: Each 330500-01-00 sensor requires a dedicated monitoring channel due to its low-impedance voltage output design. Unlike passive accelerometers that can sometimes be paralleled, velocity sensors with built-in amplifiers must be individually wired to separate input channels on your monitoring system or multiplexer.

Q: What energy savings or efficiency improvements can be expected from vibration monitoring with this sensor?
A: While the sensor itself doesn't directly reduce energy consumption, implementing condition-based maintenance using 330500-01-00 velocity monitoring typically reduces unplanned downtime by 30-50%, extends bearing life by 20-40%, and prevents catastrophic failures that cause production losses. Early detection of misalignment and unbalance also improves mechanical efficiency, potentially reducing energy consumption by 2-8% on monitored equipment.

Q: What are the installation environment requirements and ingress protection rating?
A: The 330500-01-00 features IP68 hermetic sealing, making it suitable for continuous outdoor exposure, washdown environments, and areas with oil mist or chemical vapors. Operating temperature range is -51°C to +121°C (-60°F to +250°F). The sensor can be installed in any orientation. Ensure the mounting surface is clean, flat, and provides rigid coupling to the vibration source for accurate measurements.

Q: Does the sensor support remote monitoring and industrial communication protocols?
A: The 330500-01-00 provides an analog voltage output (100mV/in/s) rather than digital communication protocols. For remote monitoring, the analog signal can be connected to: (1) PLC/DCS analog input modules with Modbus, Profibus, or Ethernet/IP communication, (2) wireless vibration transmitters with 4-20mA or voltage inputs, or (3) dedicated condition monitoring systems with built-in networking capabilities. The sensor's low-impedance output supports cable runs up to 300 meters without signal degradation.

Q: What is the recommended calibration interval and how is calibration performed?
A: Bently Nevada recommends calibration verification every 24 months for the 330500-01-00 under normal operating conditions. Calibration requires specialized vibration calibration equipment (shaker table with reference accelerometer) and should be performed by qualified calibration laboratories with NIST-traceable standards. Each sensor ships with a factory calibration certificate. For critical applications, annual verification may be specified to maintain measurement confidence.

Q: Can this sensor be used in hazardous area classifications (ATEX, IECEx, Class I Div 2)?
A: The standard 330500-01-00 configuration is not intrinsically safe certified for hazardous areas. For installations in classified locations, Bently Nevada offers explosion-proof and intrinsically safe sensor variants with appropriate certifications. Consult our application engineers with your area classification requirements (ATEX Zone, IECEx, NEC Class/Division) for proper sensor selection and barrier/isolator specifications.

Request Technical Support & Custom Solutions

To receive detailed selection guidance, application-specific recommendations, or pricing quotations, please provide the following information to our engineering team:

• Project name and application description
• Equipment type and operating speed (RPM)
• Preferred mounting location and surface material
• Ambient temperature range and environmental conditions
• Total cable length requirement (sensor to monitoring system)
• Monitoring system specifications (input type, excitation voltage)
• Quantity required and delivery timeline

Our application engineers will provide one-on-one consultation, technical drawings, and system integration recommendations tailored to your specific machinery monitoring requirements.
