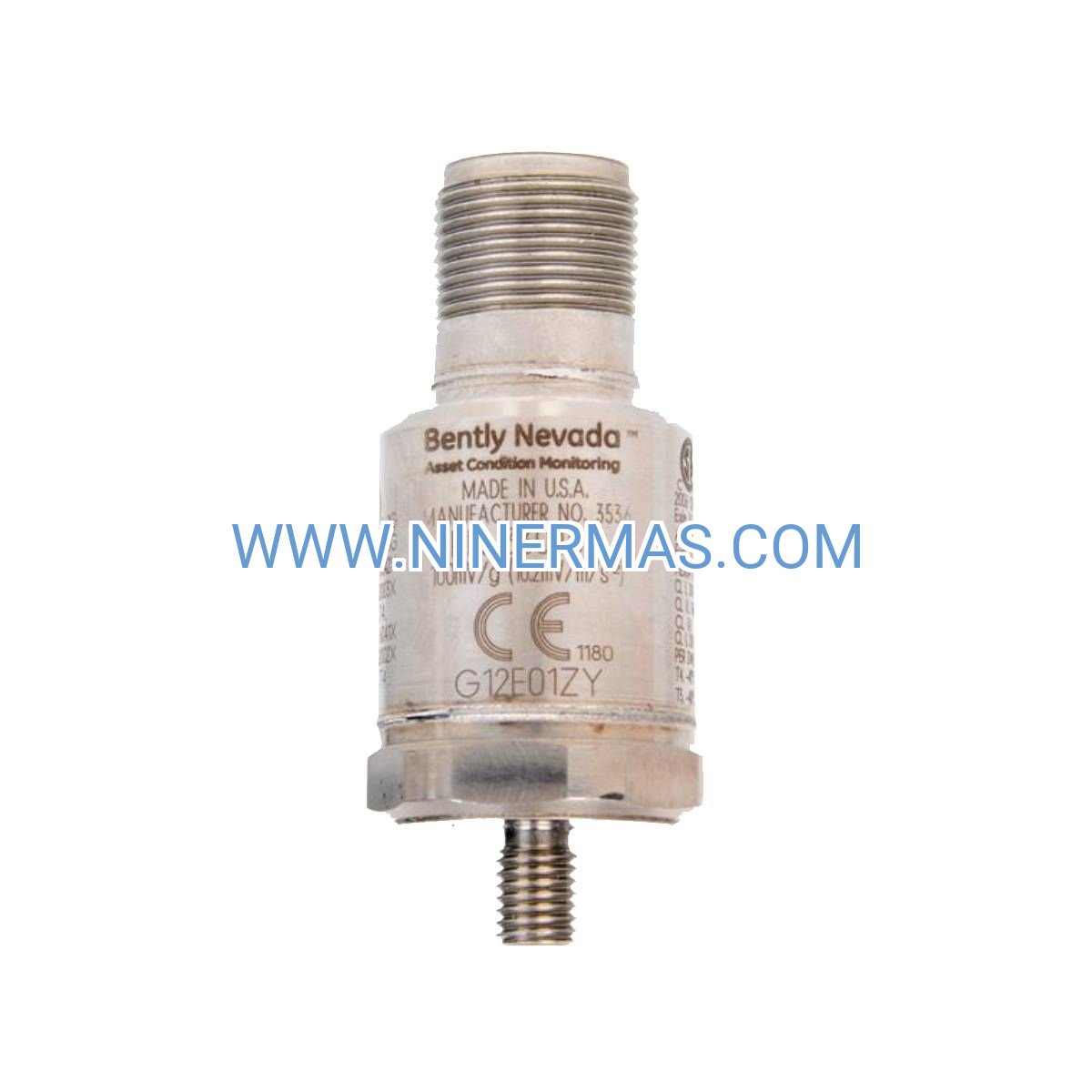

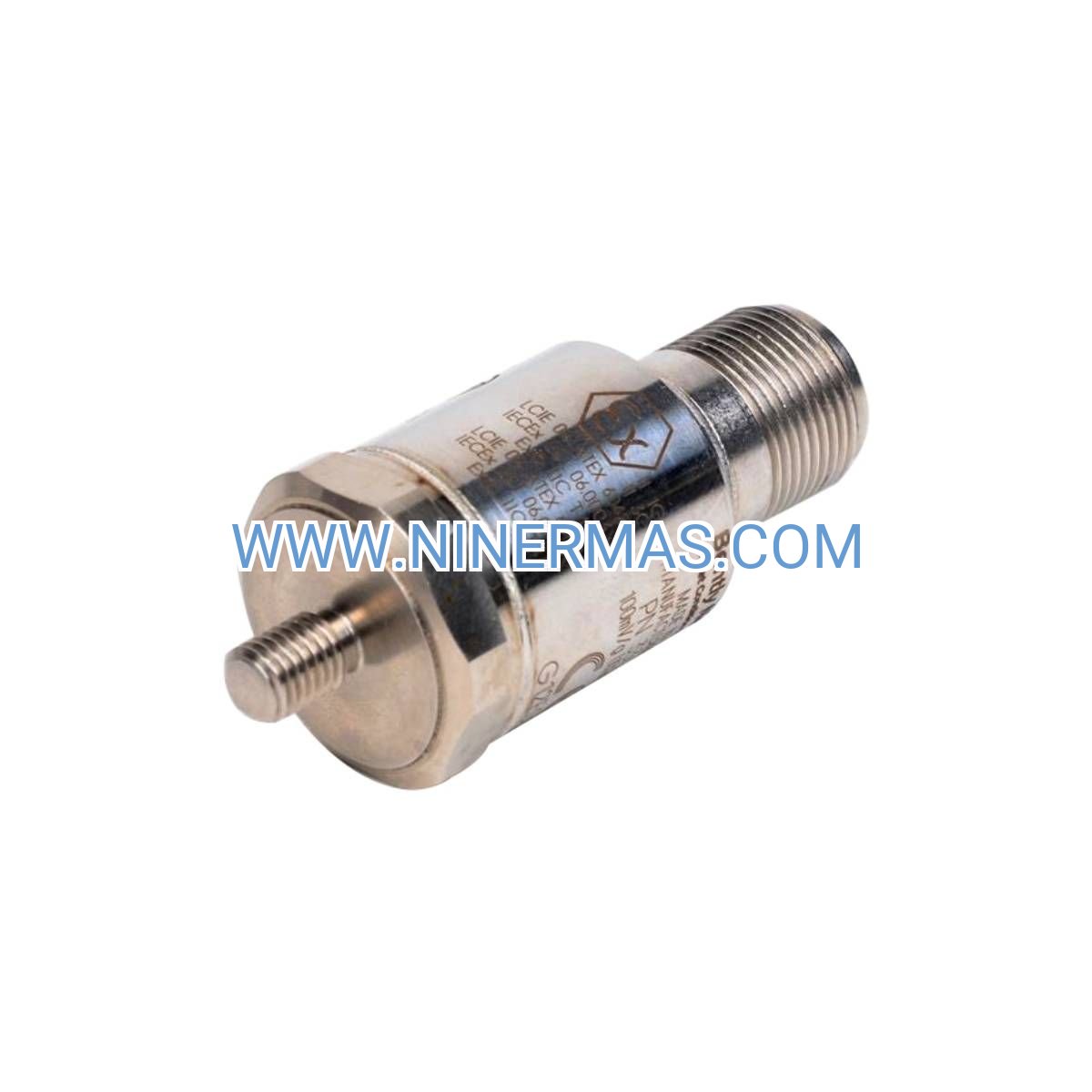

330400-01-05 Accelerometer (Industrial-Grade Vibration Transducer)

The Bently Nevada 330400-01-05 is a factory-calibrated piezoelectric accelerometer built for continuous vibration monitoring on critical rotating assets. Engineered to detect high-frequency anomalies—from bearing defects to gear mesh irregularities—this sensor serves as the frontline defense in predictive maintenance strategies across power generation, oil & gas, and heavy manufacturing sectors.

Designed for plant reliability engineers and maintenance teams managing turbomachinery, compressors, and motor-driven systems, the 330400-01-05 delivers consistent performance in temperatures ranging from -40°C to +121°C. Its rugged MIL-spec connector and hermetically sealed housing ensure data integrity even in corrosive or high-vibration environments.

Key advantages include wide-bandwidth frequency response (2 Hz to 10 kHz), compatibility with industry-standard monitoring platforms (3300 XL, 3500 series), and compliance with API 670 machinery protection standards. This combination enables early fault detection, reduces unplanned downtime, and extends asset lifespan through data-driven maintenance scheduling.

Core Features & Benefits

✓ Wide Dynamic Range: ±50g peak measurement capacity captures both subtle bearing wear signatures and high-amplitude transient events without sensor saturation.

✓ Extended Frequency Bandwidth: 2 Hz to 10 kHz response range monitors slow-roll imbalance (120 RPM+) through ultrasonic bearing frequencies, providing comprehensive machine health visibility.

✓ Extreme Environment Durability: Operates reliably from -40°F to +250°F with hermetic sealing rated IP67, protecting internal electronics from moisture, dust, and chemical exposure.

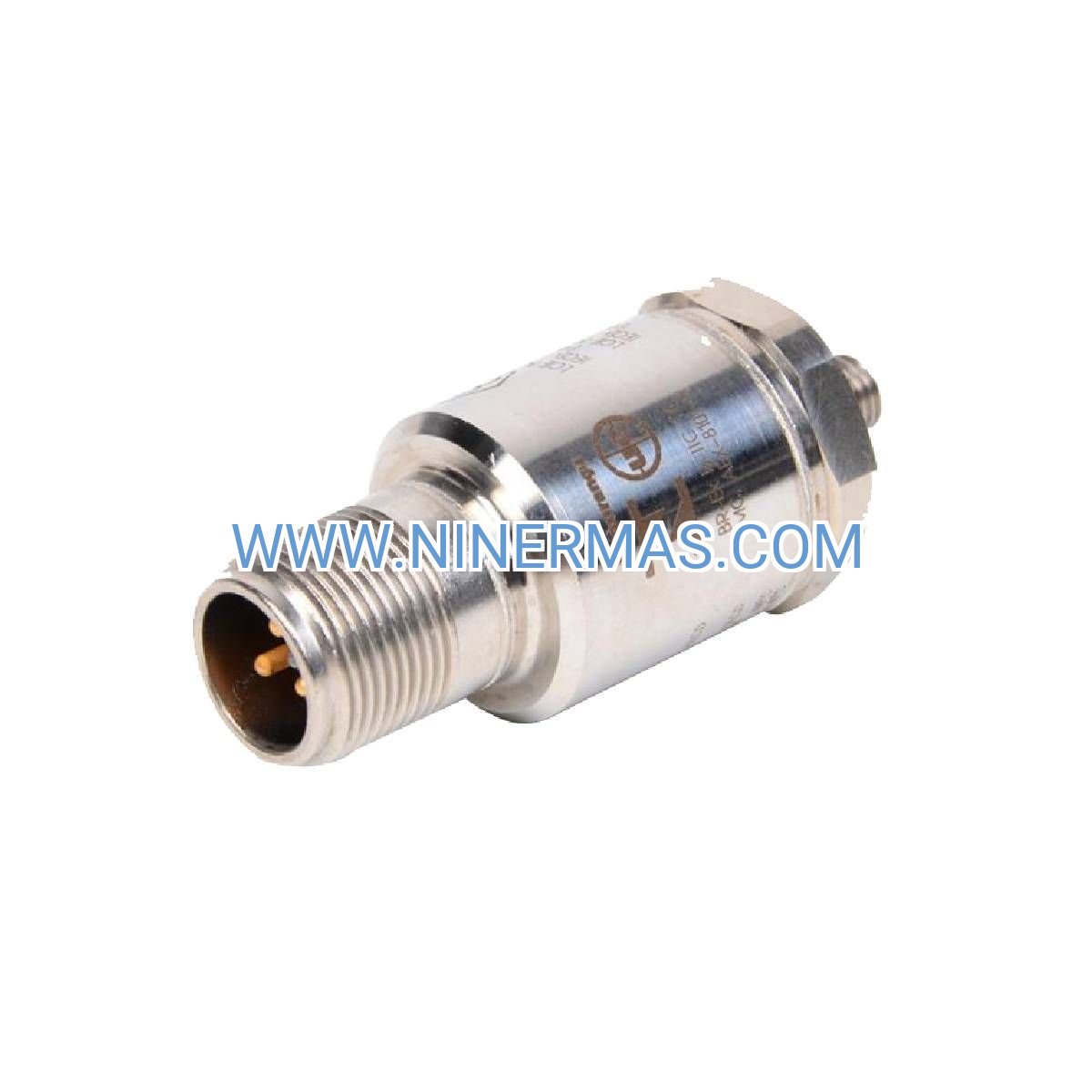

✓ Plug-and-Play Integration: 2-pin MIL-C-5015 connector ensures quick installation with Bently Nevada monitoring systems—no custom cabling or signal conditioning modifications required.

✓ Factory Calibration Certification: Each unit ships with traceable calibration data (100 mV/g ±10%), eliminating field calibration delays and ensuring measurement accuracy from day one.

✓ API 670 Compliance: Meets petroleum and natural gas industry standards for machinery protection systems, simplifying regulatory audits and insurance requirements.

Application Scenarios

→ Steam & Gas Turbine Monitoring: Detects blade passing frequencies and casing resonances in power generation turbines operating at 3,000-10,000 RPM, preventing catastrophic blade failures through early vibration trend analysis.

→ Gearbox Condition Assessment: Identifies gear tooth wear, misalignment, and lubrication breakdown in industrial gearboxes by tracking gear mesh frequency harmonics—critical for wind turbines and mining conveyors where gearbox replacement costs exceed $500K.

→ Centrifugal Compressor Protection: Monitors anti-friction bearing health in multi-stage compressors handling corrosive gases, where bearing failure can trigger process shutdowns costing $50K-$200K per hour in lost production.

→ Electric Motor Diagnostics: Tracks rotor bar defects, stator eccentricity, and bearing raceway damage in motors from 50 HP to 5,000 HP, enabling condition-based maintenance that reduces motor replacement frequency by 40%.

→ Pump Cavitation Detection: Captures high-frequency cavitation signatures in boiler feed pumps and pipeline boosters, allowing operators to adjust suction pressure before impeller erosion occurs.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330400-01-05 when monitoring equipment with rotational speeds above 600 RPM where high-frequency fault detection is critical. For lower-speed applications (below 300 RPM), consider velocity sensors like the 330500 series. Ensure mounting surface flatness within 0.0005" and apply 30-35 in-lbs torque for optimal frequency response.

Extended Functions

IoT Integration Capability: When paired with Bently Nevada Orbit 60 series gateways, sensor data streams to cloud-based analytics platforms for machine learning-driven anomaly detection and fleet-wide benchmarking.

Dual-Channel Configurations: Install in orthogonal pairs (horizontal/vertical or axial/radial) to capture complete vibration vectors, enabling precise fault localization and rotor dynamic analysis.

Customization Options: Available with extended cable lengths (up to 100 ft), alternative connector types (BNC, 4-pin M12), and explosion-proof certifications (ATEX, IECEx) for hazardous area installations—consult factory for lead times.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations (special cables, certifications) require 4-6 weeks factory production.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended 36-month coverage available for critical asset applications.

Technical Support: Lifetime access to application engineers for mounting guidance, signal troubleshooting, and integration with third-party monitoring systems (Emerson AMS, SKF IMx, Rockwell FactoryTalk).

Documentation Included: Calibration certificate with traceability to NIST standards, installation manual, dimensional drawings (CAD format), and material certifications (MTR) for quality audits.

Frequently Asked Questions

What cable length is recommended for optimal signal integrity with the 330400-01-05 accelerometer?
For installations under 50 feet, use standard low-noise coaxial cable (RG-58 or equivalent). Beyond 50 feet, specify Bently Nevada 16710 series shielded interconnect cables to minimize electromagnetic interference—maximum recommended run is 300 feet before signal conditioning.

Can this sensor monitor machinery operating below 300 RPM effectively?
While the 330400-01-05's 2 Hz lower frequency limit supports monitoring down to 120 RPM, velocity sensors provide superior low-speed sensitivity. For equipment under 300 RPM (kilns, mills, slow-speed conveyors), the 330500 Velomitor series delivers better signal-to-noise ratios.

How does mounting surface preparation affect accelerometer performance?
Critical. Surface flatness within 0.0005" and roughness under 32 microinches ensures proper mechanical coupling. Remove paint, rust, and coatings within a 1-inch radius of the mounting hole. Poor preparation can reduce frequency response by 30% above 5 kHz.

Is the 330400-01-05 compatible with non-Bently Nevada monitoring systems?
Yes. The sensor outputs standard IEPE (Integrated Electronics Piezo-Electric) signals compatible with any monitoring system providing 18-30 VDC constant current excitation (2-20 mA). Verified integrations include Emerson CSI, Pruftechnik, and Azima DLI platforms.

What installation torque prevents sensor damage while ensuring accurate readings?
Apply 30-35 in-lbs (3.4-4.0 N·m) using a calibrated torque wrench. Under-torquing (below 25 in-lbs) causes resonance shifts and data unreliability; over-torquing (above 40 in-lbs) risks thread stripping and housing deformation.

Does this accelerometer require periodic recalibration for continued accuracy?
Bently Nevada recommends recalibration every 24-36 months for critical safety systems per API 670 guidelines. For general condition monitoring, verify calibration every 5 years or after exposure to shock events exceeding 500g.

Take the Next Step

Protect your critical assets with proven vibration monitoring technology. Contact our technical sales team for application-specific recommendations, volume pricing, or to request a demo unit for field evaluation. Our engineers provide complimentary mounting location assessments and system integration planning.
