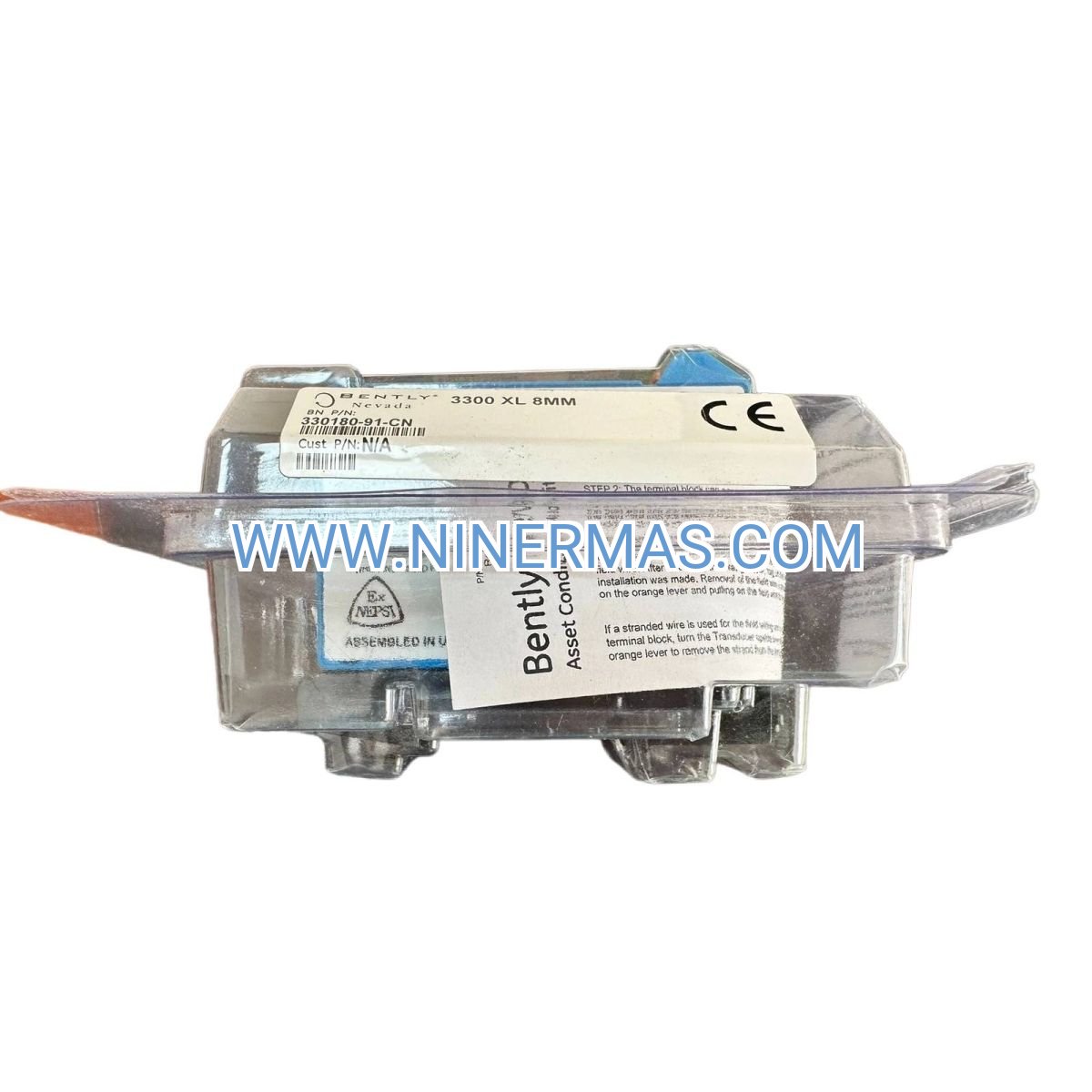

330180-91-CN Eddy Current Proximitor Sensor (Industrial Vibration Monitoring System)

The 330180-91-CN Proximitor Sensor is an industrial-grade eddy current proximity transducer designed for continuous vibration and displacement monitoring in rotating machinery systems. Through non-contact eddy current sensing technology combined with precision signal conditioning, it delivers real-time shaft position tracking, radial vibration measurement, and axial displacement detection for critical asset protection.

Ideal for turbomachinery applications including steam turbines, gas turbines, centrifugal compressors, industrial pumps, and high-speed motors, this sensor addresses common challenges such as bearing failure prediction, rotor imbalance detection, shaft misalignment identification, and thrust bearing wear monitoring. It helps prevent catastrophic equipment failure, reduces unplanned downtime, minimizes manual inspection requirements, and enables early fault detection through continuous condition monitoring.

Featuring standardized 8mm metric threading with customizable cable configurations, the 330180-91-CN offers IP65 environmental protection, stainless steel corrosion-resistant construction, wide operating temperature range (-40°C to +85°C), and seamless compatibility with Bently Nevada 3500 monitoring systems. Suitable for design engineers, maintenance teams, system integrators, and plant reliability managers. Contact our application engineers for system configuration recommendations and technical quotations.

Core Features & Advantages

• Non-Contact Eddy Current Technology
  Utilizes electromagnetic induction principles with zero mechanical wear, providing stable long-term measurements without physical contact with rotating shafts. Eliminates sensor degradation from friction and extends operational lifespan in continuous-duty applications.
• Wide Frequency Response Capability
  Captures dynamic events from DC (static position) to 10 kHz bandwidth, enabling detection of both slow-roll eccentricity and high-frequency bearing defects. Supports comprehensive machinery diagnostics from startup transients to full-speed operation.
• Harsh Environment Durability
  IP65-rated sealed housing withstands moisture, dust, and industrial contaminants. Operates reliably across extreme temperature ranges from Arctic installations to desert climates, with stainless steel construction resisting chemical corrosion in petrochemical environments.
• Linear Output Signal Processing
  Delivers -2 to -18 Vdc output proportional to target gap distance, providing intuitive signal interpretation and simplified integration with PLC systems, DCS platforms, and vibration monitoring racks. Factory calibration ensures measurement accuracy within specified linear range.
• System Integration Flexibility
  Direct compatibility with Bently Nevada 3300 XL proximity transducers and 3500 series monitoring frameworks. Supports Modbus, 4-20mA, and relay output configurations for SCADA connectivity, enabling centralized condition monitoring and predictive maintenance workflows.
• Comprehensive Protection Functions
  Integrated diagnostics detect cable faults, target material anomalies, and out-of-range conditions. Alarm outputs trigger automated shutdown sequences, preventing secondary damage during abnormal operating events and reducing maintenance costs.

Typical Application Scenarios

This proximitor sensor is engineered for applications demanding high reliability, continuous operation, and precise displacement measurement, particularly in:

• Steam & Gas Turbine Monitoring
  Measures shaft radial vibration and differential expansion in power generation turbines, protecting against rotor rubs and thermal growth issues. Monitors thrust bearing position to prevent axial displacement failures in combined-cycle plants and cogeneration facilities.
• Centrifugal Compressor Protection
  Tracks rotor position in oil & gas compression trains, chemical process compressors, and air separation units. Detects surge conditions, impeller imbalance, and seal clearance changes before catastrophic failure occurs, ensuring process continuity.
• Industrial Pump Condition Monitoring
  Monitors shaft deflection in boiler feed pumps, cooling water pumps, and slurry transfer systems. Identifies cavitation, bearing wear, and coupling misalignment in mining, pulp & paper, and water treatment applications, extending mean time between failures.
• High-Speed Motor & Generator Systems
  Provides keyphasor reference signals and radial vibration data for synchronous motors, induction motors, and turbine-driven generators. Supports balancing operations, alignment verification, and resonance frequency analysis in steel mills, cement plants, and manufacturing facilities.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide standardized technical parameters with custom configuration options available for project-specific requirements:

Selection Recommendations: When specifying this sensor, consider the following parameters: target shaft material composition (steel/aluminum), required measurement range and sensitivity, ambient temperature and humidity conditions, available mounting space and thread depth, cable routing distance to monitoring system, and hazardous area classification requirements. For assistance with sensor quantity determination, mounting bracket selection, or system architecture design, please provide machinery specifications including shaft diameter, operating speed, bearing type, and monitoring objectives. Our application engineers will recommend optimal configurations and provide detailed installation drawings.

System Integration & Connectivity

The 330180-91-CN proximitor sensor integrates with multiple monitoring architectures:

• Bently Nevada 3500 Rack Systems: Direct connection to 3500/42M, 3500/45, and 3500/46M monitor modules for vibration trending, alarm management, and data recording
• Standalone Proximity Transducers: Pair with 3300 XL 8mm or 5mm proximity transducers (models 330180-X0-XX series) for signal conditioning and buffered outputs
• PLC/DCS Integration: Analog output compatible with Siemens S7, Allen-Bradley ControlLogix, Honeywell Experion, and ABB 800xA platforms via 4-20mA converters
• SCADA & Cloud Platforms: Supports Modbus RTU/TCP protocols for integration with OSIsoft PI, GE Predix, and Siemens MindSphere IIoT ecosystems
• Portable Diagnostics: Compatible with CSI 2140 machinery analyzers and SKF Microlog vibration collectors for field verification and commissioning

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional warehouses. Custom cable lengths and special configurations require 10-15 business days for factory assembly and testing.

Warranty Coverage: All sensors include a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical applications.

Technical Support: Remote commissioning assistance provided via phone and video conference. On-site installation supervision and system startup services available in major industrial regions (pricing varies by location and scope).

Documentation Package: Each sensor ships with factory calibration certificate (traceable to NIST/ISO standards), dimensional installation drawing, electrical connection diagram, recommended mounting torque specifications, and quick-start commissioning guide. Full operation and maintenance manuals available for download.

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems. Sensors undergo 100% functional testing including frequency response verification, linearity checks, and environmental stress screening prior to shipment.

Frequently Asked Questions (FAQ)

Q: How does the 330180-91-CN proximitor sensor interface with existing vibration monitoring systems?
A: The sensor outputs a standard -2 to -18 Vdc signal that connects directly to Bently Nevada 3300 XL proximity transducers or 3500 series monitor modules. For non-Bently systems, signal conditioning modules convert the output to 4-20mA or digital protocols. Verify your monitoring system's input specifications and we'll recommend appropriate interface hardware.

Q: What is the maximum number of sensors that can be installed on a single machine?
A: Typical turbomachinery installations use 2 sensors per bearing (X-Y radial planes) plus 1-2 axial position sensors, totaling 8-12 sensors for a four-bearing machine. The actual quantity depends on API 670/ISO 7919 requirements, criticality classification, and monitoring objectives. Consult machinery OEM guidelines or contact our engineers for application-specific recommendations.

Q: What energy savings or efficiency improvements can be expected from vibration monitoring?
A: While the sensor itself doesn't directly reduce energy consumption, continuous condition monitoring enables optimized maintenance scheduling, preventing efficiency losses from bearing wear (typically 2-5% power increase), rotor imbalance (1-3% losses), and misalignment (3-7% losses). Predictive maintenance programs using proximitor data have demonstrated 15-25% reductions in maintenance costs and 30-50% decreases in unplanned downtime.

Q: What are the installation environment requirements and protection class specifications?
A: The sensor features IP65 protection, suitable for indoor and outdoor installations with protection from direct water jets and dust ingress. Operating temperature range is -40°C to +85°C. For explosive atmospheres (ATEX Zone 1/2 or NEC Class I Div 1/2), intrinsically safe barrier modules are required—consult factory for certified configurations. Avoid installation locations with sustained vibration above 10g RMS or electromagnetic interference exceeding 10 V/m field strength.

Q: Does the system support remote monitoring and data acquisition capabilities? Which communication protocols are compatible?
A: Yes, when integrated with Bently Nevada 3500 rack systems or third-party monitoring platforms, the sensor data can be transmitted via Modbus RTU/TCP, OPC UA, Ethernet/IP, and PROFIBUS protocols. Cloud connectivity is achieved through edge gateways supporting MQTT, REST APIs, and industrial IoT platforms. Real-time data streaming, historical trending, and alarm notification to mobile devices are fully supported in modern SCADA architectures.

Q: What is the recommended target gap range and how is field calibration performed?
A: The optimal linear operating range is 0.5 to 2.0 mm (20 to 80 mils) for ferromagnetic targets (carbon steel, stainless steel 400 series). Non-magnetic conductive materials like aluminum or brass require custom calibration curves. Field verification uses precision gap setting fixtures with micrometer adjustment. Install sensors at the mid-range gap (1.25 mm / 50 mils) to allow bidirectional measurement during operation. Factory calibration data is provided with each sensor; field recalibration is recommended annually or after cable replacement.

Request Technical Consultation

For detailed system design assistance, application-specific sensor selection, or project quotations, please provide the following information to our engineering team:

• Project name and application type (turbine, compressor, pump, motor, etc.)
• Machinery specifications: shaft diameter, operating speed (RPM), bearing configuration
• Monitoring objectives: radial vibration, axial position, eccentricity, keyphasor
• Number of measurement points and sensor quantity required
• Environmental conditions: temperature range, hazardous area classification, outdoor/indoor
• Monitoring system architecture: standalone, rack-mounted, PLC-integrated, or cloud-connected
• Cable length requirements and termination preferences

Our application engineers will provide one-on-one consultation including sensor configuration recommendations, mounting hardware selection, system wiring diagrams, and comprehensive project quotations within 24-48 hours.
