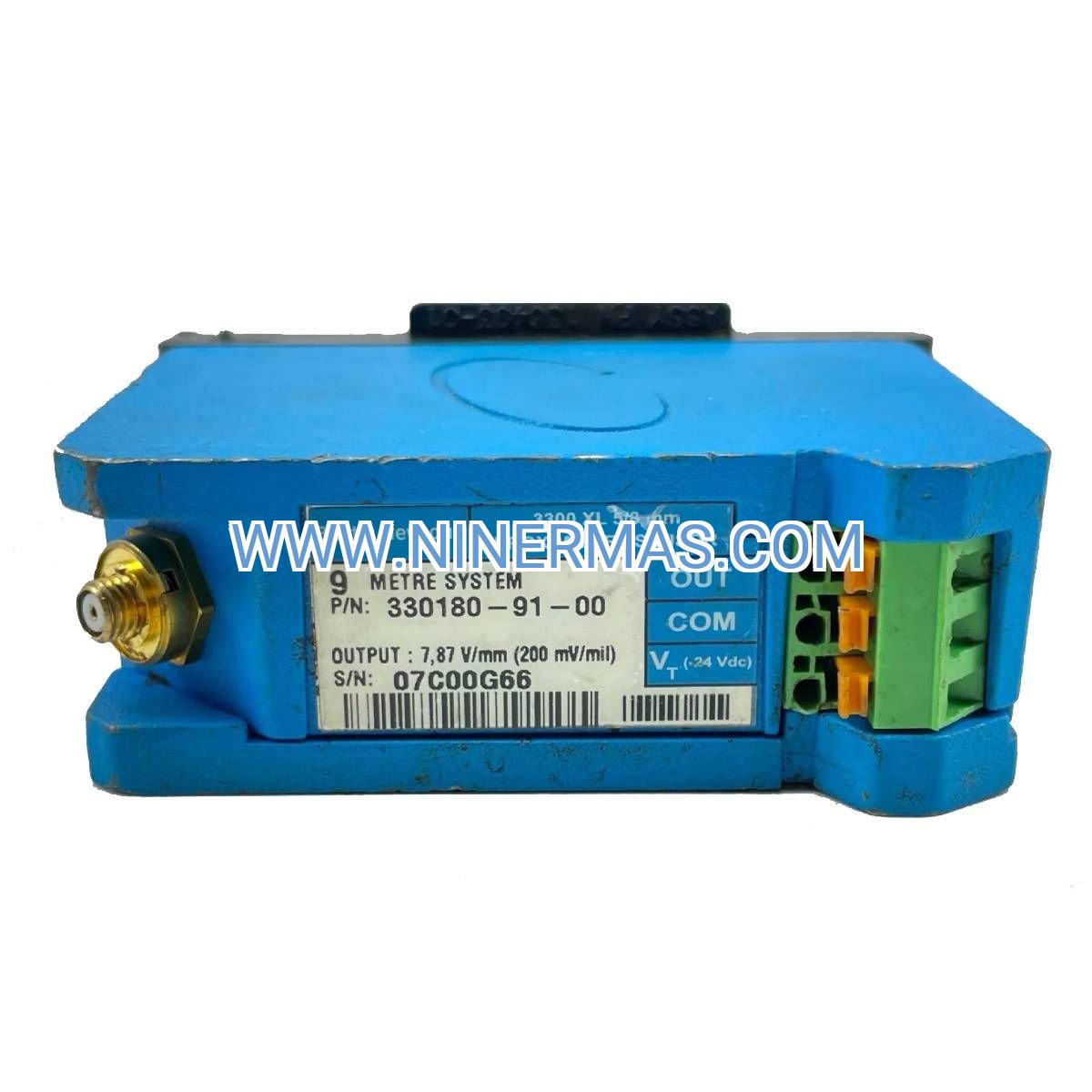

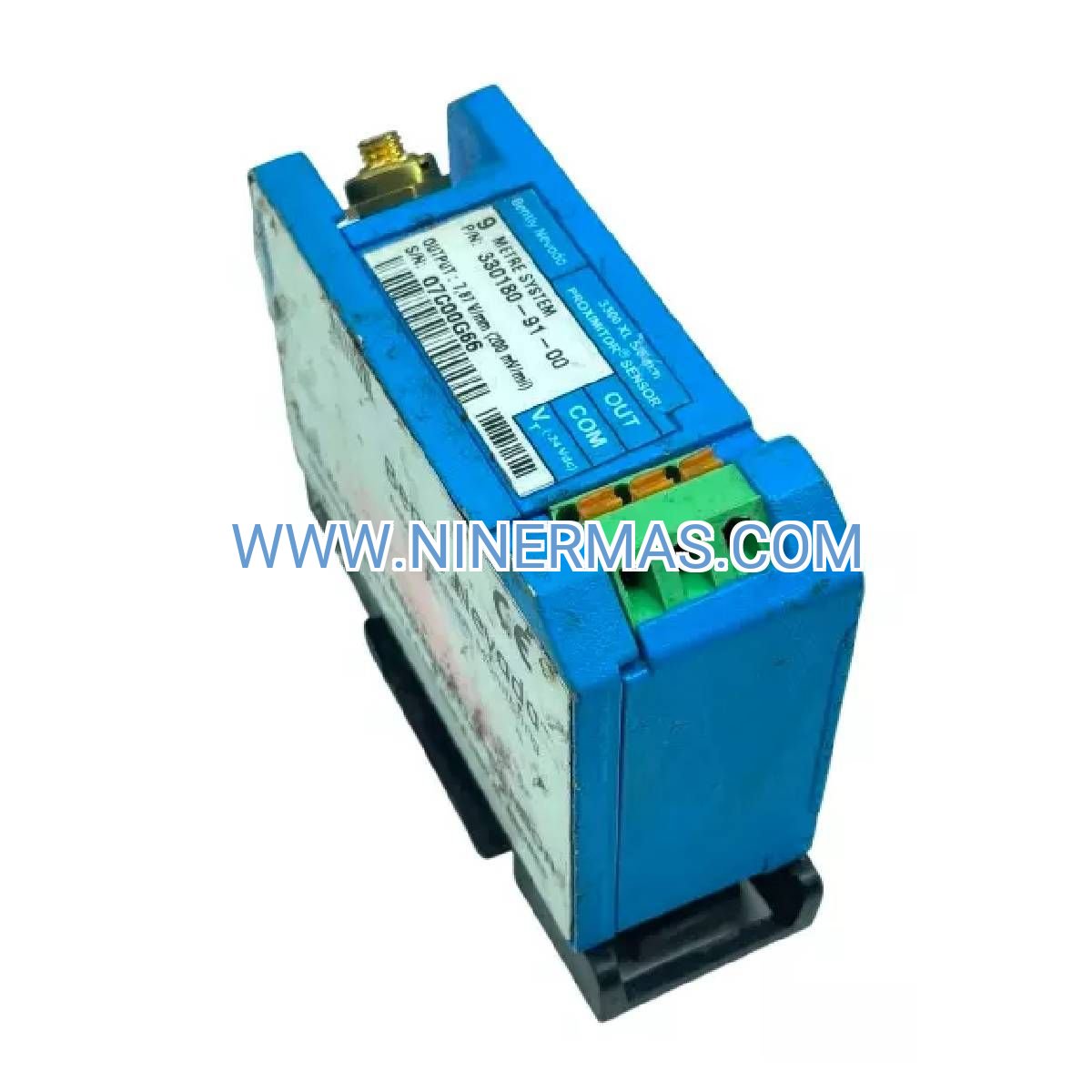

330180-91-00 Proximitor Sensor (Industrial-Grade Vibration Monitoring)

The 330180-91-00 represents a field-proven solution for non-contact displacement measurement in rotating equipment. Engineered with an 8mm sensing tip, this Proximitor probe delivers consistent performance across turbines, compressors, and critical rotating assets where shaft position accuracy directly impacts operational safety and equipment longevity.

Designed for facilities managing high-value turbomachinery, this sensor addresses the challenge of early fault detection in bearing assemblies, rotor dynamics, and axial thrust monitoring. Maintenance teams and reliability engineers rely on its stable output to prevent catastrophic failures and optimize predictive maintenance schedules.

Key differentiators include factory-matched calibration curves, wide frequency bandwidth up to 10 kHz, and proven compatibility with legacy 3300 XL monitoring infrastructure. The sensor's robust construction withstands temperatures from -40°C to +105°C, making it suitable for both arctic installations and high-temperature process environments.

Core Features & Benefits

✓ Precision 8mm Probe Design → Optimized for standard bearing clearances (0.25-0.50mm gaps), delivering linear response across the full measurement range while maintaining mechanical integrity in high-vibration zones

✓ Extended Frequency Response (DC to 10 kHz) → Captures both slow-roll baseline data and high-frequency bearing defect signatures, enabling comprehensive condition assessment from a single sensor point

✓ API 670 Compliance Architecture → Meets petroleum industry machinery protection standards for sensor performance, ensuring acceptance in refineries, LNG facilities, and offshore platforms

✓ EMI-Hardened Construction → Shielded cable design and grounded probe body reject electrical noise from VFDs, welding equipment, and high-voltage switchgear common in industrial plants

✓ Drop-In Replacement Capability → Interchangeable with OEM sensors using identical mounting threads (M8x1.0) and electrical specifications, minimizing retrofit engineering and downtime

✓ Temperature-Stable Performance → Maintains ±2% accuracy across -40°C to +105°C operating range, eliminating seasonal recalibration requirements in outdoor installations

Typical Application Scenarios

→ Steam Turbine Radial Vibration Monitoring
Power generation facilities install these sensors at bearing housings to track rotor eccentricity and detect rubs before blade damage occurs. The 8mm probe fits standard turbine bearing pedestals, while the 10 kHz bandwidth captures blade-pass frequencies for comprehensive diagnostics.

→ Centrifugal Compressor Thrust Position Tracking
Petrochemical plants use paired sensors to measure axial shaft movement in multi-stage compressors. Early detection of thrust bearing wear prevents rotor-to-stator contact, avoiding million-dollar repair costs and unplanned shutdowns.

→ Large Motor Shaft Alignment Verification
Cement mills and mining operations employ these probes during commissioning to verify coupling alignment and monitor thermal growth. The sensor's DC response tracks slow positional drift as equipment reaches operating temperature.

→ Gearbox Input/Output Shaft Monitoring
Wind turbines and industrial gearboxes benefit from continuous shaft position tracking to identify gear tooth wear patterns and bearing degradation. The probe's compact 8mm diameter allows installation in space-constrained gearbox housings.

→ Pump Impeller Clearance Control
High-energy pumps in pipeline and water treatment applications use these sensors to maintain optimal impeller-to-volute gaps, maximizing hydraulic efficiency while preventing contact damage during transient conditions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 8mm probe for bearing clearances between 0.25-0.50mm. For tighter clearances (0.15-0.30mm), consider the 5mm variant. Verify mounting thread compatibility with existing sensor brackets. Ensure extension cable length accounts for routing path from sensor to proximitor module without exceeding 9-meter total system length for optimal signal integrity.

Extended Functions

Dual-Channel Redundancy: Install in X-Y pairs for complete radial vibration vector analysis, enabling orbit plots and phase discrimination for unbalance vs. misalignment diagnosis.

DCS Integration: 4-20mA output from proximitor modules connects directly to distributed control systems, enabling automated shutdown logic and trend recording without additional signal conditioning.

Wireless Monitoring Compatibility: Pair with IIoT gateways supporting 4-20mA inputs to enable remote vibration monitoring and cloud-based analytics for multi-site asset management programs.

Customization Options: Available with extended cable lengths, high-temperature variants (up to 177°C), and explosion-proof certifications (ATEX/IECEx) for hazardous area installations upon request.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-direct orders requiring calibration documentation

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, calibration drift, and cable integrity issues

Technical Support: Application engineering assistance for sensor placement, gap voltage setup, and troubleshooting via email/phone during business hours (GMT+8)

Documentation Package: Includes calibration certificate, installation drawing with torque specifications, and wiring diagram for 3300 XL system integration

Frequently Asked Questions

What extension cable length should I specify for a 330180-91-00 installation 6 meters from the proximitor rack?
Use a 5-meter or 9-meter extension cable depending on routing constraints. Total system length (probe + extension) should not exceed 9 meters to maintain frequency response specifications. Always verify cable part numbers match 3300 XL series compatibility.

Can this sensor measure vibration on aluminum or stainless steel shafts?
The 330180-91-00 is optimized for ferrous (magnetic) targets like carbon steel or 4140 alloy. For non-ferrous shafts, you'll need recalibration or a specialized probe designed for low-conductivity materials. Contact our engineering team for material-specific recommendations.

How much energy savings can I expect from implementing vibration monitoring with these sensors?
While sensors don't directly reduce energy consumption, early fault detection prevents efficiency-degrading conditions like rotor rubs and bearing wear. Customers report 2-5% energy savings by maintaining optimal running clearances and avoiding degraded-mode operation.

What are the installation torque requirements to prevent probe damage?
Apply 5-7 Nm (45-60 in-lbs) torque to the M8 threads using a calibrated wrench. Over-torquing can crack the ceramic insulation; under-torquing allows vibration-induced loosening. Always use the lock washer provided and verify gap voltage after installation.

Does the 330180-91-00 support remote condition monitoring platforms?
Yes, when connected to a 3300 XL proximitor module with 4-20mA output, the signal integrates with SCADA systems, cloud historians, and predictive maintenance software. Many customers use these sensors as data sources for machine learning-based anomaly detection.

Are replacement sensors pre-calibrated or do they require field calibration?
Each unit ships with factory calibration matched to 4140 steel targets. For drop-in replacements, no field calibration is needed if target material and gap range match the original installation. Calibration certificates are included for quality assurance documentation.

Take the Next Step

Protect your critical rotating assets with proven vibration monitoring technology. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss sensor quantities, extension cable requirements, and integration support for your specific machinery configuration. Volume pricing available for multi-unit installations.
