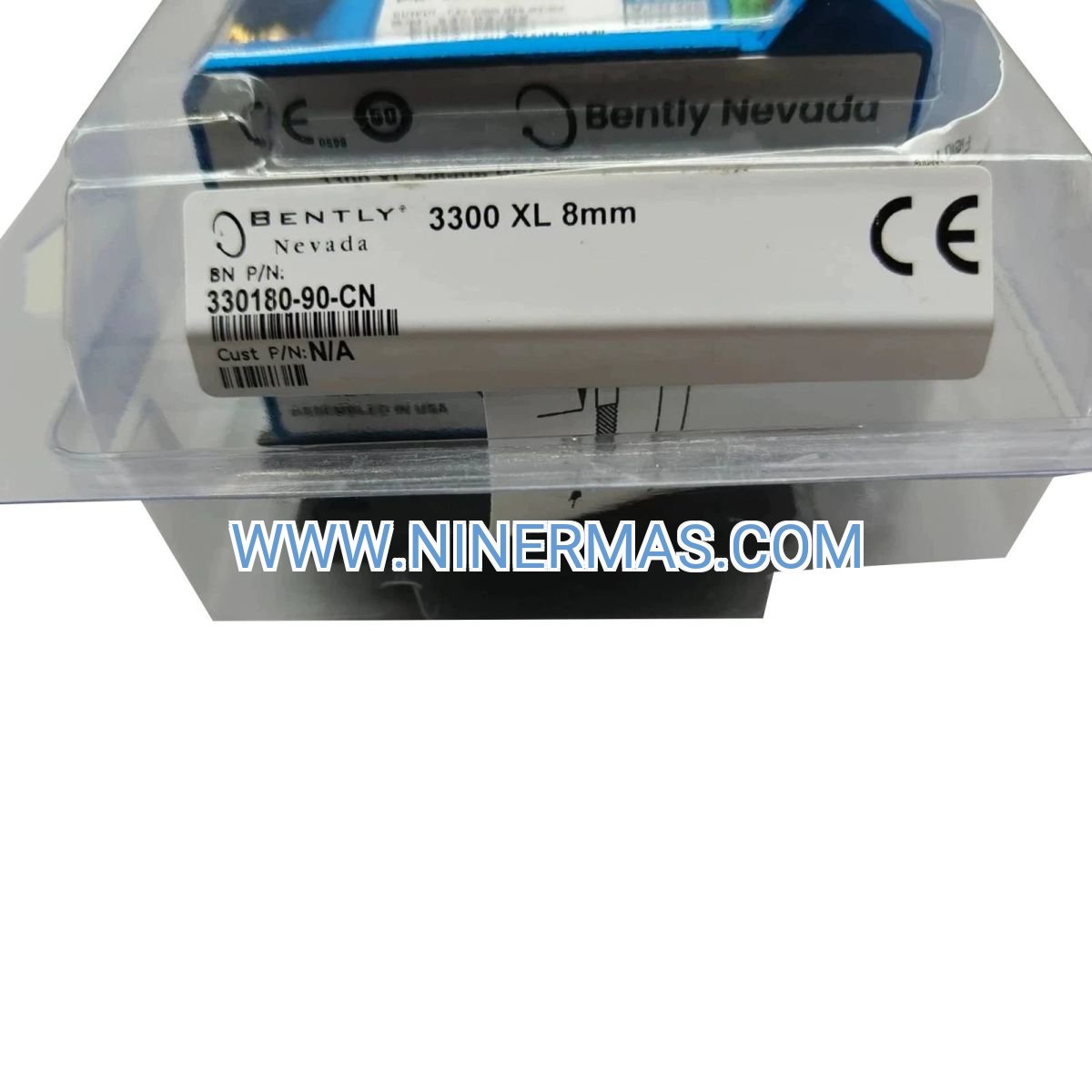

Bently Nevada 330180-90-CN Proximitor Sensor (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 330180-90-CN Proximitor Sensor is a precision non-contact eddy current proximity sensor designed for continuous shaft vibration and axial position monitoring in critical rotating machinery. Through advanced eddy current sensing technology and rugged stainless steel construction, this sensor delivers micron-level accuracy for real-time displacement measurement, enabling early fault detection and preventing catastrophic equipment failures.

Ideal for turbine monitoring, compressor surveillance, and pump protection applications across power generation, oil & gas, petrochemical, and heavy manufacturing industries. This sensor addresses common challenges including bearing wear detection, shaft eccentricity measurement, thrust position tracking, and rotor dynamic analysis—helping eliminate unplanned downtime, reduce maintenance costs, and extend equipment service life.

Built on the proven 3300 XL platform with standardized mounting and fully customizable cable configurations, the 330180-90-CN offers seamless integration with existing Bently Nevada monitoring systems, backward compatibility with legacy 3300 infrastructure, IP67 environmental protection, and drift-free long-term stability. Suitable for design engineers, instrumentation contractors, plant maintenance teams, and OEM integrators. Contact our application engineers for site-specific selection guidance and technical quotations.

Core Features & Advantages

Micron-Level Precision Measurement
Utilizes non-contact eddy current technology with 0 to 10 kHz frequency response, delivering high-resolution displacement data for early detection of bearing defects, shaft misalignment, and rotor imbalance before they escalate into critical failures.

Extreme Environment Durability
IP67-rated stainless steel housing withstands operating temperatures from -40°C to +85°C, resists moisture ingress, electromagnetic interference, and mechanical shock—ensuring reliable performance in the harshest industrial conditions including offshore platforms and desert installations.

Seamless System Integration
Fully compatible with Bently Nevada 3300 XL monitors, Proximitor extension cables (330130 series), and legacy 3300 systems, enabling cost-effective retrofits and phased upgrades without complete infrastructure replacement.

Long-Term Measurement Stability
Engineered for drift-free operation over years of continuous service, minimizing recalibration frequency and reducing total cost of ownership. Factory-calibrated with traceable documentation for quality assurance and compliance requirements.

Versatile Target Compatibility
Works with ferrous and non-ferrous conductive materials including steel, stainless steel, aluminum, brass, and copper targets. Calibration factors available for various target materials to ensure measurement accuracy across diverse applications.

Comprehensive Diagnostic Capability
Provides continuous gap voltage output (-2 to -18 Vdc) proportional to target distance, enabling not only vibration monitoring but also static position verification, thermal growth tracking, and machinery startup/shutdown analysis.

Typical Application Scenarios

This sensor is engineered for applications demanding high reliability, continuous monitoring, and precise displacement measurement, particularly in:

Power Generation Turbine Monitoring
Monitors steam turbine and gas turbine shaft vibration, thrust bearing position, and differential expansion in utility-scale power plants. Detects rotor rubs, blade loss, and bearing degradation to prevent forced outages and protect multi-million-dollar assets.

Oil & Gas Rotating Equipment Protection
Provides critical vibration surveillance for centrifugal compressors, pipeline pumps, and gas processing equipment in upstream, midstream, and downstream facilities. Ensures compliance with API 670 machinery protection standards and reduces HSE risks.

Petrochemical Process Machinery
Continuously monitors high-speed pumps, agitators, and centrifuges handling corrosive and hazardous fluids. Early fault detection prevents product contamination, environmental releases, and unplanned production interruptions in 24/7 continuous processes.

Heavy Industry Motor & Fan Systems
Tracks bearing clearances and shaft runout in large induction motors, induced draft fans, and forced draft blowers serving steel mills, cement plants, and mining operations. Extends bearing life and optimizes predictive maintenance scheduling.

Technical Specifications & Selection Guide

To facilitate engineering design and equipment selection, we provide comprehensive technical parameters for the 330180-90-CN sensor. Custom configurations available to match specific project requirements.

Selection Recommendations:
When specifying the 330180-90-CN sensor, consider the following parameters: target material composition and surface finish, required measurement range and resolution, ambient temperature and environmental conditions, available mounting space and thread compatibility, cable routing distance and EMI exposure, monitor system compatibility (3300 XL vs. legacy 3300), and safety integrity level requirements. For application-specific guidance, please provide machinery type, operating speed, bearing configuration, environmental conditions, and monitoring objectives. Our engineers will recommend optimal sensor placement, cable length, and system architecture.

System Integration & Compatibility

Monitor Compatibility: Fully compatible with Bently Nevada 3300 XL Proximitor monitors, 3300 NSv monitors, and legacy 3300 rack-mount systems. Supports both API 670 machinery protection and condition monitoring configurations.

Extension Cable Options: Use Bently Nevada 330130 series extension cables to maintain signal integrity and measurement accuracy. Available in standard lengths from 1m to 9m with custom lengths for special applications. Proper cable grounding and shielding essential for EMI rejection.

DCS/PLC Integration: Output signals can be interfaced with distributed control systems, programmable logic controllers, and SCADA platforms via 3300 XL monitor relay outputs, 4-20 mA transmitters, or Modbus/OPC communication modules.

Calibration & Commissioning: Factory-calibrated for standard steel targets. Field calibration kits available for non-standard target materials. Commissioning support includes gap voltage verification, runout compensation, and baseline vibration profiling.

Delivery, Service & Quality Assurance

Lead Time: Standard 330180-90-CN sensors typically ship within 3-5 business days from stock. Custom cable configurations and special certifications may require 10-15 business days. Expedited shipping available for critical outage support.

Warranty Coverage: All sensors include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for long-term projects and fleet deployments.

Technical Support: Our application engineering team provides pre-sale selection assistance, installation guidance, calibration procedures, and troubleshooting support. Remote diagnostics and on-site commissioning services available depending on location and project scope.

Documentation Package: Each sensor ships with complete technical documentation including product datasheet, installation instructions, calibration certificate, wiring diagrams, and dimensional drawings. Additional resources include application notes, case studies, and integration guides.

Quality Traceability: All products sourced through authorized channels with full traceability documentation. Certificates of conformity, material test reports, and calibration data available upon request for quality management and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 330180-90-CN Proximitor sensor integrate with existing vibration monitoring systems?
A: The 330180-90-CN connects directly to Bently Nevada 3300 XL Proximitor monitors via standard extension cables (330130 series). It maintains full backward compatibility with legacy 3300 systems, allowing seamless retrofits without monitor replacement. The sensor provides a -2 to -18 Vdc output signal that the monitor converts to engineering units (mils or microns) for display, trending, and alarm functions. Integration with DCS/SCADA systems is achieved through monitor relay outputs or analog transmitters.

Q: What is the maximum number of sensors that can be connected to a single monitoring system?
A: A standard 3300 XL eight-channel monitor can accept up to eight Proximitor sensors simultaneously, enabling comprehensive multi-point vibration monitoring on a single machine train. For larger installations such as turbine-generator sets, multiple monitors can be networked together. System architecture depends on the number of measurement points, required redundancy level, and safety integrity requirements.

Q: What level of vibration reduction or energy savings can be achieved with this monitoring solution?
A: While the sensor itself does not directly reduce vibration or save energy, it enables condition-based maintenance strategies that prevent catastrophic failures, optimize bearing replacement intervals, and detect efficiency-robbing issues like misalignment and imbalance. Facilities implementing comprehensive vibration monitoring typically report 25-40% reduction in unplanned downtime, 15-30% decrease in maintenance costs, and 5-15% improvement in equipment availability—translating to significant operational savings and production continuity.

Q: What are the installation environment requirements and protection rating for the 330180-90-CN sensor?
A: The sensor features IP67 environmental protection, making it suitable for outdoor installations, high-humidity environments, and areas with temporary water exposure. Operating temperature range is -40°C to +85°C, accommodating arctic conditions to desert climates. The stainless steel housing provides corrosion resistance for chemical processing and offshore applications. Avoid direct steam impingement, continuous submersion, and explosive atmosphere installations unless using intrinsically safe barriers.

Q: Does the sensor support remote monitoring, data acquisition, and communication protocols?
A: When paired with 3300 XL monitors equipped with communication modules, the system supports Modbus RTU, Modbus TCP/IP, and OPC connectivity for integration with plant-wide asset management platforms. Remote monitoring capabilities include real-time vibration trending, alarm notification, historical data logging, and predictive analytics. Some monitor configurations also support direct Ethernet connectivity and web-based dashboards for remote diagnostics and performance analysis.

Request Technical Consultation & Quotation

To receive detailed application engineering support, customized system recommendations, and competitive pricing, please provide the following information: project name and location, machinery type and operating parameters (speed, power, bearing type), number of measurement points and monitoring objectives, environmental conditions (temperature, humidity, hazardous area classification), existing monitoring infrastructure (if retrofit), required delivery timeline and budget constraints. Our technical sales team will respond within 24 hours with tailored solutions and comprehensive quotations.
