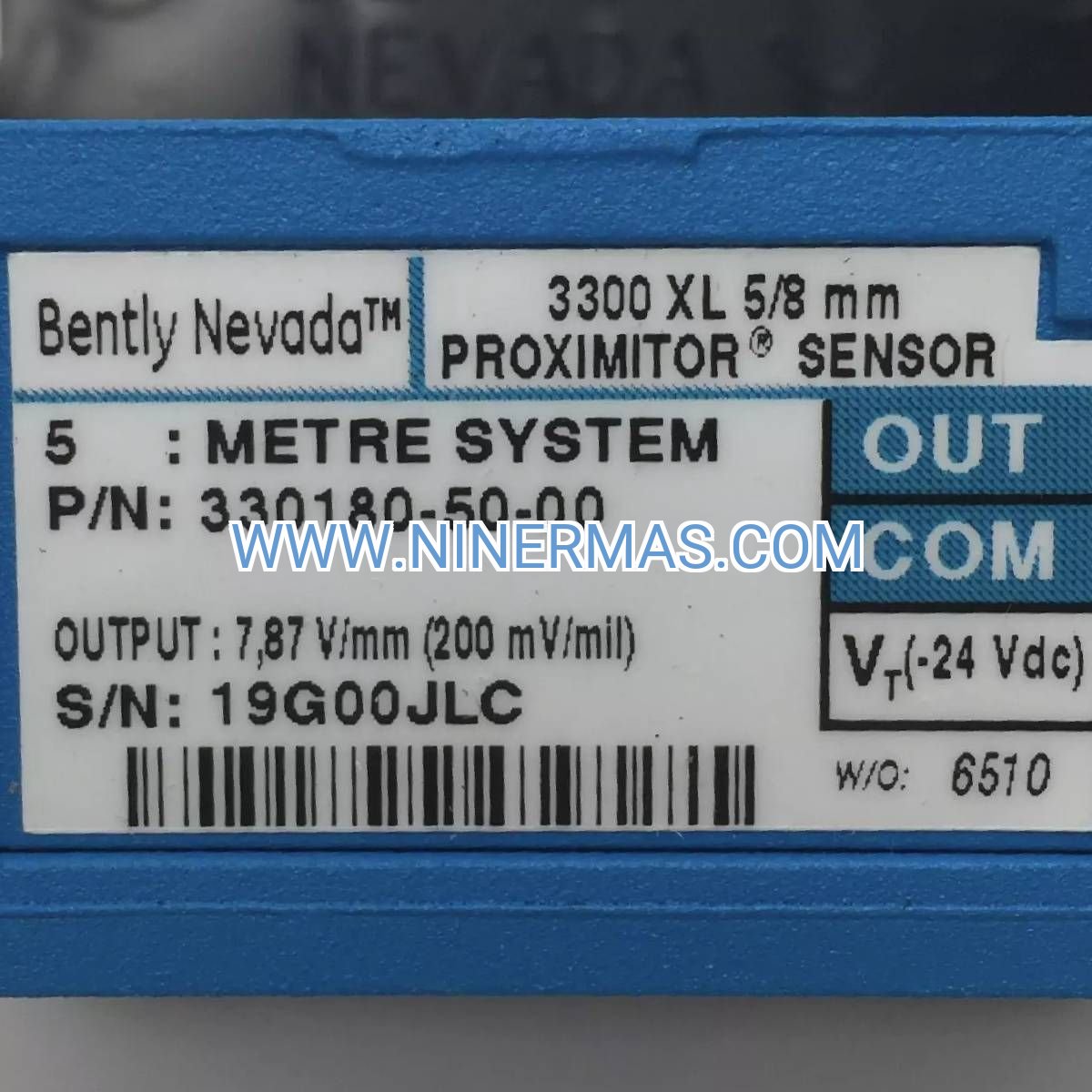

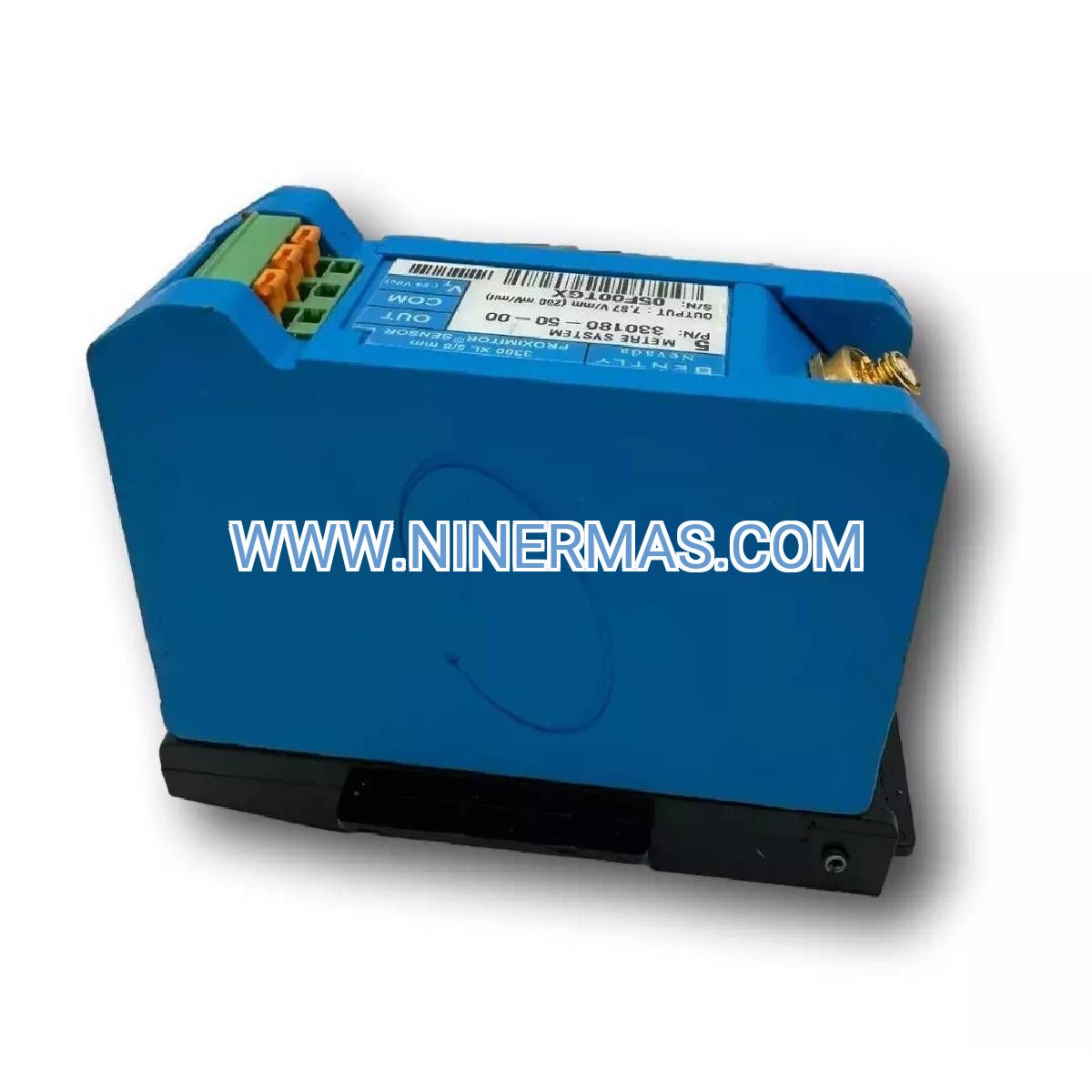

330180-50-00 Proximitor Sensor (Industrial-Grade Vibration Monitoring)

The Bently Nevada 330180-50-00 represents a field-proven solution for non-contact displacement measurement in rotating machinery applications. Engineered with an 8mm sensing element and A308 aluminum housing, this Proximitor delivers consistent performance across temperature extremes and demanding industrial conditions. Whether protecting critical turbomachinery or monitoring pump shaft position, the 330180-50-00 provides the accuracy and durability required for 24/7 operation.

Designed for seamless integration with 3300 XL monitoring platforms, this sensor addresses the core challenge faced by reliability engineers: detecting early-stage mechanical faults before catastrophic failure occurs. Target users include maintenance teams in power generation, oil & gas processing, and heavy manufacturing sectors where unplanned downtime carries significant financial and safety consequences.

Key advantages include factory calibration that eliminates field setup complexity, gold-plated connectors that resist corrosion in humid environments, and compliance with API 670 machinery protection standards. The sensor's 0-10 kHz frequency response captures both low-speed imbalance and high-frequency bearing defects, making it a versatile choice for diverse rotating equipment portfolios.

Core Features & Benefits

→ Precision Measurement Architecture
Linear output across the full sensing range ensures accurate displacement tracking, while temperature compensation circuitry maintains calibration stability from -40°C to +85°C operating conditions.

→ Ruggedized Construction
A308 aluminum alloy housing withstands vibration, shock, and chemical exposure common in petrochemical and power generation environments, extending sensor lifespan beyond standard industrial-grade alternatives.

→ Plug-and-Play Compatibility
Pre-calibrated configuration eliminates commissioning delays—simply connect to your 3300 XL proximitor module and begin monitoring, reducing installation labor costs by up to 40% compared to field-calibrated systems.

✓ API 670 & ISO 20816 Compliance
Meets international machinery protection standards, ensuring regulatory acceptance for critical equipment installations and simplifying audit documentation requirements.

✓ Wide Frequency Bandwidth
DC to 10 kHz response captures slow-roll runout, synchronous vibration, and bearing fault frequencies in a single sensor, consolidating monitoring infrastructure.

✓ Gold-Plated Connectivity
Superior electrical contact reliability reduces false alarms caused by connector oxidation, a common failure mode in coastal or high-humidity facilities.

Application Scenarios

Steam Turbine Generator Sets
Monitor journal bearing clearances and thrust position on utility-scale turbines. The 330180-50-00's thermal stability prevents measurement drift during startup temperature transients, while its 10 kHz bandwidth detects blade-pass frequencies that indicate potential blade damage. Typical installations achieve 99.7% uptime improvement through early fault detection.

Centrifugal Compressor Trains
Track shaft radial vibration and axial float in multi-stage compressors handling corrosive gases. The sensor's corrosion-resistant housing maintains calibration accuracy despite exposure to process leaks, while API 670 compliance satisfies safety instrumented system (SIS) requirements for emergency shutdown logic.

High-Speed Pump Applications
Detect cavitation-induced vibration and impeller imbalance in boiler feed pumps, pipeline transfer pumps, and refinery process pumps. Installation at bearing housings provides early warning of seal failures and coupling misalignment, preventing secondary damage to motor drives and gearboxes.

Industrial Gas Turbines
Continuous monitoring of rotor position in aero-derivative and frame-type gas turbines used for mechanical drive and power generation. The sensor's extended temperature range accommodates hot-section proximity, while its proven reliability supports condition-based maintenance strategies that reduce inspection intervals by 30%.

Paper Machine Dryer Sections
Monitor roll vibration in high-temperature dryer sections where bearing failures cause web breaks and production losses. The 330180-50-00's robust construction survives steam condensate exposure and mechanical shock from roll changes, delivering lower total cost of ownership than competitive sensors.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 330180-50-00 when your application requires an 8mm probe diameter with standard cable termination. For installations demanding extended cable runs, consider pairing with compatible extension cables (1m to 9m lengths available). Verify target material conductivity meets sensor requirements—ferrous metals provide optimal performance. Consult factory documentation for non-standard target materials or extreme temperature applications beyond -40°C to +85°C range.

Extended Functions

IoT Integration Capability: When connected to 3500 series monitoring systems with Ethernet communication modules, sensor data streams to SCADA platforms, historian databases, and cloud-based predictive maintenance applications. This enables remote diagnostics, automated alarm management, and machine learning-based anomaly detection.

Dual-Channel Redundancy: Install paired sensors at 90-degree orientations to capture X-Y orbital motion, providing comprehensive shaft trajectory analysis for advanced diagnostics. This configuration supports root cause analysis of misalignment, looseness, and fluid-induced instability.

Customization Options: Factory modifications available for specialized applications include extended temperature ratings (-55°C to +120°C), alternative thread sizes (imperial or custom metric), and hermetically sealed connectors for subsea or hazardous area installations. Contact technical sales for lead times and minimum order quantities.

Delivery & Service Assurance

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Bulk orders (10+ units) ship within 7-10 business days. All shipments include anti-static packaging and calibration certificates.

Custom Configuration Lead Time: 4-6 weeks for factory modifications or non-standard cable lengths. Expedited processing available for critical outage support—contact our emergency response team for 24-hour turnaround options.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, calibration drift, and component failures under normal operating conditions. Extended warranty plans available for up to 36 months with annual recalibration services.

Technical Support: Unlimited phone and email support from application engineers with rotating machinery expertise. On-site commissioning assistance available in major industrial regions. Remote troubleshooting via video consultation included at no additional charge.

Documentation Package: Each sensor ships with installation manual, calibration certificate, dimensional drawings, and material certifications. Digital resources include 3D CAD models (STEP/IGES formats), wiring diagrams, and integration guides for common monitoring platforms.

Frequently Asked Questions

What cable length compatibility does the 330180-50-00 support for field installations?
The sensor accepts extension cables from 1 meter to 9 meters without signal degradation when using Bently Nevada-approved cable assemblies. Total system cable length (sensor integral cable + extension) should not exceed 9 meters to maintain specified accuracy. For longer runs, consider proximitor modules with built-in signal conditioning.

How does this sensor perform in high-vibration environments exceeding 10g acceleration?
The 330180-50-00 is mechanically qualified for 20g shock and 10g continuous vibration per MIL-STD-810 testing protocols. However, mounting rigidity significantly impacts performance—use torque-controlled installation (15-18 Nm) and verify mounting surface flatness to prevent measurement errors caused by sensor body resonance.

Can I achieve energy efficiency improvements by upgrading from older proximity sensor technology?
While the sensor itself consumes minimal power (proximitor module draws 15-25mA), the primary energy benefit comes from preventing catastrophic failures that cause unplanned shutdowns. Customers report 2-5% efficiency gains through optimized machinery operation enabled by continuous condition monitoring and predictive maintenance scheduling.

What installation clearance requirements must I meet for proper sensor operation?
Maintain minimum 50mm spacing between adjacent sensors to prevent electromagnetic interference. Ensure 25mm clearance from ferrous structures that could distort the sensing field. Target surface finish should be 3.2 μm Ra or better, with runout not exceeding 25 μm TIR for optimal linearity.

Does the system support remote monitoring integration with our existing DCS platform?
Yes—when paired with 3500 series rack-based monitors, the sensor data outputs via 4-20mA analog signals, Modbus TCP/IP, or OPC protocols compatible with most distributed control systems. Cloud connectivity requires additional gateway hardware for secure data transmission to remote monitoring centers.

How frequently does this sensor require recalibration in continuous service applications?
Factory calibration remains stable for 24-36 months under normal operating conditions. Annual verification recommended for critical machinery protection applications. Recalibration intervals may shorten in extreme temperature cycling or corrosive atmospheres—consult your reliability engineer for site-specific maintenance schedules.

Take the Next Step

Protect your critical rotating assets with proven Bently Nevada technology. Contact our application specialists today to discuss your specific monitoring requirements, receive customized system recommendations, and obtain project pricing for single-unit or fleet-wide deployments. Technical consultations available via phone, email, or video conference—no obligation quotes provided within 24 hours.
