330141-08-15-02-00-00 Proximity Sensor (Industrial-Grade Vibration Monitoring)

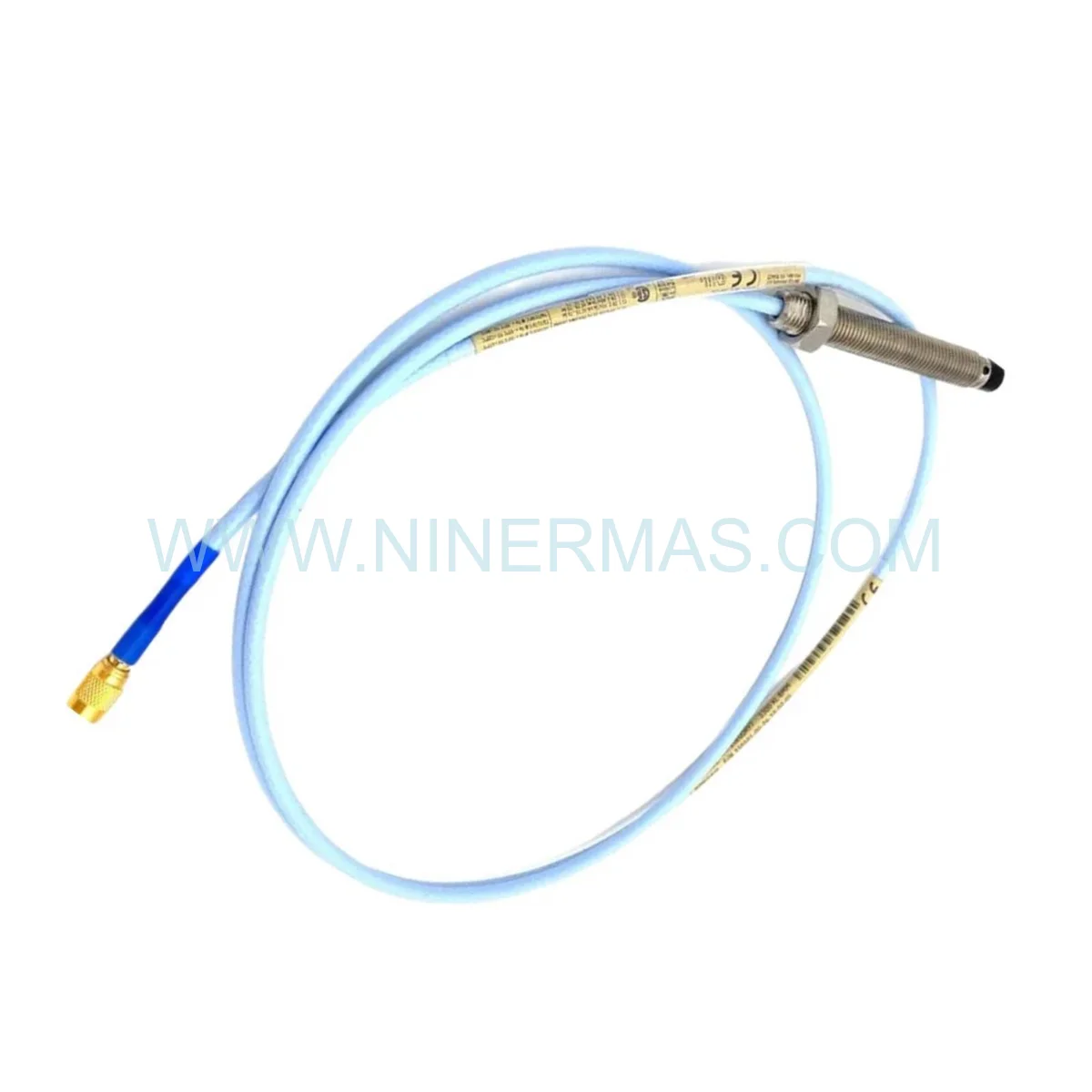

The Bently Nevada 330141-08-15-02-00-00 represents a precision-engineered 8mm eddy current proximity sensor designed for continuous shaft position and vibration measurement in critical rotating equipment. Engineered to API 670 machinery protection standards, this probe delivers reliable non-contact sensing across extreme temperature ranges and harsh industrial conditions.

Rotating machinery operators face constant challenges: unplanned downtime from bearing failures, catastrophic shaft damage from undetected vibration, and costly emergency repairs. This proximity probe addresses these pain points by providing early-warning detection of mechanical anomalies before they escalate into equipment failures. Ideal for turbomachinery engineers, maintenance teams, and condition monitoring specialists managing steam turbines, centrifugal compressors, and high-speed rotating assets.

Key differentiators include superior temperature stability (-40°C to +125°C), extended frequency response up to 10 kHz for high-speed applications, and rugged stainless steel construction that withstands corrosive environments. When integrated with 3300 XL Proximitor signal conditioners, this sensor forms a complete API-compliant monitoring solution trusted across power generation, oil & gas, and heavy manufacturing sectors.

Core Features & Benefits

→ Wide Temperature Performance: Operates reliably from -40°C to +125°C, eliminating sensor drift in extreme thermal cycling common in turbine casings and compressor housings.

→ High-Frequency Capability: 0-10 kHz bandwidth captures both low-speed imbalance and high-frequency bearing defects, providing comprehensive diagnostic data across the vibration spectrum.

→ Corrosion-Resistant Housing: Stainless steel body with integral armored cable resists chemical attack, moisture ingress, and mechanical abrasion in offshore platforms and chemical processing plants.

→ EMI/RFI Shielding: Advanced electromagnetic interference protection maintains signal integrity near VFDs, motors, and high-voltage switchgear without false triggering.

→ API 670 Certification: Meets stringent machinery protection system requirements for critical service applications, ensuring compliance with industry safety standards.

→ Linear Measurement Range: Consistent output across the full sensing distance minimizes calibration complexity and improves trending accuracy for predictive maintenance programs.

Application Scenarios

Steam Turbine Thrust Monitoring: Detects axial shaft movement in power generation turbines, preventing catastrophic thrust bearing failures that can cause $500K+ in emergency repairs and weeks of lost production.

Centrifugal Compressor Vibration Analysis: Monitors radial shaft displacement in gas compression trains, identifying rotor imbalance, misalignment, and bearing wear before efficiency degradation or unplanned shutdowns occur.

Petrochemical Pump Protection: Tracks shaft position in high-pressure process pumps, enabling automatic shutdown when vibration exceeds safe thresholds, protecting seals and preventing hazardous fluid releases.

Generator Rotor Eccentricity Measurement: Measures air gap variations in large generators, detecting rotor bow and thermal growth that can lead to stator rubs and insulation damage.

Industrial Fan Condition Monitoring: Provides continuous vibration surveillance in induced draft fans and forced draft blowers, reducing unplanned outages in cement kilns, steel mills, and power plants.

Technical Parameters & Selection Guide

Selection Criteria: Choose 8mm probes for shaft diameters above 50mm where higher vibration amplitudes are expected. For smaller shafts or limited radial clearance, consider 5mm alternatives. Verify target material conductivity—aluminum and non-ferrous metals require capacitive probe technology instead of eddy current sensing.

Extended Functions

System Integration Capabilities: Compatible with Bently Nevada 3500 rack-based monitoring systems and ADAPT software for centralized vibration analysis, trending, and alarm management across multi-unit facilities.

Remote Diagnostics: When paired with Ethernet-enabled proximitors, enables remote vibration monitoring via SCADA/DCS integration, reducing site visits and accelerating troubleshooting response times.

Customization Options: Available with alternative cable lengths (0.5m to 9m), special temperature ratings, and explosion-proof certifications (ATEX, IECEx) for hazardous area installations.

Delivery & Service Assurance

✓ Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for custom cable configurations
✓ Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship
✓ Technical Support: Lifetime application engineering assistance including installation guidance, calibration procedures, and troubleshooting diagnostics
✓ Documentation Package: Factory calibration certificate, installation manual, and system integration drawings included with every shipment

Frequently Asked Questions

How do I calibrate this proximity probe with my existing proximitor?
Calibration requires a micrometer stand, calibration target (4140 steel recommended), and compatible proximitor. Adjust the probe-to-target gap in 0.25mm increments from 0.5mm to 2.5mm while recording output voltage. Plot the voltage-vs-gap curve to verify linearity within ±5% across the measurement range.

What is the maximum shaft speed this sensor can monitor?
With 10 kHz bandwidth, the probe accurately tracks vibration up to 600,000 RPM (10,000 Hz). Practical limits depend on shaft surface finish and runout—consult API 670 guidelines for specific machinery types.

Can this probe detect bearing defects in early stages?
Yes. High-frequency response captures bearing fault signatures (BPFI, BPFO, BSF) typically between 500 Hz and 5 kHz. Combine with spectrum analysis to identify outer race defects, cage wear, and rolling element spalling before visible damage occurs.

What installation torque should I use for the M8 thread?
Apply 8-10 Nm (6-7 ft-lbs) torque to prevent thread damage while ensuring vibration-resistant mounting. Use anti-seize compound on threads exposed to high temperatures or corrosive atmospheres.

Is this probe suitable for vertical pump applications?
Absolutely. The sensor's orientation-independent design works equally well in horizontal, vertical, and angled installations. Ensure proper cable strain relief to prevent fatigue failures in high-vibration environments.

How does ambient temperature affect measurement accuracy?
Integral temperature compensation maintains ±2% accuracy across the full -40°C to +125°C range. For critical applications requiring ±1% precision, perform field calibration at operating temperature.

Take the Next Step

Protect your critical rotating assets with proven vibration monitoring technology. Contact our application engineers for system design assistance, compatibility verification, or technical specifications tailored to your machinery configuration.
