8mm Proximity Probe for Industrial Vibration Monitoring (3300 XL Compatible)

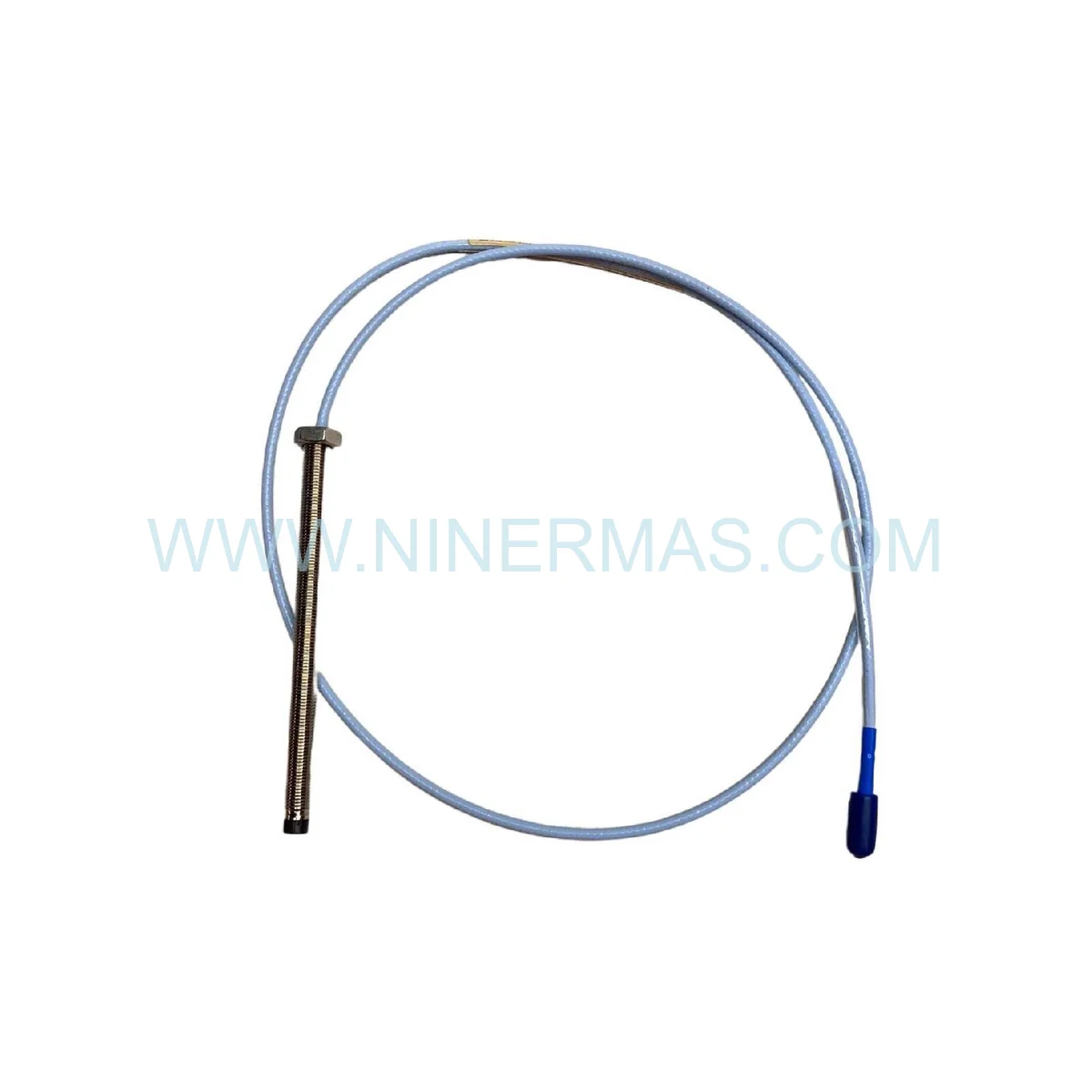

The Bently Nevada 330141-08-15-01-00-00 is an industrial-grade 8mm proximity probe engineered for non-contact vibration and displacement measurement in critical rotating machinery. Utilizing eddy current sensing technology with 3300 XL system integration, this probe delivers precise shaft position tracking, radial vibration analysis, and axial displacement monitoring to prevent unplanned downtime and extend equipment lifespan.

Designed for high-reliability applications in power generation, oil & gas processing, and heavy manufacturing environments, this probe addresses common challenges including bearing wear detection, rotor imbalance identification, shaft misalignment diagnosis, and thermal growth measurement. It serves turbine operators, maintenance engineers, reliability teams, and condition monitoring specialists who require continuous machinery health surveillance.

Through proven sensor design and field-tested durability, the 330141-08-15-01-00-00 offers wide temperature tolerance (-40°C to +125°C), robust construction for harsh industrial environments, seamless 3300 XL system compatibility, and straightforward installation with standard 5/8-18 UNF threading. Ideal for OEMs, system integrators, plant maintenance departments, and engineering consultants. Contact our application engineers for system configuration guidance and technical specifications tailored to your monitoring requirements.

Core Features & Technical Advantages

• Non-Contact Eddy Current Sensing
  Eliminates mechanical wear through electromagnetic measurement principle, providing long-term stability without probe degradation. Ideal for continuous monitoring applications where sensor replacement downtime is costly.
• Wide Operating Temperature Range
  Functions reliably from -40°C to +125°C, accommodating extreme thermal conditions in steam turbines, gas compressors, and cryogenic pump applications without signal drift or calibration loss.
• Precision 8mm Sensing Element
  Optimized probe diameter balances sensitivity and installation flexibility, suitable for standard shaft monitoring applications while maintaining high signal-to-noise ratio for accurate vibration amplitude measurement.
• 3300 XL System Integration
  Direct compatibility with Bently Nevada 3300 XL Proximitor sensors and extension cables ensures plug-and-play installation, eliminating compatibility concerns and reducing commissioning time by up to 40%.
• Industrial-Grade Construction
  Stainless steel housing with hermetically sealed electronics protects against moisture ingress, chemical exposure, and mechanical shock—meeting the demands of petrochemical, marine, and mining environments.
• Standardized Mounting Interface
  5/8-18 UNF-2A thread design allows installation in industry-standard probe mounting brackets and machine casings, with adjustable gap setting for precise target distance calibration (typically 40-80 mils).

Typical Application Scenarios

This proximity probe is engineered for installations demanding high measurement accuracy, environmental resilience, and long-term reliability, particularly in:

• Steam & Gas Turbine Monitoring
  Tracks journal bearing vibration, thrust position, and differential expansion in power generation turbines operating at 3,000-3,600 RPM. Enables early detection of rub conditions, oil whirl, and blade passing frequency anomalies before catastrophic failure occurs.
• Centrifugal Compressor Surveillance
  Monitors shaft radial displacement and axial position in multi-stage compressors handling natural gas, air, or process gases. Critical for surge detection, magnetic bearing control feedback, and API 670 compliance in upstream oil & gas facilities.
• Large Motor & Generator Protection
  Provides continuous vibration trending for motors above 500 HP and generators in combined-cycle plants. Detects rotor eccentricity, coupling misalignment, and foundation settling that lead to bearing damage and winding insulation failure.
• Pump & Fan Condition Monitoring
  Supports predictive maintenance programs for boiler feed pumps, cooling tower fans, and process circulation pumps. Identifies cavitation, impeller imbalance, and seal wear through vibration signature analysis, reducing maintenance costs by 25-35%.
• Paper Mill & Steel Rolling Equipment
  Measures roll position and vibration in high-speed paper machines and continuous casting systems where product quality depends on precise shaft control. Prevents web breaks and surface defects caused by mechanical instability.

Technical Specifications & Selection Guide

To ensure optimal performance and compatibility with your monitoring system, review the following specifications. Custom configurations available for specialized applications—consult with our engineering team for project-specific requirements.

Selection Considerations

When specifying proximity probes for your monitoring system, evaluate these critical factors: shaft material composition (ferrous vs. non-ferrous affects sensitivity), available mounting space (probe length and diameter clearance), operating temperature extremes (ambient and process-induced), extension cable routing distance (affects total system length limits), and existing Proximitor sensor model (verify 3300 XL compatibility). For applications involving non-standard shaft materials, high-vibration environments, or API 670 compliance requirements, provide detailed operating parameters to our application engineers for customized probe selection and calibration recommendations.

System Integration & Accessories

Complete vibration monitoring installations require coordinated component selection:

• Extension Cables: 3300 XL extension cables in lengths from 1m to 9m connect probe to Proximitor sensor. Select length based on machine layout and cable routing constraints—total system length (probe + extension) must not exceed Proximitor specifications.
• Proximitor Sensors: 3300 XL Proximitor modules (330180 series) provide -24 VDC excitation, signal conditioning, and buffered outputs for DCS/PLC integration. Match Proximitor model to probe specifications for optimal linearity.
• Mounting Hardware: Probe mounting brackets, lock nuts, and adjustment shims ensure secure installation and precise gap setting. Stainless steel hardware recommended for corrosive environments.
• Calibration Equipment: Gap voltage calibration performed using target material samples and digital multimeter. Factory calibration data provided with each probe for verification purposes.

Delivery, Warranty & Technical Support

Lead Time: Standard catalog items ship within 3-5 business days from stock. Custom configurations or bulk orders require 10-15 business days for quality verification and testing.

Warranty Coverage: Each proximity probe includes a comprehensive 12-month manufacturer warranty covering material defects and workmanship failures under normal operating conditions. Warranty excludes damage from improper installation, electrical overstress, or mechanical abuse.

Technical Assistance: Our application engineering team provides pre-sale consultation for system design, installation guidance including gap setting procedures, troubleshooting support for signal quality issues, and replacement part cross-referencing. Remote diagnostic support available via phone and email—on-site commissioning services offered for large-scale projects (regional availability applies).

Documentation Package: Every shipment includes probe dimensional drawings, electrical connection diagrams, gap voltage calibration curves, installation best practices guide, and compatibility matrix for 3300 XL system components. Digital copies available for download upon request.

Frequently Asked Questions

Q: How do I determine the correct extension cable length for my 330141-08-15-01-00-00 proximity probe installation?
A: Measure the physical distance from your probe mounting location to the Proximitor sensor panel location, adding 10-15% for cable routing flexibility and strain relief loops. Verify that total system length (probe + extension cable) does not exceed the maximum specified for your Proximitor model—typically 9 meters for most 3300 XL configurations. Longer distances may require signal repeaters or alternative sensor technologies.

Q: Can this 8mm probe be used with older 3300 series (non-XL) monitoring systems?
A: The 330141-08-15-01-00-00 is specifically engineered for 3300 XL system architecture and may not provide optimal performance with legacy 3300 (non-XL) Proximitor sensors due to impedance and frequency response differences. For retrofits or upgrades, consult compatibility documentation or contact technical support to verify sensor matching—in many cases, upgrading to 3300 XL Proximitors is recommended for best results.

Q: What is the expected measurement accuracy when monitoring non-ferrous target materials like aluminum or stainless steel?
A: While this probe is optimized for ferrous (magnetic) materials such as carbon steel and cast iron, it can measure non-ferrous targets with reduced sensitivity—typically 30-50% lower output voltage. Non-ferrous applications require material-specific calibration using actual shaft samples to generate accurate gap voltage curves. For critical non-ferrous monitoring, consider probes specifically designed for non-magnetic materials or consult our engineering team for alternative sensor recommendations.

Q: How often should proximity probes be replaced in continuous monitoring applications?
A: Proximity probes have no moving parts and typically provide 10-15 years of reliable service in properly maintained installations. Replacement is generally driven by cable damage, connector corrosion, or system upgrades rather than probe wear. Implement annual gap voltage verification checks to detect gradual drift—readings outside ±5% of baseline calibration values may indicate probe degradation or target surface contamination requiring investigation.

Q: Does this probe support remote condition monitoring and wireless data transmission?
A: The 330141-08-15-01-00-00 probe outputs analog signals to 3300 XL Proximitor sensors, which provide buffered outputs for integration with DCS, PLC, or dedicated vibration monitoring systems. Wireless transmission requires downstream equipment such as wireless I/O modules or cloud-connected vibration analyzers that accept 4-20mA or voltage inputs. Many modern condition monitoring platforms (e.g., Bently Nevada System 1, SKF @ptitude) support wireless gateways for remote data access—consult your monitoring system vendor for wireless integration options.

Q: What installation precautions prevent electrical noise interference in proximity probe signals?
A: Maintain proper grounding of probe mounting brackets and machine frames, route extension cables in dedicated conduit separated from power cables (minimum 12-inch spacing), avoid cable runs parallel to VFD output or high-current conductors, use shielded extension cables with 360-degree shield termination at the Proximitor sensor, and verify that probe tip-to-target gap remains within calibrated range (40-80 mils) to maximize signal strength relative to noise. For installations near high-EMI sources, consider additional shielding or fiber-optic signal transmission systems.

Request Technical Consultation & Quotation

For detailed system design assistance, application-specific probe selection, or project quotations, please provide the following information to our engineering team:

• Project name and application description (e.g., "Steam turbine vibration monitoring upgrade")
• Machinery type, operating speed (RPM), and shaft diameter
• Number of measurement points and probe quantity required
• Existing monitoring system details (if retrofit/expansion project)
• Environmental conditions: temperature range, humidity, chemical exposure
• Cable routing distance from probe to control room/junction box
• Delivery timeline and installation support requirements

Our application engineers will respond within 24 hours with customized recommendations, system architecture diagrams, and competitive pricing tailored to your monitoring objectives.
